Dewalt DW321 Type 2 Jigsaw Spare Parts

Home Details Reviews Delivery

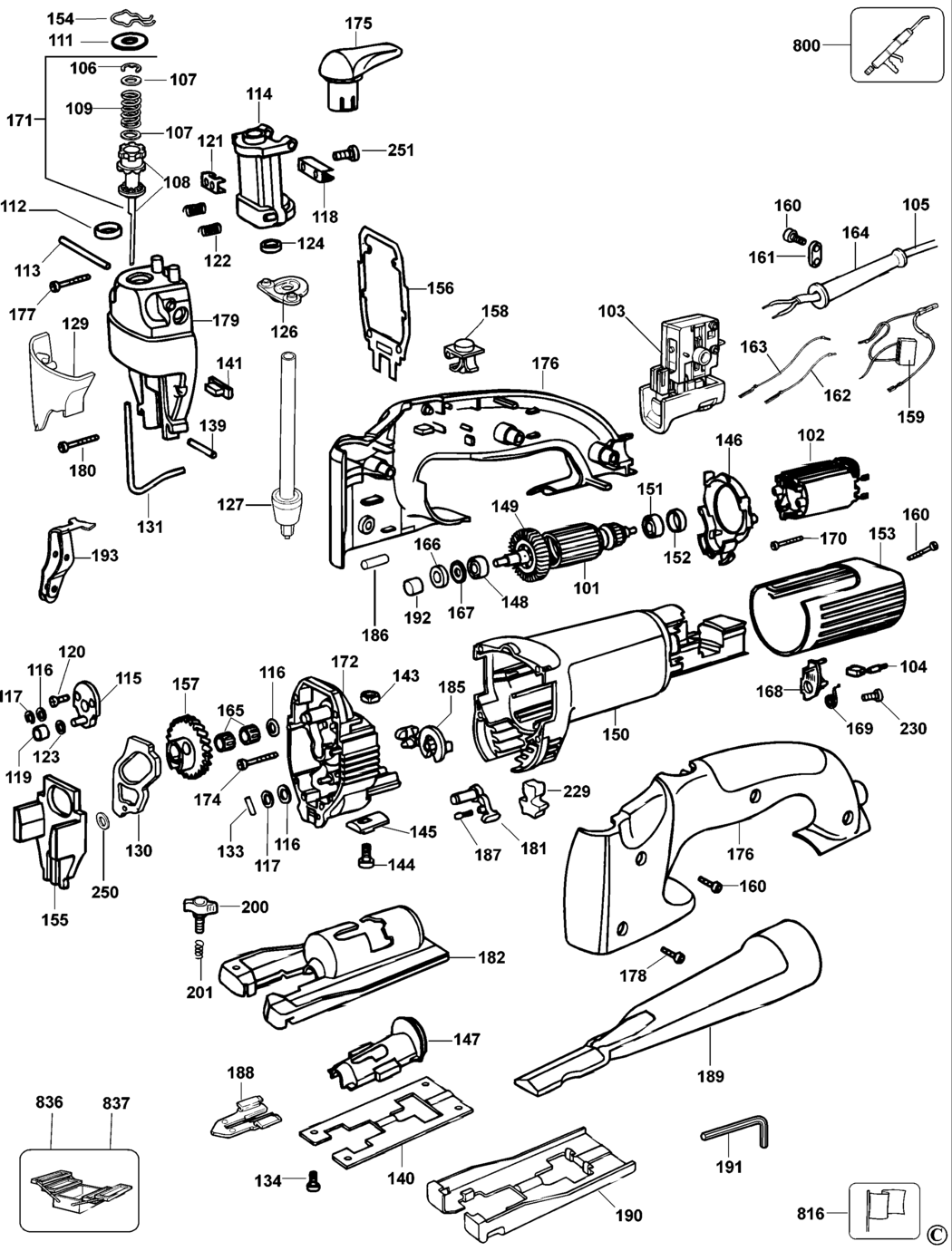

An exploded drawing and spare parts listing for the Dewalt DW321 Type 2 Jigsaw

	Ex VAT	Inc VAT
101 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A19190 000000-00	-
101 - NO LONGER AVAILABLE QS BDE-000000-00.A19191 000000-00	-
101 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A19192 000000-00	-
102 - NO LONGER AVAILABLE QS BDE-000000-00.A19193 000000-00	-
102 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A19194 000000-00	-
102 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A19195 000000-00	-
103 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A19196 000000-00	-
103 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A19197 000000-00	-
103 - NO LONGER AVAILABLE QS BDE-000000-00.A19198 000000-00	-
104 - BRUSH 115-120V GB 115V BDE-930897-00.A6 930897-00	-
104 - BRUSH CUT OFF QS BDE-939539-01.A91 939539-01	£2.87	£3.44
104 - BRUSH CUT OFF GB 240V BDE-939539-01.A92 939539-01	£2.87	£3.44
105 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A19199 000000-00	-
105 - NO LONGER AVAILABLE QS BDE-000000-00.A19200 000000-00	-
105 - CORDSET (M/PLUG) GB 115V BDE-330061-04.A15 330061-04	£12.53	£15.04
106 - CIRCLIP BDE-860322-01.A34 860322-01	£1.66	£1.99
107 - WASHER BDE-388957-00.A0 388957-00	£1.66	£1.99
108 - CLUTCH SA BDE-402960-00.A3 402960-00	£24.39	£29.27
109 - SPRING BDE-402110-00.A2 402110-00	-
111 - WASHER BDE-949876-21.A7 949876-21	£1.66	£1.99
112 - NO LONGER AVAILABLE BDE-000000-00.A19203 000000-00	-
113 - NO LONGER AVAILABLE BDE-000000-00.A19204 000000-00	-
114 - NO LONGER AVAILABLE BDE-000000-00.A19205 000000-00	-
115 - ECCENTRIC SA BDE-402161-00SV.A27 402161-00SV	-
116 - WASHER BDE-932302-00.A42 932302-00	£1.66	£1.99
117 - CIRCLIP BDE-949728-04.A27 949728-04	-
118 - YOKE BDE-402118-00.A28 402118-00	-
119 - BUSH BDE-402155-00.A28 402155-00	£14.19	£17.03
120 - SCREW TORX BDE-N056875.A13 N056875	£1.66	£1.99
121 - CLAMP BDE-399146-00.A8 399146-00	£1.82	£2.19
122 - NO LONGER AVAILABLE BDE-000000-00.A19211 000000-00	-
123 - WASHER BDE-949876-20.A18 949876-20	-
124 - NO LONGER AVAILABLE BDE-000000-00.A19206 000000-00	-
126 - NO LONGER AVAILABLE BDE-000000-00.A19207 000000-00	-
127 - NO LONGER AVAILABLE BDE-000000-00.A19208 000000-00	-
129 - NO LONGER AVAILABLE BDE-000000-00.A19209 000000-00	-
130 - NO LONGER AVAILABLE BDE-000000-00.A19210 000000-00	-
131 - GUARD BDE-402116-00.A1 402116-00	£3.70	£4.44
133 - PIN BDE-330041-08.A2 330041-08	-
134 - SCREW TORX FROM DC 9913 BDE-N056875.A14 N056875	£1.66	£1.99
134 - SCREW.TEMP UPTO DC 9912 BDE-945121-00.A1 945121-00	£1.66	£1.99
139 - PIN BDE-330041-29.A19 330041-29	£1.66	£1.99
140 - NO LONGER AVAILABLE BDE-000000-00.A19218 000000-00	-
141 - NO LONGER AVAILABLE BDE-000000-00.A19219 000000-00	-
143 - NO LONGER AVAILABLE BDE-000000-00.A19220 000000-00	-
144 - NO LONGER AVAILABLE BDE-000000-00.A19221 000000-00	-
145 - PLATE BDE-402652-00.A7 402652-00	-
146 - NO LONGER AVAILABLE FROM DC-9934 BDE-000000-00.A19212 000000-00	-
146 - NO LONGER AVAILABLE UPTO DC 9933 BDE-000000-00.A19213 000000-00	-
147 - NO LONGER AVAILABLE BDE-000000-00.A19214 000000-00	-
148 - NO LONGER AVAILABLE BDE-000000-00.A19215 000000-00	-
149 - NO LONGER AVAILABLE BDE-000000-00.A19216 000000-00	-
150 - NO LONGER AVAILABLE BDE-000000-00.A19217 000000-00	-
151 - BEARING BDE-330003-56.A5 330003-56	£7.18	£8.62
152 - HOLDER BEARING BDE-930029-00.A39 930029-00	£1.66	£1.99
153 - NO LONGER AVAILABLE BDE-000000-00.A19222 000000-00	-
154 - SPRING BDE-402111-00.A17 402111-00	-
155 - NO LONGER AVAILABLE BDE-000000-00.A19223 000000-00	-
156 - NO LONGER AVAILABLE BDE-000000-00.A19224 000000-00	-
157 - GEAR SA BDE-611147-00.A7 611147-00	£17.48	£20.97
158 - NO LONGER AVAILABLE BDE-000000-00.A52182 000000-00	-
159 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A52183 000000-00	-
159 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A52184 000000-00	-
159 - NO LONGER AVAILABLE QS BDE-000000-00.A52185 000000-00	-
160 - SCREW BDE-330065-08.A99 330065-08	£1.66	£1.99
161 - CORD CLAMP BDE-935616-00.A27 935616-00	-
162 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A52186 000000-00	-
162 - NO LONGER AVAILABLE QS BDE-000000-00.A52187 000000-00	-
162 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A52188 000000-00	-
163 - NO LONGER AVAILABLE QS BDE-000000-00.A52189 000000-00	-
163 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A52190 000000-00	-
163 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A52191 000000-00	-
164 - CORD PROTECTOR BDE-N542553.A99 N542553	£3.92	£4.70
165 - NO LONGER AVAILABLE BDE-000000-00.A52192 000000-00	-
166 - NO LONGER AVAILABLE BDE-000000-00.A52193 000000-00	-
167 - NO LONGER AVAILABLE BDE-000000-00.A52194 000000-00	-
168 - BRUSH HOLDER SA BDE-949880-05.A6 949880-05	-
169 - BRUSH SPRING BDE-930090-00.A148 930090-00	-
170 - SCREW BDE-330019-02.A130 330019-02	£1.66	£1.99
171 - CLUTCH SA BDE-402158-03.A5 402158-03	-
172 - NO LONGER AVAILABLE BDE-000000-00.A52196 000000-00	-
174 - SCREW BDE-930079-01.A91 930079-01	£1.66	£1.99
175 - NO LONGER AVAILABLE BDE-000000-00.A52197 000000-00	-
176 - NO LONGER AVAILABLE BDE-000000-00.A52198 000000-00	-
177 - SCREW BDE-330045-09.A1 330045-09	£1.66	£1.99
178 - SCREW.TEMP BDE-330045-04.A23 330045-04	£1.66	£1.99
179 - NO LONGER AVAILABLE BDE-000000-00.A52199 000000-00	-
180 - SCREW BDE-930082-01.A47 930082-01	£1.66	£1.99
181 - NO LONGER AVAILABLE BDE-000000-00.A52200 000000-00	-
182 - NO LONGER AVAILABLE BDE-000000-00.A52201 000000-00	-
185 - NO LONGER AVAILABLE FROM DC-9934 BDE-000000-00.A52202 000000-00	-
186 - NO LONGER AVAILABLE BDE-000000-00.A52203 000000-00	-
187 - DETENT BDE-326467-00.A121 326467-00	£1.66	£1.99
188 - ANTI SPLINTER DEVICE BDE-402140-00.A23 402140-00	£1.88	£2.26
189 - TUBE BDE-402138-00.A9 402138-00	-
190 - NO LONGER AVAILABLE BDE-000000-00.A52204 000000-00	-
191 - HEX KEY 5 MM BDE-930574-00.A57 930574-00	£1.66	£1.99
192 - NO LONGER AVAILABLE BDE-000000-00.A52205 000000-00	-
193 - NO LONGER AVAILABLE BDE-000000-00.A52206 000000-00	-
200 - KNOB BDE-025922908.A131 025922908	-
201 - SPRING BDE-868082-00.A34 868082-00	£1.66	£1.99
229 - NO LONGER AVAILABLE BDE-000000-00.A52216 000000-00	-
230 - SCREW BDE-330065-06.A86 330065-06	£1.66	£1.99
250 - NO LONGER AVAILABLE BDE-000000-00.A52214 000000-00	-
251 - NO LONGER AVAILABLE BDE-000000-00.A52215 000000-00	-
800 - GREASE 90 GMS BDE-870889-02.A233 870889-02	£8.08	£9.70
816 - BRAND LABEL BDE-946194-00.A37 946194-00	£1.66	£1.99
836 - NO LONGER AVAILABLE BDE-000000-00.A52207 000000-00	-
837 - NO LONGER AVAILABLE BDE-000000-00.A52208 000000-00	-

Attribute Name	Value
Brand	Dewalt
