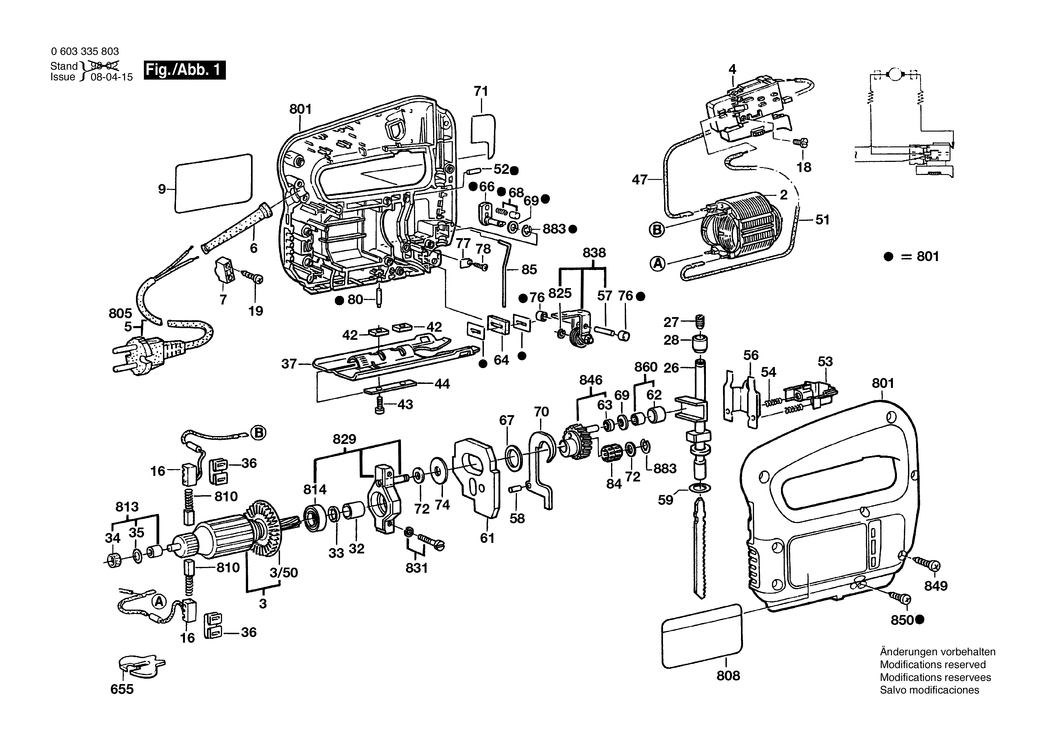

2 - FIELD 230-240V
BSD-2604220612.A3
2604220612
|
-
|
|
|
|
3 - ARMATURE 230-240V
BSD-2604011185.A2
2604011185
|
-
|
|
|
|
3/50 - FAN
BSD-2606610022.A156
2606610022
|
£4.26
|
£5.11
|
|
|
4 - ON-OFF SWITCH
BSD-2607200581.A1
2607200581
|
£25.05
|
£30.06
|
|
|
5 - POWER SUPPLY CORD I/BR 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460277.A0
2604460277
|
£12.64
|
£15.17
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A115
2600703007
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119587.A2
2601119587
|
-
|
|
|
|
16 - BRUSH HOLDER
BSD-2604465077.A2
2604465077
|
-
|
|
|
|
18 - CROSS RECESSED-HEAD SCREW M3x5
BSD-2603410046.A148
2603410046
|
£2.27
|
£2.72
|
|
|
26 - LIFTING ROD
BSD-2600780038.A24
2600780038
|
-
|
|
|
|
27 - CLAMP SCREW
BSD-2603400000.A231
2603400000
|
£4.26
|
£5.11
|
|
|
28 - SINTERED-METAL BUSHING
BSD-2600302006.A35
2600302006
|
-
|
|
|
|
32 - GUIDE SLEEVE
BSD-2600400024.A96
2600400024
|
£2.94
|
£3.53
|
|
|
33 - SUPPORTING DISC
BSD-2600103013.A1
2600103013
|
£1.32
|
£1.58
|
|
|
34 - FELT WASHER
BSD-1600205023.A28
1600205023
|
£1.38
|
£1.66
|
|
|
35 - O-RING 8.0x2.5 MM
BSD-1610210014.A314
1610210014
|
-
|
|
|
|
36 - HOLDING SPRING
BSD-1619P09928.A65
1619P09928
|
£1.75
|
£2.10
|
|
|
37 - BASE PLATE
BSD-2601016012.A97
2601016012
|
£9.11
|
£10.93
|
|
|
42 - FIXING PLATE
BSD-2601030006.A14
2601030006
|
-
|
|
|
|
43 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A716
2910021122
|
£2.27
|
£2.72
|
|
|
44 - PROFILE BEADING
BSD-2602317025.A4
2602317025
|
-
|
|
|
|
47 - CONNECTING CABLE L = 250 MM
BSD-2604448206.A4
2604448206
|
-
|
|
|
|
51 - CONNECTING CABLE L = 275 MM
BSD-2604448207.A0
2604448207
|
£1.95
|
£2.34
|
|
|
53 - SUPPORT PLATE
BSD-2602316011.A3
2602316011
|
-
|
|
|
|
54 - COMPRESSION SPRING
BSD-2604613000.A167
2604613000
|
£1.84
|
£2.21
|
|
|
56 - GUIDE BRACKET
BSD-2601322014.A48
2601322014
|
-
|
|
|
|
58 - STRAIGHT PIN 4M6x12DIN6325
BSD-2917530095.A7
2917530095
|
-
|
|
|
|
59 - SHIM 0.5 MM
BSD-2600101612.A63
2600101612
|
£1.84
|
£2.21
|
|
|
59 - SHIM 0.3 MM
BSD-2600116012.A7
2600116012
|
-
|
|
|
|
61 - COUNTERWEIGHT
BSD-2601098005.A30
2601098005
|
£3.80
|
£4.56
|
|
|
62 - BEARING SLEEVE
BSD-2600400012.A21
2600400012
|
£4.48
|
£5.37
|
|
|
63 - SPACER SLEEVE
BSD-2600200022.A9
2600200022
|
£1.84
|
£2.21
|
|
|
64 - SEALING PLATE
BSD-2601015057.A95
2601015057
|
£3.80
|
£4.56
|
|
|
66 - SWITCH HANDLE
BSD-2602026035.A11
2602026035
|
-
|
|
|
|
67 - SHIM 0.3 MM
BSD-2600101083.A13
2600101083
|
-
|
|
|
|
68 - RATCHET CAP
BSD-2600590006.A885
2600590006
|
£1.84
|
£2.21
|
|
|
69 - SHIM 0.5 MM
BSD-2600100568.A277
2600100568
|
£1.84
|
£2.21
|
|
|
70 - FORK LEVER
BSD-2601923003.A33
2601923003
|
-
|
|
|
|
71 - REFERENCE PLATE
BSD-2601117008.A3
2601117008
|
-
|
|
|
|
72 - SHIM 0.3 MM
BSD-2600100570.A325
2600100570
|
£1.84
|
£2.21
|
|
|
74 - SHIM 0.5 MM
BSD-2600102014.A13
2600102014
|
-
|
|
|
|
76 - PRESS-IN SOCKET
BSD-2600506008.A34
2600506008
|
-
|
|
|
|
77 - SUPPORT PLATE
BSD-2601098006.A4
2601098006
|
£1.84
|
£2.21
|
|
|
78 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1076
2603490017
|
£2.27
|
£2.72
|
|
|
80 - DETENT PIN
BSD-2603120019.A0
2603120019
|
£1.75
|
£2.10
|
|
|
84 - NEEDLE-ROLLER ASSEMBLY
BSD-2600913002.A8
2600913002
|
-
|
|
|
|
85 - SPRING RETAINING RING
BSD-2603105050.A7
2603105050
|
-
|
|
|
|
655 - SPLINTERING PROTECTOR
BSD-2601016065.A83
2601016065
|
£5.57
|
£6.68
|
|
|
801 - HOUSING SECTION
BSD-2605104828.A1
2605104828
|
-
|
|
|
|
808 - NAMEPLATE
BSD-2601117035.A0
2601117035
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321904.A0
2604321904
|
£10.61
|
£12.73
|
|
|
813 - SINTERED-METAL BUSHING
BSD-1600301900.A299
1600301900
|
-
|
|
|
|
814 - GROOVE BALL BEARING 9x24x7
BSD-2600905039.A35
2600905039
|
£12.64
|
£15.17
|
|
|
825 - LOCKING WASHER DIN 6799-3.2
BSD-2916080906.A75
2916080906
|
£1.84
|
£2.21
|
|
|
829 - BEARING BRACKET
BSD-2605807908.A32
2605807908
|
-
|
|
|
|
831 - SCREW AND WASHER ASSEMBLY DIN7985-M4x18Z1-4.8
BSD-2914500009.A3
2914500009
|
-
|
|
|
|
838 - ROLLER LEVER
BSD-2601321900.A4
2601321900
|
-
|
|
|
|
846 - ECCENTRIC COG WHEEL Z=39
BSD-2606319900.A20
2606319900
|
-
|
|
|
|
849 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A351
2910611020
|
£1.84
|
£2.21
|
|
|
850 - TAPPING SCREW DIN 7981-ST3.9x13-C-H
BSD-2910611018.A213
2910611018
|
-
|
|
|
|
860 - NEEDLE BEARING
BSD-2600917900.A236
2600917900
|
£9.11
|
£10.93
|
|
|
883 - LOCKING WASHER DIN 6799-5-FSt
BSD-2916080008.A197
2916080008
|
-
|
|
|
