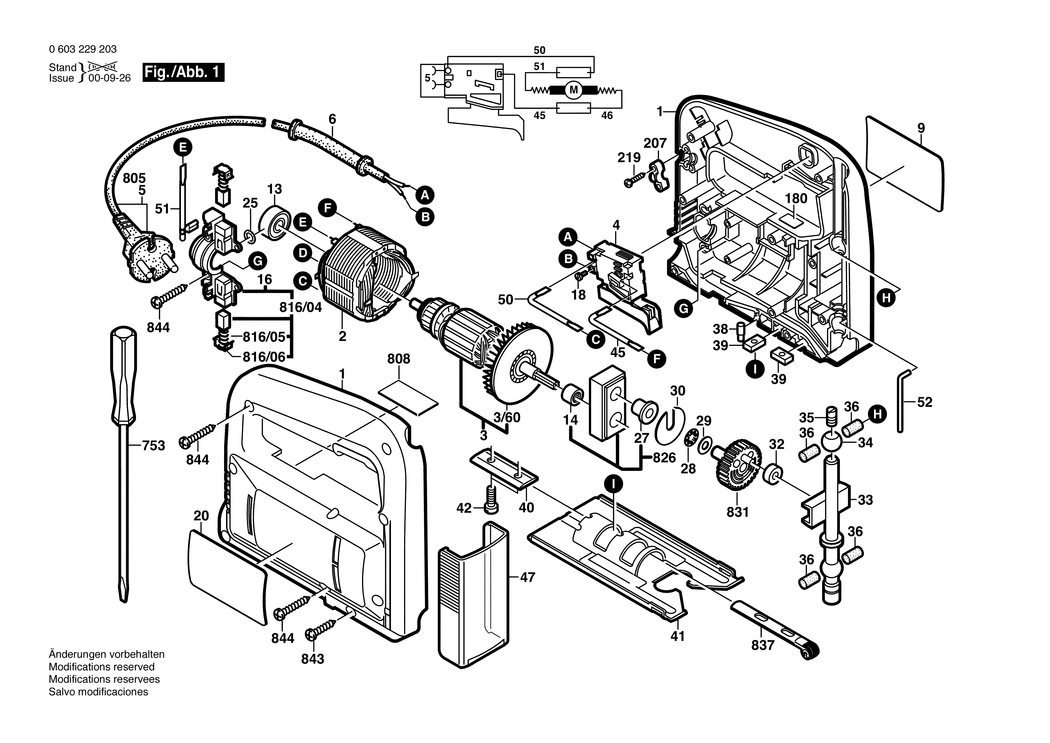

1 - HOUSING SECTION
BSD-2605104526.A8
2605104526
|
-
|
|
|
|
2 - FIELD 230-240V
BSD-2604220568.A6
2604220568
|
-
|
|
|
|
3 - ARMATURE 230V
BSD-2604011097.A6
2604011097
|
-
|
|
|
|
3/60 - FAN
BSD-1606610116.A183
1606610116
|
£2.64
|
£3.17
|
|
|
4 - ON-OFF SWITCH
BSD-2607200365.A6
2607200365
|
-
|
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A366
2600703007
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118893.A3
2601118893
|
-
|
|
|
|
13 - GROOVE BALL BEARING 8x19x6
BSD-2600905046.A111
2600905046
|
£11.30
|
£13.56
|
|
|
14 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A180
2600917003
|
£2.94
|
£3.53
|
|
|
16 - BRUSH PLATE
BSD-2604337118.A32
2604337118
|
£23.86
|
£28.63
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1467
2603410001
|
£1.84
|
£2.21
|
|
|
20 - REFERENCE PLATE
BSD-2601118894.A0
2601118894
|
-
|
|
|
|
25 - O-RING 5.0x1.5 MM
BSD-1900210000.A256
1900210000
|
£1.84
|
£2.21
|
|
|
27 - BUSHING
BSD-2600322003.A15
2600322003
|
-
|
|
|
|
28 - SPRING WASHER
BSD-2600190040.A28
2600190040
|
£1.32
|
£1.58
|
|
|
29 - SHIM 0.5 MM
BSD-2600100505.A15
2600100505
|
£1.38
|
£1.66
|
|
|
30 - SHIM 0.6 MM
BSD-2600040002.A23
2600040002
|
-
|
|
|
|
30 - SHIM 0.2 MM
BSD-2600040001.A15
2600040001
|
-
|
|
|
|
32 - GUIDE ROLLER
BSD-2600301014.A9
2600301014
|
-
|
|
|
|
33 - LIFTING ROD
BSD-2600780073.A9
2600780073
|
-
|
|
|
|
34 - SINTERED-METAL BUSHING
BSD-2600302008.A23
2600302008
|
-
|
|
|
|
35 - CLAMP SCREW
BSD-2603400000.A184
2603400000
|
£4.26
|
£5.11
|
|
|
36 - LUBRICATING FELT
BSD-2603239006.A26
2603239006
|
-
|
|
|
|
38 - DETENT PIN
BSD-2603120037.A26
2603120037
|
-
|
|
|
|
39 - FIXING PLATE
BSD-2601030006.A27
2601030006
|
-
|
|
|
|
40 - PROFILE BEADING
BSD-2601032017.A55
2601032017
|
£1.75
|
£2.10
|
|
|
41 - BASE PLATE
BSD-2601016012.A27
2601016012
|
£9.11
|
£10.93
|
|
|
42 - SOCKET HEAD CAP SCREW DIN 84-AM4x14-5.8
BSD-2910011124.A10
2910011124
|
-
|
|
|
|
45 - CONNECTING CABLE L=213 MM
BSD-2604448118.A70
2604448118
|
£1.75
|
£2.10
|
|
|
47 - COVERING HOOD
BSD-2605510052.A11
2605510052
|
-
|
|
|
|
50 - CONNECTING CABLE L=263MM
BSD-2604448119.A57
2604448119
|
£1.38
|
£1.66
|
|
|
51 - CONNECTING CABLE L=73 MM
BSD-2604448123.A31
2604448123
|
-
|
|
|
|
52 - PIN
BSD-2603105051.A11
2603105051
|
£2.05
|
£2.46
|
|
|
207 - CABLE CLIP
BSD-2601035001.A1947
2601035001
|
£1.84
|
£2.21
|
|
|
805 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F
BSD-1607000388.A206
1607000388
|
£12.04
|
£14.45
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A4645
160111A3H3
|
£2.74
|
£3.29
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2604321917.A11
2604321917
|
-
|
|
|
|
816/05 - COMPRESSION SPRING
BSD-2604610026.A64
2604610026
|
£2.61
|
£3.13
|
|
|
816/06 - RATCHET CAP
BSD-2601322013.A517
2601322013
|
£1.84
|
£2.21
|
|
|
816/06 - RATCHET CAP
BSD-2601329051.A45
2601329051
|
£2.33
|
£2.80
|
|
|
826 - BEARING BRACKET
BSD-2605807918.A26
2605807918
|
-
|
|
|
|
831 - ECCENTRIC COG WHEEL Z=49
BSD-2606316900.A15
2606316900
|
-
|
|
|
|
837 - RETAINING BRACKET
BSD-2608135901.A48
2608135901
|
£11.30
|
£13.56
|
|
|
843 - TAPPING SCREW DIN 7981-ST3.9x13-C-H
BSD-2910611018.A96
2910611018
|
-
|
|
|
|
844 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A141
2910611020
|
£1.84
|
£2.21
|
|
