Bosch GST 60 PBE / 0601581565 / I 230 Volt Spare Parts

Home Details Reviews Delivery

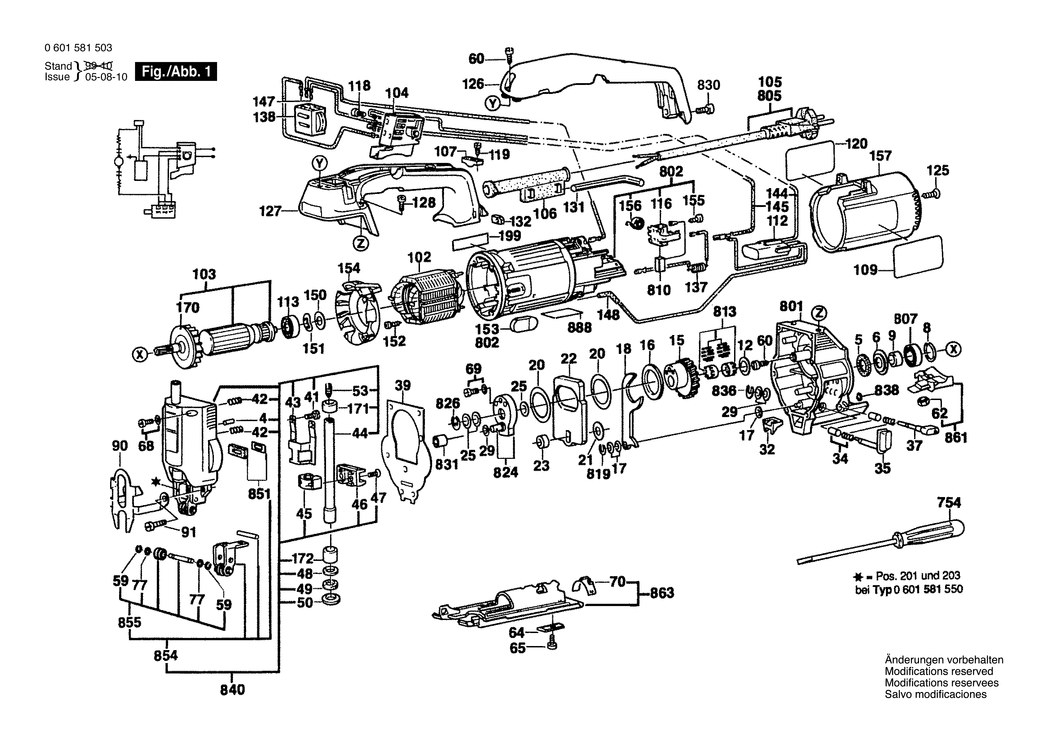

An exploded drawing and listing for the Bosch GST 60 PBE / 0601581565 / I 230 Volt

	Ex VAT	Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A491 1903201042	£2.27	£2.72
5 - FELT WASHER BSD-2600108077.A153 2600108077	£1.84	£2.21
6 - CUPPED WASHER BSD-2600500002.A99 2600500002	£1.75	£2.10
8 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A881 2916660008	£2.16	£2.59
9 - RECEPTACLE BSD-2600400008.A227 2600400008	£1.75	£2.10
12 - SHIM 0.5 MM BSD-2600101616.A240 2600101616	-
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A73 1619P02581	£22.76	£27.31
16 - SHIM 1.0 MM BSD-2600102653.A173 2600102653	£1.75	£2.10
17 - SHIM 0.3 MM BSD-2600100515.A144 2600100515	£2.74	£3.29
17 - SHIM 0.5 MM BSD-2600100516.A87 2600100516	£2.27	£2.72
18 - FORK LEVER BSD-2601923004.A21 2601923004	£2.94	£3.53
20 - SHIM 0.5 MM BSD-2600102652.A55 2600102652	£1.84	£2.21
21 - SHIM 0.1 MM BSD-2600100625.A198 2600100625	-
21 - SHIM 0.2 MM BSD-2600100626.A30 2600100626	-
21 - SHIM 0.3 MM BSD-2600100627.A227 2600100627	-
21 - SHIM 0.5 MM BSD-2600100628.A34 2600100628	£1.84	£2.21
22 - COUNTERWEIGHT BSD-2601098003.A96 2601098003	£9.11	£10.93
23 - SPACER SLEEVE BSD-2600309009.A35 2600309009	£1.75	£2.10
25 - SHIM 0.2 MM BSD-2600100575.A195 2600100575	£2.16	£2.59
25 - SHIM 0.3 MM BSD-2600100576.A119 2600100576	-
25 - SHIM 0.5 MM BSD-2600100577.A202 2600100577	£1.84	£2.21
29 - SHIM 0.5 MM BSD-2600100568.A185 2600100568	£1.84	£2.21
29 - SHIM 1.0 MM BSD-2600100569.A101 2600100569	£1.84	£2.21
29 - SHIM 0.3 MM BSD-2600100607.A857 2600100607	£1.75	£2.10
32 - AIR ELIMINATOR BSD-2602305042.A97 2602305042	£1.84	£2.21
34 - RATCHET CAP BSD-2600590006.A1307 2600590006	£1.84	£2.21
35 - ROTARY KNOB BSD-2602026036.A188 2602026036	-
37 - ROTARY KNOB BSD-2602026037.A8 2602026037	£2.80	£3.36
39 - SEAL BSD-2601015050.A86 2601015050	£2.74	£3.29
41 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A439 2603410048	£1.84	£2.21
42 - COMPRESSION SPRING BSD-2604613000.A268 2604613000	£1.84	£2.21
43 - GUIDE BRACKET BSD-1616B00224.A125 1616B00224	£11.32	£13.58
44 - LIFTING ROD BSD-1619P12765.A61 1619P12765	£17.22	£20.67
45 - CLAMPING SADDLE BSD-2602329011.A178 2602329011	£4.75	£5.70
46 - SLIDING PIECE BSD-1619P12767.A60 1619P12767	£9.47	£11.36
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A38 2603421040	£1.84	£2.21
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A76 2600112031	£1.84	£2.21
49 - SEAL RING 0.5 MM BSD-2600290017.A40 2600290017	£1.75	£2.10
50 - SHIM 0.5 MM BSD-2600101612.A172 2600101612	£1.84	£2.21
53 - CLAMP SCREW BSD-2603400000.A255 2603400000	£4.26	£5.11
59 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A299 2916080005	-
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A80 2603490024	£1.84	£2.21
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A997 2915011007	-
64 - PROFILE BEADING BSD-2601030019.A169 2601030019	£2.74	£3.29
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A181 2910141197	£1.84	£2.21
68 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A36 2603410049	£1.84	£2.21
69 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A66 2914551176	£1.84	£2.21
70 - SCALE PLATE BSD-2601328044.A83 2601328044	£2.74	£3.29
77 - SHIM 0.2 MM BSD-2600100032.A130 2600100032	£1.75	£2.10
90 - SAFETY DEVICE BSD-2601322021.A5 2601322021	£4.48	£5.37
91 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A237 2910011128	£1.84	£2.21
102 - FIELD 220-240V BSD-2604220709.A64 2604220709	£27.23	£32.68
103 - ARMATURE 230-240V BSD-2604010578.A128 2604010578	£50.80	£60.96
104 - SWITCH BSD-2607200260.A98 2607200260	£11.87	£14.24
105 - POWER SUPPLY CORD I/BR 2.65m 2 x 1.0mm H05 VV-F BSD-2604460277.A33 2604460277	£12.64	£15.17
106 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703027.A121 2600703027	£1.84	£2.21
107 - CABLE CLIP BSD-2601035001.A1020 2601035001	£1.84	£2.21
109 - STICKER BSD-2601118035.A6 2601118035	£2.52	£3.02
112 - SUPPRESSION FILTER BSD-2607329105.A28 2607329105	-
113 - BALL BEARING 7x22x7 BSD-1900905018.A1250 1900905018	£19.91	£23.89
116 - BRUSH HOLDER BSD-1600A003G4.A442 1600A003G4	£3.72	£4.47
118 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A756 2603410001	£1.84	£2.21
119 - SCREW 4x16 BSD-2603490022.A210 2603490022	£1.84	£2.21
120 - STICKER BSD-2601110763.A26 2601110763	-
125 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A186 2910601321	-
126 - STRAP-SHAPED HANDLE BSD-2602025040.A28 2602025040	£12.37	£14.84
127 - STRAP-SHAPED HANDLE BSD-2602025041.A8 2602025041	£8.49	£10.19
128 - THREAD-FORMING TAP. SCREW M 5x16 BSD-2603410054.A25 2603410054	£2.61	£3.13
131 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A185 1907950006	£4.48	£5.37
132 - SQUARE NUT M4 BSD-2603320001.A104 2603320001	£1.84	£2.21
137 - SUPPRESSION FILTER BSD-1619P15513.A74 1619P15513	£4.75	£5.70
138 - SPEED GOVERNOR 220-240V BSD-2607230115.A39 2607230115	-
144 - CONNECTING CABLE L = 278 MM BSD-2604448012.A58 2604448012	£1.38	£1.66
145 - CONNECTING CABLE L = 288 MM BSD-2604448062.A85 2604448062	£1.38	£1.66
147 - CONNECTING CABLE L=124 MM BSD-2604448018.A47 2604448018	£2.33	£2.80
148 - INSULATION TUBING BSD-2600409017.A72 2600409017	£1.75	£2.10
150 - SHIM WASHER 0.3 MM BSD-2600101027.A111 2600101027	£1.84	£2.21
150 - SHIM 0.2 MM BSD-2600101022.A310 2600101022	£1.84	£2.21
150 - SHIM 0.5 MM BSD-2600101020.A322 2600101020	£1.84	£2.21
151 - SHIM BSD-2600150004.A389 2600150004	£2.27	£2.72
152 - TAPPING SCREW BSD-2603435086.A409 2603435086	£1.84	£2.21
153 - PLUG BSD-2603231032.A55 2603231032	-
154 - COVER DISC BSD-2601328045.A148 2601328045	£2.16	£2.59
155 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1433 2603490017	£2.27	£2.72
157 - HOUSING COVER BSD-2600508038.A47 2600508038	-
166 - SPIRAL SPRING BSD-2604652009.A164 2604652009	£1.84	£2.21
170 - FAN BSD-2606610049.A319 2606610049	£2.27	£2.72
171 - SINTERED-METAL BUSHING BSD-2600301046.A34 2600301046	£3.91	£4.69
172 - BUSHING BSD-2600301045.A193 2600301045	£2.94	£3.53
200 - TORX OVAL-HEAD SCREW 4x30 BSD-2603490025.A221 2603490025	£1.84	£2.21
201 - SAFETY DEVICE BSD-2601322021.A4 2601322021	£4.48	£5.37
203 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A238 2910011128	£1.84	£2.21
801 - GEAR HOUSING BSD-2605808915.A10 2605808915	£37.72	£45.27
802 - MOTOR HOUSING BSD-2605108904.A96 2605108904	£25.05	£30.06
807 - GROOVE BALL BEARING 9x24x7 BSD-2600905039.A177 2600905039	£12.64	£15.17
810 - CARBON-BRUSH SET BSD-2604320912.A81 2604320912	£10.61	£12.73
813 - NEEDLE-ROLLER CAGE BSD-2607001130.A97 2607001130	£5.87	£7.04
819 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A119 2916080007	£2.74	£3.29
824 - ECCENTRIC DISC BSD-2601072901.A79 2601072901	£7.72	£9.27
830 - SCREW AND WASHER ASSEMBLY M 4x20 MM BSD-2914501021.A72 2914501021	£1.75	£2.10
831 - NEEDLE BEARING BSD-2600917900.A417 2600917900	£9.11	£10.93
836 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A234 2916080008	-
838 - SPRING RETAINING RING BSD-2600116009.A40 2600116009	£1.75	£2.10
840 - GEAR COVER BSD-2605808919.A14 2605808919	-
851 - SEALING PLATE BSD-2601015901.A163 2601015901	£2.94	£3.53
854 - ROLLER LEVER BSD-2601321902.A61 2601321902	-
855 - ROLLER SET BSD-1619P01375.A158 1619P01375	£11.87	£14.24
861 - FAN COVER BSD-2605500900.A82 2605500900	£4.48	£5.37
863 - BASE PLATE BSD-2601016903.A66 2601016903	£17.22	£20.67
888 - NAMEPLATE BSD-160111A3H3.A1675 160111A3H3	£2.74	£3.29
