Bosch GST 60 PBAE / 0601581432 / CH 220 Volt Spare Parts

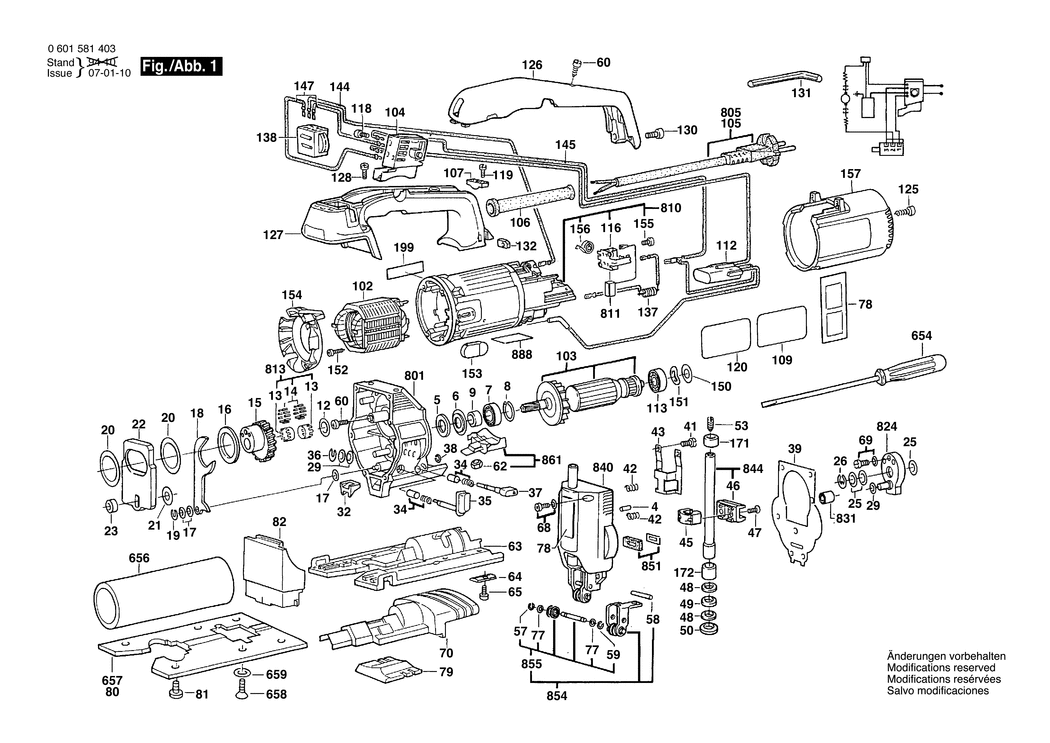

An exploded drawing and listing for the Bosch GST 60 PBAE / 0601581432 / CH 220 Volt

	Ex VAT	Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A461 1903201042	£2.16	£2.59
5 - FELT WASHER BSD-2600108077.A98 2600108077	£1.75	£2.10
6 - CUPPED WASHER BSD-2600500002.A113 2600500002	£1.75	£2.10
7 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A672 2600905021	£8.67	£10.41
8 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A853 2916660008	£2.16	£2.59
9 - RECEPTACLE BSD-2600400008.A193 2600400008	£1.75	£2.10
12 - SHIM 0.5 MM BSD-2600101616.A232 2600101616	-
13 - NEEDLE-ROLLER CAGE BSD-2600913036.A59 2600913036	£1.75	£2.10
14 - NEEDLE ROLLER 1.5x5.8 MM BSD-2603201037.A109 2603201037	£2.61	£3.13
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A114 1619P02581	£21.68	£26.01
16 - SHIM 1.0 MM BSD-2600102653.A166 2600102653	£1.75	£2.10
17 - SHIM 0.3 MM BSD-2600100515.A168 2600100515	£2.61	£3.13
17 - SHIM 0.5 MM BSD-2600100516.A63 2600100516	£2.16	£2.59
18 - FORK LEVER BSD-2601923004.A55 2601923004	£2.80	£3.36
19 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A137 2916080007	£2.61	£3.13
20 - SHIM 0.5 MM BSD-2600102652.A62 2600102652	£1.75	£2.10
21 - SHIM 0.1 MM BSD-2600100625.A166 2600100625	-
21 - SHIM 0.2 MM BSD-2600100626.A62 2600100626	-
21 - SHIM 0.3 MM BSD-2600100627.A195 2600100627	-
21 - SHIM 0.5 MM BSD-2600100628.A66 2600100628	£1.75	£2.10
22 - COUNTERWEIGHT BSD-2601098003.A111 2601098003	£8.67	£10.41
23 - SPACER SLEEVE BSD-2600309009.A4 2600309009	£1.75	£2.10
25 - SHIM 0.2 MM BSD-2600100575.A165 2600100575	£2.16	£2.59
25 - SHIM 0.3 MM BSD-2600100576.A154 2600100576	-
25 - SHIM 0.5 MM BSD-2600100577.A166 2600100577	£1.75	£2.10
26 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A404 2916080910	£2.16	£2.59
29 - SHIM 0.5 MM BSD-2600100568.A155 2600100568	£1.75	£2.10
29 - SHIM 1.0 MM BSD-2600100569.A136 2600100569	£1.75	£2.10
29 - SHIM 0.3 MM BSD-2600100607.A835 2600100607	£1.75	£2.10
32 - AIR ELIMINATOR BSD-2602305042.A54 2602305042	£1.75	£2.10
34 - RATCHET CAP BSD-2600590006.A1248 2600590006	£1.75	£2.10
35 - ROTARY KNOB BSD-2602026036.A145 2602026036	-
36 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A221 2916080008	-
37 - ROTARY KNOB BSD-2602026037.A50 2602026037	£2.80	£3.36
38 - SPRING RETAINING RING BSD-2600116006.A35 2600116006	£1.75	£2.10
39 - SEAL BSD-2601015050.A119 2601015050	£2.61	£3.13
41 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A469 2603410048	£1.75	£2.10
42 - COMPRESSION SPRING BSD-2604613000.A271 2604613000	£1.75	£2.10
43 - GUIDE BRACKET BSD-2601322010.A84 2601322010	£3.80	£4.56
45 - CLAMPING SADDLE BSD-2602329011.A145 2602329011	£4.75	£5.70
46 - SLIDING PIECE 31/35 MM BSD-2601321022.A54 2601321022	-
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A51 2603421040	£1.75	£2.10
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A122 2600112031	£1.75	£2.10
49 - SEAL RING 0.5 MM BSD-2600290017.A61 2600290017	£1.75	£2.10
50 - SHIM 0.5 MM BSD-2600101612.A178 2600101612	£1.75	£2.10
53 - CLAMP SCREW BSD-2603400000.A241 2603400000	£4.26	£5.11
57 - LOCKING WASHER BSD-2600116011.A48 2600116011	£2.16	£2.59
58 - STRAIGHT PIN DIN 6325-4M6x24 BSD-2917530101.A1 2917530101	£2.80	£3.36
59 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A286 2916080005	-
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A97 2603490024	£1.75	£2.10
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1009 2915011007	-
63 - BASE PLATE BSD-2608000073.A14 2608000073	£21.68	£26.01
64 - PROFILE BEADING BSD-2601030007.A31 2601030007	£2.52	£3.02
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A149 2910141197	£1.75	£2.10
68 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A4 2603410049	£1.75	£2.10
69 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A62 2914551176	£1.75	£2.10
70 - SUCTION NOZZLE BSD-2605730033.A22 2605730033	£2.33	£2.80
77 - SHIM 0.2 MM BSD-2600100032.A148 2600100032	£1.75	£2.10
78 - STICKER BSD-2601110764.A29 2601110764	-
79 - PLATE BSD-2601099013.A15 2601099013	£4.26	£5.11
80 - PLATE BSD-2601099029.A21 2601099029	£4.26	£5.11
81 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A271 2910021116	£2.16	£2.59
82 - COVERING HOOD BSD-2601320022.A0 2601320022	£1.32	£1.58
90 - SAFETY DEVICE BSD-2601322021.A51 2601322021	£4.26	£5.11
91 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A201 2910011128	£1.75	£2.10
102 - FIELD 220-240V BSD-2604220709.A72 2604220709	£27.23	£32.68
103 - ARMATURE 230-240V BSD-2604010578.A147 2604010578	£48.38	£58.06
104 - SWITCH BSD-2607200260.A113 2607200260	£11.30	£13.56
105 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F BSD-1604460427.A61 1604460427	£12.04	£14.45
106 - GROMMET dia8.2-dia9.4x95 MM BSD-2600703026.A4 2600703026	£1.32	£1.58
106 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703027.A107 2600703027	£1.75	£2.10
106 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703028.A4 2600703028	£1.75	£2.10
107 - CABLE CLIP BSD-2601035001.A920 2601035001	£1.75	£2.10
109 - STICKER BSD-2601110786.A1 2601110786	-
112 - SUPPRESSION FILTER BSD-2607329105.A11 2607329105	-
113 - BALL BEARING 7x22x7 BSD-1900905018.A1199 1900905018	£18.96	£22.75
116 - BRUSH HOLDER BSD-1600A003G4.A388 1600A003G4	£3.72	£4.47
118 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A787 2603410001	£1.75	£2.10
119 - TAPPING SCREW DIN 7981-ST3.9x16-C-H BSD-2910611019.A1 2910611019	£2.80	£3.36
120 - STICKER BSD-2601110763.A21 2601110763	-
125 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A165 2910601321	-
126 - STRAP-SHAPED HANDLE BSD-2602025040.A11 2602025040	£11.78	£14.13
127 - STRAP-SHAPED HANDLE BSD-2602025041.A25 2602025041	£8.49	£10.19
128 - THREAD-FORMING TAP. SCREW M 5x16 BSD-2603410054.A57 2603410054	£2.61	£3.13
130 - SCREW AND WASHER ASSEMBLY M 4x20 MM BSD-2914501021.A22 2914501021	£1.75	£2.10
131 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A103 1907950006	£4.26	£5.11
132 - SQUARE NUT M4 BSD-2603320001.A120 2603320001	£1.75	£2.10
137 - SUPPRESSOR BOX BSD-2604465106.A8 2604465106	£4.26	£5.11
138 - SPEED GOVERNOR 220-240V BSD-2607230115.A53 2607230115	-
144 - CONNECTING CABLE L = 278 MM BSD-2604448012.A35 2604448012	£1.32	£1.58
145 - CONNECTING CABLE L = 288 MM BSD-2604448062.A86 2604448062	£1.32	£1.58
147 - CONNECTING CABLE L=124 MM BSD-2604448018.A70 2604448018	£2.33	£2.80
150 - SHIM WASHER 0.3 MM BSD-2600101027.A156 2600101027	£1.75	£2.10
150 - SHIM 0.2 MM BSD-2600101022.A334 2600101022	£1.75	£2.10
150 - SHIM 0.5 MM BSD-2600101020.A298 2600101020	£1.75	£2.10
151 - SHIM BSD-2600150004.A377 2600150004	£2.16	£2.59
152 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A181 2603435015	£2.16	£2.59
153 - PLUG BSD-2603231032.A84 2603231032	-
154 - COVER DISC BSD-2601328045.A111 2601328045	£2.16	£2.59
155 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1478 2603490017	£2.16	£2.59
156 - SPIRAL SPRING BSD-2604652009.A132 2604652009	£1.75	£2.10
157 - HOUSING COVER BSD-2600508038.A35 2600508038	-
171 - SINTERED-METAL BUSHING BSD-2600301046.A11 2600301046	£3.72	£4.47
172 - BUSHING BSD-2600301045.A216 2600301045	£2.80	£3.36
658 - COUNTERSUNK-HEAD SCREW DIN 963-M 4x8-5.8 BSD-2910775118.A10 2910775118	-
659 - O-RING 3.1x1.5 MM BSD-2600210033.A16 2600210033	-
801 - GEAR HOUSING BSD-2605808915.A27 2605808915	£37.72	£45.27
810 - MOTOR HOUSING BSD-2605108904.A64 2605108904	£23.86	£28.63
811 - CARBON-BRUSH SET BSD-2604320912.A124 2604320912	£10.10	£12.12
824 - ECCENTRIC DISC BSD-2601072901.A64 2601072901	£7.36	£8.83
831 - NEEDLE BEARING BSD-2600917900.A428 2600917900	£8.67	£10.41
840 - GEAR COVER BSD-2605808916.A31 2605808916	-
844 - LIFTING ROD BSD-2600780913.A16 2600780913	-
851 - SEALING PLATE BSD-2601015901.A174 2601015901	£2.80	£3.36
854 - ROLLER LEVER BSD-2601321902.A100 2601321902	-
855 - ROLLER SET BSD-1619P01375.A125 1619P01375	£11.30	£13.56
861 - FAN COVER BSD-2605500900.A105 2605500900	£4.26	£5.11
888 - NAMEPLATE BSD-160111A3H3.A1703 160111A3H3	£2.61	£3.13
899 - WORK BOARD BSD-2607001085.A20 2607001085	£11.30	£13.56
