Bosch GST 60 PB / 0601581241 / GB 110 Volt Spare Parts

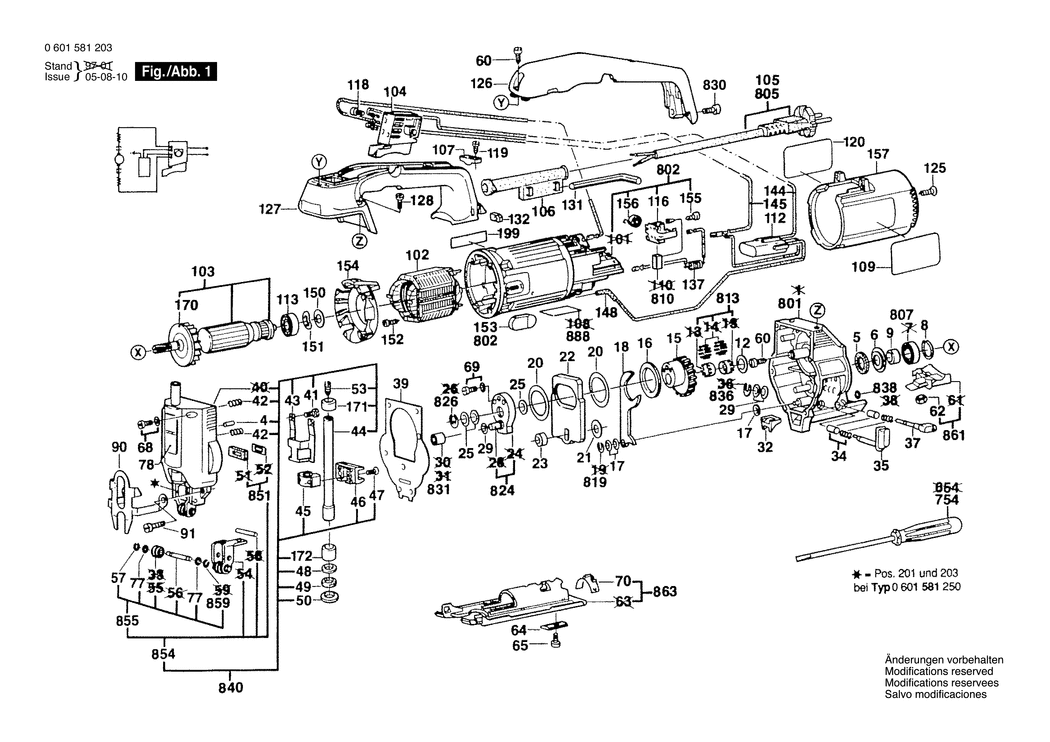

An exploded drawing and listing for the Bosch GST 60 PB / 0601581241 / GB 110 Volt

	Ex VAT	Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A34 1903201042	£2.16	£2.59
5 - FELT WASHER BSD-2600108077.A472 2600108077	£1.75	£2.10
6 - CUPPED WASHER BSD-2600500002.A535 2600500002	£1.75	£2.10
8 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A418 2916660008	£2.16	£2.59
9 - RECEPTACLE BSD-2600400008.A502 2600400008	£1.75	£2.10
12 - SHIM 0.5 MM BSD-2600101616.A121 2600101616	-
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A141 1619P02581	£21.68	£26.01
16 - SHIM 1.0 MM BSD-2600102653.A9 2600102653	£1.75	£2.10
17 - SHIM 0.3 MM BSD-2600100515.A26 2600100515	£2.61	£3.13
17 - SHIM 0.5 MM BSD-2600100516.A199 2600100516	£2.16	£2.59
18 - FORK LEVER BSD-2601923004.A169 2601923004	£2.80	£3.36
20 - SHIM 0.5 MM BSD-2600102652.A219 2600102652	£1.75	£2.10
21 - SHIM 0.1 MM BSD-2600100625.A72 2600100625	-
21 - SHIM 0.2 MM BSD-2600100626.A166 2600100626	-
21 - SHIM 0.3 MM BSD-2600100627.A67 2600100627	-
21 - SHIM 0.5 MM BSD-2600100628.A205 2600100628	£1.75	£2.10
22 - COUNTERWEIGHT BSD-2601098003.A131 2601098003	£8.67	£10.41
23 - SPACER SLEEVE BSD-2600309009.A186 2600309009	£1.75	£2.10
25 - SHIM 0.2 MM BSD-2600100575.A38 2600100575	£2.16	£2.59
25 - SHIM 0.3 MM BSD-2600100576.A279 2600100576	-
25 - SHIM 0.5 MM BSD-2600100577.A38 2600100577	£1.75	£2.10
29 - SHIM 0.5 MM BSD-2600100568.A45 2600100568	£1.75	£2.10
29 - SHIM 1.0 MM BSD-2600100569.A288 2600100569	£1.75	£2.10
29 - SHIM 0.3 MM BSD-2600100607.A104 2600100607	£1.75	£2.10
32 - AIR ELIMINATOR BSD-2602305042.A122 2602305042	£1.75	£2.10
34 - RATCHET CAP BSD-2600590006.A147 2600590006	£1.75	£2.10
35 - ROTARY KNOB BSD-2602026036.A52 2602026036	-
37 - ROTARY KNOB BSD-2602026037.A132 2602026037	£2.80	£3.36
39 - SEAL BSD-2601015050.A172 2601015050	£2.61	£3.13
41 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A59 2603410048	£1.75	£2.10
42 - COMPRESSION SPRING BSD-2604613000.A108 2604613000	£1.75	£2.10
43 - GUIDE BRACKET BSD-2601322010.A31 2601322010	£3.80	£4.56
44 - LIFTING ROD BSD-1619P12765.A117 1619P12765	£16.41	£19.69
45 - CLAMPING SADDLE BSD-2602329011.A117 2602329011	£4.75	£5.70
46 - SLIDING PIECE BSD-1619P12767.A114 1619P12767	£9.47	£11.36
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A155 2603421040	£1.75	£2.10
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A159 2600112031	£1.75	£2.10
49 - SEAL RING 0.5 MM BSD-2600290017.A223 2600290017	£1.75	£2.10
50 - SHIM 0.5 MM BSD-2600101612.A307 2600101612	£1.75	£2.10
53 - CLAMP SCREW BSD-2603400000.A109 2603400000	£4.26	£5.11
57 - LOCKING WASHER BSD-2916080905.A29 2916080905	£1.75	£2.10
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A558 2603490024	£1.75	£2.10
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A568 2915011007	-
64 - PROFILE BEADING BSD-2601030019.A21 2601030019	£2.61	£3.13
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A488 2910141197	£1.75	£2.10
68 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A379 2603410049	£1.75	£2.10
69 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A28 2914551176	£1.75	£2.10
70 - SCALE PLATE BSD-2601328044.A47 2601328044	£2.61	£3.13
77 - SHIM 0.2 MM BSD-2600100032.A36 2600100032	£1.75	£2.10
78 - STICKER BSD-2601110764.A48 2601110764	-
90 - SAFETY DEVICE BSD-2601322021.A119 2601322021	£4.26	£5.11
91 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A180 2910011128	£1.75	£2.10
102 - FIELD 110-120V BSD-2604220721.A4 2604220721	£31.64	£37.97
103 - ARMATURE 110-115V BSD-2604010577.A19 2604010577	£54.42	£65.30
104 - SWITCH BSD-2607200260.A394 2607200260	£11.30	£13.56
105 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F BSD-2604460205.A68 2604460205	£27.23	£32.68
106 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703027.A40 2600703027	£1.75	£2.10
107 - CABLE CLIP BSD-2601035001.A1810 2601035001	£1.75	£2.10
109 - STICKER BSD-2601118034.A10 2601118034	£2.52	£3.02
112 - SUPPRESSION FILTER BSD-2607329105.A46 2607329105	-
113 - BALL BEARING 7x22x7 BSD-1900905018.A181 1900905018	£18.96	£22.75
116 - BRUSH HOLDER BSD-1600A003G4.A80 1600A003G4	£3.72	£4.47
116 - BRUSH HOLDER BSD-2601323022.A33 2601323022	£2.80	£3.36
118 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1805 2603410001	£1.75	£2.10
119 - SCREW 4x16 BSD-2603490022.A1965 2603490022	£1.75	£2.10
120 - REFERENCE PLATE BSD-2601110762.A25 2601110762	£1.95	£2.34
125 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A70 2910601321	-
126 - STRAP-SHAPED HANDLE BSD-2602025040.A40 2602025040	£11.78	£14.13
127 - STRAP-SHAPED HANDLE BSD-2602025043.A16 2602025043	£11.78	£14.13
128 - THREAD-FORMING TAP. SCREW M 5x16 BSD-2603410054.A140 2603410054	£2.61	£3.13
131 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A1046 1907950006	£4.26	£5.11
132 - SQUARE NUT M4 BSD-2603320001.A188 2603320001	£1.75	£2.10
137 - SUPPRESSION FILTER BSD-1619P15513.A12 1619P15513	£4.75	£5.70
144 - CONNECTING CABLE L = 278 MM BSD-2604448012.A109 2604448012	£1.32	£1.58
145 - CONNECTING CABLE L = 288 MM BSD-2604448062.A7 2604448062	£1.32	£1.58
148 - INSULATION TUBING BSD-2600409017.A13 2600409017	£1.75	£2.10
150 - SHIM WASHER 0.3 MM BSD-2600101027.A258 2600101027	£1.75	£2.10
150 - SHIM 0.2 MM BSD-2600101022.A32 2600101022	£1.75	£2.10
150 - SHIM 0.5 MM BSD-2600101020.A600 2600101020	£1.75	£2.10
151 - SHIM BSD-2600150004.A689 2600150004	£2.16	£2.59
152 - TAPPING SCREW BSD-2603435086.A36 2603435086	£1.75	£2.10
153 - PLUG BSD-2603231032.A14 2603231032	-
154 - COVER DISC BSD-2601328045.A232 2601328045	£2.16	£2.59
155 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A548 2603490017	£2.16	£2.59
156 - SPIRAL SPRING BSD-2604652009.A72 2604652009	£1.75	£2.10
157 - HOUSING COVER BSD-2600508038.A7 2600508038	-
170 - FAN BSD-2606610049.A83 2606610049	£2.16	£2.59
171 - SINTERED-METAL BUSHING BSD-2600301046.A152 2600301046	£3.72	£4.47
172 - BUSHING BSD-2600301045.A76 2600301045	£2.80	£3.36
801 - GEAR HOUSING BSD-2605808915.A84 2605808915	£37.72	£45.27
802 - MOTOR HOUSING BSD-2605108904.A13 2605108904	£23.86	£28.63
807 - GROOVE BALL BEARING 9x24x7 BSD-2600905039.A418 2600905039	£12.04	£14.45
810 - CARBON-BRUSH SET BSD-2604320910.A10 2604320910	£10.10	£12.12
813 - NEEDLE-ROLLER CAGE BSD-2607001130.A48 2607001130	£5.58	£6.70
819 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A395 2916080007	£2.61	£3.13
824 - ECCENTRIC DISC BSD-2601072901.A195 2601072901	£7.36	£8.83
826 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A191 2916080910	£2.16	£2.59
830 - SCREW AND WASHER ASSEMBLY M 4x20 MM BSD-2914501021.A15 2914501021	£1.75	£2.10
831 - NEEDLE BEARING BSD-2600917900.A180 2600917900	£8.67	£10.41
836 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A106 2916080008	-
838 - SPRING RETAINING RING BSD-2600116009.A96 2600116009	£1.75	£2.10
840 - GEAR COVER BSD-2605808919.A3 2605808919	-
851 - SEALING PLATE BSD-2601015901.A15 2601015901	£2.80	£3.36
854 - ROLLER LEVER BSD-2601321902.A142 2601321902	-
855 - ROLLER SET BSD-1619P01375.A11 1619P01375	£11.30	£13.56
859 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A146 2916080005	-
861 - FAN COVER BSD-2605500900.A158 2605500900	£4.26	£5.11
863 - BASE PLATE BSD-2601016903.A34 2601016903	£16.41	£19.69
888 - NAMEPLATE BSD-160111A3H3.A5396 160111A3H3	£2.61	£3.13
