Bosch GST 60 PAE / 0601582942 / GB 240 Volt Spare Parts

Home Details Reviews Delivery

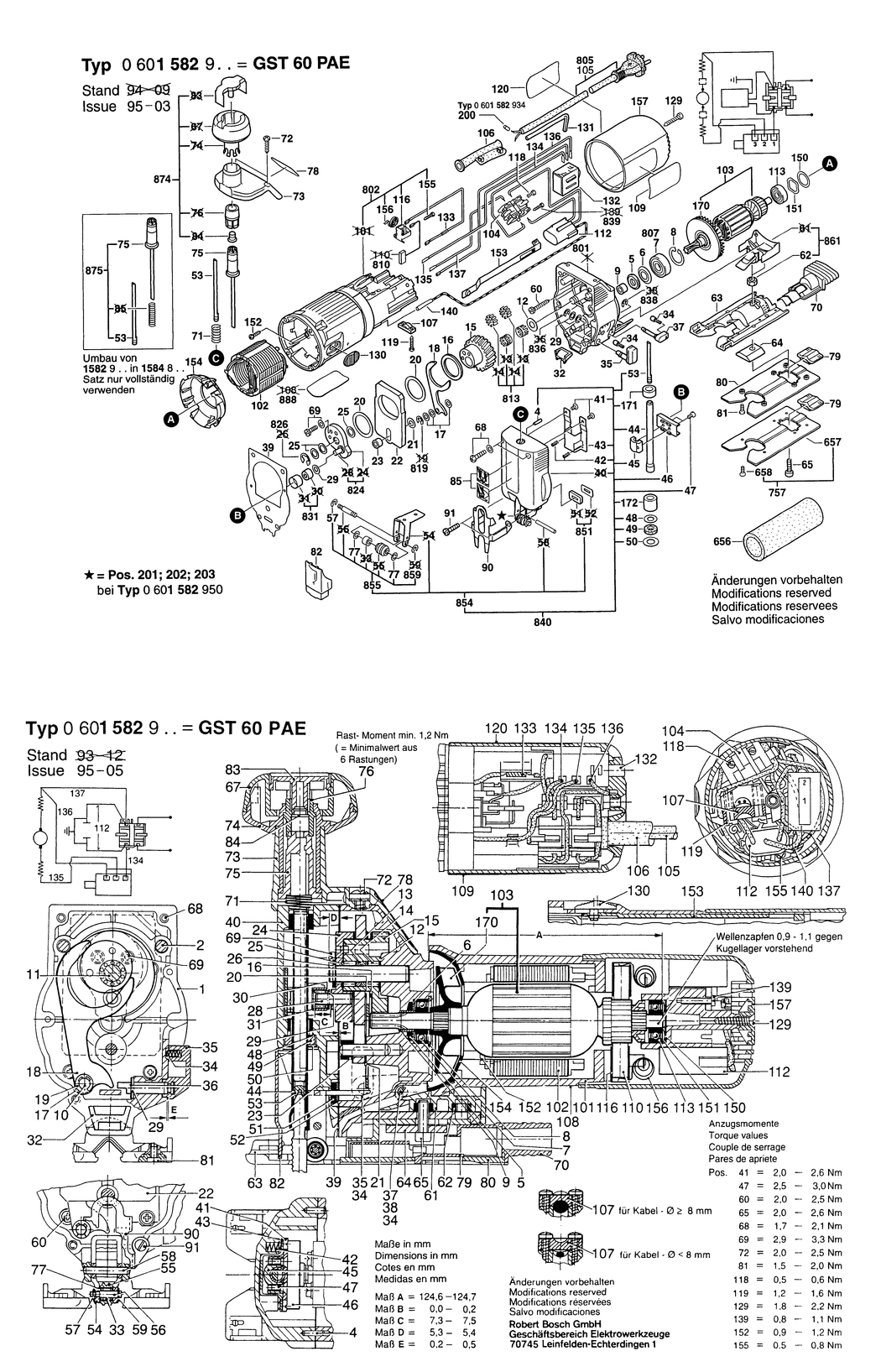

An exploded drawing and listing for the Bosch GST 60 PAE / 0601582942 / GB 240 Volt

	Ex VAT	Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A35 1903201042	£2.27	£2.72
5 - FELT WASHER BSD-2600108077.A474 2600108077	£1.84	£2.21
6 - CUPPED WASHER BSD-2600500002.A544 2600500002	£1.75	£2.10
7 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A379 2600905021	£8.67	£10.41
8 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A401 2916660008	£2.16	£2.59
9 - RECEPTACLE BSD-2600400008.A511 2600400008	£1.75	£2.10
12 - SHIM 0.5 MM BSD-2600101616.A119 2600101616	-
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A142 1619P02581	£22.76	£27.31
16 - SHIM 1.0 MM BSD-2600102653.A7 2600102653	£1.75	£2.10
17 - SHIM 0.3 MM BSD-2600100515.A25 2600100515	£2.74	£3.29
17 - SHIM 0.5 MM BSD-2600100516.A200 2600100516	£2.27	£2.72
18 - FORK LEVER BSD-2601923004.A176 2601923004	£2.94	£3.53
20 - SHIM 0.5 MM BSD-2600102652.A221 2600102652	£1.84	£2.21
21 - SHIM 0.1 MM BSD-2600100625.A71 2600100625	-
21 - SHIM 0.2 MM BSD-2600100626.A167 2600100626	-
21 - SHIM 0.3 MM BSD-2600100627.A66 2600100627	-
21 - SHIM 0.5 MM BSD-2600100628.A206 2600100628	£1.84	£2.21
22 - COUNTERWEIGHT BSD-2601098003.A147 2601098003	£9.11	£10.93
23 - SPACER SLEEVE BSD-2600309009.A176 2600309009	£1.75	£2.10
25 - SHIM 0.2 MM BSD-2600100575.A37 2600100575	£2.16	£2.59
25 - SHIM 0.3 MM BSD-2600100576.A280 2600100576	-
25 - SHIM 0.5 MM BSD-2600100577.A37 2600100577	£1.84	£2.21
29 - SHIM 0.5 MM BSD-2600100568.A44 2600100568	£1.84	£2.21
29 - SHIM 1.0 MM BSD-2600100569.A289 2600100569	£1.84	£2.21
29 - SHIM 0.3 MM BSD-2600100607.A105 2600100607	£1.75	£2.10
32 - AIR ELIMINATOR BSD-2602305042.A117 2602305042	£1.84	£2.21
34 - RATCHET CAP BSD-2600590006.A155 2600590006	£1.84	£2.21
35 - ROTARY KNOB BSD-2602026036.A40 2602026036	-
37 - ROTARY KNOB BSD-2602026037.A144 2602026037	£2.80	£3.36
39 - SEAL BSD-2601015050.A165 2601015050	£2.74	£3.29
41 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A52 2603410048	£1.84	£2.21
42 - COMPRESSION SPRING BSD-2604613000.A96 2604613000	£1.84	£2.21
43 - GUIDE BRACKET BSD-1616B00224.A24 1616B00224	£11.32	£13.58
44 - LIFTING ROD BSD-1619P12765.A104 1619P12765	£17.22	£20.67
45 - CLAMPING SADDLE BSD-2602329011.A104 2602329011	£4.75	£5.70
46 - SLIDING PIECE BSD-1619P12767.A120 1619P12767	£9.47	£11.36
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A162 2603421040	£1.84	£2.21
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A157 2600112031	£1.84	£2.21
49 - SEAL RING 0.5 MM BSD-2600290017.A232 2600290017	£1.75	£2.10
50 - SHIM 0.5 MM BSD-2600101612.A309 2600101612	£1.84	£2.21
57 - LOCKING WASHER BSD-2600116011.A23 2600116011	£2.27	£2.72
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A550 2603490024	£1.84	£2.21
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A560 2915011007	-
63 - BASE PLATE BSD-2608000073.A40 2608000073	£22.76	£27.31
64 - PROFILE BEADING BSD-2601030007.A6 2601030007	£2.64	£3.17
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A502 2910141197	£1.84	£2.21
68 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A386 2603410049	£1.84	£2.21
69 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A36 2914551176	£1.84	£2.21
70 - SUCTION NOZZLE BSD-2605730033.A7 2605730033	£2.45	£2.94
71 - COMPRESSION SPRING BSD-2604617003.A21 2604617003	-
72 - THREAD-FORMING TAP. SCREW M 5x16 BSD-2603410054.A128 2603410054	£2.61	£3.13
73 - FLANGED FITTING BSD-2605702016.A42 2605702016	£7.72	£9.27
77 - SHIM 0.2 MM BSD-2600100032.A40 2600100032	£1.75	£2.10
78 - STICKER BSD-2601110930.A38 2601110930	£1.38	£1.66
79 - PLATE BSD-2601099013.A42 2601099013	£4.48	£5.37
80 - PLATE BSD-2601099029.A3 2601099029	£4.48	£5.37
81 - SOCKET HEAD CAP SCREW DIN 84-M4x6-4.8 BSD-2910001116.A4 2910001116	£1.75	£2.10
82 - COVERING HOOD BSD-2601320022.A44 2601320022	-
90 - SAFETY DEVICE BSD-2601322021.A126 2601322021	£4.48	£5.37
91 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A168 2910011128	£1.84	£2.21
102 - FIELD 220-230V BSD-2604220438.A7 2604220438	£28.59	£34.31
103 - ARMATURE 230-240V BSD-2604010578.A48 2604010578	£50.80	£60.96
104 - SWITCH BSD-2607200674.A190 2607200674	£16.41	£19.69
105 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F BSD-2604460205.A71 2604460205	£28.59	£34.31
106 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703027.A51 2600703027	£1.84	£2.21
107 - CABLE CLIP BSD-2601035001.A1829 2601035001	£1.84	£2.21
109 - STICKER BSD-2601110905.A2 2601110905	-
112 - SUPPRESSION FILTER BSD-2607329104.A13 2607329104	£10.10	£12.12
113 - BALL BEARING 7x22x7 BSD-1900905018.A176 1900905018	£19.91	£23.89
116 - BRUSH HOLDER BSD-1600A003G4.A86 1600A003G4	£3.72	£4.47
118 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1817 2603410001	£1.84	£2.21
119 - SCREW 4x16 BSD-2603490022.A1968 2603490022	£1.84	£2.21
120 - STICKER BSD-2601110763.A3 2601110763	-
129 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A53 2910601321	-
130 - SWITCH HANDLE BSD-2602026015.A43 2602026015	£1.75	£2.10
131 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A1040 1907950006	£4.48	£5.37
132 - SPEED GOVERNOR 220-240V BSD-2607230115.A96 2607230115	-
133 - SUPPRESSOR BOX BSD-2604465106.A124 2604465106	£4.26	£5.11
134 - CONNECTING CABLE L=86MM BSD-2604448044.A48 2604448044	£1.75	£2.10
135 - CABLE L=103MM BSD-2604448140.A24 2604448140	£1.32	£1.58
136 - CONNECTING CABLE L=128MM BSD-2604448046.A29 2604448046	£1.32	£1.58
137 - CONNECTING CABLE L=125MM BSD-2604448040.A61 2604448040	£2.61	£3.13
140 - INSULATION TUBING BSD-2600409017.A9 2600409017	£1.75	£2.10
150 - SHIM WASHER 0.3 MM BSD-2600101027.A253 2600101027	£1.84	£2.21
150 - SHIM 0.2 MM BSD-2600101022.A37 2600101022	£1.84	£2.21
150 - SHIM 0.5 MM BSD-2600101020.A595 2600101020	£1.84	£2.21
151 - SHIM BSD-2600150004.A680 2600150004	£2.27	£2.72
152 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A621 2603435015	£2.27	£2.72
153 - ADJUSTING SLIDE BSD-2602319005.A122 2602319005	£1.84	£2.21
154 - COVER DISC BSD-2601328045.A228 2601328045	£2.16	£2.59
155 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A545 2603490017	£2.27	£2.72
156 - SPIRAL SPRING BSD-2604652009.A60 2604652009	£1.84	£2.21
157 - HOUSING COVER BSD-2600508037.A14 2600508037	£7.36	£8.83
170 - FAN BSD-2606610049.A73 2606610049	£2.27	£2.72
171 - SINTERED-METAL BUSHING BSD-2600301046.A161 2600301046	£3.91	£4.69
172 - BUSHING BSD-2600301045.A66 2600301045	£2.94	£3.53
658 - COUNTERSUNK-HEAD SCREW BSD-2910861118.A0 2910861118	£1.75	£2.10
710/800 - SUPPORT CLAMP BSD-2608598001.A24 2608598001	-
757 - WORK BOARD BSD-2607001085.A3 2607001085	£11.30	£13.56
801 - GEAR HOUSING BSD-2605808917.A70 2605808917	£63.50	£76.20
802 - MOTOR HOUSING BSD-2605108904.A26 2605108904	£25.05	£30.06
810 - CARBON-BRUSH SET BSD-2604320912.A151 2604320912	£10.61	£12.73
813 - NEEDLE-ROLLER CAGE BSD-2607001130.A31 2607001130	£5.87	£7.04
819 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A389 2916080007	£2.74	£3.29
824 - ECCENTRIC DISC BSD-2601072901.A178 2601072901	£7.72	£9.27
826 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A205 2916080910	£2.16	£2.59
831 - NEEDLE BEARING BSD-2600917900.A190 2600917900	£9.11	£10.93
836 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A113 2916080008	-
838 - SPRING RETAINING RING BSD-2600116006.A8 2600116006	£1.75	£2.10
839 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A313 2910611006	£1.84	£2.21
840 - GEAR COVER BSD-2605808920.A29 2605808920	£73.75	£88.50
851 - SEALING PLATE BSD-2601015901.A25 2601015901	£2.94	£3.53
854 - ROLLER LEVER BSD-2601321902.A146 2601321902	-
855 - ROLLER SET BSD-1619P01375.A7 1619P01375	£11.87	£14.24
859 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A153 2916080005	-
861 - FAN COVER BSD-2605500900.A147 2605500900	£4.48	£5.37
874 - HANDLE BSD-2602026900.A36 2602026900	-
875 - MODIFICATION SET 100-240V BSD-2606491917.A3 2606491917	£22.60	£27.12
888 - NAMEPLATE BSD-160111A3H3.A5411 160111A3H3	£2.74	£3.29
