Bosch GST 60 PAE / 0601582403 / EU 220 Volt Spare Parts

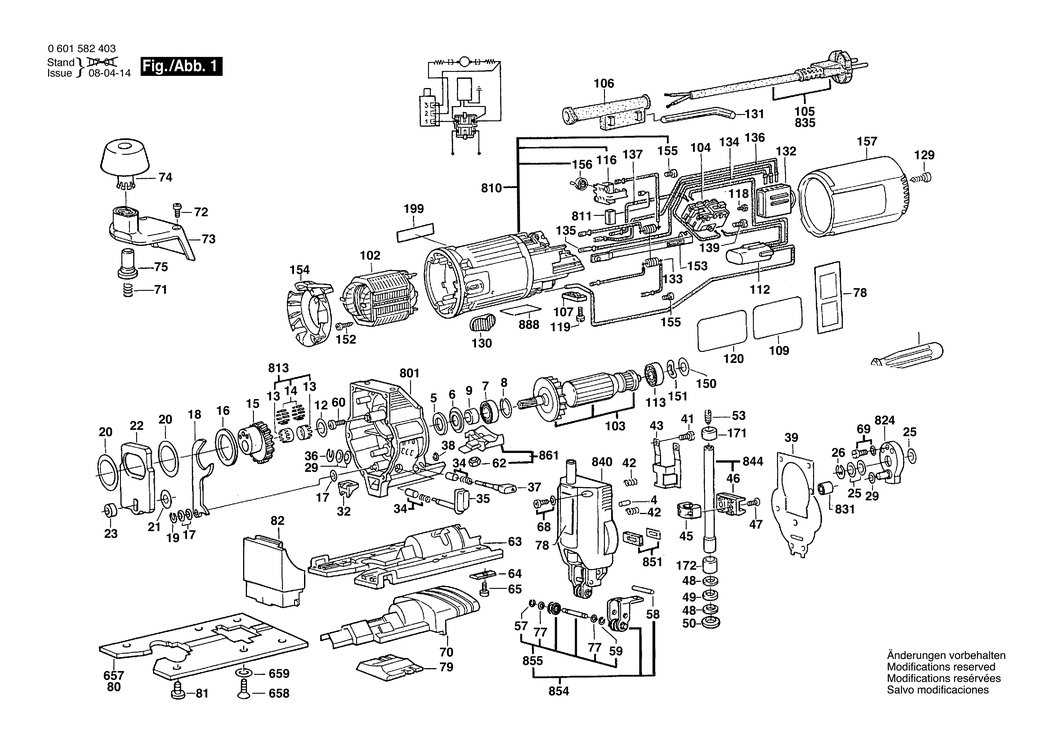

An exploded drawing and listing for the Bosch GST 60 PAE / 0601582403 / EU 220 Volt

	Ex VAT	Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A320 1903201042	£2.16	£2.59
5 - FELT WASHER BSD-2600108077.A259 2600108077	£1.75	£2.10
6 - CUPPED WASHER BSD-2600500002.A249 2600500002	£1.75	£2.10
7 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A492 2600905021	£8.67	£10.41
8 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A601 2916660008	£2.16	£2.59
9 - RECEPTACLE BSD-2600400008.A42 2600400008	£1.75	£2.10
12 - SHIM 0.5 MM BSD-2600101616.A414 2600101616	-
13 - NEEDLE-ROLLER CAGE BSD-2600913036.A49 2600913036	£1.75	£2.10
14 - NEEDLE ROLLER 1.5x5.8 MM BSD-2603201037.A148 2603201037	£2.61	£3.13
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A27 1619P02581	£21.68	£26.01
16 - SHIM 1.0 MM BSD-2600102653.A121 2600102653	£1.75	£2.10
17 - SHIM 0.3 MM BSD-2600100515.A221 2600100515	£2.61	£3.13
17 - SHIM 0.5 MM BSD-2600100516.A15 2600100516	£2.16	£2.59
18 - FORK LEVER BSD-2601923004.A101 2601923004	£2.80	£3.36
19 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A252 2916080007	£2.61	£3.13
20 - SHIM 0.5 MM BSD-2600102652.A107 2600102652	£1.75	£2.10
21 - SHIM 0.1 MM BSD-2600100625.A132 2600100625	-
21 - SHIM 0.2 MM BSD-2600100626.A96 2600100626	-
21 - SHIM 0.3 MM BSD-2600100627.A160 2600100627	-
21 - SHIM 0.5 MM BSD-2600100628.A120 2600100628	£1.75	£2.10
22 - COUNTERWEIGHT BSD-2601098003.A28 2601098003	£8.67	£10.41
23 - SPACER SLEEVE BSD-2600309009.A93 2600309009	£1.75	£2.10
25 - SHIM 0.2 MM BSD-2600100575.A261 2600100575	£2.16	£2.59
25 - SHIM 0.3 MM BSD-2600100576.A29 2600100576	-
25 - SHIM 0.5 MM BSD-2600100577.A263 2600100577	£1.75	£2.10
26 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A338 2916080910	£2.16	£2.59
29 - SHIM 0.5 MM BSD-2600100568.A246 2600100568	£1.75	£2.10
29 - SHIM 1.0 MM BSD-2600100569.A29 2600100569	£1.75	£2.10
32 - AIR ELIMINATOR BSD-2602305042.A22 2602305042	£1.75	£2.10
34 - RATCHET CAP BSD-2600590006.A801 2600590006	£1.75	£2.10
35 - ROTARY KNOB BSD-2602026036.A125 2602026036	-
36 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A142 2916080008	-
37 - ROTARY KNOB BSD-2602026037.A59 2602026037	£2.80	£3.36
38 - SPRING RETAINING RING BSD-2600116006.A53 2600116006	£1.75	£2.10
39 - SEAL BSD-2601015050.A16 2601015050	£2.61	£3.13
41 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A276 2603410048	£1.75	£2.10
42 - COMPRESSION SPRING BSD-2604613000.A180 2604613000	£1.75	£2.10
43 - GUIDE BRACKET BSD-1616B00224.A163 1616B00224	£11.32	£13.58
45 - CLAMPING SADDLE BSD-2602329011.A248 2602329011	£4.75	£5.70
46 - SLIDING PIECE 31/35 MM BSD-2601321022.A90 2601321022	-
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A78 2603421040	£1.75	£2.10
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A37 2600112031	£1.75	£2.10
49 - SEAL RING 0.5 MM BSD-2600290017.A100 2600290017	£1.75	£2.10
50 - SHIM 0.5 MM BSD-2600101612.A29 2600101612	£1.75	£2.10
53 - CLAMP SCREW BSD-2603400000.A223 2603400000	£4.26	£5.11
57 - LOCKING WASHER BSD-2600116011.A101 2600116011	£2.16	£2.59
58 - STRAIGHT PIN DIN 6325-4M6x24 BSD-2917530101.A11 2917530101	£2.80	£3.36
59 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A221 2916080005	-
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A480 2603490024	£1.75	£2.10
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1187 2915011007	-
63 - BASE PLATE BSD-2608000073.A36 2608000073	£21.68	£26.01
64 - PROFILE BEADING BSD-2601030007.A23 2601030007	£2.52	£3.02
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A5 2910141197	£1.75	£2.10
68 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A162 2603410049	£1.75	£2.10
69 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A137 2914551176	£1.75	£2.10
70 - SUCTION NOZZLE BSD-2605730033.A39 2605730033	£2.33	£2.80
71 - COMPRESSION SPRING BSD-2604616001.A42 2604616001	£1.75	£2.10
72 - SCREW AND WASHER ASSEMBLY DIN 7985-M 5x10 MM-4.8 BSD-2914501022.A15 2914501022	£1.75	£2.10
73 - FLANGED FITTING BSD-2605702002.A12 2605702002	£3.80	£4.56
74 - HANDLE BSD-2603231002.A33 2603231002	£14.91	£17.89
75 - RATCHET SLEEVE BSD-2600421000.A13 2600421000	£7.36	£8.83
77 - SHIM 0.2 MM BSD-2600100032.A63 2600100032	£1.75	£2.10
78 - STICKER BSD-2601110764.A0 2601110764	-
79 - PLATE BSD-2601099013.A32 2601099013	£4.26	£5.11
80 - PLATE BSD-2601099029.A13 2601099029	£4.26	£5.11
81 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A443 2910021116	£2.16	£2.59
82 - COVERING HOOD BSD-2601320022.A30 2601320022	£2.48	£2.97
102 - FIELD 220-240V BSD-2604220709.A25 2604220709	£27.23	£32.68
103 - ARMATURE 230-240V BSD-2604010578.A87 2604010578	£48.38	£58.06
104 - SWITCH BSD-2607200674.A50 2607200674	£16.41	£19.69
106 - GROMMET dia8.2-dia9.4x95 MM BSD-2600703026.A8 2600703026	£1.32	£1.58
106 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703027.A64 2600703027	£1.75	£2.10
106 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703028.A22 2600703028	£1.75	£2.10
107 - CABLE CLIP BSD-2601035001.A278 2601035001	£1.75	£2.10
109 - STICKER BSD-2601110787.A2 2601110787	-
112 - SUPPRESSION FILTER BSD-2607329104.A120 2607329104	£10.10	£12.12
113 - BALL BEARING 7x22x7 BSD-1900905018.A866 1900905018	£18.96	£22.75
116 - BRUSH HOLDER BSD-1600A003G4.A282 1600A003G4	£3.72	£4.47
118 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A148 2603410001	£1.75	£2.10
119 - SCREW 4x16 BSD-2603490022.A1585 2603490022	£1.75	£2.10
120 - STICKER BSD-2601110763.A40 2601110763	-
129 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A146 2910601321	-
130 - SWITCH HANDLE BSD-2602026015.A94 2602026015	£1.75	£2.10
131 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A451 1907950006	£4.26	£5.11
132 - SPEED GOVERNOR 220-240V BSD-2607230115.A13 2607230115	-
133 - SUPPRESSOR BOX BSD-2604465106.A63 2604465106	£4.26	£5.11
134 - CONNECTING CABLE L=86MM BSD-2604448044.A88 2604448044	£1.75	£2.10
135 - CABLE L=98 MM BSD-2604448045.A82 2604448045	-
136 - CONNECTING CABLE L=128MM BSD-2604448046.A39 2604448046	£1.32	£1.58
137 - CONNECTING CABLE L=125MM BSD-2604448040.A27 2604448040	£2.61	£3.13
139 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A41 2910611006	£1.75	£2.10
150 - SHIM WASHER 0.3 MM BSD-2600101027.A30 2600101027	£1.75	£2.10
150 - SHIM 0.2 MM BSD-2600101022.A489 2600101022	£1.75	£2.10
150 - SHIM 0.5 MM BSD-2600101020.A160 2600101020	£1.75	£2.10
151 - SHIM BSD-2600150004.A126 2600150004	£2.16	£2.59
152 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A47 2603435015	£2.16	£2.59
153 - ADJUSTING SLIDE BSD-2602319005.A43 2602319005	£1.75	£2.10
154 - COVER DISC BSD-2601328045.A24 2601328045	£2.16	£2.59
155 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1177 2603490017	£2.16	£2.59
156 - SPIRAL SPRING BSD-2604652009.A241 2604652009	£1.75	£2.10
157 - HOUSING COVER BSD-2600508037.A2 2600508037	£7.36	£8.83
171 - SINTERED-METAL BUSHING BSD-2600301046.A107 2600301046	£3.72	£4.47
172 - BUSHING BSD-2600301045.A120 2600301045	£2.80	£3.36
199 - STICKER BSD-1601110265.A174 1601110265	-
658 - COUNTERSUNK-HEAD SCREW BSD-2910861118.A15 2910861118	£1.75	£2.10
659 - O-RING 3.1x1.5 MM BSD-2600210033.A1 2600210033	-
710 - SUPPORT CLAMP BSD-2608598001.A34 2608598001	-
801 - GEAR HOUSING BSD-2605808915.A48 2605808915	£37.72	£45.27
810 - MOTOR HOUSING BSD-2605108904.A136 2605108904	£23.86	£28.63
811 - CARBON-BRUSH SET BSD-2604320912.A41 2604320912	£10.10	£12.12
824 - ECCENTRIC DISC BSD-2601072901.A31 2601072901	£7.36	£8.83
831 - NEEDLE BEARING BSD-2600917900.A277 2600917900	£8.67	£10.41
835 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1607000386.A115 1607000386	£21.52	£25.83
840 - GEAR COVER BSD-2605808916.A20 2605808916	-
844 - LIFTING ROD BSD-2600780913.A31 2600780913	-
851 - SEALING PLATE BSD-2601015901.A104 2601015901	£2.80	£3.36
854 - ROLLER LEVER BSD-2601321902.A32 2601321902	-
855 - ROLLER SET BSD-1619P01375.A99 1619P01375	£11.30	£13.56
861 - FAN COVER BSD-2605500900.A30 2605500900	£4.26	£5.11
888 - NAMEPLATE BSD-160111A3H3.A960 160111A3H3	£2.61	£3.13
