Bosch GST 140 CE / 3601E14060 / GB 110 Volt Spare Parts

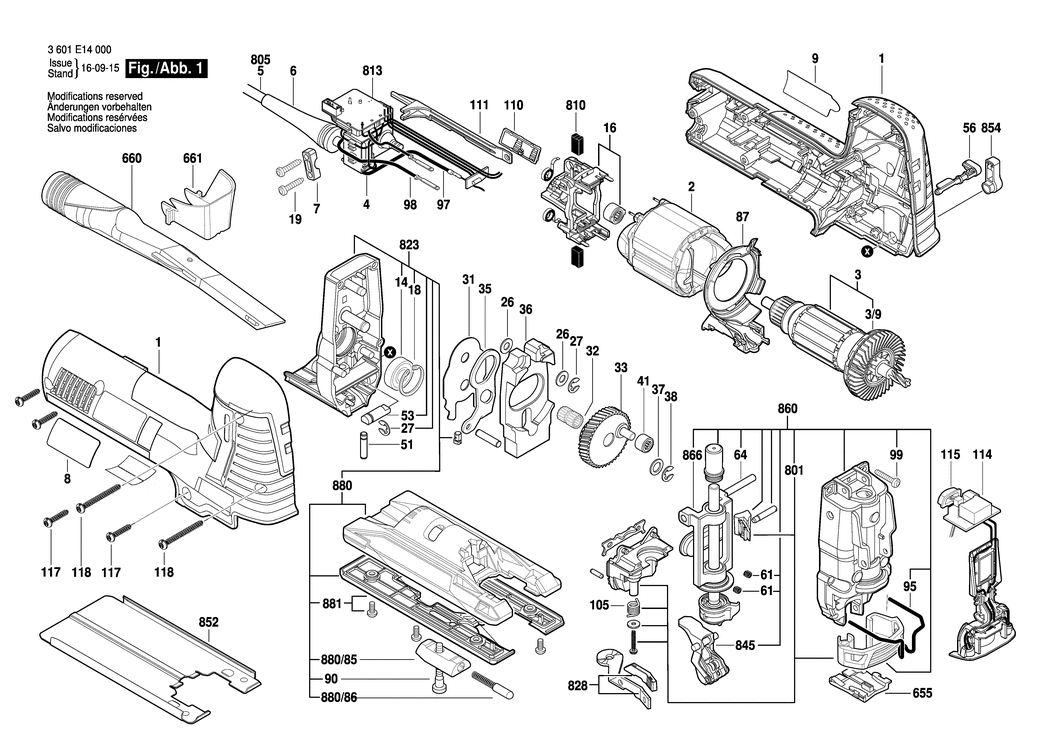

An exploded drawing and listing for the Bosch GST 140 CE / 3601E14060 / GB 110 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605105148.A5 2605105148	£33.74	£40.49
2 - FIELD 110V BSD-2604220742.A0 2604220742	£37.27	£44.72
3 - ARMATURE 110V BSD-2604011432.A2 2604011432	£59.53	£71.44
3/9 - FAN BSD-2606610089.A48 2606610089	£5.30	£6.36
4 - SWITCH BSD-2607200684.A8 2607200684	£21.52	£25.83
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.0mm H05 RN-F BSD-2604460204.A40 2604460204	£31.64	£37.97
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A619 2600703017	£2.61	£3.13
7 - CABLE CLIP BSD-2601035004.A72 2601035004	£2.16	£2.59
8 - NAMEPLATE BSD-2601111898.A0 2601111898	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE GST 140 CE BSD-2601111484.A1 2601111484	£2.61	£3.13
14 - GROOVE BALL BEARING 9x24x7 BSD-2600905112.A36 2600905112	£12.04	£14.45
16 - BRUSH PLATE BSD-2605807137.A15 2605807137	£21.68	£26.01
18 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A492 2916660008	£2.16	£2.59
19 - SCREW 4x16 BSD-2603490022.A588 2603490022	£1.75	£2.10
26 - SHIM BSD-2600100040.A90 2600100040	£1.75	£2.10
27 - LOCKING WASHER 5 DIN 6799 BSD-2916080908.A188 2916080908	£1.75	£2.10
31 - SHIM BSD-2600101124.A20 2600101124	£1.75	£2.10
32 - NEEDLE-ROLLER ASSEMBLY BSD-2600913040.A78 2600913040	£5.58	£6.70
33 - ECCENTRIC COG WHEEL BSD-2606320107.A4 2606320107	£21.52	£25.83
35 - FORK LEVER BSD-2601923015.A35 2601923015	£2.80	£3.36
36 - COUNTERWEIGHT BSD-2601098120.A9 2601098120	£18.96	£22.75
37 - SHIM 0.3 MM BSD-2600101047.A401 2600101047	£1.75	£2.10
38 - LOCKING WASHER DIN 6799-6-FST BSD-2916080909.A35 2916080909	£1.75	£2.10
41 - NEEDLE BEARING BSD-2600917900.A346 2600917900	£8.67	£10.41
51 - BEARING BOLT BSD-2603105131.A62 2603105131	£2.16	£2.59
53 - CONTROL SHAFT BSD-2603124157.A5 2603124157	£5.30	£6.36
56 - ROTARY KNOB BSD-2602026170.A23 2602026170	£1.75	£2.10
61 - COMPRESSION SPRING BSD-2604610140.A34 2604610140	£1.75	£2.10
64 - STRAIGHT PIN BSD-2601322045.A12 2601322045	£1.75	£2.10
87 - AIR-DEFLECTOR RING BSD-2605500206.A18 2605500206	£10.10	£12.12
90 - HEX SOCKET HEAD CAP SCREW DIN 7984 M6x30-8.8 BSD-2910131205.A22 2910131205	£2.16	£2.59
95 - PROTECTING COVER BSD-2603101060.A25 2603101060	£4.26	£5.11
97 - EARTH CONDUCTOR BSD-2604448351.A17 2604448351	£2.61	£3.13
98 - CONNECTING CABLE BSD-1619P07299.A18 1619P07299	£2.61	£3.13
99 - THREAD-FORMING TAP. SCREW BSD-2603410051.A84 2603410051	£1.75	£2.10
105 - TORSION SPRING BSD-2604690060.A22 2604690060	£1.75	£2.10
110 - OPERATING ELEMENT BSD-2602026169.A8 2602026169	£2.80	£3.36
111 - ADJUSTING SLIDE BSD-2601099223.A9 2601099223	£3.72	£4.47
114 - EL LUMA MODULE 230V BSD-1607233384.A1 1607233384	£31.64	£37.97
115 - HEADLAMP SWITCH BSD-2600030030.A12 2600030030	£2.61	£3.13
117 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1127 2603490023	£1.75	£2.10
118 - TORX OVAL-HEAD SCREW 4x40 BSD-2603490027.A78 2603490027	£1.75	£2.10
655 - SPLINTERING PROTECTOR BSD-2601016093.A56 2601016093	£4.26	£5.11
660 - SUCTION SOCKET BSD-2605730061.A10 2605730061	£18.96	£22.75
661 - COVERING HOOD BSD-2605510296.A12 2605510296	£3.72	£4.47
801 - EJECTION LEVER BSD-2607990068.A11 2607990068	£11.30	£13.56
810 - CARBON-BRUSH SET BSD-2604320918.A14 2604320918	£12.04	£14.45
813 - SPEED GOVERNOR 100-127V BSD-1607233404.A0 1607233404	£59.53	£71.44
823 - GEAR HOUSING BSD-2605806871.A1 2605806871	£93.88	£112.65
828 - TENSIONING LEVER BSD-2602098024.A17 2602098024	£6.52	£7.83
845 - ROLLER LEVER BSD-2601321909.A18 2601321909	£46.37	£55.64
852 - WORK BOARD BSD-2601098121.A30 2601098121	£18.96	£22.75
854 - ROTARY KNOB BSD-2602026909.A21 2602026909	£2.61	£3.13
860 - GEAR COVER BSD-2605808935.A2 2605808935	£156.22	£187.46
866 - LIFTING ROD BSD-1600A00HG1.A10 1600A00HG1	£63.50	£76.20
880 - BASE PLATE BSD-2601099256.A19 2601099256	£58.76	£70.51
880/85 - CLAMPING PIECE BSD-2602317067.A34 2602317067	£4.26	£5.11
880/86 - RATCHET CAP BSD-2600590018.A21 2600590018	£2.80	£3.36
881 - WORK BOARD BSD-2601099900.A28 2601099900	£14.91	£17.89
