Bosch GDR 1440-LI / 3601JB34E0 / --- 14.4 Volt Spare Parts

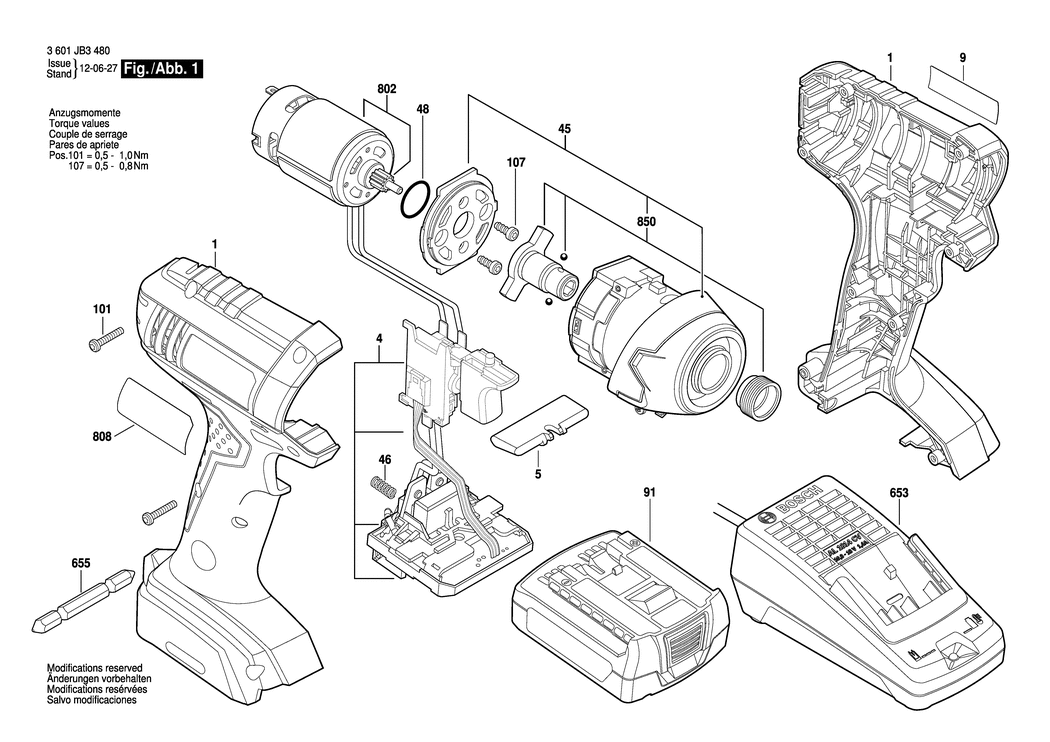

An exploded drawing and listing for the Bosch GDR 1440-LI / 3601JB34E0 / --- 14.4 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609101006.A2 2609101006	£18.96	£22.75
4 - ELECTRONICS MODULE BSD-2609199609.A0 2609199609	£68.42	£82.10
5 - BUTTON BSD-2609100698.A27 2609100698	£2.80	£3.36
9 - MANUFACTURER'S NAMEPLATE GDR 1440 LI BSD-2609133184.A0 2609133184	-
45 - GEAR BOX BSD-2609199364.A0 2609199364	£68.42	£82.10
46 - COMPRESSION SPRING BSD-1609280477.A154 1609280477	£1.75	£2.10
48 - SEAL RING BSD-2609170168.A3 2609170168	£1.75	£2.10
91 - SLIDE-IN ACCU PACKAGE 14.4V 1.3Ah. Li. Alpha 18720mWh BSD-2607336607.A1 2607336607	£103.14	£123.77
101 - TORX FLAT-HEAD SCREW 3x16 BSD-2609110201.A114 2609110201	£2.16	£2.59
107 - SCREW BSD-2609110560.A3 2609110560	£1.75	£2.10
653 - BATTERY CHARGER BR 127/10.8-18V. 30 MIN BSD-2607225779.A1 2607225779	£59.53	£71.44
653 - FAST CHARGER BR 220/10.8-18V. 30 MIN BSD-2607225781.A2 2607225781	£51.22	£61.47
653 - BATTERY CHARGER AR 230/10.8-18V. 30 MIN BSD-2607225783.A1 2607225783	£51.22	£61.47
655 - SCREWDRIVER BLADE BSD-2609110342.A2 2609110342	£2.61	£3.13
802 - DC MOTOR 14.4V BSD-2609199419.A0 2609199419	£48.38	£58.06
808 - NAMEPLATE BSD-2609136013.A0 2609136013	-
850 - COUPLING HALF BSD-2609199320.A0 2609199320	£14.72	£17.67
