Bosch ASS 12-A / 3601JA6W01 / EU 12 Volt Spare Parts

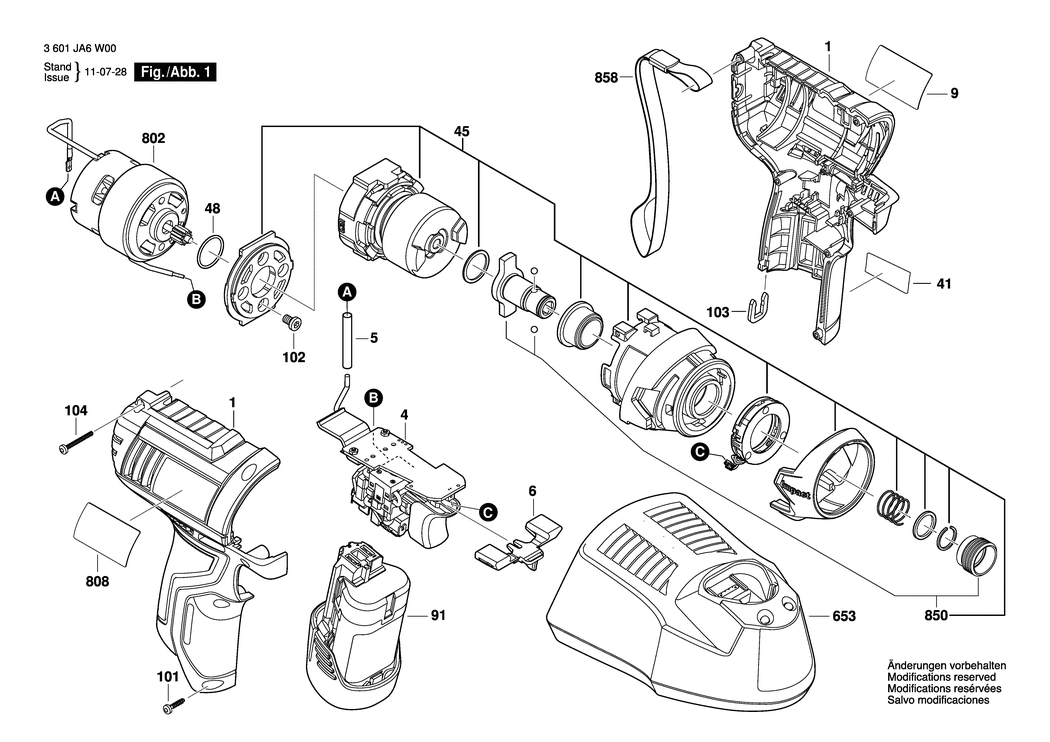

An exploded drawing and listing for the Bosch ASS 12-A / 3601JA6W01 / EU 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609101052.A0 2609101052	£18.96	£22.75
4 - ELECTRONICS MODULE BSD-16072335DD.A4 16072335DD	£54.42	£65.30
5 - SHRINKABLE TUBE BSD-2609170134.A1 2609170134	£1.75	£2.10
6 - ADJUSTING SLIDE BSD-2609100817.A3 2609100817	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE WÃœRTH BSD-2609133289.A0 2609133289	£2.61	£3.13
41 - STICKER BSD-2609132846.A1 2609132846	£2.61	£3.13
45 - GEAR BOX BSD-2609199433.A0 2609199433	£72.18	£86.62
48 - SEAL RING BSD-2609170121.A3 2609170121	£1.75	£2.10
91 - BATTERY PACK LI 12V 2.0Ah. Li-Ion. 24 Wh PL BSD-1607A3506L.A8 1607A3506L	£51.22	£61.47
101 - SCREW BSD-2609110883.A17 2609110883	£2.16	£2.59
102 - TORX FLAT-HEAD SCREW BSD-2609110950.A3 2609110950	£1.75	£2.10
103 - CLIP BSD-2609110537.A6 2609110537	£1.75	£2.10
104 - PAN HEAD SCREW BSD-2609110991.A1 2609110991	£1.75	£2.10
653 - FAST CHARGER EU 10.8-12V. 30 min AL 30-LI PL BSD-2607226167.A5 2607226167	£59.53	£71.44
802 - DC MOTOR 10.8V BSD-2609199281.A1 2609199281	£33.74	£40.49
808 - NAMEPLATE BSD-160111A4MU.A0 160111A4MU	£2.61	£3.13
850 - COUPLING HALF BSD-2609199320.A6 2609199320	£14.72	£17.67
858 - CARRYING LOOP BSD-2609170177.A1 2609170177	£2.80	£3.36

Attribute Name	Value
Brand	Bosch
