Bosch SB 16 E / 0601183767 / GB 240 Volt Spare Parts

Home Details Reviews Delivery

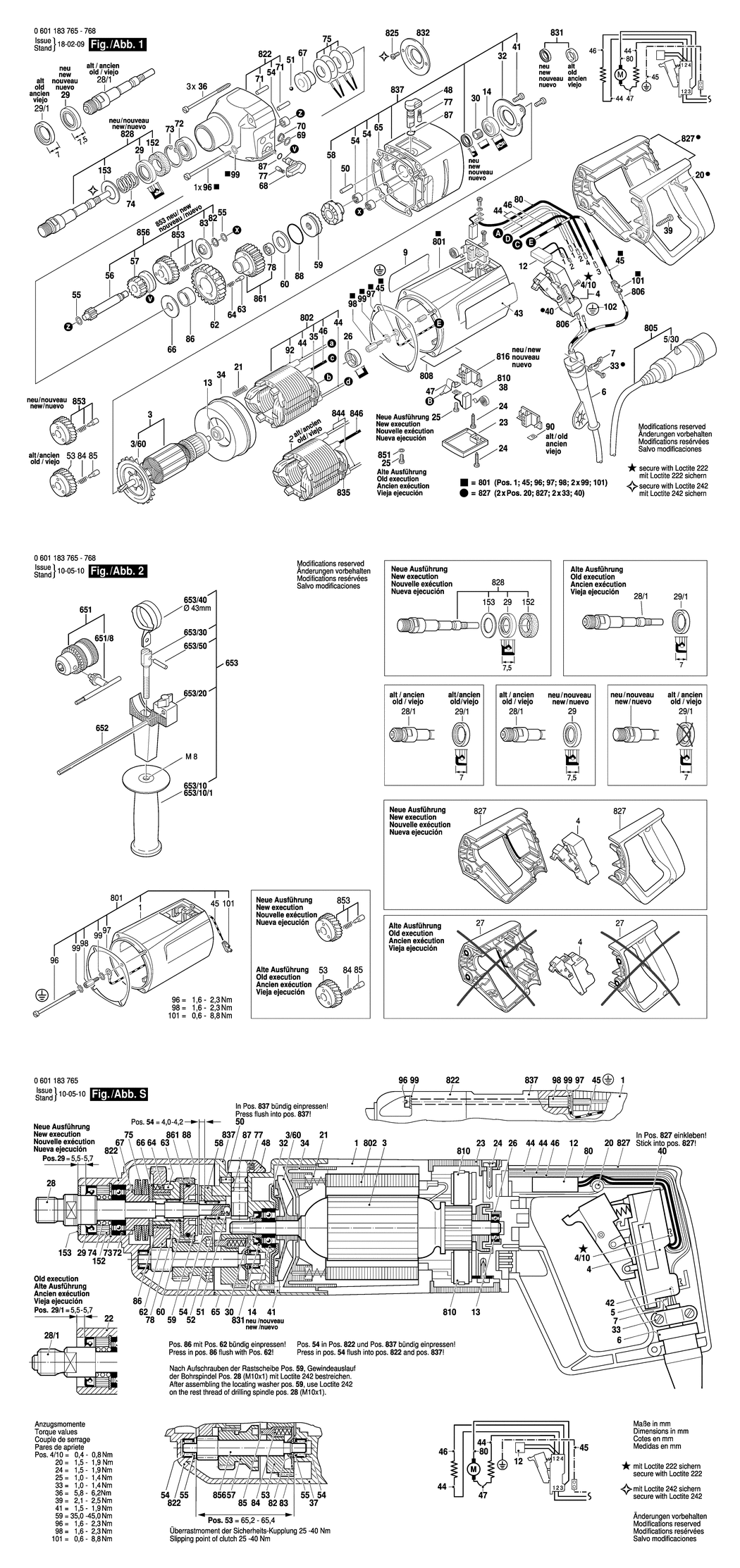

An exploded drawing and listing for the Bosch SB 16 E / 0601183767 / GB 240 Volt

	Ex VAT	Inc VAT
3 - ARMATURE BSD-1619P13612.A4 1619P13612	£47.95	£57.54
3/60 - FAN BSD-1606610122.A152 1606610122	£2.94	£3.53
4 - SWITCH BSD-1607200075.A64 1607200075	£71.84	£86.21
4/10 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x12-5.8 BSD-2910011088.A14 2910011088	£1.84	£2.21
5 - POWER SUPPLY CORD GB 2.65m 2 x 1.0mm H07 RN-F BSD-3604460071.A26 3604460071	£22.60	£27.12
5/30 - APPLIANCE INLET BSD-3604483034.A1 3604483034	-
6 - GROMMET dia7.9-dia12.0x120 MM BSD-1600703022.A112 1600703022	£2.94	£3.53
7 - FASTENING CLAMP BSD-1601302013.A491 1601302013	£1.84	£2.21
9 - MANUFACTURER'S NAMEPLATE BSD-3601119129.A0 3601119129	-
12 - SUPPRESSION FILTER BSD-1607328028.A0 1607328028	£5.57	£6.68
13 - BALL BEARING 7x19x6 BSD-2600905032.A1374 2600905032	£5.57	£6.68
14 - GROOVE BALL BEARING 9x26x8 BSD-3600905131.A51 3600905131	£11.87	£14.24
20 - TORX OVAL-HEAD SCREW BSD-2914201507.A42 2914201507	£1.75	£2.10
21 - COMPRESSION SPRING BSD-1604613006.A14 1604613006	£1.75	£2.10
23 - SEALING CAP BSD-3605500090.A0 3605500090	£10.61	£12.73
24 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A79 2910211019	£1.84	£2.21
25 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A311 2910021118	£1.84	£2.21
26 - INTERMEDIATE RING BSD-1600502011.A541 1600502011	£2.74	£3.29
29 - ROTARY SHAFT LIP SEAL BSD-3600283043.A5 3600283043	£12.64	£15.17
30 - INTERMEDIATE RING BSD-1600300090.A39 1600300090	£3.72	£4.47
32 - BEARING COVER BSD-3605500156.A21 3605500156	£5.87	£7.04
33 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A573 2910211018	£1.75	£2.10
34 - AIR-DEFLECTOR RING BSD-3600499013.A3 3600499013	-
35 - WIRE GUIDE BSD-3601025003.A65 3601025003	£1.75	£2.10
36 - LENS HEAD SCREW BSD-3603435039.A17 3603435039	£2.74	£3.29
38 - SPIRAL SPRING BSD-3604652001.A23 3604652001	£2.74	£3.29
39 - TORX OVAL-HEAD SCREW BSD-2914201527.A84 2914201527	£2.27	£2.72
40 - INSULATING PLATE 20x20x50 MM BSD-1602381006.A81 1602381006	£1.75	£2.10
41 - THREAD-FORMING TAP. SCREW BSD-3604411040.A14 3604411040	£2.61	£3.13
43 - MANUFACTURER'S NAMEPLATE BSD-3601119902.A7 3601119902	£2.94	£3.53
44 - CONNECTING CABLE L=360 MM BSD-3604460027.A50 3604460027	£6.52	£7.83
45 - EARTH CONDUCTOR L=415 MM BSD-3604414049.A20 3604414049	£13.78	£16.54
46 - CONNECTING CABLE L=375 MM BSD-3604438027.A21 3604438027	£10.61	£12.73
47 - BLADE TERMINAL BSD-1604477001.A64 1604477001	£1.75	£2.10
48 - ROTARY KNOB BSD-3603231004.A2 3603231004	£22.60	£27.12
50 - STRAIGHT PIN DIN 6325-4m6x20 BSD-2917550099.A16 2917550099	£1.75	£2.10
51 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A326 1903230010	£1.84	£2.21
54 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A75 1600910018	£5.57	£6.68
55 - SHIM 0.5 MM BSD-1600100617.A9 1600100617	£1.75	£2.10
56 - TOOTHED SHAFT Z=9 BSD-3606309014.A4 3606309014	£42.84	£51.41
57 - CYLINDRICAL GEAR Z=21 BSD-3606317024.A2 3606317024	£42.84	£51.41
58 - LOCATING WASHER BSD-3600390015.A3 3600390015	£47.95	£57.54
59 - LOCATING WASHER BSD-3600190009.A14 3600190009	£33.22	£39.87
60 - COUPLING PLATE BSD-3600101030.A14 3600101030	£10.10	£12.12
62 - CYLINDRICAL GEAR Z=43 BSD-3606317022.A1 3606317022	£48.38	£58.06
63 - BALL PIN BSD-3603126000.A5 3603126000	£5.30	£6.36
64 - COMPRESSION SPRING BSD-3604610026.A3 3604610026	£2.27	£2.72
65 - SEAL BSD-3601015009.A34 3601015009	£2.74	£3.29
66 - PRESSURE DISK BSD-3600101029.A5 3600101029	£5.58	£6.70
67 - COLLAR SLEEVE BSD-3600320009.A4 3600320009	£11.87	£14.24
68 - ROTARY KNOB BSD-3603231005.A14 3603231005	£4.26	£5.11
69 - SHIM 0.2 MM BSD-2600100575.A72 2600100575	£2.16	£2.59
69 - SHIM 0.3 MM BSD-2600100576.A243 2600100576	-
69 - SHIM 0.5 MM BSD-2600100577.A75 2600100577	£1.84	£2.21
70 - SPRING RETAINING RING DIN 471-10x1MM-FSt BSD-2916650001.A286 2916650001	£2.74	£3.29
71 - STRAIGHT PIN 5 H 8x18 DIN 7 BSD-2917500121.A28 2917500121	£1.75	£2.10
72 - GROOVE BALL BEARING 15x32x9 BSD-1900905162.A126 1900905162	£18.96	£22.75
73 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A651 2916660013	£2.16	£2.59
74 - COMPRESSION SPRING BSD-2604617000.A68 2604617000	£2.61	£3.13
75 - DISC SPRING BSD-3600550004.A14 3600550004	£3.91	£4.69
77 - RATCHET CAP BSD-2600590006.A349 2600590006	£1.84	£2.21
78 - NEEDLE BEARING BSD-3600913008.A36 3600913008	£3.91	£4.69
80 - CONNECTING CABLE L=290 MM BSD-1604445006.A5 1604445006	£5.58	£6.70
82 - RETAINING RING BSD-3600224008.A30 3600224008	£2.16	£2.59
83 - HOLDING PLATE BSD-3600190010.A5 3600190010	£1.75	£2.10
86 - BUSHING BSD-3600200011.A2 3600200011	£7.72	£9.27
87 - O-RING 6.0x2.0 MM BSD-3600210028.A33 3600210028	£2.27	£2.72
88 - O-RING 27.0x3.0 MM BSD-3600210027.A0 3600210027	£1.84	£2.21
90 - TAB WASHER BSD-1601030022.A338 1601030022	£1.84	£2.21
92 - SHRINKABLE TUBE BSD-3600707022.A99 3600707022	£3.72	£4.47
96 - SOCKET HEAD CAP SCREW M4x103 MM BSD-3603414022.A19 3603414022	£9.11	£10.93
97 - CONTACT SHEET BSD-3601016003.A7 3601016003	£22.76	£27.31
98 - BOLT BSD-3603100033.A20 3603100033	£2.80	£3.36
99 - TOOTHED LOCK WASHER BSD-2916031006.A20 2916031006	£1.75	£2.10
101 - SOCKET-TERMINAL STRIP 1x1.5 MM BSD-3602319041.A6 3602319041	£1.75	£2.10
102 - REFERENCE PLATE BSD-3601119070.A20 3601119070	£3.72	£4.47
152 - FELT WASHER BSD-3600200044.A5 3600200044	£2.94	£3.53
153 - COVER DISC BSD-3600150027.A7 3600150027	£3.91	£4.69
651 - KEY CHUCK dia3-16MM.5/8 BSD-1608571083.A17 1608571083	£72.18	£86.62
651/8 - CHUCK WRENCH SG2 BSD-2607950011.A30 2607950011	£11.30	£13.56
652 - DEPTH-GAUGE SW 6x330 MM BSD-1613001008.A185 1613001008	£9.11	£10.93
653 - AUXILIARY HANDLE dia 43 MM BSD-3602025012.A20 3602025012	£28.59	£34.31
653/10 - AUXILIARY HANDLE M8 BSD-1612025019.A479 1612025019	£6.85	£8.22
653/10/1 - AUXILIARY HANDLE BSD-160202507H.A243 160202507H	£11.87	£14.24
653/20 - SUPPORT CLAMP BSD-1618040077.A48 1618040077	-
653/30 - STUD BOLT M8 BSD-1613521001.A50 1613521001	£5.58	£6.70
653/40 - CLAMPING BAND dia43 MM BSD-3601038048.A63 3601038048	£19.91	£23.89
653/50 - STRAIGHT PIN BSD-1613100012.A114 1613100012	£2.61	£3.13
801 - MOTOR HOUSING BSD-3605108176.A1 3605108176	-
802 - FIELD 230V BSD-3604220129.A11 3604220129	£75.79	£90.95
805 - POWER SUPPLY CORD BSD-3607000086.A2 3607000086	-
806 - END SPLICE DIN 46 228-A2.5-7 BSD-1900452003.A2 1900452003	£2.61	£3.13
808 - NAMEPLATE BSD-160111A3HC.A176 160111A3HC	£2.74	£3.29
810 - CARBON-BRUSH SET BSD-3607014012.A71 3607014012	£25.05	£30.06
816 - BRUSH HOLDER BSD-3604336012.A125 3604336012	£5.58	£6.70
822 - SPINDLE HOUSING BSD-3605806179.A1 3605806179	£85.90	£103.08
825 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A314 2910021118	£1.84	£2.21
827 - HANDLE BSD-3605133017.A7 3605133017	£42.84	£51.41
828 - DRILLING SPINDLE 5/8. SW17 BSD-3607030413.A15 3607030413	£72.18	£86.62
831 - ROTARY SHAFT LIP SEAL BSD-3600290070.A49 3600290070	£12.64	£15.17
832 - BEARING COVER BSD-3605500043.A5 3605500043	£4.48	£5.37
835 - WIRE GUIDE BSD-1601025001.A121 1601025001	£1.75	£2.10
837 - INTERMEDIATE BEARING BSD-3605820078.A15 3605820078	£142.02	£170.42
844 - CONNECTING CABLE L=330 MM BSD-1604438012.A41 1604438012	£7.36	£8.83
846 - CONNECTING CABLE L=345 MM BSD-1604438013.A25 1604438013	£7.72	£9.27
851 - SPRING WASHER DIN 137-A 4-ST BSD-2916060005.A137 2916060005	£1.84	£2.21
853 - CYLINDRICAL GEAR BSD-3607030411.A3 3607030411	£50.80	£60.96
856 - CONTROL SHAFT BSD-3607031177.A12 3607031177	£142.02	£170.42
861 - CYLINDRICAL GEAR Z=33 BSD-3607030274.A5 3607030274	£57.14	£68.57

Attribute Name	Value
Brand	Bosch
