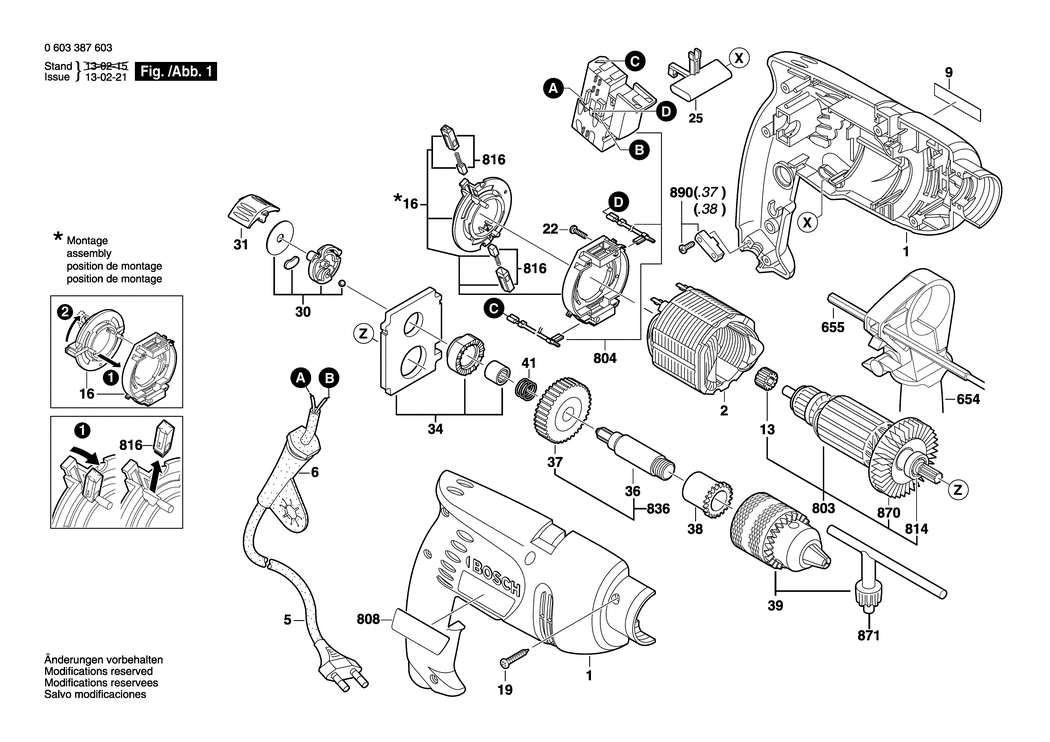

1 - HOUSING SECTION
BSD-2605104766.A5
2605104766
|
£13.41
|
£16.09
|
|
|
2 - FIELD 220-240V
BSD-2604220601.A79
2604220601
|
-
|
|
|
|
5 - POWER SUPPLY CORD EU 230V 2.7m 2 x 0.75mm H05 VV-F
BSD-2604460259.A50
2604460259
|
£13.12
|
£15.75
|
|
|
6 - GROMMET dia6.2-dia6.9x90 MM
BSD-2600707066.A39
2600707066
|
£2.48
|
£2.97
|
|
|
9 - MANUFACTURER'S NAMEPLATE PSB 500 RE
BSD-2601117918.A0
2601117918
|
£3.34
|
£4.01
|
|
|
13 - SINTERED-METAL BUSHING
BSD-2600301068.A17
2600301068
|
£1.75
|
£2.10
|
|
|
16 - BRUSH PLATE
BSD-2604337101.A15
2604337101
|
-
|
|
|
|
19 - SCREW 4x16
BSD-2603490022.A140
2603490022
|
£1.75
|
£2.10
|
|
|
22 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H
BSD-2910611002.A156
2910611002
|
£1.75
|
£2.10
|
|
|
25 - CHANGE-OVER SWITCH
BSD-2602098008.A167
2602098008
|
£1.75
|
£2.10
|
|
|
30 - INDEXING DISK
BSD-2601901012.A15
2601901012
|
-
|
|
|
|
31 - CHANGE-OVER SWITCH
BSD-2601990029.A14
2601990029
|
-
|
|
|
|
34 - BEARING BRACKET
BSD-2605807107.A20
2605807107
|
-
|
|
|
|
36 - DRILLING SPINDLE 1/2
BSD-2606135081.A17
2606135081
|
£8.67
|
£10.41
|
|
|
37 - CYLINDRICAL GEAR
BSD-2606320081.A5
2606320081
|
-
|
|
|
|
38 - POROUS BEARING
BSD-2600301066.A0
2600301066
|
-
|
|
|
|
39 - KEY CHUCK dia1.5-13 MM
BSD-1608571080.A69
1608571080
|
£27.23
|
£32.68
|
|
|
41 - COMPRESSION SPRING
BSD-2604616006.A141
2604616006
|
£1.75
|
£2.10
|
|
|
654 - AUXILIARY HANDLE
BSD-2602025125.A144
2602025125
|
£10.10
|
£12.12
|
|
|
654 - AUXILIARY HANDLE Power Light
BSD-2602025137.A19
2602025137
|
£18.96
|
£22.75
|
|
|
655 - DEPTH-GAUGE
BSD-2609005615.A190
2609005615
|
£4.26
|
£5.11
|
|
|
803 - ARMATURE 230-240V
BSD-2604011315.A9
2604011315
|
£27.31
|
£32.77
|
|
|
804 - ON-OFF SWITCH
BSD-2609002056.A9
2609002056
|
£14.72
|
£17.67
|
|
|
808 - NAMEPLATE
BSD-2601117919.A1
2601117919
|
-
|
|
|
|
814 - GROOVE BALL BEARING 8x22x7 608-2Z/C3
BSD-3130900020.A14
3130900020
|
£6.52
|
£7.83
|
|
|
816 - CARBON-BRUSH SET
BSD-2607014013.A20
2607014013
|
£10.10
|
£12.12
|
|
|
836 - DRILLING SPINDLE
BSD-2606135935.A20
2606135935
|
£14.91
|
£17.89
|
|
|
870 - ARMATURE WITH FAN
BSD-2606610097.A74
2606610097
|
£3.72
|
£4.47
|
|
|
871 - CHUCK WRENCH SG2
BSD-2607950007.A1246
2607950007
|
£6.52
|
£7.83
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A141
2607001305
|
£4.26
|
£5.11
|
|
