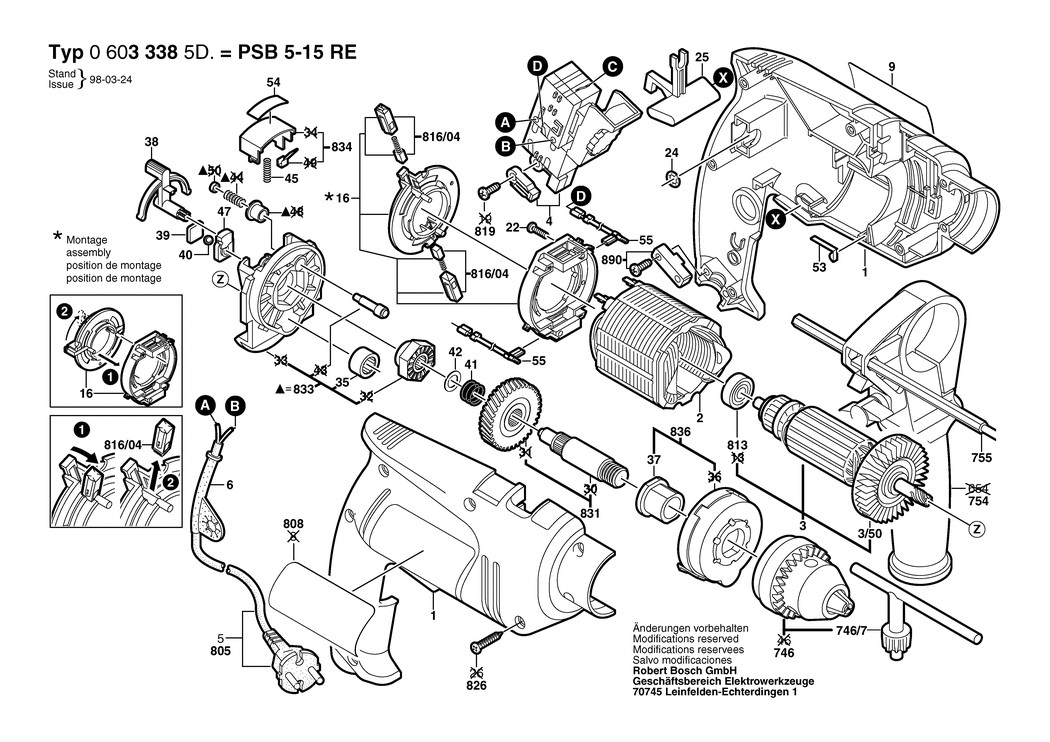

1 - HOUSING SECTION
BSD-2605104560.A36
2605104560
|
£14.72
|
£17.67
|
|
|
2 - FIELD 220-240V
BSD-2604220688.A138
2604220688
|
£28.59
|
£34.31
|
|
|
3 - ARMATURE 220-240V
BSD-2604011154.A77
2604011154
|
£30.28
|
£36.33
|
|
|
3/50 - FAN
BSD-2606610029.A311
2606610029
|
£2.74
|
£3.29
|
|
|
4 - SWITCH
BSD-2607200556.A84
2607200556
|
£28.59
|
£34.31
|
|
|
6 - GROMMET dia6.2-dia6.9x90 MM
BSD-2600707066.A232
2600707066
|
£2.60
|
£3.12
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119898.A7
2601119898
|
-
|
|
|
|
16 - BRUSH PLATE
BSD-2604337059.A93
2604337059
|
£11.87
|
£14.24
|
|
|
22 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H
BSD-2910611002.A76
2910611002
|
£1.75
|
£2.10
|
|
|
24 - O-RING 5.0x1.5 MM
BSD-1900210000.A333
1900210000
|
£1.84
|
£2.21
|
|
|
25 - CHANGE-OVER SWITCH
BSD-2602098008.A73
2602098008
|
£1.84
|
£2.21
|
|
|
35 - NEEDLE BEARING
BSD-2600914019.A174
2600914019
|
£5.57
|
£6.68
|
|
|
37 - POROUS BEARING
BSD-2600301052.A98
2600301052
|
-
|
|
|
|
38 - INDEXING DISK
BSD-2601990010.A131
2601990010
|
-
|
|
|
|
39 - PRESSURE PLATE
BSD-2601074004.A35
2601074004
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5 G28
BSD-1903230009.A768
1903230009
|
£1.84
|
£2.21
|
|
|
41 - COMPRESSION SPRING
BSD-2604616006.A267
2604616006
|
£1.84
|
£2.21
|
|
|
42 - SHIM 0.3 MM
BSD-2600101047.A253
2600101047
|
£1.84
|
£2.21
|
|
|
45 - COMPRESSION SPRING
BSD-2604610047.A49
2604610047
|
£1.84
|
£2.21
|
|
|
47 - FRAME
BSD-2608040120.A111
2608040120
|
£2.61
|
£3.13
|
|
|
53 - CONTACT STRAP
BSD-2601329043.A127
2601329043
|
£1.38
|
£1.66
|
|
|
54 - REFERENCE PLATE
BSD-2601119602.A12
2601119602
|
£3.91
|
£4.69
|
|
|
55 - PVC-INSULATED CABLE L=95 MM
BSD-1614431025.A158
1614431025
|
£2.61
|
£3.13
|
|
|
746 - KEY CHUCK 1/2
BSD-2608571056.A51
2608571056
|
£18.37
|
£22.04
|
|
|
746/7 - CHUCK WRENCH SG2
BSD-2607950007.A285
2607950007
|
£6.85
|
£8.22
|
|
|
754 - AUXILIARY HANDLE 1/2
BSD-2602025102.A63
2602025102
|
£10.86
|
£13.03
|
|
|
755 - DEPTH-GAUGE
BSD-2603001019.A68
2603001019
|
£2.63
|
£3.16
|
|
|
805 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F
BSD-1607000388.A162
1607000388
|
£12.04
|
£14.45
|
|
|
808 - NAMEPLATE
BSD-2601119620.A24
2601119620
|
-
|
|
|
|
813 - BALL BEARING 7x19x6
BSD-2600905032.A1864
2600905032
|
£5.57
|
£6.68
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2607014017.A67
2607014017
|
-
|
|
|
|
819 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A339
2910611006
|
£1.84
|
£2.21
|
|
|
826 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A182
2910611020
|
£1.84
|
£2.21
|
|
|
831 - DRILLING SPINDLE 1/2
BSD-2606135929.A16
2606135929
|
-
|
|
|
|
833 - BEARING BRACKET
BSD-2605807932.A18
2605807932
|
-
|
|
|
|
834 - PUSH-BUTTON
BSD-2603231040.A111
2603231040
|
-
|
|
|
|
836 - GEAR COVER
BSD-2605808922.A103
2605808922
|
£11.37
|
£13.64
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A206
2607001305
|
£4.48
|
£5.37
|
|
