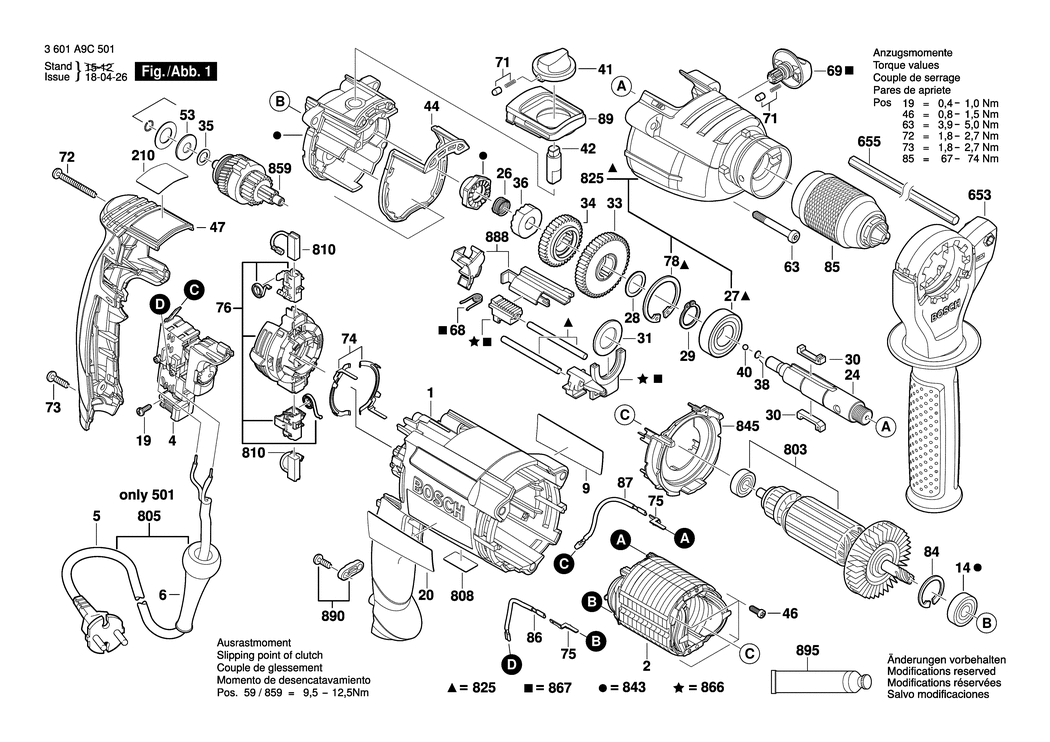

1 - MOTOR HOUSING
BSD-2605105141.A0
2605105141
|
£23.86
|
£28.63
|
|
|
2 - FIELD 230-240V
BSD-2604220727.A17
2604220727
|
£23.86
|
£28.63
|
|
|
4 - SWITCH
BSD-2607200664.A9
2607200664
|
£25.05
|
£30.06
|
|
|
6 - GROMMET
BSD-2600707078.A21
2600707078
|
£2.80
|
£3.36
|
|
|
9 - MANUFACTURER'S NAMEPLATE GSB 21-2 RE
BSD-2601115904.A10
2601115904
|
£2.74
|
£3.29
|
|
|
14 - BALL BEARING 9x24x7
BSD-2600905095.A88
2600905095
|
£12.04
|
£14.45
|
|
|
19 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A107
2603490017
|
£2.27
|
£2.72
|
|
|
20 - REFERENCE PLATE
BSD-2601115903.A2
2601115903
|
£2.61
|
£3.13
|
|
|
24 - DRILLING SPINDLE
BSD-2606135148.A2
2606135148
|
£23.86
|
£28.63
|
|
|
26 - COMPRESSION SPRING
BSD-2604616013.A51
2604616013
|
£2.74
|
£3.29
|
|
|
27 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A167
1900905163
|
£11.30
|
£13.56
|
|
|
28 - SHIM 0.5 MM
BSD-2600100695.A104
2600100695
|
£1.84
|
£2.21
|
|
|
29 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A94
2916650008
|
£1.84
|
£2.21
|
|
|
30 - FLAT KEY
BSD-2602300032.A19
2602300032
|
£3.72
|
£4.47
|
|
|
31 - RETAINING WASHER
BSD-2600101671.A24
2600101671
|
£1.84
|
£2.21
|
|
|
33 - CYLINDRICAL GEAR
BSD-2606317086.A29
2606317086
|
£9.11
|
£10.93
|
|
|
34 - CYLINDRICAL GEAR
BSD-2606317098.A11
2606317098
|
£12.64
|
£15.17
|
|
|
35 - SHIM 0.3 MM
BSD-2600101047.A126
2600101047
|
£1.84
|
£2.21
|
|
|
36 - CATCH DISK
BSD-2600190105.A47
2600190105
|
£2.74
|
£3.29
|
|
|
38 - SHIM WASHER 1.0 MM
BSD-2600000021.A81
2600000021
|
£1.84
|
£2.21
|
|
|
38 - SHIM WASHER 1.35 MM
BSD-2600000030.A50
2600000030
|
£1.75
|
£2.10
|
|
|
38 - SHIM WASHER 1.7 MM
BSD-2600000031.A91
2600000031
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5 G28
BSD-1903230009.A687
1903230009
|
£1.84
|
£2.21
|
|
|
40 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A221
1903230010
|
£1.84
|
£2.21
|
|
|
40 - BALL 5.25 MM
BSD-2603230007.A109
2603230007
|
£1.75
|
£2.10
|
|
|
41 - ROTARY KNOB
BSD-2602026168.A19
2602026168
|
£2.27
|
£2.72
|
|
|
42 - CONTROL SHAFT
BSD-2603120064.A6
2603120064
|
£2.94
|
£3.53
|
|
|
44 - SEAL
BSD-2601015091.A22
2601015091
|
£3.91
|
£4.69
|
|
|
46 - TAPPING SCREW
BSD-2603435086.A91
2603435086
|
£1.84
|
£2.21
|
|
|
47 - HOUSING COVER
BSD-2605132070.A21
2605132070
|
£13.78
|
£16.54
|
|
|
53 - DISC SPRING
BSD-2600550008.A55
2600550008
|
£1.84
|
£2.21
|
|
|
63 - HEADLESS SCREW
BSD-2603435085.A29
2603435085
|
£1.84
|
£2.21
|
|
|
68 - COMPRESSION SPRING
BSD-2604616014.A40
2604616014
|
£1.75
|
£2.10
|
|
|
69 - ROTARY KNOB
BSD-2602026117.A7
2602026117
|
£2.27
|
£2.72
|
|
|
71 - RATCHET CAP
BSD-2600590006.A640
2600590006
|
£1.84
|
£2.21
|
|
|
72 - TORX OVAL-HEAD SCREW 4x40
BSD-2603490027.A8
2603490027
|
£1.84
|
£2.21
|
|
|
73 - SCREW 4x16
BSD-2603490022.A3029
2603490022
|
£1.84
|
£2.21
|
|
|
74 - SWITCH CONTACT
BSD-2601324062.A31
2601324062
|
£1.75
|
£2.10
|
|
|
75 - CONTACT
BSD-2601099260.A22
2601099260
|
£2.16
|
£2.59
|
|
|
76 - BRUSH PLATE
BSD-1614336086.A1
1614336086
|
£19.91
|
£23.89
|
|
|
78 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A10
2916660014
|
£1.75
|
£2.10
|
|
|
84 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A243
2916660008
|
£2.16
|
£2.59
|
|
|
85 - KEYLESS CHUCK HSB 4
BSD-2608572143.A34
2608572143
|
£63.50
|
£76.20
|
|
|
86 - CONNECTING CABLE L=80 MM
BSD-1614448014.A50
1614448014
|
£2.74
|
£3.29
|
|
|
87 - CONNECTING CABLE
BSD-2604448338.A2
2604448338
|
£2.80
|
£3.36
|
|
|
89 - BULB SHIELD
BSD-2605510206.A27
2605510206
|
£2.61
|
£3.13
|
|
|
210 - REFERENCE PLATE
BSD-2601115906.A0
2601115906
|
£2.74
|
£3.29
|
|
|
653 - AUXILIARY HANDLE
BSD-2602025184.A5
2602025184
|
£23.86
|
£28.63
|
|
|
655 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001009.A422
1613001009
|
£3.91
|
£4.69
|
|
|
803 - ARMATURE 230-240V
BSD-2604011401.A18
2604011401
|
£59.53
|
£71.44
|
|
|
805 - POWER SUPPLY CORD
BSD-2604460912.A2
2604460912
|
£21.68
|
£26.01
|
|
|
808 - NAMEPLATE
BSD-160111A330.A0
160111A330
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-1617000525.A86
1617000525
|
£11.87
|
£14.24
|
|
|
825 - GEAR HOUSING
BSD-2605806882.A1
2605806882
|
£48.38
|
£58.06
|
|
|
843 - BEARING BRACKET
BSD-2605700946.A2
2605700946
|
£40.80
|
£48.96
|
|
|
845 - AIR-DEFLECTOR RING
BSD-2600148016.A2
2600148016
|
£2.94
|
£3.53
|
|
|
859 - TRANSMISSION
BSD-2606309941.A15
2606309941
|
£45.67
|
£54.80
|
|
|
866 - ADJUSTING SLIDE
BSD-2602033018.A4
2602033018
|
£4.48
|
£5.37
|
|
|
867 - TOOTHED RACK
BSD-2606308925.A21
2606308925
|
£5.58
|
£6.70
|
|
|
888 - HOLDING PLATE
BSD-2601328900.A6
2601328900
|
£2.80
|
£3.36
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A326
2607001305
|
£4.48
|
£5.37
|
|
|
895 - GREASE TUBE Albida
BSD-3605430003.A117
3605430003
|
£27.23
|
£32.68
|
|
