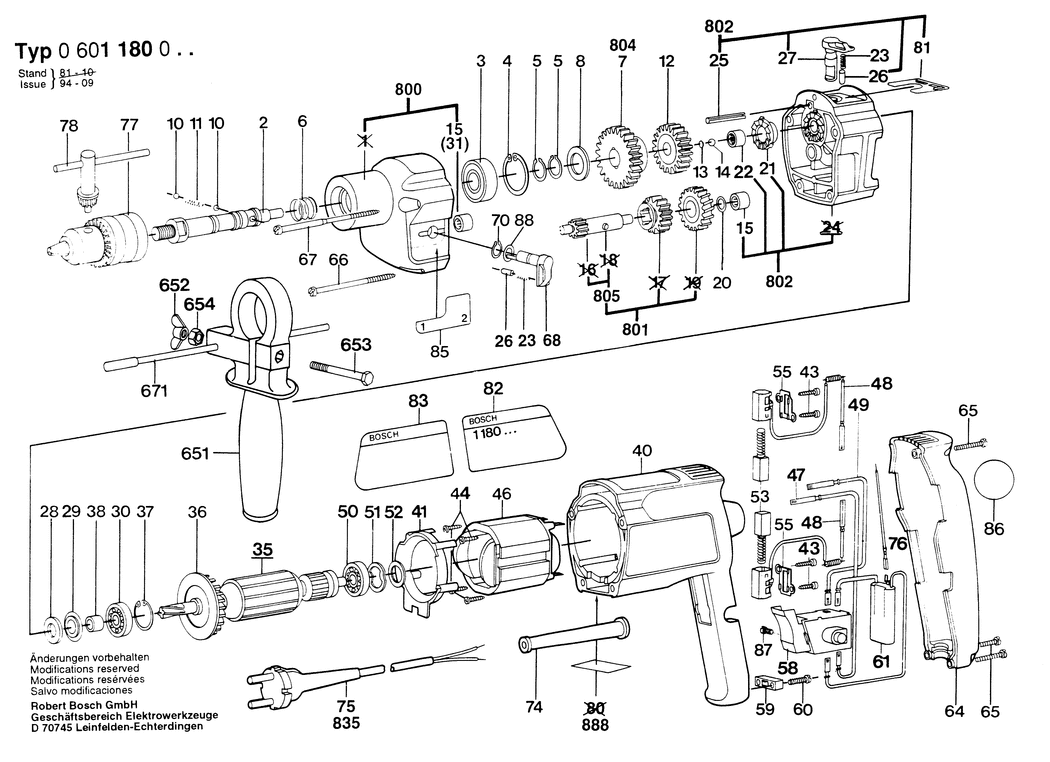

2 - DRILLING SPINDLE 1/2-UNF-2
BSD-2606135001.A0
2606135001
|
-
|
|
|
|
3 - GROOVE BALL BEARING 15x32x9
BSD-2600905014.A22
2600905014
|
-
|
|
|
|
4 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A188
2916660013
|
£2.16
|
£2.59
|
|
|
5 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A369
2916650006
|
£1.75
|
£2.10
|
|
|
6 - COMPRESSION SPRING
BSD-2604617000.A143
2604617000
|
£2.61
|
£3.13
|
|
|
7 - TOOTHED GEAR Z=48
BSD-2606317043.A0
2606317043
|
-
|
|
|
|
8 - SHIM 1.0 MM
BSD-2600101515.A3
2600101515
|
£1.95
|
£2.34
|
|
|
10 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A0
1903230007
|
£1.75
|
£2.10
|
|
|
11 - COMPRESSION SPRING
BSD-2604610007.A41
2604610007
|
-
|
|
|
|
12 - CYLINDRICAL GEAR Z=36
BSD-2606317025.A32
2606317025
|
-
|
|
|
|
13 - SHIM WASHER 0.2 MM
BSD-2600000012.A80
2600000012
|
£1.75
|
£2.10
|
|
|
13 - SHIM WASHER 0.3 MM
BSD-2600000013.A22
2600000013
|
-
|
|
|
|
13 - SHIM WASHER 0.5 MM
BSD-2600000014.A25
2600000014
|
£1.75
|
£2.10
|
|
|
13 - SHIM WASHER 0.1 MM
BSD-2600000018.A11
2600000018
|
-
|
|
|
|
14 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A579
1903230010
|
£1.75
|
£2.10
|
|
|
15 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A538
2600914010
|
£2.80
|
£3.36
|
|
|
20 - SHIM 0.3 MM
BSD-2600100607.A958
2600100607
|
£1.75
|
£2.10
|
|
|
21 - LOCATING WASHER
BSD-2606490031.A21
2606490031
|
-
|
|
|
|
22 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A459
2600917003
|
£2.80
|
£3.36
|
|
|
23 - RATCHET CAP
BSD-2600590006.A1187
2600590006
|
£1.75
|
£2.10
|
|
|
25 - SLOTTED SPRING PIN 4x30 MM DIN 7346
BSD-2917780105.A200
2917780105
|
£1.75
|
£2.10
|
|
|
26 - RATCHET CAP
BSD-2600590006.A1188
2600590006
|
£1.75
|
£2.10
|
|
|
27 - ROTARY KNOB
BSD-2602026017.A37
2602026017
|
£7.36
|
£8.83
|
|
|
28 - FELT WASHER
BSD-2600108077.A30
2600108077
|
£1.75
|
£2.10
|
|
|
29 - CUPPED WASHER
BSD-2600500002.A166
2600500002
|
£1.75
|
£2.10
|
|
|
30 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A622
2600905021
|
£8.67
|
£10.41
|
|
|
31 - NEEDLE BEARING dia6/12 MM
BSD-2600914017.A31
2600914017
|
£11.30
|
£13.56
|
|
|
35 - ARMATURE 220-240V
BSD-2604010524.A14
2604010524
|
-
|
|
|
|
36 - FAN
BSD-2606610049.A376
2606610049
|
£2.16
|
£2.59
|
|
|
37 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A826
2916660008
|
£2.16
|
£2.59
|
|
|
38 - RECEPTACLE
BSD-2600400008.A358
2600400008
|
£1.75
|
£2.10
|
|
|
40 - MOTOR HOUSING
BSD-2605104146.A9
2605104146
|
-
|
|
|
|
41 - COVER DISC
BSD-2601328032.A25
2601328032
|
-
|
|
|
|
43 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1608
2603490017
|
£2.16
|
£2.59
|
|
|
44 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F
BSD-2603435015.A152
2603435015
|
£2.16
|
£2.59
|
|
|
46 - FIELD 220-230V
BSD-2604220491.A30
2604220491
|
£21.68
|
£26.01
|
|
|
47 - CABLE L=130 MM
BSD-2604448005.A414
2604448005
|
£1.75
|
£2.10
|
|
|
48 - SUPPRESSION FILTER
BSD-2604465090.A0
2604465090
|
£7.36
|
£8.83
|
|
|
49 - BRUSH HOLDER
BSD-2604337003.A224
2604337003
|
£2.16
|
£2.59
|
|
|
50 - BALL BEARING 7x22x7
BSD-1900905018.A1110
1900905018
|
£18.96
|
£22.75
|
|
|
51 - SHIM
BSD-2600150004.A269
2600150004
|
£2.16
|
£2.59
|
|
|
52 - SHIM 0.3 MM
BSD-2600101023.A234
2600101023
|
£1.75
|
£2.10
|
|
|
52 - SHIM 0.2 MM
BSD-2600101022.A365
2600101022
|
£1.75
|
£2.10
|
|
|
52 - SHIM 0.5 MM
BSD-2600101020.A267
2600101020
|
£1.75
|
£2.10
|
|
|
53 - CARBON-BRUSH SET
BSD-2604321905.A426
2604321905
|
£11.30
|
£13.56
|
|
|
54 - CONNECTING CABLE L=110 MM
BSD-2604448146.A37
2604448146
|
£1.75
|
£2.10
|
|
|
58 - SWITCH
BSD-2607200260.A118
2607200260
|
£11.30
|
£13.56
|
|
|
59 - CABLE CLIP
BSD-2601035001.A1125
2601035001
|
£1.75
|
£2.10
|
|
|
60 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A82
2910611019
|
£2.80
|
£3.36
|
|
|
61 - SUPPRESSION CAPACITOR
BSD-2607329121.A1
2607329121
|
-
|
|
|
|
64 - HOUSING COVER
BSD-2605132046.A2
2605132046
|
-
|
|
|
|
65 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A1526
2603490023
|
£1.75
|
£2.10
|
|
|
66 - HEADLESS SCREW 65 MM
BSD-2603435071.A125
2603435071
|
-
|
|
|
|
67 - TAPPING SCREW 79 MM
BSD-2603435012.A77
2603435012
|
-
|
|
|
|
68 - ROTARY KNOB
BSD-2602026018.A11
2602026018
|
-
|
|
|
|
70 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A376
2916650001
|
£2.61
|
£3.13
|
|
|
74 - GROMMET dia6.9 MM
BSD-2600707059.A640
2600707059
|
£3.72
|
£4.47
|
|
|
74 - GROMMET dia8.8 MM
BSD-2600707061.A362
2600707061
|
£2.80
|
£3.36
|
|
|
76 - CABLE
BSD-2604448003.A297
2604448003
|
-
|
|
|
|
77 - KEY CHUCK dia1.5-13 MM. 1/2
BSD-1608571055.A40
1608571055
|
-
|
|
|
|
78 - CHUCK WRENCH SG2
BSD-2607950007.A1022
2607950007
|
£6.52
|
£7.83
|
|
|
81 - STICKER
BSD-2601110076.A36
2601110076
|
-
|
|
|
|
82 - STICKER
BSD-2601110889.A0
2601110889
|
-
|
|
|
|
83 - STICKER
BSD-2601110890.A10
2601110890
|
-
|
|
|
|
85 - STICKER
BSD-2601110072.A1
2601110072
|
-
|
|
|
|
87 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A983
2603410001
|
£1.75
|
£2.10
|
|
|
88 - SHIM 0.2 MM
BSD-2600100575.A150
2600100575
|
£2.16
|
£2.59
|
|
|
88 - SHIM 0.3 MM
BSD-2600100576.A169
2600100576
|
-
|
|
|
|
88 - SHIM 0.5 MM
BSD-2600100577.A151
2600100577
|
£1.75
|
£2.10
|
|
|
90 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A138
2603490024
|
£1.75
|
£2.10
|
|
|
651 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A257
1619P10682
|
£12.49
|
£14.99
|
|
|
652 - WING NUT M6 DIN 315-G-GTW-40
BSD-2915191006.A107
2915191006
|
-
|
|
|
|
653 - HEX SCREW DIN 931-M6x75-8.8
BSD-2911011220.A28
2911011220
|
-
|
|
|
|
654 - CONICAL SPRING WASHER
BSD-2601098001.A45
2601098001
|
-
|
|
|
|
671 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001005.A95
1613001005
|
-
|
|
|
|
800 - GEAR HOUSING
BSD-2605806959.A0
2605806959
|
-
|
|
|
|
801 - TOOTHED SHAFT Z=10/22/21
BSD-2606309902.A11
2606309902
|
-
|
|
|
|
802 - FLANGED BEARING
BSD-2605700928.A10
2605700928
|
-
|
|
|
|
804 - CYLINDRICAL GEAR Z=48
BSD-2606317014.A27
2606317014
|
-
|
|
|
|
805 - TOOTHED SHAFT Z=10
BSD-2606309004.A0
2606309004
|
-
|
|
|
|
835 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm
BSD-1607000385.A270
1607000385
|
£14.91
|
£17.89
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2413
160111A3H3
|
£2.61
|
£3.13
|
|
