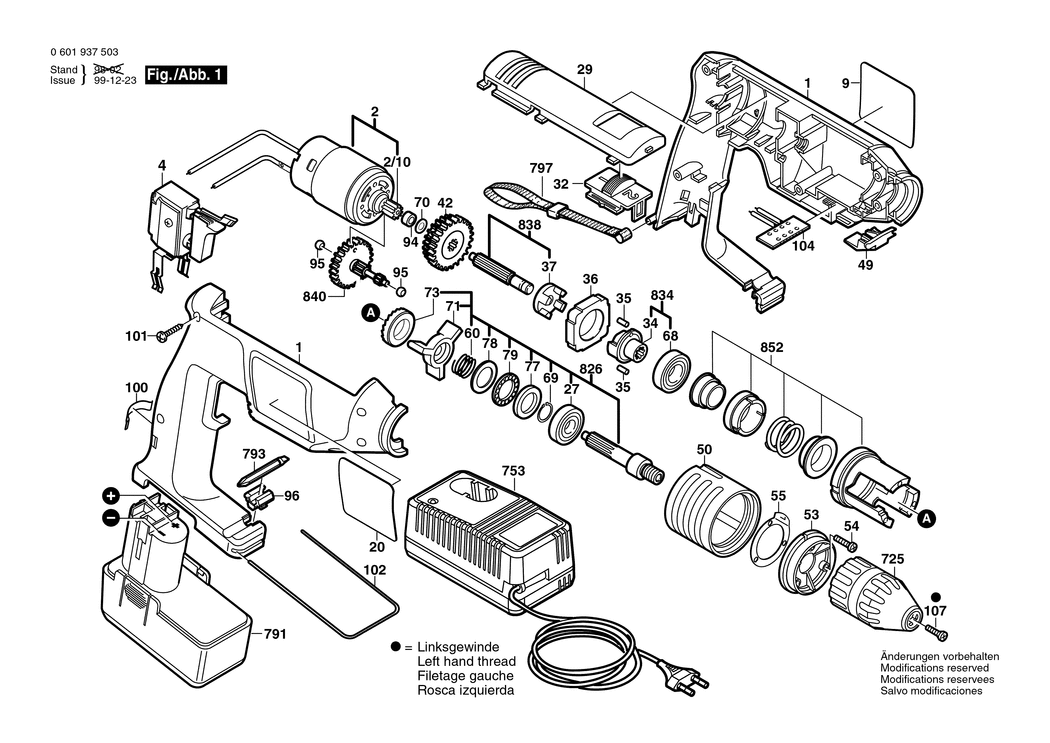

1 - HOUSING SECTION
BSD-2605104423.A7
2605104423
|
£16.41
|
£19.69
|
|
|
2 - DC MOTOR 9.6V
BSD-2607022929.A13
2607022929
|
-
|
|
|
|
2/10 - PINION Z=14
BSD-2606316144.A34
2606316144
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200329.A34
2607200329
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118542.A12
2601118542
|
-
|
|
|
|
20 - REFERENCE PLATE
BSD-2601118543.A1
2601118543
|
-
|
|
|
|
27 - GROOVE BALL BEARING 10x26x8
BSD-1900905120.A342
1900905120
|
-
|
|
|
|
29 - INSERT PIECE
BSD-2605510136.A5
2605510136
|
-
|
|
|
|
32 - ADJUSTING SLIDE
BSD-2601099056.A7
2601099056
|
-
|
|
|
|
34 - ECCENTRIC
BSD-2602210014.A14
2602210014
|
£12.04
|
£14.45
|
|
|
35 - ROLLER BODY
BSD-2602329024.A166
2602329024
|
-
|
|
|
|
36 - RING
BSD-2600202025.A125
2600202025
|
-
|
|
|
|
37 - CARRIER
BSD-2606440003.A50
2606440003
|
-
|
|
|
|
42 - SET OF GEARS Z=58/67
BSD-1609340007.A49
1609340007
|
£14.91
|
£17.89
|
|
|
49 - INSERT PIECE
BSD-2605510117.A78
2605510117
|
£1.75
|
£2.10
|
|
|
50 - ADJUSTING SCREW
BSD-2605190037.A22
2605190037
|
-
|
|
|
|
53 - CLAMPING SLEEVE
BSD-2608005046.A9
2608005046
|
-
|
|
|
|
54 - THREAD-FORMING TAP. SCREW M4x12 MM
BSD-2603490008.A27
2603490008
|
-
|
|
|
|
55 - LOCATING WASHER
BSD-2600190056.A26
2600190056
|
-
|
|
|
|
60 - COMPRESSION SPRING
BSD-2604618001.A34
2604618001
|
-
|
|
|
|
68 - GROOVE BALL BEARING 15x32x9
BSD-1900905122.A234
1900905122
|
£10.10
|
£12.12
|
|
|
69 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A350
2916650001
|
£2.61
|
£3.13
|
|
|
70 - SHIM 1.0 MM
BSD-2600100569.A219
2600100569
|
£1.75
|
£2.10
|
|
|
71 - BACKUP RING
BSD-2600290023.A40
2600290023
|
-
|
|
|
|
73 - CATCH DISK
BSD-2606490060.A47
2606490060
|
-
|
|
|
|
77 - CORRUGATED WASHER
BSD-2600190064.A27
2600190064
|
-
|
|
|
|
78 - THRUST BEARING DISC
BSD-2600101516.A27
2600101516
|
£2.61
|
£3.13
|
|
|
79 - BALL CAGE
BSD-2600923003.A34
2600923003
|
-
|
|
|
|
94 - SINTERED-METAL BUSHING
BSD-2600301011.A145
2600301011
|
£1.75
|
£2.10
|
|
|
95 - SINTERED-METAL BUSHING
BSD-2600302013.A68
2600302013
|
-
|
|
|
|
96 - SUPPORT
BSD-2608040131.A144
2608040131
|
£1.95
|
£2.34
|
|
|
100 - CLAMP SPRING
BSD-2601322016.A171
2601322016
|
£2.52
|
£3.02
|
|
|
101 - SCREW 4x16
BSD-2603490022.A2384
2603490022
|
£1.75
|
£2.10
|
|
|
102 - RETAINING BRACKET
BSD-2601329041.A48
2601329041
|
£2.33
|
£2.80
|
|
|
104 - CONTACT RETAINER
BSD-2608018004.A64
2608018004
|
£5.58
|
£6.70
|
|
|
107 - COUNTERSUNK-HEAD SCREW M6x23
BSD-2603421229.A228
2603421229
|
£1.75
|
£2.10
|
|
|
725 - KEYLESS CHUCK dia 2-13 MM.1/2
BSD-2608572062.A14
2608572062
|
£27.99
|
£33.59
|
|
|
753 - FAST CHARGER GB 230/7.2-24V. 1h
BSD-2607224427.A217
2607224427
|
£103.14
|
£123.77
|
|
|
753 - FAST CHARGER GB 230/7.2-14.4V. 30 MIN.
BSD-2607224703.A89
2607224703
|
£116.15
|
£139.38
|
|
|
791 - SLIDE-IN ACCU PACKAGE 12V. 1.5Ah. NiCd
BSD-2607336145.A27
2607336145
|
-
|
|
|
|
793 - SCREWDRIVER BLADE
BSD-2608521018.A157
2608521018
|
£5.01
|
£6.01
|
|
|
797 - CARRYING LOOP
BSD-2601398009.A200
2601398009
|
-
|
|
|
|
826 - DRILLING SPINDLE 1/2. M 6
BSD-2606309928.A7
2606309928
|
-
|
|
|
|
834 - ECCENTRIC
BSD-2602210014.A12
2602210014
|
£12.04
|
£14.45
|
|
|
838 - SPLINED SHAFT
BSD-2606309918.A34
2606309918
|
-
|
|
|
|
840 - TOOTHED SHAFT Z= 10/19/63
BSD-2606308914.A7
2606308914
|
-
|
|
|
|
852 - GUIDE SLEEVE
BSD-2600499903.A7
2600499903
|
-
|
|
|
|
899 - CORDLESS DRILL
BSD-0601937520.A2
0601937520
|
-
|
|
|
