Bosch GSB 12-2-LI / 3601JB6981 / --- 12 Volt Spare Parts

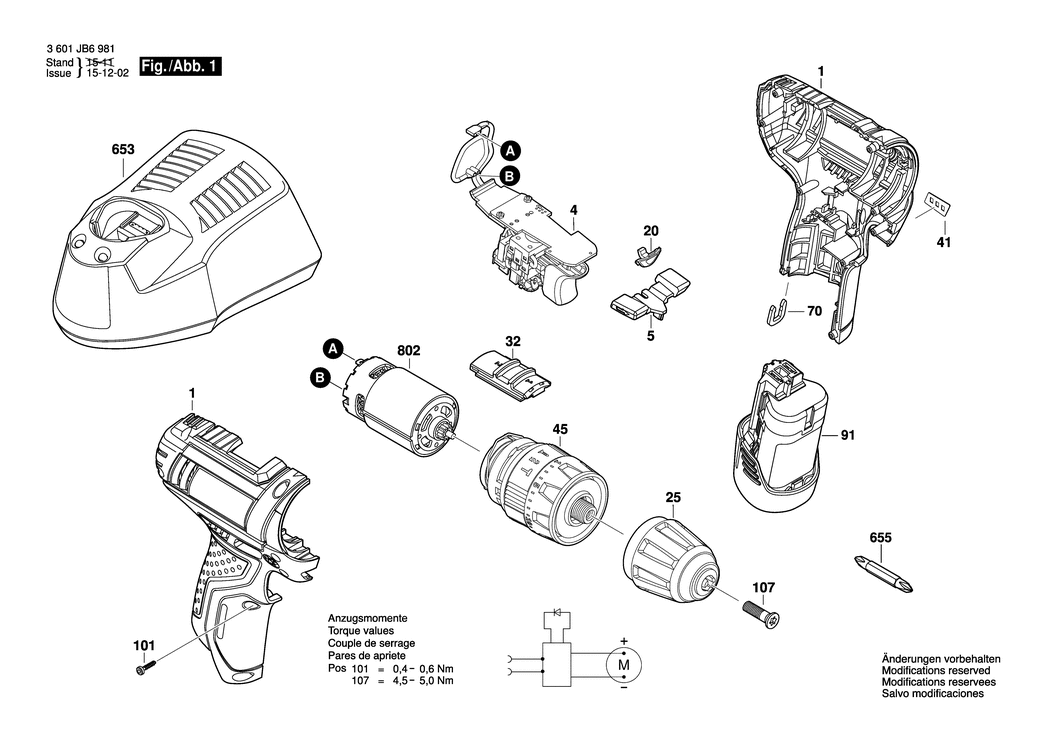

An exploded drawing and listing for the Bosch GSB 12-2-LI / 3601JB6981 / --- 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609100824.A5 2609100824	£21.52	£25.83
4 - ELECTRONICS MODULE BSD-16072335DK.A7 16072335DK	£33.74	£40.49
5 - CHANGEOVER LEVER BSD-2609100825.A3 2609100825	£2.16	£2.59
20 - LENS BSD-2609101035.A5 2609101035	£2.16	£2.59
25 - KEYLESS CHUCK BSD-2609111312.A3 2609111312	£33.74	£40.49
32 - SWITCHOVER UNIT BSD-2609199279.A17 2609199279	£1.75	£2.10
41 - STICKER BSD-2609132378.A8 2609132378	£2.61	£3.13
45 - GEAR BOX BSD-2609199397.A1 2609199397	£63.50	£76.20
70 - CLIP BSD-2609110537.A64 2609110537	£1.75	£2.10
91 - BATTERY PACK GBA 12V 2.0Ah Li SCM BSD-1607A350C5.A3 1607A350C5	-
101 - SCREW BSD-2609110883.A29 2609110883	£2.16	£2.59
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A114 2603421229	£1.75	£2.10
653 - FAST CHARGER CN GAL 1230 CV 220/12V BSD-2607226095.A1 2607226095	£59.53	£71.44
655 - SCREWDRIVER BIT BSD-2609160063.A16 2609160063	£3.72	£4.47
802 - DC MOTOR 10.8V BSD-2609199428.A2 2609199428	£37.27	£44.72
