Bosch GSB 12-2 / 3601JA7500 / EU 12 Volt Spare Parts

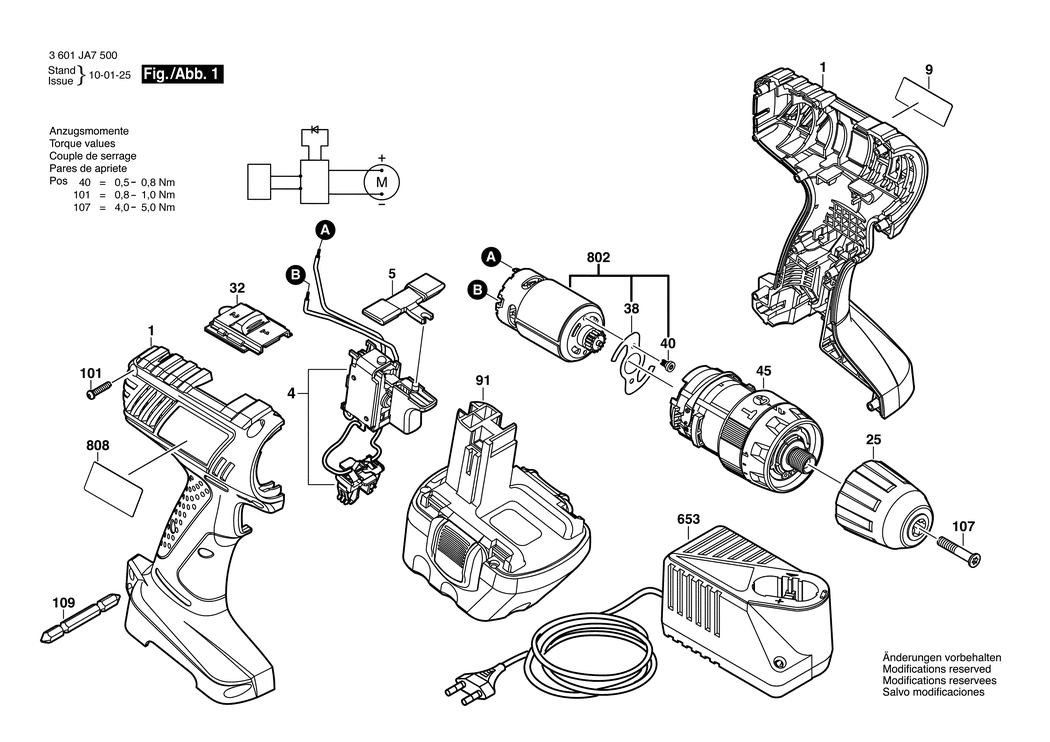

An exploded drawing and listing for the Bosch GSB 12-2 / 3601JA7500 / EU 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609100834.A0 2609100834	£21.68	£26.01
4 - SWITCH BSD-2607202069.A0 2607202069	£23.86	£28.63
5 - CHANGE-OVER SWITCH BSD-2609100837.A1 2609100837	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE GSB 12-2 BSD-2609132764.A0 2609132764	£2.61	£3.13
25 - KEYLESS CHUCK BSD-2609110973.A1 2609110973	£59.53	£71.44
32 - SLIDE SWITCH BSD-2609199251.A0 2609199251	£5.58	£6.70
38 - TAB WASHER BSD-2609110801.A11 2609110801	£2.16	£2.59
40 - SCREW BSD-2609110802.A0 2609110802	£1.75	£2.10
45 - GEAR BOX BSD-2609199266.A1 2609199266	£81.81	£98.17
91 - SLIDE-IN ACCU PACKAGE 12V. 1.5Ah. NiCd BSD-1617S00N7F.A8 1617S00N7F	£61.98	£74.38
101 - TORX FLAT-HEAD SCREW 3x16 BSD-2609110201.A87 2609110201	£2.16	£2.59
107 - PAN HEAD SCREW M 6x30 BSD-2609110635.A22 2609110635	£1.75	£2.10
109 - SCREWDRIVER BLADE BSD-2609110342.A16 2609110342	£2.61	£3.13
653 - FAST CHARGER EU 230/7.2-14.4V. 1h BSD-2607224391.A8 2607224391	£48.38	£58.06
653 - FAST CHARGER GB 230/7.2-14.4V. 1h BSD-2607224393.A24 2607224393	-
802 - MOTOR SPARE PARTS SET BSD-2609199393.A0 2609199393	£59.53	£71.44
808 - NAMEPLATE BSD-2609135915.A0 2609135915	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
