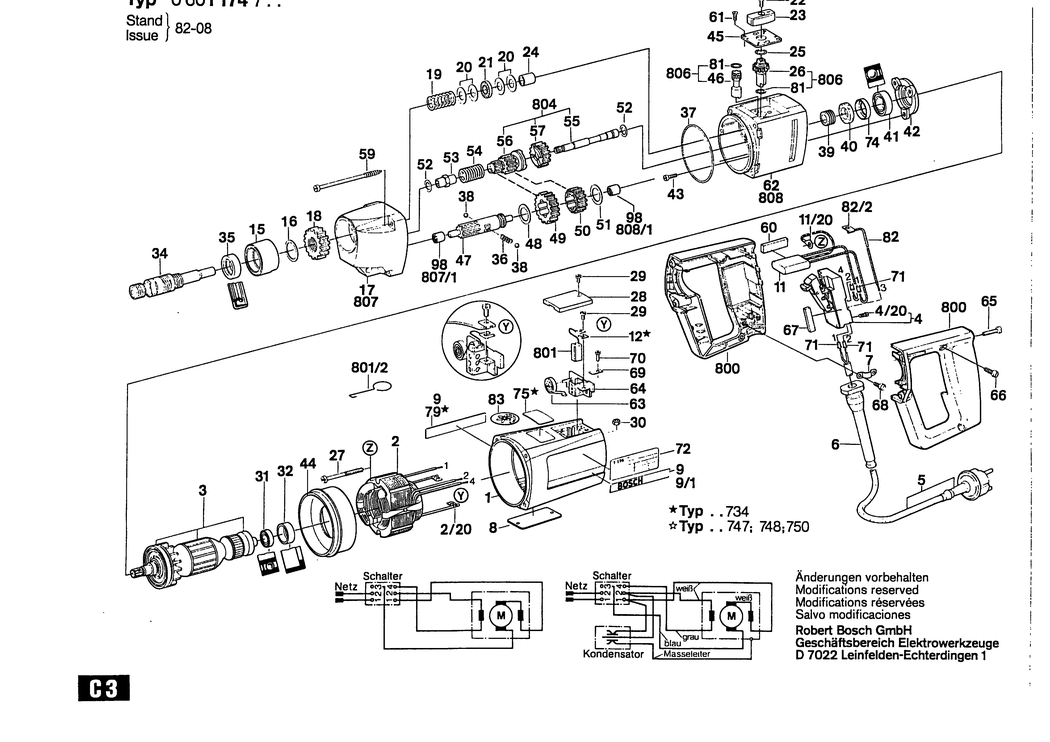

1 - MOTOR HOUSING
BSD-3605108145.A107
3605108145
|
£27.23
|
£32.68
|
|
|
2 - POLE SHOE 240V
BSD-1604220182.A0
1604220182
|
-
|
|
|
|
2/20 - TERMINAL LUG 1.5-4x4
BSD-1901350003.A137
1901350003
|
£1.84
|
£2.21
|
|
|
3 - ARMATURE WITH FAN 240V
BSD-1604010161.A0
1604010161
|
-
|
|
|
|
4 - SWITCH
BSD-1607200075.A62
1607200075
|
£71.84
|
£86.21
|
|
|
4/20 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x12-5.8
BSD-2910011088.A16
2910011088
|
£1.84
|
£2.21
|
|
|
5 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A202
1607000228
|
£23.86
|
£28.63
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A502
3600703011
|
£2.94
|
£3.53
|
|
|
7 - FASTENING CLAMP
BSD-1601302014.A256
1601302014
|
£2.74
|
£3.29
|
|
|
8 - NAMEPLATE
BSD-160111A3H3.A4120
160111A3H3
|
£2.74
|
£3.29
|
|
|
9 - STICKER
BSD-1601110046.A132
1601110046
|
£1.75
|
£2.10
|
|
|
11 - SUPPRESSION CAPACITOR
BSD-1607328024.A46
1607328024
|
-
|
|
|
|
11/20 - TERMINAL LUG
BSD-1601353003.A58
1601353003
|
-
|
|
|
|
12 - TAB WASHER
BSD-1611331007.A44
1611331007
|
£1.32
|
£1.58
|
|
|
15 - BUSHING
BSD-1605801026.A37
1605801026
|
-
|
|
|
|
16 - SHIM 0.6 MM
BSD-1600102676.A4
1600102676
|
-
|
|
|
|
17 - STRAIGHT PIN 5 H 8x18 DIN 7
BSD-2917500121.A25
2917500121
|
£1.75
|
£2.10
|
|
|
17 - NEEDLE BEARING dia8xdia12x10 MM
BSD-1610910057.A110
1610910057
|
£2.80
|
£3.36
|
|
|
17 - BUSHING
BSD-1600300076.A1
1600300076
|
-
|
|
|
|
18 - CYLINDRICAL GEAR Z=43
BSD-1606317077.A4
1606317077
|
£27.23
|
£32.68
|
|
|
19 - COMPRESSION SPRING
BSD-1604616018.A41
1604616018
|
-
|
|
|
|
20 - SUPPORT DISC
BSD-1600103026.A45
1600103026
|
-
|
|
|
|
21 - NEEDLE-ROLLER BEARING
BSD-1600920003.A0
1600920003
|
-
|
|
|
|
22 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A65
2910091118
|
£1.84
|
£2.21
|
|
|
23 - CONTROL LEVER
BSD-1602026044.A36
1602026044
|
£7.36
|
£8.83
|
|
|
24 - SINTERED-METAL BUSHING
BSD-1600301006.A3
1600301006
|
-
|
|
|
|
25 - O-RING 12.0x1.5 MM
BSD-3600210086.A63
3600210086
|
£2.80
|
£3.36
|
|
|
27 - TAPPING SCREW B4.8x50 MM
BSD-1603435012.A33
1603435012
|
£1.75
|
£2.10
|
|
|
28 - SEALING CAP
BSD-1605500089.A213
1605500089
|
-
|
|
|
|
29 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1245
2910021118
|
£1.84
|
£2.21
|
|
|
30 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A580
2915011005
|
£1.84
|
£2.21
|
|
|
31 - BALL BEARING 7x19x6
BSD-2600905032.A184
2600905032
|
£5.57
|
£6.68
|
|
|
32 - INTERMEDIATE RING
BSD-1600502011.A13
1600502011
|
£2.74
|
£3.29
|
|
|
34 - DRILLING SPINDLE 5/8-16 UN-2A
BSD-1603528005.A42
1603528005
|
-
|
|
|
|
35 - ROTARY SHAFT LIP SEAL
BSD-3600283043.A57
3600283043
|
£12.64
|
£15.17
|
|
|
36 - COMPRESSION SPRING
BSD-1604611022.A35
1604611022
|
£1.75
|
£2.10
|
|
|
37 - O-RING 74.0x1.5 MM
BSD-1600210030.A6
1600210030
|
-
|
|
|
|
38 - BALL DIN 5401-5 G28
BSD-1903230009.A260
1903230009
|
£1.84
|
£2.21
|
|
|
39 - THREADED RING
BSD-1603344054.A2
1603344054
|
-
|
|
|
|
40 - FELT DISC
BSD-1600108003.A70
1600108003
|
£1.38
|
£1.66
|
|
|
41 - GROOVE BALL BEARING
BSD-1600905003.A69
1600905003
|
-
|
|
|
|
42 - BEARING COVER
BSD-1605500106.A13
1605500106
|
-
|
|
|
|
43 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A525
2910021122
|
£2.27
|
£2.72
|
|
|
44 - AIR-DEFLECTOR RING
BSD-1600502015.A14
1600502015
|
-
|
|
|
|
45 - NOTCHED PLATE
BSD-1601038025.A75
1601038025
|
£1.75
|
£2.10
|
|
|
46 - SPIRAL SPRING
BSD-1604652006.A171
1604652006
|
£1.84
|
£2.21
|
|
|
47 - SPINDLE WITH GEAR Z=15
BSD-1606309062.A39
1606309062
|
-
|
|
|
|
48 - SHIM 0.6 MM
BSD-1600101647.A0
1600101647
|
£2.27
|
£2.72
|
|
|
49 - CYLINDRICAL GEAR Z=41
BSD-1606317075.A39
1606317075
|
-
|
|
|
|
50 - CYLINDRICAL GEAR Z=32
BSD-1606317074.A36
1606317074
|
£33.22
|
£39.87
|
|
|
51 - SHIM 0.6 MM
BSD-1600101647.A1
1600101647
|
£2.27
|
£2.72
|
|
|
52 - PLAIN WASHER 0.5 MM
BSD-1600101653.A3
1600101653
|
-
|
|
|
|
53 - THREADED BUSHING
BSD-1600363011.A40
1600363011
|
-
|
|
|
|
54 - COMPRESSION SPRING
BSD-1604619013.A2
1604619013
|
-
|
|
|
|
55 - DRIVE SHAFT
BSD-1603520018.A39
1603520018
|
-
|
|
|
|
56 - CYLINDRICAL GEAR
BSD-F000635176.A3
F000635176
|
£40.80
|
£48.96
|
|
|
57 - CYLINDRICAL GEAR Z=29
BSD-1606325024.A25
1606325024
|
-
|
|
|
|
59 - THREAD-FORMING SCREW B4.8x107.5 MM
BSD-1603435009.A3
1603435009
|
£2.16
|
£2.59
|
|
|
60 - INSULATING PLATE 20x20x50 MM
BSD-1602381006.A56
1602381006
|
£1.75
|
£2.10
|
|
|
61 - COUNTERSUNK-HEAD SCREW AM 4x10 DIN 63-8.8
BSD-2910511120.A45
2910511120
|
-
|
|
|
|
64 - BRUSH HOLDER
BSD-1604336017.A200
1604336017
|
£7.36
|
£8.83
|
|
|
65 - TORX OVAL-HEAD SCREW
BSD-2914201527.A46
2914201527
|
£2.27
|
£2.72
|
|
|
66 - TAPPING SCREW DIN 7971-B 3.9x19
BSD-2910211220.A63
2910211220
|
-
|
|
|
|
67 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A376
1602381001
|
-
|
|
|
|
68 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A383
2910021116
|
£2.27
|
£2.72
|
|
|
69 - TAB WASHER
BSD-1601030022.A259
1601030022
|
£1.84
|
£2.21
|
|
|
70 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A286
2910211011
|
£1.84
|
£2.21
|
|
|
71 - END SPLICE
BSD-3604477009.A326
3604477009
|
£2.61
|
£3.13
|
|
|
72 - REFERENCE PLATE
BSD-1601110163.A4
1601110163
|
-
|
|
|
|
75 - REFERENCE PLATE
BSD-1601110058.A217
1601110058
|
£1.75
|
£2.10
|
|
|
79 - STICKER
BSD-1601110074.A2
1601110074
|
-
|
|
|
|
81 - SEAL RING 10.0x1.5 MM
BSD-2600210016.A28
2600210016
|
-
|
|
|
|
82 - CONNECTING CABLE L=290 MM
BSD-1604445006.A81
1604445006
|
£5.58
|
£6.70
|
|
|
82 - TERMINAL LUG 1.5-4x4
BSD-1901350003.A224
1901350003
|
£1.84
|
£2.21
|
|
|
83 - STICKER
BSD-2601110041.A142
2601110041
|
-
|
|
|
|
800 - HANDLE
BSD-3605133012.A136
3605133012
|
-
|
|
|
|
801 - CARBON-BRUSH SET
BSD-1607014126.A89
1607014126
|
£17.22
|
£20.67
|
|
|
804 - SET OF GEARS Z=13/22/29
BSD-1607016017.A26
1607016017
|
-
|
|
|
|
806 - PARTS SET
BSD-1607000126.A41
1607000126
|
-
|
|
|
|
807 - SPINDLE BEARING
BSD-1605806321.A0
1605806321
|
-
|
|
|
|
808 - INTERMEDIATE BEARING
BSD-1605820205.A3
1605820205
|
-
|
|
|
