Bosch CSB 850-2 RLT / 0603148842 / GB 240 Volt Spare Parts

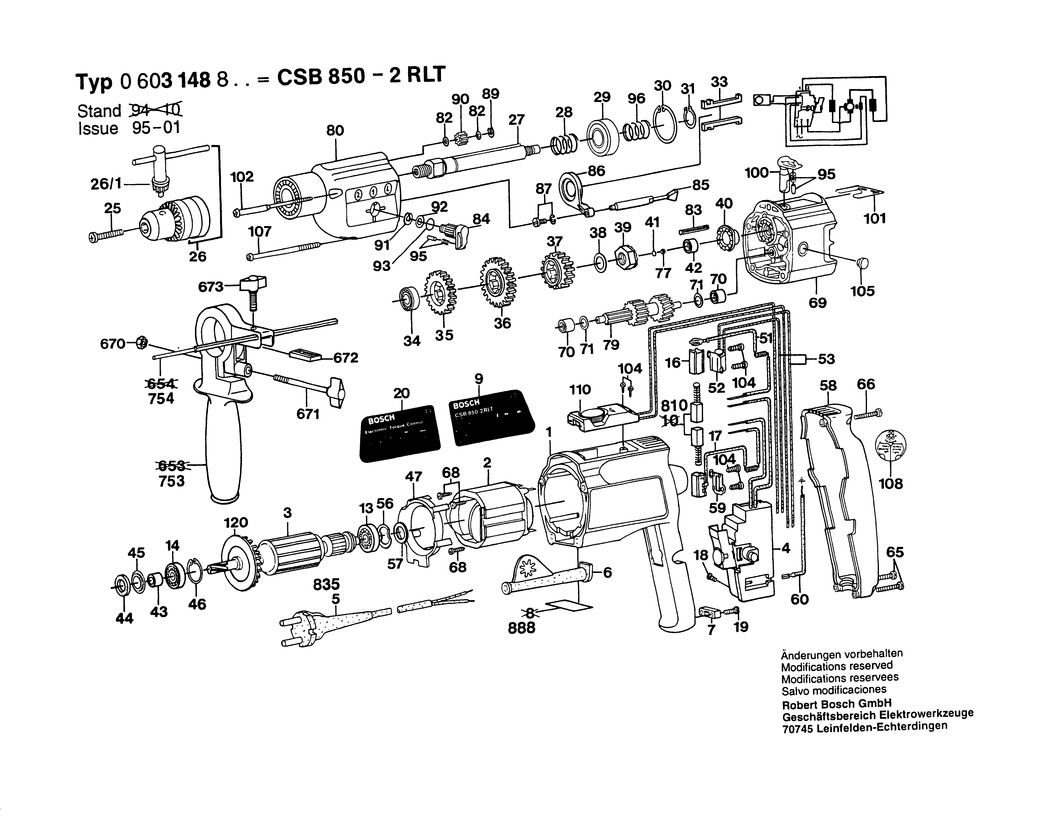

An exploded drawing and listing for the Bosch CSB 850-2 RLT / 0603148842 / GB 240 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2605104206.A0 2605104206	-
2 - FIELD 220-240V BSD-2604220436.A7 2604220436	-
3 - ARMATURE 230V BSD-2604010601.A18 2604010601	-
4 - ON-OFF SWITCH BSD-2607200155.A0 2607200155	-
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F BSD-2604460205.A35 2604460205	£27.23	£32.68
6 - GROMMET dia6.9 MM BSD-2600707059.A478 2600707059	£3.72	£4.47
6 - GROMMET dia11.6-dia12.5x84 MM BSD-2600707060.A73 2600707060	£2.61	£3.13
6 - GROMMET dia8.8 MM BSD-2600707061.A235 2600707061	£2.80	£3.36
7 - CABLE CLIP BSD-2601035001.A595 2601035001	£1.75	£2.10
9 - STICKER BSD-2601110616.A2 2601110616	-
13 - BALL BEARING 7x22x7 BSD-1900905018.A673 1900905018	£18.96	£22.75
14 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A572 2600905021	£8.67	£10.41
16 - BRUSH HOLDER BSD-2604330017.A10 2604330017	-
17 - SUPPRESSOR BOX BSD-2604465062.A13 2604465062	-
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A554 2603410001	£1.75	£2.10
19 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2048 2910211019	£1.75	£2.10
20 - STICKER BSD-2601110631.A1 2601110631	-
25 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A47 2603421226	£1.75	£2.10
26 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A44 1608571069	£23.86	£28.63
26/1 - CHUCK WRENCH SG2 BSD-2607950007.A1540 2607950007	£6.52	£7.83
27 - DRILLING SPINDLE 1/2 BSD-2606135026.A43 2606135026	-
27 - DRILLING SPINDLE 1/2 BSD-2606135010.A4 2606135010	-
28 - COMPRESSION SPRING BSD-2604616002.A77 2604616002	£1.75	£2.10
29 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A550 1900905163	£11.30	£13.56
30 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A406 2916660014	£1.75	£2.10
31 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A387 2916650008	£1.75	£2.10
33 - FLAT KEY BSD-2602300027.A46 2602300027	-
34 - GROOVE BALL BEARING BSD-2600900006.A2 2600900006	-
35 - CYLINDRICAL GEAR Z=43 BSD-2606317038.A7 2606317038	-
36 - CYLINDRICAL GEAR Z=48 BSD-2606317036.A8 2606317036	-
37 - CYLINDRICAL GEAR Z=36 BSD-2606317037.A157 2606317037	-
38 - SHIM 0.5 MM BSD-2600101616.A380 2600101616	-
38 - SHIM 0.3 MM BSD-2600101617.A35 2600101617	£1.75	£2.10
39 - CATCH DISK BSD-2600190052.A170 2600190052	£7.78	£9.33
39 - LOCATING WASHER BSD-2600190031.A34 2600190031	-
40 - LOCATING WASHER BSD-2600190029.A3 2600190029	-
41 - SHIM WASHER 0.2 MM BSD-2600000012.A2 2600000012	£1.75	£2.10
41 - SHIM WASHER 0.5 MM BSD-2600000014.A114 2600000014	£1.75	£2.10
42 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A650 2600917003	£2.80	£3.36
43 - RECEPTACLE BSD-2600400008.A174 2600400008	£1.75	£2.10
44 - FELT WASHER BSD-2600108077.A326 2600108077	£1.75	£2.10
45 - CUPPED WASHER BSD-2600500002.A390 2600500002	£1.75	£2.10
46 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A679 2916660008	£2.16	£2.59
47 - COVER DISC BSD-2601328032.A41 2601328032	-
51 - SUPPRESSOR BOX BSD-2604465091.A12 2604465091	-
51 - CABLE BSD-2604448065.A3 2604448065	-
52 - ROT.-SPEED SENSOR 220-240V BSD-2607233003.A7 2607233003	-
53 - CABLE BSD-2604448066.A6 2604448066	-
56 - SHIM BSD-2600150004.A209 2600150004	£2.16	£2.59
57 - SHIM 0.3 MM BSD-2600101023.A26 2600101023	£1.75	£2.10
57 - SHIM 0.2 MM BSD-2600101022.A624 2600101022	£1.75	£2.10
57 - SHIM 0.5 MM BSD-2600101020.A26 2600101020	£1.75	£2.10
58 - HOUSING COVER BSD-2605132045.A8 2605132045	-
59 - BRUSH PLATE BSD-2601015047.A205 2601015047	-
60 - EARTH CONDUCTOR dia0.35 MM BSD-2604448010.A32 2604448010	-
65 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A810 2910211021	£1.75	£2.10
66 - TAPPING SCREW DIN 7971-BZ3.9x25 BSD-2910211022.A33 2910211022	£1.75	£2.10
68 - TAPPING SCREW BSD-2603435086.A249 2603435086	£1.75	£2.10
69 - INTERMEDIATE FLANGE BSD-2605700934.A8 2605700934	-
70 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A758 2600914010	£2.80	£3.36
71 - SHIM 0.3 MM BSD-2600100607.A767 2600100607	£1.75	£2.10
77 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A534 1903230010	£1.75	£2.10
79 - TOOTHED SHAFT Z=10/22/21 BSD-2606309908.A10 2606309908	-
80 - GEAR HOUSING BSD-2605806976.A3 2605806976	-
82 - SHIM 0.5 MM BSD-2600100623.A37 2600100623	-
83 - SLOTTED SPRING PIN 4x30 MM DIN 7346 BSD-2917780105.A137 2917780105	£1.75	£2.10
84 - ROTARY KNOB BSD-2602026034.A39 2602026034	-
85 - TOOTHED RACK BSD-2603070011.A17 2603070011	-
86 - FORK LEVER BSD-2602033003.A13 2602033003	-
87 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8 BSD-2914501011.A151 2914501011	£1.75	£2.10
89 - SPRING RETAINING RING DIN 471-8x0.8 FSt BSD-2916640005.A11 2916640005	£1.75	£2.10
90 - CYLINDRICAL GEAR Z=15 BSD-2606317039.A31 2606317039	-
91 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A309 2916080910	£2.16	£2.59
92 - SHIM 0.5 MM BSD-2600101612.A50 2600101612	£1.75	£2.10
93 - O-RING 12.0x1.0 MM BSD-1600210024.A91 1600210024	-
95 - RATCHET CAP BSD-2600590006.A847 2600590006	£1.75	£2.10
96 - COMPRESSION SPRING BSD-2604615010.A26 2604615010	-
100 - ROTARY KNOB BSD-2602026033.A8 2602026033	-
101 - STICKER BSD-2601110205.A16 2601110205	-
102 - TAPPING SCREW 79 MM BSD-2603435012.A139 2603435012	-
104 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1119 2603490017	£2.16	£2.59
105 - PLUG BSD-2600591002.A0 2600591002	-
107 - HEADLESS SCREW 74 MM BSD-2603435019.A11 2603435019	-
108 - STICKER BSD-2601110230.A76 2601110230	-
110 - TORQUE CONTROL BSD-2607233002.A2 2607233002	-
120 - FAN BSD-2606610049.A404 2606610049	£2.16	£2.59
670 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1368 2915011007	-
671 - WING SCREW M6x(15)55 BSD-1613480007.A242 1613480007	£1.75	£2.10
672 - CLAMPING PLATE M6 BSD-2608040014.A234 2608040014	-
673 - WING SCREW M6x20 MM BSD-1613480008.A180 1613480008	£1.75	£2.10
753 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A468 1619P10682	£12.49	£14.99
754 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A147 1613001005	-
810 - CARBON-BRUSH SET BSD-2604321907.A0 2604321907	£14.91	£17.89
888 - NAMEPLATE BSD-160111A3H3.A1590 160111A3H3	£2.61	£3.13
