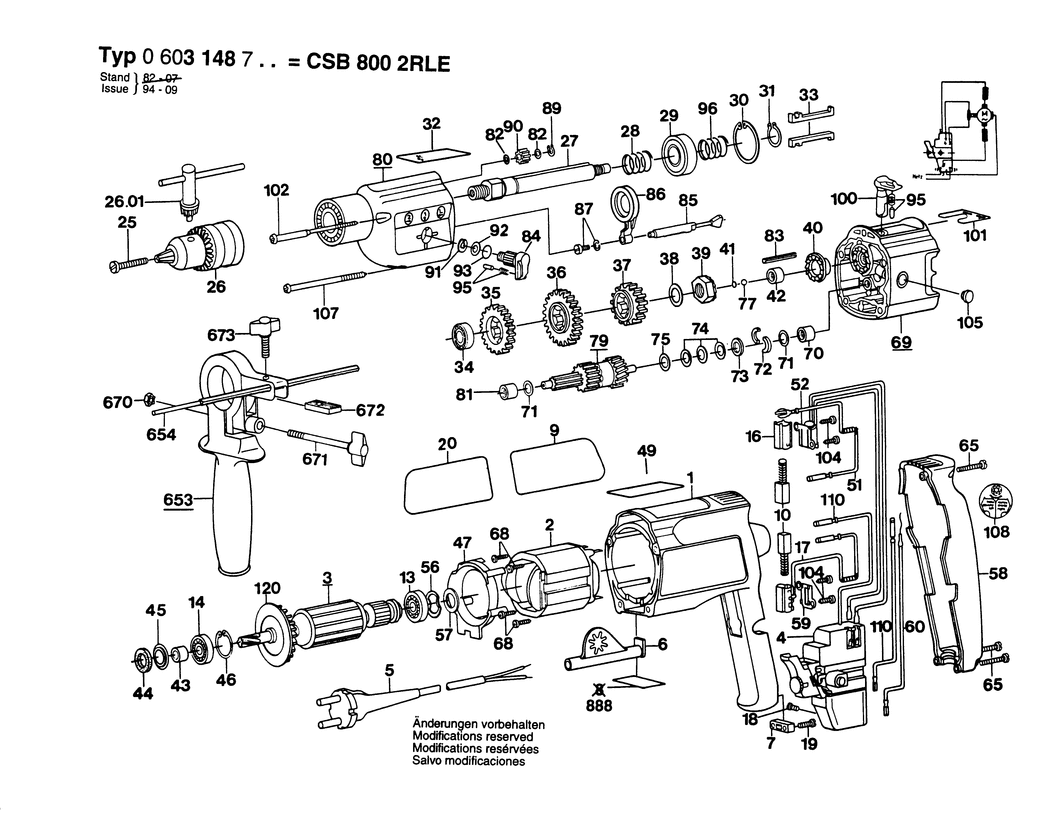

1 - MOTOR HOUSING
BSD-2605104175.A2
2605104175
|
-
|
|
|
|
1 - MOTOR HOUSING
BSD-2605104179.A2
2605104179
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220436.A10
2604220436
|
-
|
|
|
|
3 - ARMATURE 230V
BSD-2604010601.A15
2604010601
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200152.A9
2607200152
|
-
|
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A477
2600707059
|
£3.91
|
£4.69
|
|
|
6 - GROMMET dia11.6-dia12.5x84 MM
BSD-2600707060.A74
2600707060
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035001.A592
2601035001
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601110632.A1
2601110632
|
-
|
|
|
|
13 - BALL BEARING 7x22x7
BSD-1900905018.A672
1900905018
|
£19.91
|
£23.89
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A569
2600905021
|
£8.67
|
£10.41
|
|
|
16 - BRUSH HOLDER
BSD-2604330017.A13
2604330017
|
-
|
|
|
|
17 - SUPPRESSOR BOX
BSD-2604465025.A12
2604465025
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A551
2603410001
|
£1.84
|
£2.21
|
|
|
19 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2051
2910211019
|
£1.84
|
£2.21
|
|
|
20 - STICKER
BSD-2601110631.A6
2601110631
|
-
|
|
|
|
25 - COUNTERSUNK-HEAD SCREW M6x27
BSD-2603421226.A50
2603421226
|
£1.84
|
£2.21
|
|
|
26 - CHUCK dia1.5-13 MM. 1/2
BSD-1608571069.A45
1608571069
|
£25.05
|
£30.06
|
|
|
26 - CHUCK WRENCH SG2
BSD-2607950007.A1543
2607950007
|
£6.85
|
£8.22
|
|
|
27 - DRILLING SPINDLE 1/2
BSD-2606135026.A44
2606135026
|
-
|
|
|
|
27 - DRILLING SPINDLE 1/2
BSD-2606135010.A3
2606135010
|
-
|
|
|
|
28 - COMPRESSION SPRING
BSD-2604616002.A78
2604616002
|
£1.84
|
£2.21
|
|
|
29 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A551
1900905163
|
£11.30
|
£13.56
|
|
|
30 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A411
2916660014
|
£1.75
|
£2.10
|
|
|
31 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A392
2916650008
|
£1.84
|
£2.21
|
|
|
32 - STICKER
BSD-2601110325.A7
2601110325
|
-
|
|
|
|
33 - FLAT KEY
BSD-2602300027.A43
2602300027
|
-
|
|
|
|
34 - GROOVE BALL BEARING
BSD-2600900006.A5
2600900006
|
-
|
|
|
|
35 - CYLINDRICAL GEAR Z=43
BSD-2606317038.A8
2606317038
|
-
|
|
|
|
36 - CYLINDRICAL GEAR Z=48
BSD-2606317036.A9
2606317036
|
-
|
|
|
|
37 - CYLINDRICAL GEAR Z=36
BSD-2606317037.A156
2606317037
|
-
|
|
|
|
38 - SHIM 0.5 MM
BSD-2600101616.A377
2600101616
|
-
|
|
|
|
38 - SHIM 0.3 MM
BSD-2600101617.A38
2600101617
|
£1.84
|
£2.21
|
|
|
39 - CATCH DISK
BSD-2600190052.A173
2600190052
|
£8.17
|
£9.80
|
|
|
39 - LOCATING WASHER
BSD-2600190031.A31
2600190031
|
-
|
|
|
|
40 - LOCATING WASHER
BSD-2600190029.A6
2600190029
|
-
|
|
|
|
41 - SHIM WASHER 0.2 MM
BSD-2600000012.A3
2600000012
|
£1.75
|
£2.10
|
|
|
41 - SHIM WASHER 0.5 MM
BSD-2600000014.A113
2600000014
|
£1.84
|
£2.21
|
|
|
42 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A646
2600917003
|
£2.94
|
£3.53
|
|
|
43 - RECEPTACLE
BSD-2600400008.A171
2600400008
|
£1.75
|
£2.10
|
|
|
44 - FELT WASHER
BSD-2600108077.A323
2600108077
|
£1.84
|
£2.21
|
|
|
45 - CUPPED WASHER
BSD-2600500002.A393
2600500002
|
£1.75
|
£2.10
|
|
|
46 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A675
2916660008
|
£2.16
|
£2.59
|
|
|
47 - COVER DISC
BSD-2601328032.A39
2601328032
|
-
|
|
|
|
49 - STICKER
BSD-2601110292.A19
2601110292
|
-
|
|
|
|
51 - SUPPRESSOR BOX
BSD-2604465091.A15
2604465091
|
-
|
|
|
|
52 - ROT.-SPEED SENSOR 230V
BSD-2607233000.A7
2607233000
|
-
|
|
|
|
53 - ELEC. CABLE W/CONNECTION
BSD-2604448055.A7
2604448055
|
-
|
|
|
|
56 - SHIM
BSD-2600150004.A206
2600150004
|
£2.27
|
£2.72
|
|
|
57 - SHIM 0.3 MM
BSD-2600101023.A23
2600101023
|
£1.84
|
£2.21
|
|
|
57 - SHIM 0.2 MM
BSD-2600101022.A627
2600101022
|
£1.84
|
£2.21
|
|
|
57 - SHIM 0.5 MM
BSD-2600101020.A23
2600101020
|
£1.84
|
£2.21
|
|
|
58 - HOUSING COVER
BSD-2605132045.A11
2605132045
|
-
|
|
|
|
59 - BRUSH PLATE
BSD-2601015047.A208
2601015047
|
-
|
|
|
|
60 - EARTH CONDUCTOR dia0.35 MM
BSD-2604448010.A35
2604448010
|
-
|
|
|
|
65 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A807
2910211021
|
£1.75
|
£2.10
|
|
|
68 - TAPPING SCREW
BSD-2603435086.A246
2603435086
|
£1.84
|
£2.21
|
|
|
69 - INTERMEDIATE FLANGE
BSD-2605700934.A5
2605700934
|
-
|
|
|
|
70 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A764
2600914010
|
£2.94
|
£3.53
|
|
|
71 - SHIM 0.3 MM
BSD-2600100607.A768
2600100607
|
£1.75
|
£2.10
|
|
|
72 - LOCKING WASHER
BSD-2600116001.A16
2600116001
|
-
|
|
|
|
73 - COVER DISC
BSD-2600114001.A8
2600114001
|
-
|
|
|
|
74 - DISC SPRING
BSD-2600550008.A8
2600550008
|
£1.84
|
£2.21
|
|
|
75 - SHIM 0.5 MM
BSD-2600100682.A16
2600100682
|
-
|
|
|
|
75 - SHIM 0.3 MM
BSD-2600100683.A48
2600100683
|
-
|
|
|
|
75 - SHIM 0.2 MM
BSD-2600100684.A13
2600100684
|
-
|
|
|
|
77 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A532
1903230010
|
£1.84
|
£2.21
|
|
|
79 - OVERLOAD CLUTCH
BSD-2606309907.A7
2606309907
|
-
|
|
|
|
80 - GEAR HOUSING
BSD-2605806976.A6
2605806976
|
-
|
|
|
|
80 - GEAR HOUSING
BSD-2605806977.A0
2605806977
|
-
|
|
|
|
81 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A765
2600914010
|
£2.94
|
£3.53
|
|
|
82 - SHIM 0.5 MM
BSD-2600100623.A36
2600100623
|
-
|
|
|
|
83 - SLOTTED SPRING PIN 4x30 MM DIN 7346
BSD-2917780105.A133
2917780105
|
£1.75
|
£2.10
|
|
|
84 - ROTARY KNOB
BSD-2602026034.A36
2602026034
|
-
|
|
|
|
85 - TOOTHED RACK
BSD-2603070011.A20
2603070011
|
-
|
|
|
|
86 - FORK LEVER
BSD-2602033003.A16
2602033003
|
-
|
|
|
|
87 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8
BSD-2914501011.A156
2914501011
|
£1.75
|
£2.10
|
|
|
89 - SPRING RETAINING RING DIN 471-8x0.8 FSt
BSD-2916640005.A7
2916640005
|
£1.75
|
£2.10
|
|
|
90 - CYLINDRICAL GEAR Z=15
BSD-2606317039.A29
2606317039
|
-
|
|
|
|
91 - LOCKING WASHER DIN 6799-7-FSt
BSD-2916080910.A313
2916080910
|
£2.16
|
£2.59
|
|
|
92 - SHIM 0.5 MM
BSD-2600101612.A53
2600101612
|
£1.84
|
£2.21
|
|
|
93 - O-RING 12.0x1.0 MM
BSD-1600210024.A88
1600210024
|
-
|
|
|
|
95 - RATCHET CAP
BSD-2600590006.A846
2600590006
|
£1.84
|
£2.21
|
|
|
96 - COMPRESSION SPRING
BSD-2604615010.A23
2604615010
|
-
|
|
|
|
100 - ROTARY KNOB
BSD-2602026033.A5
2602026033
|
-
|
|
|
|
101 - STICKER
BSD-2601110205.A19
2601110205
|
-
|
|
|
|
102 - TAPPING SCREW 79 MM
BSD-2603435012.A149
2603435012
|
-
|
|
|
|
104 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1098
2603490017
|
£2.27
|
£2.72
|
|
|
105 - PLUG
BSD-2600591002.A2
2600591002
|
-
|
|
|
|
107 - HEADLESS SCREW 74 MM
BSD-2603435019.A1
2603435019
|
-
|
|
|
|
108 - STICKER
BSD-2601110230.A73
2601110230
|
-
|
|
|
|
110 - CONNECTING CABLE L=176 MM
BSD-2604448004.A30
2604448004
|
£1.38
|
£1.66
|
|
|
120 - FAN
BSD-2606610049.A406
2606610049
|
£2.27
|
£2.72
|
|
|
653 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A488
1619P10682
|
£12.49
|
£14.99
|
|
|
654 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001005.A137
1613001005
|
-
|
|
|
|
670 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1360
2915011007
|
-
|
|
|
|
671 - WING SCREW M6x(15)55
BSD-1613480007.A265
1613480007
|
£1.75
|
£2.10
|
|
|
672 - CLAMPING PLATE M6
BSD-2608040014.A233
2608040014
|
-
|
|
|
|
673 - WING SCREW M6x20 MM
BSD-1613480008.A157
1613480008
|
£1.84
|
£2.21
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321907.A9
2604321907
|
£15.65
|
£18.78
|
|
|
835 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A189
1607000386
|
£22.60
|
£27.12
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1581
160111A3H3
|
£2.74
|
£3.29
|
|
