Bosch CSB 800-2 E / 0603149442 / GB 240 Volt Spare Parts

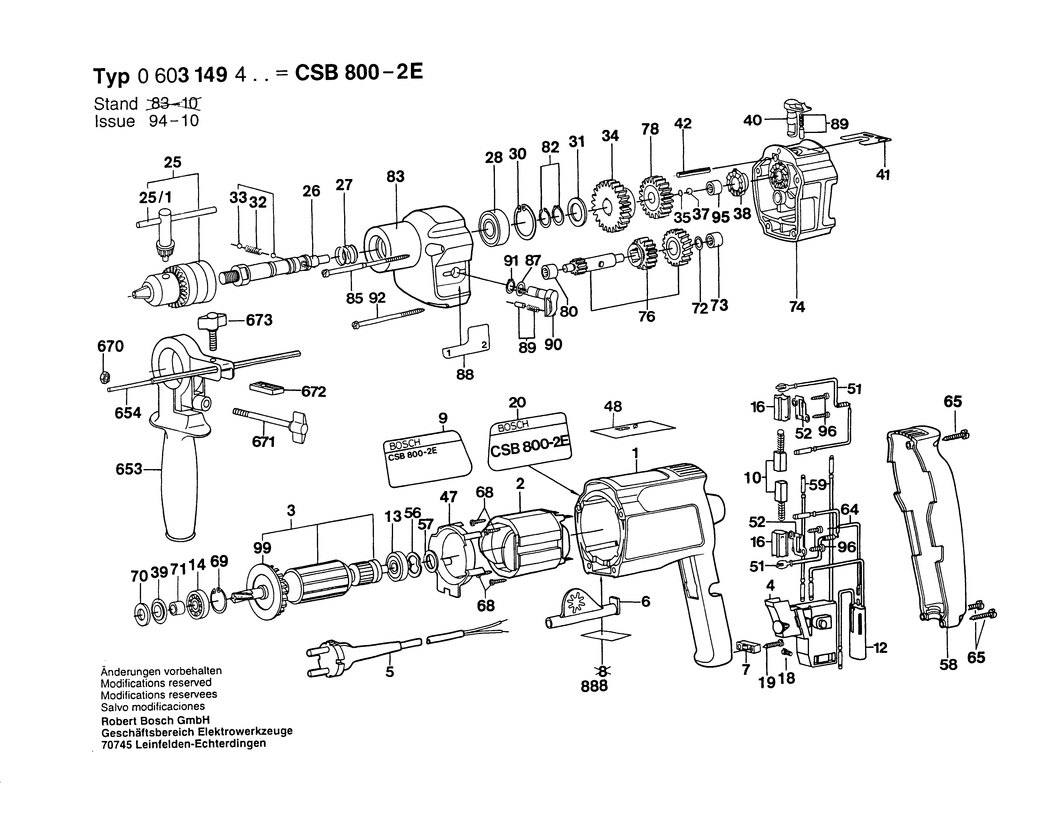

An exploded drawing and listing for the Bosch CSB 800-2 E / 0603149442 / GB 240 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2605104108.A11 2605104108	-
2 - FIELD 220-240V BSD-2604220436.A36 2604220436	-
3 - ARMATURE WITH FAN 240V BSD-2604010635.A0 2604010635	-
4 - ON-OFF SWITCH BSD-2607200158.A1 2607200158	-
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F BSD-3604460069.A18 3604460069	£37.72	£45.27
6 - GROMMET dia6.9 MM BSD-2600707059.A529 2600707059	£3.72	£4.47
6 - GROMMET dia11.6-dia12.5x84 MM BSD-2600707060.A36 2600707060	£2.61	£3.13
6 - GROMMET dia8.8 MM BSD-2600707061.A275 2600707061	£2.80	£3.36
7 - CABLE CLIP BSD-2601035001.A1525 2601035001	£1.75	£2.10
9 - STICKER BSD-2601110641.A2 2601110641	-
12 - SUPPRESSION CAPACITOR BSD-2607329111.A2 2607329111	-
13 - BALL BEARING 7x22x7 BSD-1900905018.A970 1900905018	£18.96	£22.75
14 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A749 2600905021	£8.67	£10.41
16 - BRUSH HOLDER BSD-2604330017.A2 2604330017	-
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1319 2603410001	£1.75	£2.10
19 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2172 2910211019	£1.75	£2.10
20 - STICKER BSD-2601110331.A4 2601110331	-
25 - KEY CHUCK dia1.5-13 MM. 1/2 BSD-1608571055.A55 1608571055	-
25/1 - CHUCK WRENCH SG2 BSD-2607950007.A1232 2607950007	£6.52	£7.83
26 - DRILLING SPINDLE 1/2-UNF-2 BSD-2606135001.A18 2606135001	-
27 - COMPRESSION SPRING BSD-2604617000.A198 2604617000	£2.61	£3.13
28 - GROOVE BALL BEARING 15x32x9 BSD-2600905014.A14 2600905014	-
30 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A18 2916660013	£2.16	£2.59
31 - SHIM 1.0 MM BSD-2600101515.A53 2600101515	£1.95	£2.34
32 - COMPRESSION SPRING BSD-2604610007.A11 2604610007	-
33 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A85 1903230007	£1.75	£2.10
34 - CYLINDRICAL GEAR Z=48 BSD-2606317014.A47 2606317014	-
35 - SHIM WASHER 0.2 MM BSD-2600000012.A52 2600000012	£1.75	£2.10
35 - SHIM WASHER 0.5 MM BSD-2600000014.A12 2600000014	£1.75	£2.10
37 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A727 1903230010	£1.75	£2.10
38 - LOCATING WASHER BSD-2606490031.A53 2606490031	-
39 - CUPPED WASHER BSD-2600500002.A24 2600500002	£1.75	£2.10
40 - ROTARY KNOB BSD-2602026017.A21 2602026017	£7.36	£8.83
41 - STICKER BSD-2601110076.A7 2601110076	-
42 - SLOTTED SPRING PIN 4x30 MM DIN 7346 BSD-2917780105.A168 2917780105	£1.75	£2.10
47 - COVER DISC BSD-2601328032.A6 2601328032	-
48 - STICKER BSD-2601110408.A2 2601110408	-
51 - SUPPRESSOR BOX BSD-2604465091.A19 2604465091	-
51 - ELEC. CABLE W/CONNECTION BSD-2604448076.A2 2604448076	-
52 - BRUSH PLATE BSD-2601015047.A182 2601015047	-
56 - SHIM BSD-2600150004.A446 2600150004	£2.16	£2.59
57 - SHIM 0.5 MM BSD-2600101020.A219 2600101020	£1.75	£2.10
57 - SHIM 0.2 MM BSD-2600101022.A430 2600101022	£1.75	£2.10
57 - SHIM 0.3 MM BSD-2600101023.A189 2600101023	£1.75	£2.10
58 - HOUSING COVER BSD-2605132045.A18 2605132045	-
59 - CABLE L=130 MM BSD-2604448005.A380 2604448005	£1.75	£2.10
64 - CABLE BSD-2604448003.A244 2604448003	-
65 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A927 2910211021	£1.75	£2.10
68 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A106 2603435015	£2.16	£2.59
69 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A960 2916660008	£2.16	£2.59
70 - FELT WASHER BSD-2600108077.A173 2600108077	£1.75	£2.10
71 - RECEPTACLE BSD-2600400008.A437 2600400008	£1.75	£2.10
72 - SHIM 0.3 MM BSD-2600100607.A1093 2600100607	£1.75	£2.10
73 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A558 2600914010	£2.80	£3.36
74 - FLANGED BEARING BSD-2605700928.A19 2605700928	-
76 - TOOTHED SHAFT Z=10/22/21 BSD-2606309902.A17 2606309902	-
78 - CYLINDRICAL GEAR Z=36 BSD-2606317025.A6 2606317025	-
80 - NEEDLE BEARING dia6/12 MM BSD-2600914017.A14 2600914017	£11.30	£13.56
82 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A408 2916650006	£1.75	£2.10
83 - GEAR HOUSING BSD-2605806951.A11 2605806951	-
85 - TAPPING SCREW 79 MM BSD-2603435012.A113 2603435012	-
87 - SHIM 0.2 MM BSD-2600100575.A125 2600100575	£2.16	£2.59
87 - SHIM 0.3 MM BSD-2600100576.A194 2600100576	-
87 - SHIM 0.5 MM BSD-2600100577.A128 2600100577	£1.75	£2.10
88 - STICKER BSD-2601110072.A25 2601110072	-
89 - RATCHET CAP BSD-2600590006.A1349 2600590006	£1.75	£2.10
90 - ROTARY KNOB BSD-2602026018.A24 2602026018	-
91 - SPRING RETAINING RING DIN 471-10x1MM-FSt BSD-2916650001.A492 2916650001	£2.61	£3.13
92 - HEADLESS SCREW 65 MM BSD-2603435071.A166 2603435071	-
95 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A342 2600917003	£2.80	£3.36
96 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1353 2603490017	£2.16	£2.59
99 - FAN BSD-2606610049.A260 2606610049	£2.16	£2.59
653 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A376 1619P10682	£12.49	£14.99
654 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A45 1613001005	-
670 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A777 2915011007	-
671 - WING SCREW M6x(15)55 BSD-1613480007.A386 1613480007	£1.75	£2.10
672 - CLAMPING PLATE M6 BSD-2608040014.A313 2608040014	-
673 - WING SCREW M6x20 MM BSD-1613480008.A24 1613480008	£1.75	£2.10
810 - CARBON-BRUSH SET BSD-2604321907.A19 2604321907	£14.91	£17.89
888 - NAMEPLATE BSD-160111A3H3.A2722 160111A3H3	£2.61	£3.13
