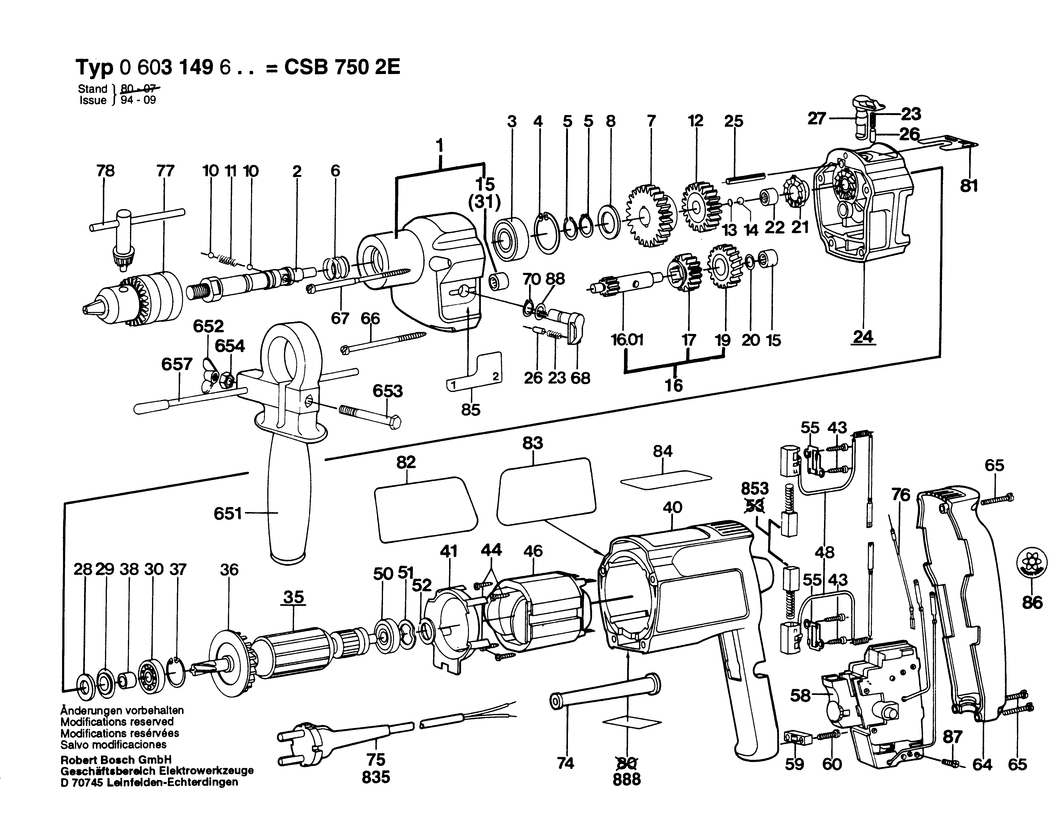

1 - GEAR HOUSING
BSD-2605806951.A7
2605806951
|
-
|
|
|
|
1 - GEAR HOUSING
BSD-2605806959.A16
2605806959
|
-
|
|
|
|
2 - DRILLING SPINDLE 1/2-UNF-2
BSD-2606135001.A22
2606135001
|
-
|
|
|
|
3 - GROOVE BALL BEARING 15x32x9
BSD-2600905014.A10
2600905014
|
-
|
|
|
|
4 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A11
2916660013
|
£2.16
|
£2.59
|
|
|
5 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A412
2916650006
|
£1.75
|
£2.10
|
|
|
6 - COMPRESSION SPRING
BSD-2604617000.A194
2604617000
|
£2.61
|
£3.13
|
|
|
7 - CYLINDRICAL GEAR Z=48
BSD-2606317014.A64
2606317014
|
-
|
|
|
|
8 - SHIM 1.0 MM
BSD-2600101515.A63
2600101515
|
£2.05
|
£2.46
|
|
|
10 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A94
1903230007
|
£1.84
|
£2.21
|
|
|
11 - COMPRESSION SPRING
BSD-2604610007.A29
2604610007
|
-
|
|
|
|
12 - CYLINDRICAL GEAR Z=36
BSD-2606317025.A1
2606317025
|
-
|
|
|
|
13 - SHIM WASHER 0.2 MM
BSD-2600000012.A60
2600000012
|
£1.75
|
£2.10
|
|
|
13 - SHIM WASHER 0.3 MM
BSD-2600000013.A27
2600000013
|
-
|
|
|
|
13 - SHIM WASHER 0.5 MM
BSD-2600000014.A19
2600000014
|
£1.84
|
£2.21
|
|
|
13 - SHIM WASHER 0.1 MM
BSD-2600000018.A16
2600000018
|
-
|
|
|
|
14 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A718
1903230010
|
£1.84
|
£2.21
|
|
|
15 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A563
2600914010
|
£2.94
|
£3.53
|
|
|
16 - TOOTHED SHAFT Z=10/22/21
BSD-2606309902.A13
2606309902
|
-
|
|
|
|
16 - TOOTHED SHAFT Z=10
BSD-2606309004.A26
2606309004
|
-
|
|
|
|
17 - CYLINDRICAL GEAR Z=22
BSD-2606317026.A14
2606317026
|
-
|
|
|
|
19 - CYLINDRICAL GEAR Z=21
BSD-2606320006.A40
2606320006
|
-
|
|
|
|
20 - SHIM 0.3 MM
BSD-2600100570.A222
2600100570
|
£1.84
|
£2.21
|
|
|
21 - LOCATING WASHER
BSD-2606490031.A49
2606490031
|
-
|
|
|
|
22 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A347
2600917003
|
£2.94
|
£3.53
|
|
|
23 - RATCHET CAP
BSD-2600590006.A1357
2600590006
|
£1.84
|
£2.21
|
|
|
24 - FLANGED BEARING
BSD-2605700928.A23
2605700928
|
-
|
|
|
|
25 - SLOTTED SPRING PIN 4x30 MM DIN 7346
BSD-2917780105.A164
2917780105
|
£1.75
|
£2.10
|
|
|
26 - RATCHET CAP
BSD-2600590006.A1356
2600590006
|
£1.84
|
£2.21
|
|
|
27 - ROTARY KNOB
BSD-2602026017.A10
2602026017
|
£7.72
|
£9.27
|
|
|
28 - FELT WASHER
BSD-2600108077.A176
2600108077
|
£1.84
|
£2.21
|
|
|
29 - CUPPED WASHER
BSD-2600500002.A13
2600500002
|
£1.75
|
£2.10
|
|
|
30 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A756
2600905021
|
£8.67
|
£10.41
|
|
|
31 - NEEDLE BEARING dia6/12 MM
BSD-2600914017.A9
2600914017
|
£11.30
|
£13.56
|
|
|
35 - ARMATURE 220-240V
BSD-2604010541.A1
2604010541
|
-
|
|
|
|
35 - ARMATURE 220-240V
BSD-2604010542.A3
2604010542
|
-
|
|
|
|
36 - FAN
BSD-2606610049.A257
2606610049
|
£2.27
|
£2.72
|
|
|
37 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A956
2916660008
|
£2.16
|
£2.59
|
|
|
38 - RECEPTACLE
BSD-2600400008.A441
2600400008
|
£1.75
|
£2.10
|
|
|
40 - MOTOR HOUSING
BSD-2605104108.A8
2605104108
|
-
|
|
|
|
40 - MOTOR HOUSING
BSD-2605104146.A13
2605104146
|
-
|
|
|
|
41 - COVER DISC
BSD-2601328032.A10
2601328032
|
-
|
|
|
|
43 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1354
2603490017
|
£2.27
|
£2.72
|
|
|
44 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F
BSD-2603435015.A107
2603435015
|
£2.27
|
£2.72
|
|
|
46 - POLE SHOE 220-240V
BSD-2604220402.A4
2604220402
|
-
|
|
|
|
46 - POLE SHOE 220-240V
BSD-2604220403.A0
2604220403
|
-
|
|
|
|
48 - SUPPRESSOR BOX
BSD-2604465062.A42
2604465062
|
-
|
|
|
|
50 - BALL BEARING 7x22x7
BSD-1900905018.A980
1900905018
|
£19.91
|
£23.89
|
|
|
51 - SHIM
BSD-2600150004.A442
2600150004
|
£2.27
|
£2.72
|
|
|
52 - SHIM 0.3 MM
BSD-2600101023.A194
2600101023
|
£1.84
|
£2.21
|
|
|
52 - SHIM 0.2 MM
BSD-2600101022.A425
2600101022
|
£1.84
|
£2.21
|
|
|
52 - SHIM 0.5 MM
BSD-2600101020.A224
2600101020
|
£1.84
|
£2.21
|
|
|
55 - BRUSH PLATE
BSD-2601015047.A178
2601015047
|
-
|
|
|
|
58 - ON-OFF SWITCH
BSD-2607200916.A3
2607200916
|
-
|
|
|
|
59 - CABLE CLIP
BSD-2601035001.A1534
2601035001
|
£1.84
|
£2.21
|
|
|
60 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2168
2910211019
|
£1.84
|
£2.21
|
|
|
64 - HOUSING COVER
BSD-2605132039.A8
2605132039
|
-
|
|
|
|
65 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A923
2910211021
|
£1.75
|
£2.10
|
|
|
66 - HEADLESS SCREW 65 MM
BSD-2603435071.A165
2603435071
|
-
|
|
|
|
67 - TAPPING SCREW 79 MM
BSD-2603435012.A112
2603435012
|
-
|
|
|
|
68 - ROTARY KNOB
BSD-2602026018.A22
2602026018
|
-
|
|
|
|
70 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A488
2916650001
|
£2.74
|
£3.29
|
|
|
74 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1476
2600703012
|
£2.94
|
£3.53
|
|
|
74 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A138
2600703011
|
£2.94
|
£3.53
|
|
|
76 - EARTH CONDUCTOR dia0.35 MM
BSD-2604448010.A13
2604448010
|
-
|
|
|
|
77 - CHUCK dia1.5-13 MM. 1/2
BSD-1608571069.A161
1608571069
|
£25.05
|
£30.06
|
|
|
78 - CHUCK WRENCH SG2
BSD-2607950007.A1224
2607950007
|
£6.85
|
£8.22
|
|
|
81 - STICKER
BSD-2601110076.A9
2601110076
|
-
|
|
|
|
82 - STICKER
BSD-2601110215.A1
2601110215
|
-
|
|
|
|
83 - STICKER
BSD-2601110216.A3
2601110216
|
-
|
|
|
|
84 - STICKER
BSD-2601110117.A3
2601110117
|
-
|
|
|
|
85 - STICKER
BSD-2601110072.A23
2601110072
|
-
|
|
|
|
86 - STICKER
BSD-2601110041.A189
2601110041
|
-
|
|
|
|
87 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1331
2603410001
|
£1.84
|
£2.21
|
|
|
88 - SHIM 0.2 MM
BSD-2600100575.A126
2600100575
|
£2.16
|
£2.59
|
|
|
88 - SHIM 0.3 MM
BSD-2600100576.A193
2600100576
|
-
|
|
|
|
88 - SHIM 0.5 MM
BSD-2600100577.A129
2600100577
|
£1.84
|
£2.21
|
|
|
651 - AUXILIARY HANDLE
BSD-2602025094.A112
2602025094
|
£7.72
|
£9.27
|
|
|
652 - WING NUT M6 DIN 315-G-GTW-40
BSD-2915191006.A68
2915191006
|
-
|
|
|
|
653 - HEX SCREW DIN 931-M6x75-8.8
BSD-2911001220.A16
2911001220
|
-
|
|
|
|
654 - CONICAL SPRING WASHER
BSD-2601098001.A38
2601098001
|
-
|
|
|
|
655 - DEPTH-GAUGE
BSD-2607010026.A9
2607010026
|
-
|
|
|
|
835 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A49
1607000386
|
£22.60
|
£27.12
|
|
|
853 - CARBON-BRUSH SET
BSD-2604321907.A25
2604321907
|
£15.65
|
£18.78
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2727
160111A3H3
|
£2.74
|
£3.29
|
|
