Bosch CSB 700-2 RE / 0603166703 / EU 220 Volt Spare Parts

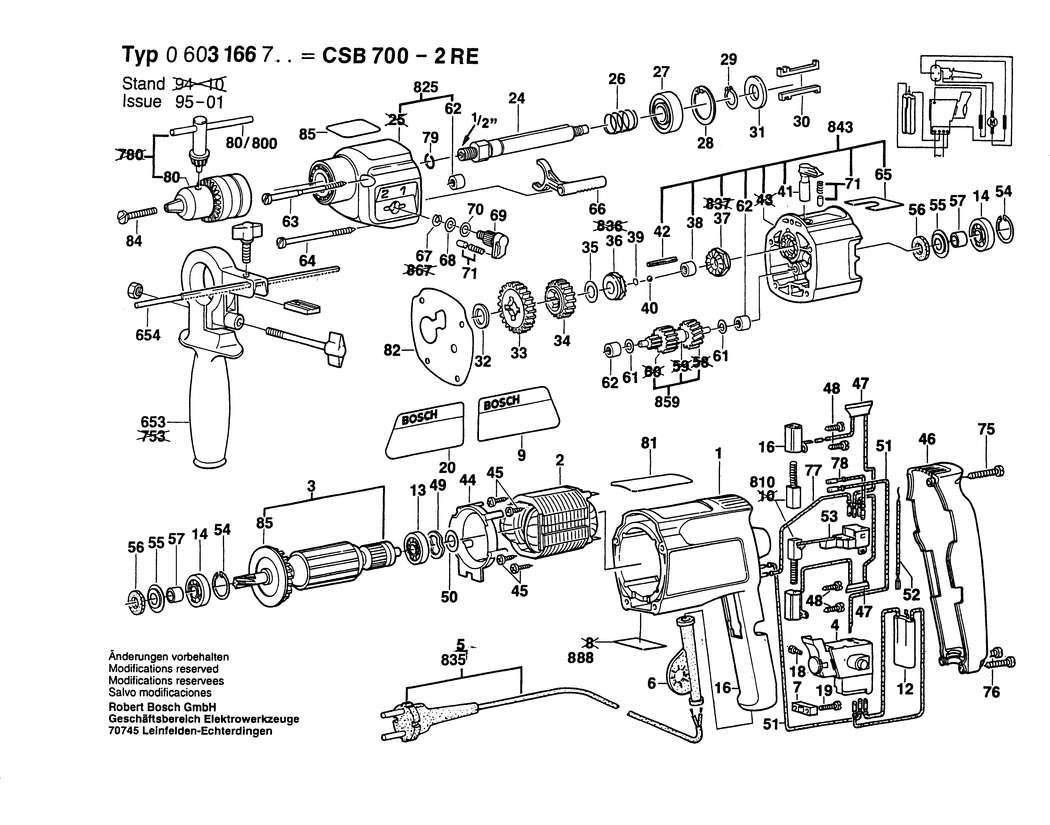

An exploded drawing and listing for the Bosch CSB 700-2 RE / 0603166703 / EU 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2605104275.A2 2605104275	-
2 - FIELD 220-240V BSD-1604220254.A17 1604220254	£21.68	£26.01
3 - ARMATURE 230-240V BSD-2604010739.A28 2604010739	-
4 - ON-OFF SWITCH BSD-2607200224.A4 2607200224	-
4 - SWITCH BSD-2607200190.A17 2607200190	£54.42	£65.30
6 - GROMMET dia6.9 MM BSD-2600707059.A433 2600707059	£3.72	£4.47
7 - CABLE CLIP BSD-2601035001.A639 2601035001	£1.75	£2.10
9 - STICKER BSD-2601110596.A1 2601110596	-
12 - SUPPRESSION FILTER BSD-2607329096.A13 2607329096	£7.36	£8.83
13 - BALL BEARING 7x22x7 BSD-1900905018.A682 1900905018	£18.96	£22.75
14 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A592 2600905021	£8.67	£10.41
16 - BRUSH HOLDER BSD-2604337003.A266 2604337003	£2.16	£2.59
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A604 2603410001	£1.75	£2.10
19 - SCREW 4x16 BSD-2603490022.A1450 2603490022	£1.75	£2.10
20 - STICKER BSD-2601110597.A4 2601110597	-
24 - DRILLING SPINDLE 1/2.SW 17 BSD-2606135032.A20 2606135032	-
26 - COMPRESSION SPRING BSD-2604616002.A107 2604616002	£1.75	£2.10
27 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A543 1900905163	£11.30	£13.56
28 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A395 2916660014	£1.75	£2.10
29 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A417 2916650008	£1.75	£2.10
30 - FLAT KEY BSD-2602300028.A14 2602300028	-
31 - RETAINING WASHER BSD-2600101671.A276 2600101671	£1.75	£2.10
32 - SHIM 1.0 MM BSD-2600101515.A74 2600101515	£1.95	£2.34
33 - CYLINDRICAL GEAR Z=48 BSD-2606317045.A32 2606317045	£14.72	£17.67
34 - CYLINDRICAL GEAR Z=36 BSD-2606317037.A173 2606317037	-
35 - SHIM 0.5 MM BSD-2600101616.A362 2600101616	-
35 - SHIM 0.3 MM BSD-2600101617.A53 2600101617	£1.75	£2.10
36 - CATCH DISK BSD-2600190052.A155 2600190052	£7.78	£9.33
37 - CATCH DISK BSD-2600190051.A9 2600190051	-
38 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A624 2600917003	£2.80	£3.36
39 - SHIM WASHER 0.2 MM BSD-2600000012.A36 2600000012	£1.75	£2.10
39 - SHIM WASHER 0.5 MM BSD-2600000014.A81 2600000014	£1.75	£2.10
40 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A541 1903230010	£1.75	£2.10
41 - ROTARY KNOB BSD-2602026017.A105 2602026017	£7.36	£8.83
42 - SLOTTED SPRING PIN 4x30 MM DIN 7346 BSD-2917780105.A109 2917780105	£1.75	£2.10
44 - COVER DISC BSD-2601328033.A16 2601328033	-
45 - TAPPING SCREW BSD-2603435086.A223 2603435086	£1.75	£2.10
46 - HOUSING COVER BSD-2605132018.A0 2605132018	-
47 - SUPPRESSION FILTER L=148 MM BSD-2604465086.A83 2604465086	£5.58	£6.70
48 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1130 2603490017	£2.16	£2.59
49 - SHIM BSD-2600150004.A205 2600150004	£2.16	£2.59
50 - SHIM WASHER 0.3 MM BSD-2600101027.A76 2600101027	£1.75	£2.10
50 - SHIM WASHER 0.5 MM BSD-2600101667.A147 2600101667	£1.75	£2.10
51 - CABLE L=130 MM BSD-2604448005.A336 2604448005	£1.75	£2.10
52 - CABLE BSD-2604448003.A169 2604448003	-
53 - SWITCH BSD-1617200042.A72 1617200042	£16.41	£19.69
54 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A717 2916660008	£2.16	£2.59
55 - CUPPED WASHER BSD-2600500002.A347 2600500002	£1.75	£2.10
56 - FELT WASHER BSD-2600108077.A290 2600108077	£1.75	£2.10
57 - RECEPTACLE BSD-2600400008.A130 2600400008	£1.75	£2.10
61 - SHIM 0.3 MM BSD-2600100607.A744 2600100607	£1.75	£2.10
62 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A786 2600914010	£2.80	£3.36
63 - TAPPING SCREW 79 MM BSD-2603435012.A154 2603435012	-
64 - HEADLESS SCREW 65 MM BSD-2603435071.A75 2603435071	-
65 - STICKER BSD-2601110076.A105 2601110076	-
66 - ADJUSTING SLIDE BSD-2602033006.A53 2602033006	£2.80	£3.36
67 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A200 2916080007	£2.61	£3.13
68 - SHIM WASHER BSD-2600100618.A300 2600100618	£1.75	£2.10
69 - ROTARY KNOB BSD-2602026038.A74 2602026038	-
70 - PARTS SET BSD-2607010226.A92 2607010226	£2.33	£2.80
71 - RATCHET CAP BSD-2600590006.A867 2600590006	£1.75	£2.10
75 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A422 2603490024	£1.75	£2.10
76 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A797 2603490023	£1.75	£2.10
77 - CONNECTING CABLE L=68 MM BSD-2604448100.A10 2604448100	£1.75	£2.10
78 - CONNECTING CABLE L=98 MM BSD-2604448074.A49 2604448074	£2.16	£2.59
79 - RETAINING RING BSD-2604601004.A608 2604601004	£1.75	£2.10
80 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A7 1608571069	£23.86	£28.63
80/800 - CHUCK WRENCH SG2 BSD-2607950007.A1501 2607950007	£6.52	£7.83
81 - STICKER BSD-2601110117.A21 2601110117	-
82 - GASKET BSD-2601073012.A52 2601073012	£1.75	£2.10
85 - FAN BSD-2606610029.A207 2606610029	£2.61	£3.13
653 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A462 1619P10682	£12.49	£14.99
654 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A109 1613001005	-
656 - DRILL HOLDER BSD-2607000122.A149 2607000122	-
810 - CARBON-BRUSH SET BSD-2604321905.A651 2604321905	£11.30	£13.56
825 - GEAR HOUSING BSD-2605806987.A14 2605806987	-
835 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1607000386.A182 1607000386	£21.52	£25.83
843 - INTERMEDIATE FLANGE BSD-2605700936.A15 2605700936	£46.82	£56.18
859 - TOOTHED SHAFT Z= 10/22/29 BSD-2606100903.A5 2606100903	-
888 - NAMEPLATE BSD-160111A3H3.A1499 160111A3H3	£2.61	£3.13
