Bosch CSB 700-2 RE / 0603166671 / CH 230 Volt Spare Parts

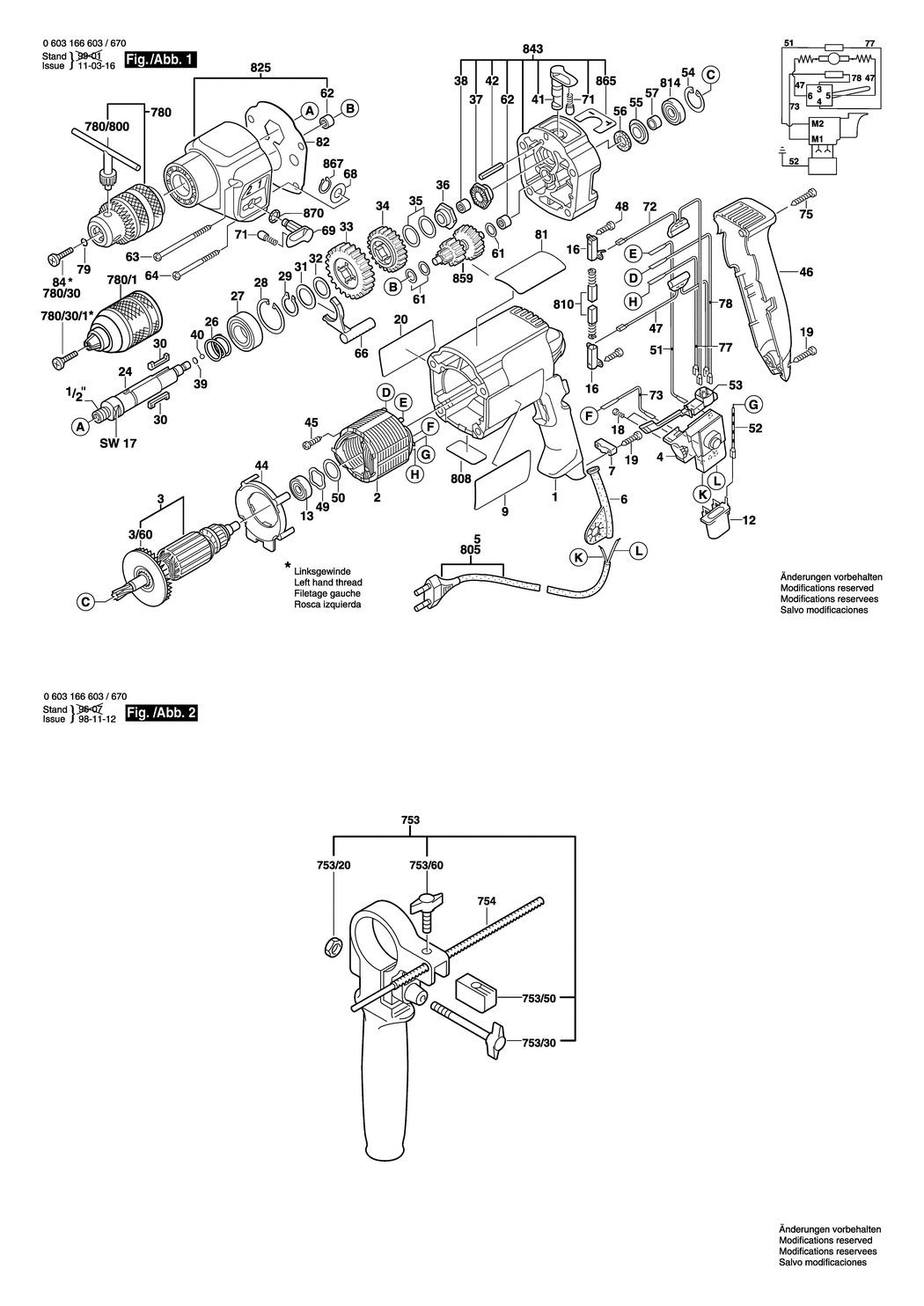

An exploded drawing and listing for the Bosch CSB 700-2 RE / 0603166671 / CH 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2605104295.A12 2605104295	-
2 - FIELD 220-240V BSD-1604220254.A36 1604220254	£21.68	£26.01
3 - ARMATURE 230-240V BSD-2604010739.A44 2604010739	-
3/60 - FAN BSD-2606610029.A186 2606610029	£2.61	£3.13
4 - SWITCH BSD-2607200190.A2 2607200190	£54.42	£65.30
4 - ON-OFF SWITCH BSD-2607200224.A19 2607200224	-
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460432.A122 1604460432	£11.30	£13.56
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1054 2600703012	£2.80	£3.36
7 - CABLE CLIP BSD-2601035001.A607 2601035001	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2601119415.A3 2601119415	-
12 - SUPPRESSION FILTER BSD-2607329114.A211 2607329114	-
13 - BALL BEARING 7x22x7 BSD-1900905018.A662 1900905018	£18.96	£22.75
16 - BRUSH HOLDER BSD-2604337003.A262 2604337003	£2.16	£2.59
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A564 2603410001	£1.75	£2.10
19 - SCREW 4x16 BSD-2603490022.A1435 2603490022	£1.75	£2.10
20 - REFERENCE PLATE BSD-2601119413.A15 2601119413	-
24 - DRILLING SPINDLE 1/2 BSD-2606135013.A7 2606135013	£21.42	£25.71
26 - COMPRESSION SPRING BSD-2604616002.A81 2604616002	£1.75	£2.10
27 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A561 1900905163	£11.30	£13.56
28 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A419 2916660014	£1.75	£2.10
29 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A400 2916650008	£1.75	£2.10
30 - FLAT KEY BSD-2602300028.A8 2602300028	-
31 - RETAINING WASHER BSD-2600101671.A259 2600101671	£1.75	£2.10
32 - SHIM 1.0 MM BSD-2600101515.A84 2600101515	£1.95	£2.34
33 - CYLINDRICAL GEAR Z=48 BSD-2606317063.A1 2606317063	-
34 - CYLINDRICAL GEAR Z=36 BSD-2606317062.A7 2606317062	-
35 - SHIM 0.5 MM BSD-2600101616.A392 2600101616	-
35 - SHIM 0.3 MM BSD-2600101617.A23 2600101617	£1.75	£2.10
36 - CATCH DISK BSD-2600190070.A8 2600190070	£5.58	£6.70
37 - CATCH DISK BSD-2600190063.A4 2600190063	£5.87	£7.04
38 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A658 2600917003	£2.80	£3.36
39 - SHIM WASHER 0.2 MM BSD-2600000012.A13 2600000012	£1.75	£2.10
39 - SHIM WASHER 0.5 MM BSD-2600000014.A103 2600000014	£1.75	£2.10
39 - SHIM WASHER 1.35 MM BSD-2600000030.A135 2600000030	£1.75	£2.10
40 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A523 1903230010	£1.75	£2.10
41 - ROTARY KNOB BSD-2602026017.A79 2602026017	£7.36	£8.83
42 - SLOTTED SPRING PIN 4x30 MM DIN 7346 BSD-2917780105.A125 2917780105	£1.75	£2.10
44 - COVER DISC BSD-2601328033.A7 2601328033	-
45 - TAPPING SCREW BSD-2603435086.A236 2603435086	£1.75	£2.10
46 - HOUSING COVER BSD-2605132048.A11 2605132048	-
47 - SUPPRESSION FILTER L=126 MM BSD-2604465097.A185 2604465097	£5.58	£6.70
48 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1108 2603490017	£2.16	£2.59
49 - SHIM BSD-2600150004.A228 2600150004	£2.16	£2.59
50 - SHIM WASHER 0.2 MM BSD-2600101665.A72 2600101665	£1.75	£2.10
50 - SHIM WASHER 0.5 MM BSD-2600101667.A163 2600101667	£1.75	£2.10
50 - SHIM WASHER 0.3 MM BSD-2600101027.A66 2600101027	£1.75	£2.10
51 - CABLE L=130 MM BSD-2604448005.A324 2604448005	£1.75	£2.10
52 - EARTH CONDUCTOR BSD-2604448097.A119 2604448097	£1.75	£2.10
53 - CHANGE-OVER SWITCH BSD-2607200231.A186 2607200231	£16.41	£19.69
54 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A668 2916660008	£2.16	£2.59
55 - CUPPED WASHER BSD-2600500002.A399 2600500002	£1.75	£2.10
56 - FELT WASHER BSD-2600108077.A304 2600108077	£1.75	£2.10
57 - RECEPTACLE BSD-2600400008.A165 2600400008	£1.75	£2.10
61 - SHIM 0.3 MM BSD-2600100607.A763 2600100607	£1.75	£2.10
62 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A745 2600914010	£2.80	£3.36
63 - HEADLESS SCREW BSD-2603435070.A40 2603435070	£2.16	£2.59
64 - HEADLESS SCREW 65 MM BSD-2603435071.A61 2603435071	-
66 - ADJUSTING SLIDE BSD-2602033006.A31 2602033006	£2.80	£3.36
68 - SHIM WASHER BSD-2600100618.A280 2600100618	£1.75	£2.10
69 - ROTARY KNOB BSD-2602026038.A67 2602026038	-
71 - RATCHET CAP BSD-2600590006.A857 2600590006	£1.75	£2.10
72 - SUPPRESSION FILTER L=148 MM BSD-2604465086.A79 2604465086	£5.58	£6.70
73 - CONNECTING CABLE L=110 MM BSD-2604448146.A62 2604448146	£1.75	£2.10
75 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A397 2603490024	£1.75	£2.10
77 - CONNECTING CABLE L=68 MM BSD-2604448100.A6 2604448100	£1.75	£2.10
78 - CONNECTING CABLE L=98 MM BSD-2604448074.A38 2604448074	£2.16	£2.59
79 - RETAINING RING BSD-2604601004.A602 2604601004	£1.75	£2.10
81 - STICKER BSD-2601110117.A15 2601110117	-
82 - GASKET BSD-2601073012.A41 2601073012	£1.75	£2.10
753 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A474 1619P10682	£12.49	£14.99
753/20 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1378 2915011007	-
753/30 - WING SCREW M6x(15)55 BSD-1613480007.A253 1613480007	£1.75	£2.10
753/50 - CLAMPING PLATE M6 BSD-2608040014.A247 2608040014	-
753/60 - WING SCREW M6x20 MM BSD-1613480008.A169 1613480008	£1.75	£2.10
754 - DEPTH-GAUGE BSD-2603001019.A163 2603001019	£2.63	£3.16
756 - DRILL HOLDER BSD-2607000122.A181 2607000122	-
780/1 - KEYLESS CHUCK BSD-2608572123.A5 2608572123	£51.22	£61.47
780/30/1 - COUNTERSUNK-HEAD SCREW M 6x34 MM BSD-2603421213.A52 2603421213	£2.61	£3.13
808 - NAMEPLATE BSD-160111A3H3.A1602 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-2604321905.A609 2604321905	£11.30	£13.56
814 - GROOVE BALL BEARING 9x24x7 BSD-2600905039.A90 2600905039	£12.04	£14.45
825 - GEAR HOUSING BSD-2605806987.A19 2605806987	-
843 - INTERMEDIATE FLANGE BSD-2605700936.A10 2605700936	£46.82	£56.18
859 - TOOTHED SHAFT Z= 10/22/29 BSD-2606100903.A19 2606100903	-
865 - STICKER BSD-2601110076.A117 2601110076	-
867 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A173 2916080007	£2.61	£3.13
870 - PARTS SET BSD-2607010226.A106 2607010226	£2.33	£2.80

Attribute Name	Value
Brand	Bosch
