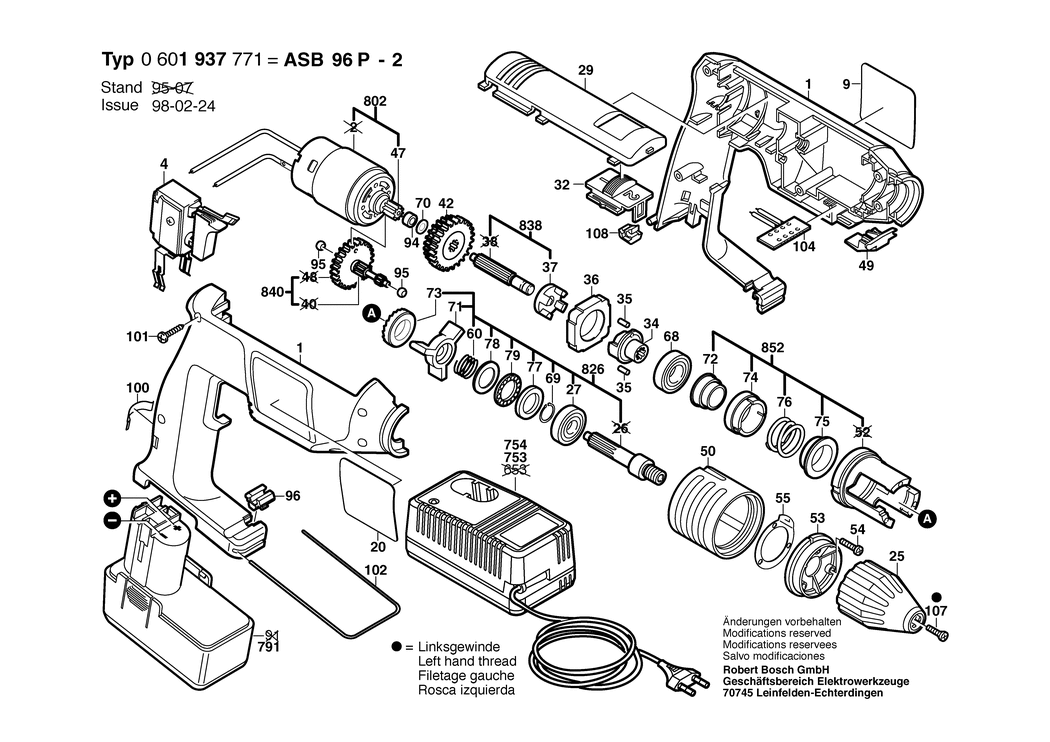

1 - HANDLE COVER
BSD-2605104524.A0
2605104524
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200309.A83
2607200309
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119330.A0
2601119330
|
-
|
|
|
|
20 - MANUFACTURER'S NAMEPLATE
BSD-2601118830.A1
2601118830
|
-
|
|
|
|
25 - KEYLESS CHUCK dia 1.5-10 MM.1/2
BSD-2608572053.A19
2608572053
|
-
|
|
|
|
27 - GROOVE BALL BEARING 10x26x8
BSD-1900905120.A364
1900905120
|
-
|
|
|
|
29 - INSERT PIECE
BSD-2605510136.A9
2605510136
|
-
|
|
|
|
32 - ADJUSTING SLIDE
BSD-2601099056.A29
2601099056
|
-
|
|
|
|
34 - ECCENTRIC
BSD-2602210014.A33
2602210014
|
£12.04
|
£14.45
|
|
|
35 - ROLLER BODY
BSD-2602329024.A156
2602329024
|
-
|
|
|
|
36 - RING
BSD-2600202025.A147
2600202025
|
-
|
|
|
|
37 - CARRIER
BSD-2606440003.A75
2606440003
|
-
|
|
|
|
42 - SET OF GEARS Z=58/67
BSD-1609340007.A27
1609340007
|
£14.91
|
£17.89
|
|
|
47 - PINION Z=14
BSD-2606316144.A8
2606316144
|
-
|
|
|
|
49 - INSERT PIECE
BSD-2605510117.A74
2605510117
|
£1.75
|
£2.10
|
|
|
50 - ADJUSTING SCREW
BSD-2605190037.A26
2605190037
|
-
|
|
|
|
53 - CLAMPING SLEEVE
BSD-2608005046.A38
2608005046
|
-
|
|
|
|
54 - THREAD-FORMING TAP. SCREW M4x12 MM
BSD-2603490008.A23
2603490008
|
-
|
|
|
|
55 - LOCATING WASHER
BSD-2600190056.A48
2600190056
|
-
|
|
|
|
60 - COMPRESSION SPRING
BSD-2604618001.A30
2604618001
|
-
|
|
|
|
68 - GROOVE BALL BEARING 15x32x9
BSD-1900905122.A212
1900905122
|
£10.10
|
£12.12
|
|
|
69 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A352
2916650001
|
£2.61
|
£3.13
|
|
|
70 - SHIM 1.0 MM
BSD-2600100569.A241
2600100569
|
£1.75
|
£2.10
|
|
|
71 - BACKUP RING
BSD-2600290023.A18
2600290023
|
-
|
|
|
|
73 - CATCH DISK
BSD-2606490060.A22
2606490060
|
-
|
|
|
|
77 - CORRUGATED WASHER
BSD-2600190064.A5
2600190064
|
-
|
|
|
|
78 - THRUST BEARING DISC
BSD-2600101516.A5
2600101516
|
£2.61
|
£3.13
|
|
|
79 - BALL CAGE
BSD-2600923003.A12
2600923003
|
-
|
|
|
|
94 - SINTERED-METAL BUSHING
BSD-2600301011.A167
2600301011
|
£1.75
|
£2.10
|
|
|
95 - SINTERED-METAL BUSHING
BSD-2600302013.A46
2600302013
|
-
|
|
|
|
96 - SUPPORT
BSD-2608040131.A173
2608040131
|
£1.95
|
£2.34
|
|
|
100 - CLAMP SPRING
BSD-2601322016.A175
2601322016
|
£2.52
|
£3.02
|
|
|
101 - SCREW 4x16
BSD-2603490022.A2388
2603490022
|
£1.75
|
£2.10
|
|
|
102 - RETAINING BRACKET
BSD-2601329041.A44
2601329041
|
£2.33
|
£2.80
|
|
|
104 - CONTACT RETAINER
BSD-2608018004.A36
2608018004
|
£5.58
|
£6.70
|
|
|
107 - COUNTERSUNK-HEAD SCREW
BSD-2603421008.A1
2603421008
|
£1.75
|
£2.10
|
|
|
108 - SUPPORT
BSD-2602180001.A1
2602180001
|
£1.75
|
£2.10
|
|
|
753 - FAST CHARGER EU 230/7.2-14.4V. 1h
BSD-2607224724.A1
2607224724
|
-
|
|
|
|
754 - FAST CHARGER EU 230/4.8-14.4V. 12 MIN.
BSD-2607224273.A7
2607224273
|
-
|
|
|
|
791 - SLIDE-IN ACCU PACKAGE 9.6V.1.4Ah.NiCd
BSD-2607335142.A3
2607335142
|
-
|
|
|
|
791 - SLIDE-IN ACCU PACKAGE 9.6V.1.7Ah.NiCd
BSD-2607335144.A4
2607335144
|
-
|
|
|
|
796 - LAMP
BSD-2609200288.A2
2609200288
|
-
|
|
|
|
802 - DC MOTOR 9.6V
BSD-2607022929.A40
2607022929
|
-
|
|
|
|
826 - DRILLING SPINDLE 1/2. M 6
BSD-2606309928.A33
2606309928
|
-
|
|
|
|
838 - SPLINED SHAFT
BSD-2606309918.A8
2606309918
|
-
|
|
|
|
840 - TOOTHED SHAFT Z= 10/19/63
BSD-2606308914.A33
2606308914
|
-
|
|
|
|
852 - GUIDE SLEEVE
BSD-2600499903.A28
2600499903
|
-
|
|
|
