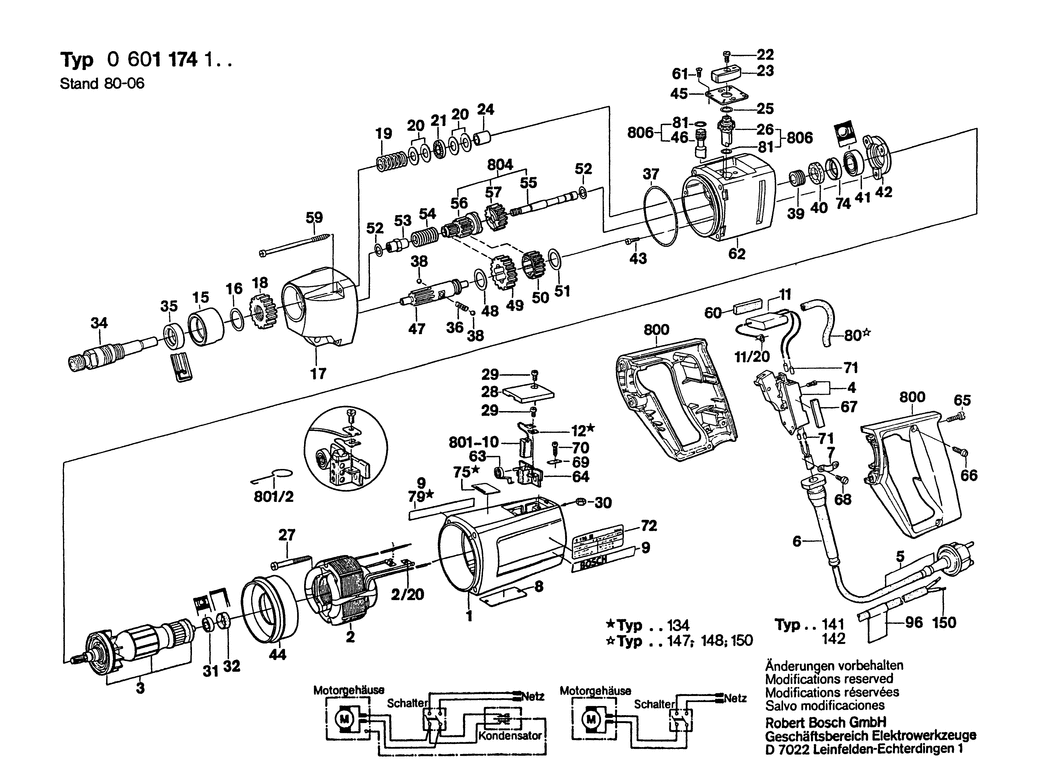

1 - MOTOR HOUSING
BSD-3605108145.A115
3605108145
|
£27.23
|
£32.68
|
|
|
2 - FIELD 220V
BSD-1604220128.A10
1604220128
|
-
|
|
|
|
2/20 - TERMINAL LUG 1.5-4x4
BSD-1901350003.A158
1901350003
|
£1.75
|
£2.10
|
|
|
3 - ARMATURE 220V
BSD-1604010157.A9
1604010157
|
-
|
|
|
|
4 - SWITCH
BSD-1607200078.A157
1607200078
|
£40.80
|
£48.96
|
|
|
4 - SWITCH
BSD-1607200037.A133
1607200037
|
£45.67
|
£54.80
|
|
|
5 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A210
1607000228
|
£23.86
|
£28.63
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A517
3600703011
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A33
1600703009
|
£5.58
|
£6.70
|
|
|
7 - FASTENING CLAMP
BSD-1601302014.A280
1601302014
|
£2.61
|
£3.13
|
|
|
9 - STICKER
BSD-1601110046.A116
1601110046
|
£1.75
|
£2.10
|
|
|
11 - SUPPRESSION CAPACITOR
BSD-1607328012.A91
1607328012
|
-
|
|
|
|
11/20 - TERMINAL LUG
BSD-1601353003.A54
1601353003
|
-
|
|
|
|
12 - TAB WASHER
BSD-1611331007.A56
1611331007
|
£1.32
|
£1.58
|
|
|
15 - BUSHING
BSD-1605801026.A15
1605801026
|
-
|
|
|
|
16 - SHIM 0.6 MM
BSD-1600102676.A12
1600102676
|
-
|
|
|
|
17 - SPINDLE BEARING
BSD-1605806321.A28
1605806321
|
-
|
|
|
|
17 - STRAIGHT PIN 5 H 8x18 DIN 7
BSD-2917500121.A5
2917500121
|
£1.75
|
£2.10
|
|
|
17 - NEEDLE BEARING dia8xdia12x10 MM
BSD-1610910057.A94
1610910057
|
£2.80
|
£3.36
|
|
|
17 - BUSHING
BSD-1600300076.A12
1600300076
|
-
|
|
|
|
18 - CYLINDRICAL GEAR Z=43
BSD-1606317077.A26
1606317077
|
£27.23
|
£32.68
|
|
|
19 - COMPRESSION SPRING
BSD-1604616018.A24
1604616018
|
-
|
|
|
|
20 - SUPPORT DISC
BSD-1600103026.A37
1600103026
|
-
|
|
|
|
21 - NEEDLE-ROLLER BEARING
BSD-1600920003.A25
1600920003
|
-
|
|
|
|
22 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A37
2910091118
|
£1.75
|
£2.10
|
|
|
23 - CONTROL LEVER
BSD-1602026044.A48
1602026044
|
£7.36
|
£8.83
|
|
|
24 - SINTERED-METAL BUSHING
BSD-1600301006.A13
1600301006
|
-
|
|
|
|
25 - O-RING 12.0x1.5 MM
BSD-3600210086.A28
3600210086
|
£2.80
|
£3.36
|
|
|
27 - TAPPING SCREW B4.8x50 MM
BSD-1603435012.A61
1603435012
|
£1.75
|
£2.10
|
|
|
27 - SCREW B 4.8x45 MM
BSD-3603415560.A174
3603415560
|
£1.75
|
£2.10
|
|
|
28 - SEALING CAP
BSD-1605500089.A28
1605500089
|
-
|
|
|
|
30 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A25
2915011005
|
£1.75
|
£2.10
|
|
|
31 - BALL BEARING 7x19x6
BSD-2600905032.A1385
2600905032
|
£5.30
|
£6.36
|
|
|
32 - INTERMEDIATE RING
BSD-1600502011.A517
1600502011
|
£2.61
|
£3.13
|
|
|
34 - DRILLING SPINDLE 5/8-16 UN-2A
BSD-1603528005.A38
1603528005
|
-
|
|
|
|
35 - ROTARY SHAFT LIP SEAL
BSD-3600283043.A30
3600283043
|
£12.04
|
£14.45
|
|
|
36 - COMPRESSION SPRING
BSD-1604611022.A94
1604611022
|
£1.75
|
£2.10
|
|
|
37 - O-RING 74.0x1.5 MM
BSD-1600210030.A11
1600210030
|
-
|
|
|
|
38 - BALL DIN 5401-5 G28
BSD-1903230009.A482
1903230009
|
£1.75
|
£2.10
|
|
|
39 - THREADED RING
BSD-1603344054.A13
1603344054
|
-
|
|
|
|
40 - FELT DISC
BSD-1600108003.A174
1600108003
|
£1.32
|
£1.58
|
|
|
41 - GROOVE BALL BEARING
BSD-1600905003.A92
1600905003
|
-
|
|
|
|
42 - BEARING COVER
BSD-1605500106.A1
1605500106
|
-
|
|
|
|
43 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A66
2910021122
|
£2.16
|
£2.59
|
|
|
44 - AIR-DEFLECTOR RING
BSD-1600502015.A57
1600502015
|
-
|
|
|
|
45 - NOTCHED PLATE
BSD-1601038025.A35
1601038025
|
£1.75
|
£2.10
|
|
|
47 - SPINDLE WITH GEAR Z=15
BSD-1606309062.A15
1606309062
|
-
|
|
|
|
48 - SHIM 0.6 MM
BSD-1600101647.A67
1600101647
|
£2.16
|
£2.59
|
|
|
49 - CYLINDRICAL GEAR Z=41
BSD-1606317075.A15
1606317075
|
-
|
|
|
|
50 - CYLINDRICAL GEAR Z=32
BSD-1606317074.A60
1606317074
|
£31.64
|
£37.97
|
|
|
51 - SHIM 0.6 MM
BSD-1600101647.A66
1600101647
|
£2.16
|
£2.59
|
|
|
52 - PLAIN WASHER 0.5 MM
BSD-1600101653.A19
1600101653
|
-
|
|
|
|
53 - THREADED BUSHING
BSD-1600363011.A28
1600363011
|
-
|
|
|
|
54 - COMPRESSION SPRING
BSD-1604619613.A9
1604619613
|
-
|
|
|
|
55 - DRIVE SHAFT
BSD-1603520018.A0
1603520018
|
-
|
|
|
|
56 - CYLINDRICAL GEAR
BSD-F000635176.A20
F000635176
|
£40.80
|
£48.96
|
|
|
57 - CYLINDRICAL GEAR Z=29
BSD-1606325024.A1
1606325024
|
-
|
|
|
|
59 - THREAD-FORMING SCREW B4.8x107.5 MM
BSD-1603435009.A18
1603435009
|
£2.16
|
£2.59
|
|
|
60 - INSULATING PLATE 20x20x50 MM
BSD-1602381006.A88
1602381006
|
£1.75
|
£2.10
|
|
|
61 - COUNTERSUNK-HEAD SCREW AM 4x10 DIN 63-8.8
BSD-2910511120.A11
2910511120
|
-
|
|
|
|
62 - INTERMEDIATE BEARING
BSD-1605820205.A4
1605820205
|
-
|
|
|
|
63 - SPIRAL SPRING
BSD-1604652006.A278
1604652006
|
£1.75
|
£2.10
|
|
|
64 - BRUSH HOLDER
BSD-1604336017.A59
1604336017
|
£7.36
|
£8.83
|
|
|
65 - TORX OVAL-HEAD SCREW
BSD-2914201527.A95
2914201527
|
£2.16
|
£2.59
|
|
|
65 - TAPPING SCREW DIN 7971-B4.8x16-A2
BSD-2910211233.A17
2910211233
|
-
|
|
|
|
66 - TAPPING SCREW DIN 7971-B 3.9x19
BSD-2910211220.A225
2910211220
|
-
|
|
|
|
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-8.8
BSD-2910021128.A153
2910021128
|
-
|
|
|
|
67 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A206
1602381001
|
-
|
|
|
|
68 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A745
2910021116
|
£2.16
|
£2.59
|
|
|
69 - TAB WASHER
BSD-1601030022.A366
1601030022
|
£1.75
|
£2.10
|
|
|
70 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A423
2910211011
|
£1.75
|
£2.10
|
|
|
71 - END SPLICE
BSD-3604477009.A114
3604477009
|
£2.61
|
£3.13
|
|
|
72 - STICKER
BSD-1601110069.A0
1601110069
|
-
|
|
|
|
81 - SEAL RING 10.0x1.5 MM
BSD-2600210016.A24
2600210016
|
-
|
|
|
|
800 - HANDLE
BSD-3605133012.A24
3605133012
|
-
|
|
|
|
801 - CARBON-BRUSH SET
BSD-1607014126.A114
1607014126
|
£16.41
|
£19.69
|
|
|
804 - SET OF GEARS Z=13/22/29
BSD-1607016017.A0
1607016017
|
-
|
|
|
|
806 - PARTS SET
BSD-1607000126.A24
1607000126
|
-
|
|
|
