Dewalt DCF885L2 Type 1 Impact Driver Spare Parts

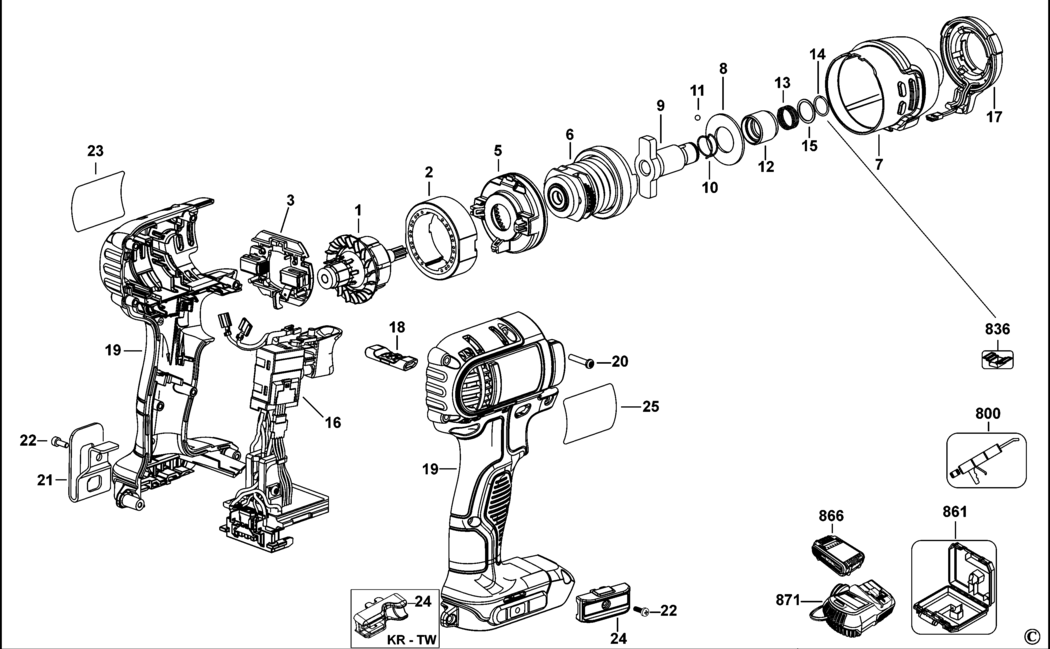

An exploded drawing and spare parts listing for the Dewalt DCF885L2 Type 1 Impact Driver

	Ex VAT	Inc VAT
1 - ARMATURE SA BDE-N110033.A4 N110033	£38.80	£46.56
2 - MAGNET BDE-N109432.A29 N109432	£34.00	£40.80
3 - BRUSH PLATE SA BDE-N109434.A13 N109434	£14.57	£17.48
4 - RING >=2016WK5 BDE-N424032.A15 N424032	£1.50	£1.80
5 - MOUNT SA BDE-N114620.A12 N114620	£5.88	£7.06
6 - IMPACTOR BDE-N400100.A0 N400100	£25.70	£30.84
7 - NOSE SA BDE-N110056.A3 N110056	£24.39	£29.27
8 - WASHER BDE-642883-00C.A153 642883-00C	£1.50	£1.80
8 - WASHER BDE-642883-00C.A122 642883-00C	£1.50	£1.80
9 - ANVIL ASSEMBLY <2016WK5 BDE-N450098.A14 N450098	£24.39	£29.27
9 - ANVIL ASSEMBLY BDE-N114621.A1 N114621	£17.48	£20.97
10 - SPRING BDE-N078434.A1 N078434	£1.50	£1.80
10 - SPRING >=2016WK5 BDE-N448621.A4 N448621	£1.50	£1.80
10 - ANVIL ASSEMBLY <2016WK5 BDE-N450098.A12 N450098	£24.39	£29.27
11 - BALL STEEL BDE-N089668.A31 N089668	£1.66	£1.99
12 - SLEEVE BDE-N078437.A23 N078437	£3.80	£4.56
12 - ANVIL ASSEMBLY <2016WK5 BDE-N450098.A13 N450098	£24.39	£29.27
12 - SLEEVE >=2016WK5 BDE-N419129.A4 N419129	£3.30	£3.96
13 - SPRING BDE-N019351.A2 N019351	£1.88	£2.25
14 - RING BDE-N053863.A2 N053863	£1.50	£1.80
15 - WASHER BDE-N016823.A10 N016823	£1.50	£1.80
16 - SWITCH SA GB BDE-N319341.A0 N319341	£60.94	£73.13
17 - LED LIGHT BDE-N073422.A7 N073422	£18.91	£22.69
18 - LEVER BDE-N073265.A18 N073265	£1.50	£1.80
19 - CLAMSHELL SET BDE-N075736.A0 N075736	£24.39	£29.27
19 - CLAMSHELL SET BDE-N391695.A0 N391695	£17.48	£20.97
20 - SCREW BDE-682211-00.A162 682211-00	£1.50	£1.80
21 - HOOK BDE-N086039.A0 N086039	£4.69	£5.63
22 - SCREW BDE-N042665.A49 N042665	£1.50	£1.80
23 - BRAND LABEL BDE-N092310.A6 N092310	£1.50	£1.80
24 - HOLDER BIT BDE-N095778.A23 N095778	£7.18	£8.62
25 - RATING PLATE GB BDE-N085044.A0 N085044	-
800 - GREASE 100 GMS BDE-808386-00.A227 808386-00	£55.30	£66.36
800 - GREASE BDE-286436-00.A1 286436-00	£126.63	£151.96
836 - S.T.CIRCLIP INSERTER BDE-1003940-99.A11 1003940-99	£96.55	£115.86
861 - KITBOX BDE-N068611.A7 N068611	£37.35	£44.82
866 - BATTERY 18V - 4.0AH - 72WH DCF885L2 GB BDE-N195933.A45 N195933	£218.32	£261.98
871 - CHARGER 10.8V - 18V GB BDE-N450537.A185 N450537	£157.18	£188.61
