Dewalt DCF835 Type 1 Impact Driver Spare Parts

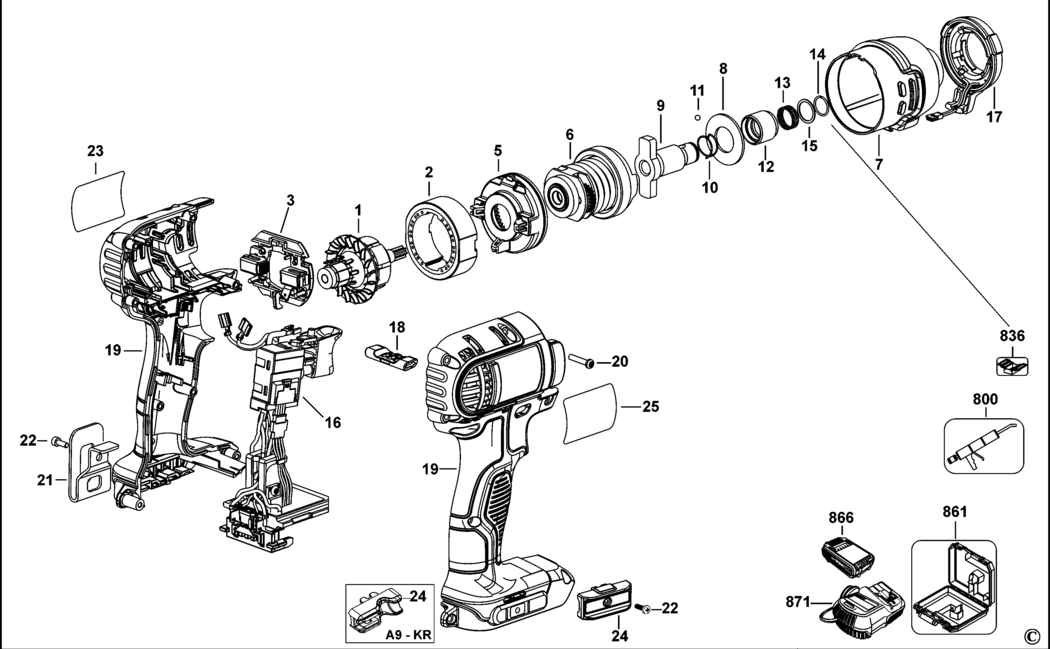

An exploded drawing and spare parts listing for the Dewalt DCF835 Type 1 Impact Driver

	Ex VAT	Inc VAT
1 - ARMATURE SA BDE-N109714.A0 N109714	£38.80	£46.56
1 - ARMATURE SA BDE-N109714.A1 N109714	£38.80	£46.56
2 - MAGNET BDE-N109432.A30 N109432	£34.00	£40.80
2 - MAGNET BDE-N109432.A31 N109432	£34.00	£40.80
3 - BRUSH PLATE SA BDE-N109434.A12 N109434	£14.57	£17.48
4 - RING >=2016 WK5 BDE-N424032.A14 N424032	£1.50	£1.80
5 - MOUNT SA BDE-N114620.A10 N114620	£5.88	£7.06
5 - MOUNT SA BDE-N114620.A11 N114620	£5.88	£7.06
6 - IMPACTOR BDE-N400100.A1 N400100	£25.70	£30.84
6 - IMPACTOR BDE-N400100.A2 N400100	£25.70	£30.84
7 - NOSE SA BDE-N110056.A4 N110056	£24.39	£29.27
7 - NOSE SA BDE-N110056.A5 N110056	£24.39	£29.27
8 - WASHER BDE-642883-00C.A123 642883-00C	£1.50	£1.80
8 - WASHER BDE-642883-00C.A151 642883-00C	£1.50	£1.80
9 - ANVIL ASSEMBLY BDE-N114621.A0 N114621	£17.48	£20.97
9 - ANVIL ASSEMBLY <2016WK5 BDE-N450098.A16 N450098	£24.39	£29.27
10 - SPRING BDE-N078434.A0 N078434	£1.50	£1.80
10 - SPRING >=2016WK5 BDE-N448621.A3 N448621	£1.50	£1.80
10 - ANVIL ASSEMBLY <2016WK5 BDE-N450098.A15 N450098	£24.39	£29.27
11 - BALL STEEL BDE-N089668.A29 N089668	£1.66	£1.99
11 - BALL STEEL BDE-N089668.A30 N089668	£1.66	£1.99
12 - SLEEVE >=2016WK5 BDE-N419129.A5 N419129	£3.30	£3.96
12 - SLEEVE BDE-N078437.A24 N078437	£3.80	£4.56
12 - ANVIL ASSEMBLY <2016WK5 BDE-N450098.A17 N450098	£24.39	£29.27
13 - SPRING BDE-N019351.A3 N019351	£1.88	£2.25
13 - SPRING BDE-N019351.A4 N019351	£1.88	£2.25
14 - RING BDE-N053863.A3 N053863	£1.50	£1.80
14 - RING BDE-N053863.A4 N053863	£1.50	£1.80
15 - WASHER BDE-N016823.A11 N016823	£1.50	£1.80
15 - WASHER BDE-N016823.A12 N016823	£1.50	£1.80
16 - SWITCH SA GB BDE-N319342.A5 N319342	£104.31	£125.17
17 - LED LIGHT BDE-N073422.A8 N073422	£18.91	£22.69
17 - LED LIGHT BDE-N073422.A9 N073422	£18.91	£22.69
18 - LEVER BDE-N073265.A16 N073265	£1.50	£1.80
18 - LEVER BDE-N073265.A17 N073265	£1.50	£1.80
19 - CLAMSHELL SET GB BDE-N391696.A3 N391696	£16.03	£19.24
19 - CLAMSHELL SET BDE-N075731.A2 N075731	£24.39	£29.27
20 - SCREW BDE-682211-00.A163 682211-00	£1.50	£1.80
20 - SCREW BDE-682211-00.A164 682211-00	£1.50	£1.80
21 - HOOK BDE-N086039.A4 N086039	£4.69	£5.63
21 - HOOK BDE-N086039.A5 N086039	£4.69	£5.63
22 - SCREW BDE-N042665.A40 N042665	£1.50	£1.80
22 - SCREW BDE-N042665.A41 N042665	£1.50	£1.80
23 - BRAND LABEL BDE-N092311.A5 N092311	-
23 - BRAND LABEL BDE-N092311.A6 N092311	-
24 - HOLDER BIT BDE-N095778.A22 N095778	£7.18	£8.62
25 - RATING PLATE GB BDE-N085045.A2 N085045	£1.42	£1.70
800 - GREASE BDE-286436-00.A2 286436-00	£126.63	£151.96
800 - GREASE BDE-286436-00.A3 286436-00	£126.63	£151.96
800 - GREASE 100 GMS BDE-808386-00.A233 808386-00	£55.30	£66.36
800 - GREASE 100 GMS BDE-808386-00.A234 808386-00	£55.30	£66.36
836 - S.T.CIRCLIP INSERTER BDE-1003940-99.A12 1003940-99	£96.55	£115.86
836 - S.T.CIRCLIP INSERTER BDE-1003940-99.A13 1003940-99	£96.55	£115.86
861 - KITBOX BDE-N068611.A11 N068611	£37.35	£44.82
861 - KITBOX BDE-N068611.A12 N068611	£37.35	£44.82
866 - BATTERY 14.4V - 4.0AH DCF835L2 GB BDE-N195932.A7 N195932	£144.10	£172.92
871 - CHARGER 10.8V - 18V GB BDE-N450537.A180 N450537	£157.18	£188.61

Attribute Name	Value
Brand	Dewalt
