Dewalt DCF830 Type 1 Impact Wrench Spare Parts

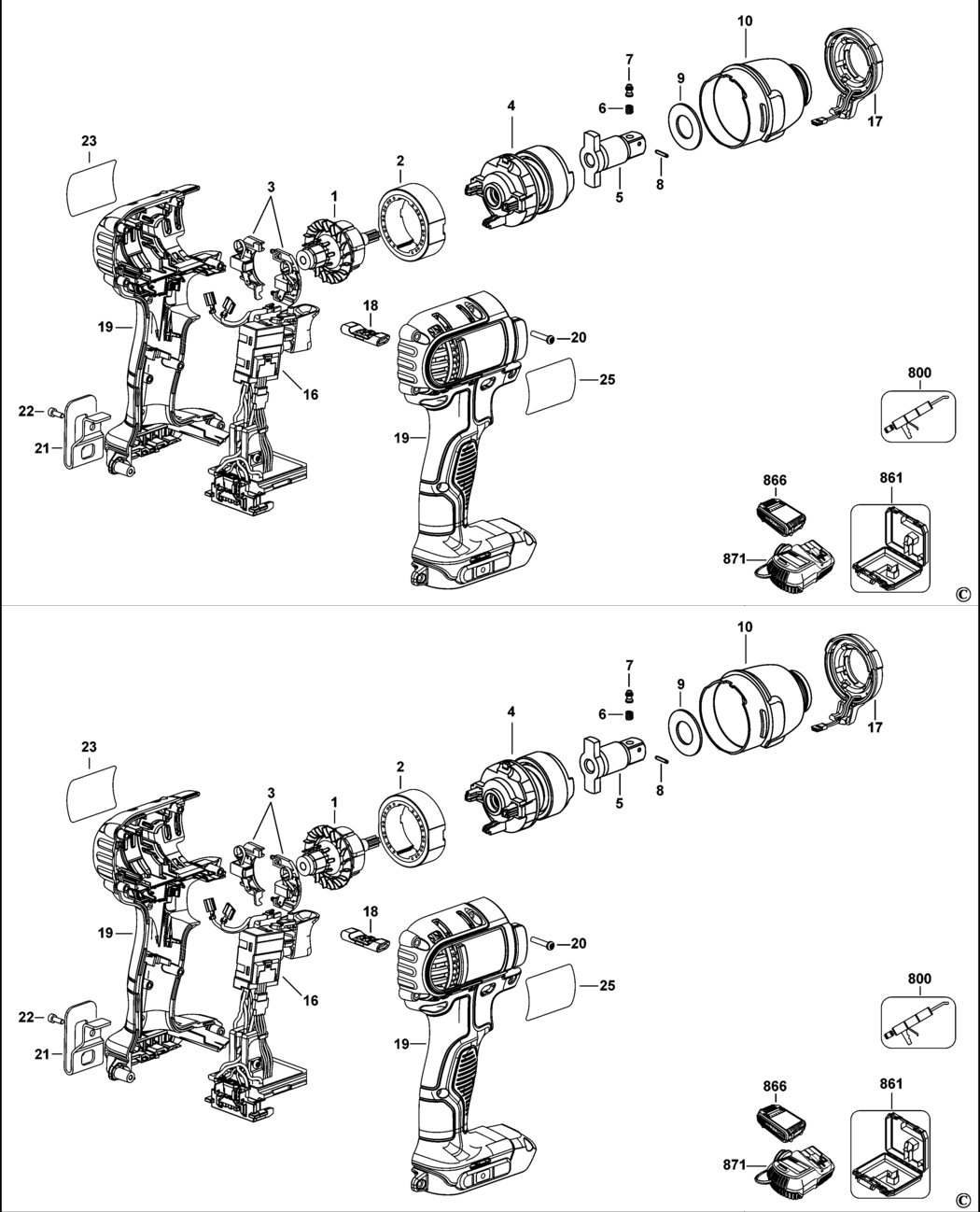

An exploded drawing and spare parts listing for the Dewalt DCF830 Type 1 Impact Wrench

	Ex VAT	Inc VAT
1 - ARMATURE SA BDE-N182623.A0 N182623	£44.14	£52.97
1 - ARMATURE SA BDE-N182623.A1 N182623	£44.14	£52.97
2 - MAGNET BDE-N109432.A21 N109432	£34.00	£40.80
2 - MAGNET BDE-N109432.A22 N109432	£34.00	£40.80
3 - BRUSH HOLDER SA BDE-N187232.A0 N187232	£9.41	£11.29
3 - BRUSH HOLDER SA BDE-N187232.A1 N187232	£9.41	£11.29
4 - IMPACTOR BDE-N187235.A4 N187235	£55.30	£66.36
4 - IMPACTOR BDE-N450087.A0 N450087	£55.30	£66.36
5 - ANVIL ASSEMBLY BDE-N182624 N182624	-
5 - ANVIL ASSEMBLY BDE-608024-00SV.A9 608024-00SV	£37.35	£44.82
6 - SPRING BDE-038769-00.A15 038769-00	£1.66	£1.99
6 - SPRING BDE-038769-00.A16 038769-00	£1.66	£1.99
7 - DETENT BDE-N020802.A40 N020802	£2.78	£3.34
7 - DETENT BDE-N020802.A35 N020802	£2.78	£3.34
8 - ROLL PIN BDE-099205-07.A4 099205-07	£1.66	£1.99
8 - ROLL PIN BDE-099205-07.A5 099205-07	£1.66	£1.99
9 - WASHER BDE-642883-01.A11 642883-01	£1.66	£1.99
9 - WASHER BDE-642883-01.A12 642883-01	£1.66	£1.99
10 - NOSE SA BDE-N164338.A4 N164338	£34.00	£40.80
10 - NOSE SA BDE-N164338.A5 N164338	£34.00	£40.80
11 - MOUNT SA BDE-N309482.A1 N309482	-
16 - SWITCH SA BDE-N360159 N360159	£60.94	£73.13
16 - SWITCH SA GB BDE-N319342.A2 N319342	£104.31	£125.17
17 - LED LIGHT BDE-N139775.A4 N139775	£17.48	£20.97
17 - LED LIGHT BDE-N139775.A5 N139775	£17.48	£20.97
18 - LEVER BDE-N073265.A9 N073265	£1.66	£1.99
18 - LEVER BDE-N073265.A10 N073265	£1.66	£1.99
19 - CLAMSHELL SET GB BDE-N391696.A2 N391696	£16.03	£19.24
19 - CLAMSHELL SET BDE-N075731.A1 N075731	£24.39	£29.27
20 - SCREW BDE-682211-00.A29 682211-00	£1.66	£1.99
20 - SCREW BDE-682211-00.A30 682211-00	£1.66	£1.99
21 - HOOK BDE-N086039.A45 N086039	£4.69	£5.63
21 - HOOK BDE-N086039.A46 N086039	£4.69	£5.63
22 - SCREW BDE-N042665.A9 N042665	£1.66	£1.99
22 - SCREW BDE-N042665.A10 N042665	£1.66	£1.99
23 - BRAND LABEL BDE-N092311.A8 N092311	-
25 - RATING PLATE DCF830M2 GB BDE-N175305 N175305	£1.66	£1.99
800 - GREASE BDE-286436-00.A117 286436-00	£126.63	£151.96
800 - GREASE BDE-286436-00.A118 286436-00	£126.63	£151.96
861 - KITBOX BDE-N068611.A0 N068611	£37.35	£44.82
866 - BATTERY 14.4V - 4.0AH DCF830M2 GB BDE-N195932.A2 N195932	£144.10	£172.92
871 - CHARGER 10.8V - 18V GB BDE-N450537.A126 N450537	£157.18	£188.61
