Dewalt DCF825 Type 1 Impact Driver Spare Parts

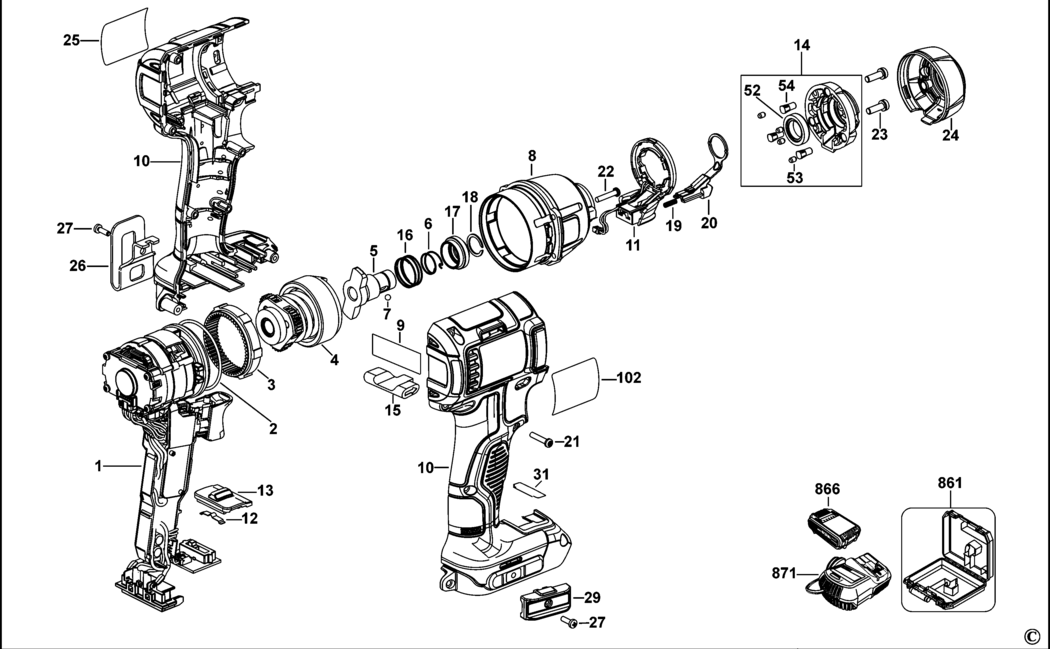

An exploded drawing and spare parts listing for the Dewalt DCF825 Type 1 Impact Driver

	Ex VAT	Inc VAT
1 - MOTOR & SWITCH SA GB BDE-N154162.A0 N154162	£195.70	£234.84
2 - O RING BDE-N075339.A8 N075339	£1.50	£1.80
3 - GEAR BDE-N112877.A11 N112877	£3.80	£4.56
4 - IMPACTOR GB BDE-N334879.A5 N334879	£44.14	£52.97
5 - ANVIL GB BDE-N072216.A3 N072216	£25.70	£30.84
6 - SPRING BDE-N076032.A3 N076032	£1.50	£1.80
7 - BALL STEEL BDE-N089668.A2 N089668	£1.66	£1.99
8 - NOSE SA BDE-N173898.A3 N173898	£18.91	£22.69
9 - LABEL BDE-N153226.A5 N153226	£1.50	£1.80
10 - CLAMSHELL SET GB BDE-N092609.A1 N092609	£18.91	£22.69
11 - LED LIGHT BDE-N045852.A0 N045852	£16.03	£19.24
12 - DETENT BDE-N087259.A14 N087259	£1.66	£1.99
13 - SELECTOR BDE-N046201.A1 N046201	£1.50	£1.80
14 - CAP SA BDE-N173899.A4 N173899	£14.57	£17.48
15 - ACTUATOR FWD/REV BDE-N079835.A13 N079835	£1.50	£1.80
16 - SPRING BDE-N041808.A0 N041808	£1.50	£1.80
17 - SLEEVE BDE-N072175.A6 N072175	£3.80	£4.56
18 - RETAINER BDE-N091014.A4 N091014	£1.50	£1.80
19 - SPRING BDE-N041809.A8 N041809	£1.50	£1.80
20 - ACTUATOR BDE-N044869.A4 N044869	£2.26	£2.71
21 - SCREW BDE-682211-00.A231 682211-00	£1.50	£1.80
22 - SCREW BDE-N130792.A7 N130792	£1.50	£1.80
23 - SCREW BDE-562160-12.A3 562160-12	£1.50	£1.80
24 - COVER BDE-N048058.A1 N048058	£2.78	£3.34
25 - BRAND LABEL BDE-N153228.A1 N153228	£1.42	£1.70
26 - HOOK BDE-N086039.A72 N086039	£4.69	£5.63
27 - SCREW BDE-N042665.A129 N042665	£1.50	£1.80
29 - HOLDER BIT GB BDE-N095778.A37 N095778	£7.18	£8.62
31 - LABEL BDE-N098119.A4 N098119	£2.26	£2.71
52 - SLEEVE BEARING BDE-N084674.A7 N084674	£1.50	£1.80
53 - RUBBER BDE-613372-00.A3 613372-00	£1.50	£1.80
54 - GUIDE BDE-N125828.A3 N125828	£1.50	£1.80
102 - RATING PLATE GB BDE-N153233 N153233	£1.42	£1.70
861 - KITBOX BDE-N068611.A19 N068611	£37.35	£44.82
866 - BATTERY 14.4V - 4.0AH DCF825L2 GB BDE-N195932.A17 N195932	£144.10	£172.92
866 - BATTERY 14.4V - 4.0AH DCF825M2 GB BDE-N195932.A18 N195932	£144.10	£172.92
871 - CHARGER 10.8V - 18V GB BDE-N450537.A75 N450537	£157.18	£188.61
