Dewalt DC837 Type 1 Impact Wrench Spare Parts

Home Details Reviews Delivery

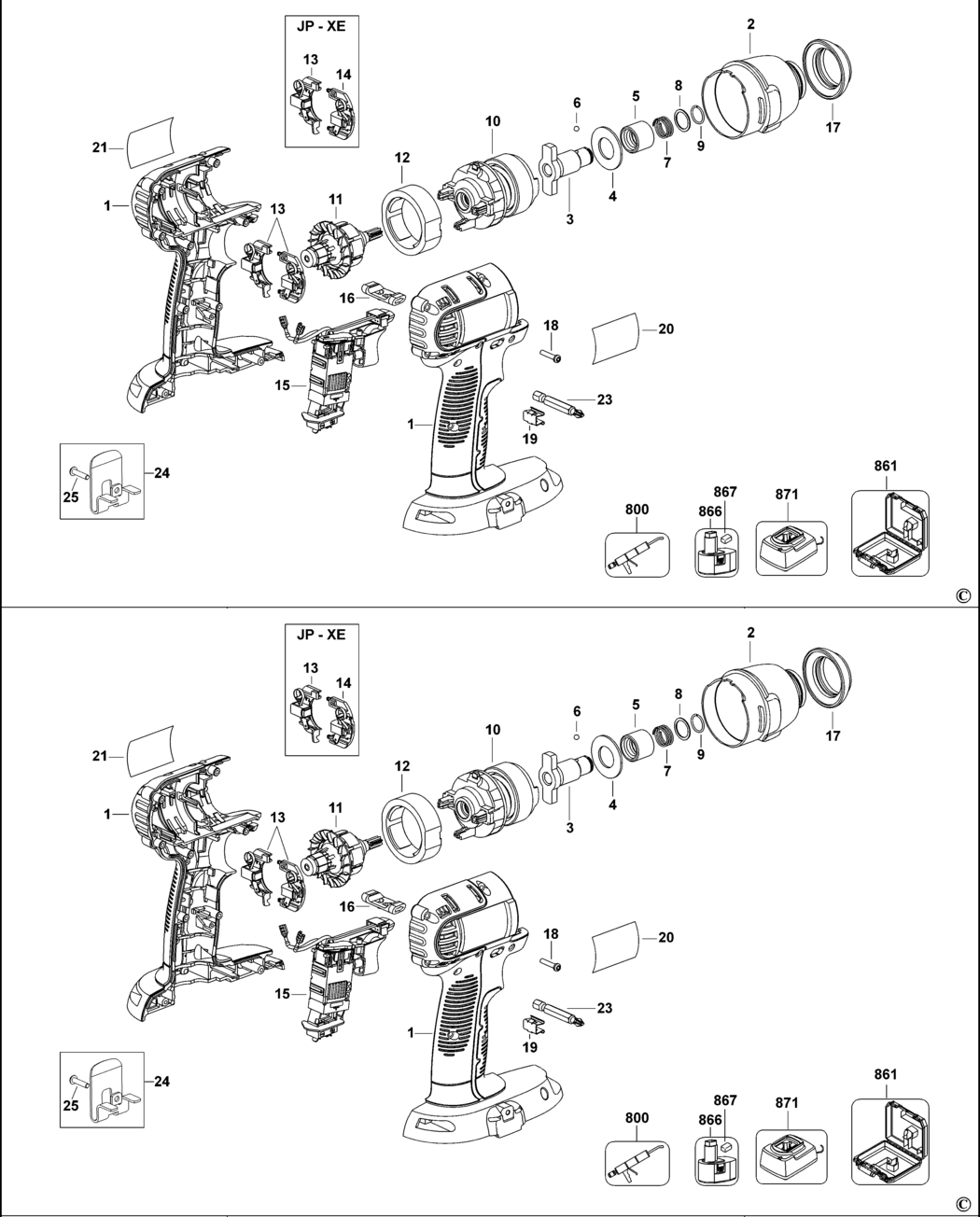

An exploded drawing and spare parts listing for the Dewalt DC837 Type 1 Impact Wrench

	Ex VAT	Inc VAT
1 - CLAMSHELL SET BDE-642887-14.A1 642887-14	£30.08	£36.10
1 - CLAMSHELL SET BDE-642887-14.A2 642887-14	£30.08	£36.10
2 - NOSE RING BDE-646693-00SV.A0 646693-00SV	£25.05	£30.06
2 - NOSE RING BDE-646693-00SV.A1 646693-00SV	£25.05	£30.06
3 - ANVIL ASSEMBLY BDE-642875-00.A9 642875-00	£19.40	£23.28
4 - WASHER BDE-642883-00C.A139 642883-00C	£1.66	£1.99
4 - WASHER BDE-642883-00C.A106 642883-00C	£1.66	£1.99
5 - SLEEVE BDE-642879-00.A6 642879-00	-
5 - SLEEVE BDE-642879-00.A7 642879-00	-
6 - BALL BDE-696631-00.A43 696631-00	£1.66	£1.99
6 - BALL BDE-696631-00.A44 696631-00	£1.66	£1.99
7 - SPRING BDE-151359-00.A0 151359-00	£1.82	£2.19
7 - SPRING BDE-151359-00.A1 151359-00	£1.82	£2.19
8 - WASHER BDE-617784-00.A1 617784-00	-
8 - WASHER BDE-617784-00.A2 617784-00	-
9 - LOCKING RING BDE-610298-00.A18 610298-00	-
9 - LOCKING RING BDE-610298-00.A19 610298-00	-
10 - CLUTCH BDE-N040122SV.A22 N040122SV	£74.15	£88.98
10 - CLUTCH BDE-N040122SV.A23 N040122SV	£74.15	£88.98
11 - ARMATURE SA BDE-N388926.A13 N388926	£37.35	£44.82
11 - ARMATURE SA BDE-N388926.A14 N388926	£37.35	£44.82
12 - MAGNET BDE-640537-00.A15 640537-00	£19.40	£23.28
12 - MAGNET BDE-N211574.A8 N211574	-
13 - BRUSH HOLDER SA GB BDE-N187232.A17 N187232	£9.69	£11.63
15 - SWITCH KIT GB BDE-N167660.A3 N167660	£91.27	£109.53
16 - REVERSER BDE-642891-00.A0 642891-00	£1.66	£1.99
16 - REVERSER BDE-642891-00.A1 642891-00	£1.66	£1.99
17 - NOSE RING BDE-642886-00.A21 642886-00	-
18 - SCREW BDE-682211-00.A388 682211-00	£1.66	£1.99
18 - SCREW BDE-682211-00.A389 682211-00	£1.66	£1.99
19 - HOLDER BDE-148354-03.A27 148354-03	£1.66	£1.99
19 - HOLDER BDE-148354-03.A28 148354-03	£1.66	£1.99
20 - NO LONGER AVAILABLE GB BDE-000000-00.A95613 000000-00	-
21 - BRAND LABEL BDE-646763-00.A5 646763-00	£1.66	£1.99
21 - BRAND LABEL BDE-646763-00.A6 646763-00	£1.66	£1.99
23 - BIT PHILLIPS BDE-607906-22.A17 607906-22	£1.66	£1.99
23 - BIT PHILLIPS BDE-607906-22.A18 607906-22	£1.66	£1.99
24 - CLIP BDE-659916-00SV.A2 659916-00SV	£16.03	£19.24
25 - SCREW BDE-330013-03.A10 330013-03	£1.66	£1.99
800 - GREASE BDE-286436-00.A169 286436-00	£130.43	£156.52
800 - GREASE BDE-286436-00.A170 286436-00	£130.43	£156.52
800 - GREASE 100 GMS BDE-808386-00.A88 808386-00	£56.97	£68.36
800 - GREASE 100 GMS BDE-808386-00.A89 808386-00	£56.97	£68.36
861 - KITBOX BDE-652211-00.A20 652211-00	£30.08	£36.10
866 - NO LONGER AVAILABLE DC837KL GB BDE-000000-00.A95614 000000-00	-
867 - CAP BDE-645221-00.A1 645221-00	£1.66	£1.99
867 - CAP BDE-645221-00.A2 645221-00	£1.66	£1.99
871 - CHARGER 7.2V - 18V DC837KL GB BDE-N015877.A34 N015877	£93.62	£112.35

Attribute Name	Value
Brand	Dewalt
