Hitachi / Hikoki WR22SA Impact Wrench Spare Parts

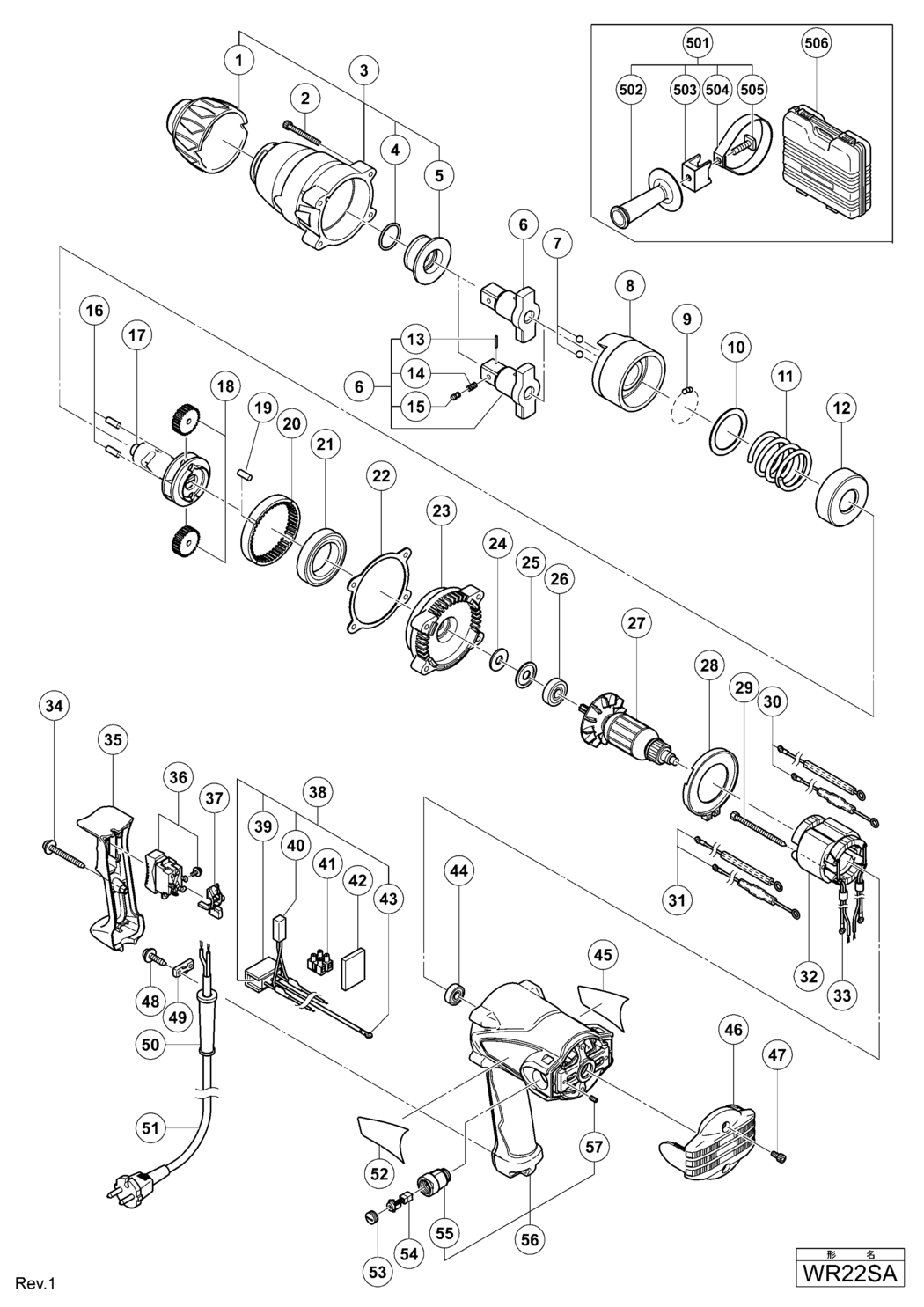

An exploded diagram and spare parts listing for the Hitachi / Hikoki WR22SA Impact Wrench

	Ex VAT	Inc VAT
1 - BUMPER HIT-324008.A0 324008	£13.69	£16.43
2 - SEAL LOCK HEX. SOCKET HD. BOLT M5X45 HIT-323994.A0 323994	£4.33	£5.20
3 - HAMMER CASE ASS'Y INCLUD.1 HIT-324006.A0 324006	£79.62	£95.55
4 - O-RING (P-28) HIT-971028.A1 971028	£3.28	£3.93
5 - METAL HIT-324007.A0 324007	£16.46	£19.75
*6 - ANVIL (A) HIT-324013.A0 324013	£100.53	£120.64
*6 - ANVIL (B) ASS'Y INCLUD.13-15 FOR USA HIT-324021.A0 324021	£156.25	£187.50
7 - STEEL BALL D7.14 (10 PCS.) HIT-959151.A5 959151	£1.67	£2.00
8 - HAMMER HIT-324005.A0 324005	£89.28	£107.14
9 - STEEL BALL D3.97 (10 PCS.) HIT-959155.A35 959155	£1.67	£2.00
10 - HAMMER WASHER HIT-324004.A1 324004	£1.67	£2.00
11 - SPRING HIT-324002.A1 324002	£24.11	£28.93
12 - SPRING SEAT HIT-324001.A0 324001	£16.54	£19.85
13 - ROLL PIN D2X14 (10 PCS.) FOR USA HIT-949507.A0 949507	£1.67	£2.00
14 - SPRING FOR USA HIT-992571.A1 992571	£1.67	£2.00
15 - PLUNGER FOR USA HIT-992572.A0 992572	£23.82	£28.59
16 - GEAR SHAFT HIT-971016.A0 971016	£4.33	£5.20
17 - SPINDLE HIT-324003.A0 324003	£98.28	£117.94
18 - IDLE GEAR SET (2 PCS.) HIT-318448.A0 318448	£34.09	£40.91
19 - NEEDLE ROLLER HIT-991449.A0 991449	£1.67	£2.00
20 - RING GEAR HIT-985303.A1 985303	£31.50	£37.80
21 - BALL BEARING 6908ZZ-N HIT-6908ZN.A0 6908ZN	£21.09	£25.31
22 - PACKING (B) HIT-323995.A0 323995	£1.67	£2.00
23 - INNER COVER HIT-323999.A0 323999	£22.70	£27.24
24 - FELT PACKING HIT-323996.A0 323996	£1.67	£2.00
25 - PACKING WASHER HIT-971012.A1 971012	£1.67	£2.00
26 - BALL BEARING 6200DDCMPS2L HIT-6200DD.A4 6200DD	£8.32	£9.99
*27 - ARMATURE ASS'Y 110V-120V INCLUD.26 HIT-360700U.A0 360700U	£108.63	£130.36
*27 - ARMATURE 220V-230V HIT-360700E.A0 360700E	£108.63	£130.36
*27 - ARMATURE 240V HIT-360700F.A0 360700F	-
28 - FAN GUIDE HIT-323998.A0 323998	-
29 - HEX. HD. TAPPING SCREW D5X70 HIT-961400.A8 961400	£1.67	£2.00
*30 - INTERNAL WIRE (WHITE) HIT-324017.A0 324017	£21.65	£25.98
*30 - INTERNAL WIRE (WHITE) FOR USA HIT-324009.A0 324009	-
*31 - INTERNAL WIRE (BLACK) HIT-324018.A0 324018	£21.65	£25.98
*31 - INTERNAL WIRE (BLACK) FOR USA HIT-324010.A0 324010	-
*32 - STATOR 110V-120V HIT-340620C.A0 340620C	£66.96	£80.35
*32 - STATOR 220V-230V HIT-340620E.A0 340620E	£66.96	£80.35
*32 - STATOR 240V HIT-340620F.A0 340620F	-
33 - TERMINAL (A) M3.5 (10 PCS.) HIT-960356.A19 960356	£3.64	£4.37
34 - TAPPING SCREW (W/FLANGE) D4X35 (BLACK) HIT-303694.A4 303694	£1.67	£2.00
35 - HANDLE COVER HIT-324020.A0 324020	£12.48	£14.98
*36 - SWITCH (2P SCREW TYPE) HIT-985103.A2 985103	£28.14	£33.77
*36 - SWITCH (2P SCREW TYPE) FOR AUT HIT-320528.A1 320528	£29.42	£35.31
37 - SWITCH ADAPTER HIT-323768.A1 323768	£6.94	£8.33
*38 - NOISE SUPPRESSOR ASS'Y (W/RESISTOR) INCLUD.39 HIT-324319.A0 324319	£27.08	£32.50
39 - SUPPORT (B) EXCEPT FOR USA HIT-930153.A2 930153	£1.67	£2.00
40 - SUPPORT (B) EXCEPT FOR USA HIT-316186.A3 316186	£1.67	£2.00
41 - PILLAR TERMINAL (A) HIT-958308Z.A8 958308Z	£7.53	£9.04
42 - SUPPORT (B) HIT-324023.A1 324023	-
43 - TERMINAL EXCEPT FOR USA HIT-961419Z.A1 961419Z	-
44 - BALL BEARING 608VVC2PS2L HIT-608VVM.A198 608VVM	£5.70	£6.84
45 - NAME PLATE HIT-000000.A2892 000000	-
46 - TAIL COVER HIT-323997.A0 323997	£12.48	£14.98
47 - SEAL LOCK HEX. SOCKET HD. BOLT M5X10 HIT-877839.A10 877839	£1.67	£2.00
48 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A263 984750	£1.67	£2.00
49 - CORD CLIP HIT-937631.A19 937631	£1.67	£2.00
*50 - CORD ARMOR D8.8 HIT-953327.A125 953327	£1.67	£2.00
*50 - CORD ARMOR D10.1 HIT-938051.A52 938051	£1.67	£2.00
*51 - CORD (CORD ARMOR D8.8) HIT-500247Z.A31 500247Z	-
*51 - CORD (CORD ARMOR D8.8) FOR INA HIT-500234Z.A9 500234Z	-
*51 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500450Z.A26 500450Z	£35.67	£42.80
*51 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A16 500461Z	£15.56	£18.67
*51 - CORD (CORD ARMOR D10.1) FOR SYR HIT-500245Z.A7 500245Z	-
*51 - CORD (CORD ARMOR D10.1) FOR VEN HIT-323974.A12 323974	-
*51 - CORD (CORD ARMOR D8.8) FOR USA HIT-500240Z.A3 500240Z	-
*51 - CORD (CORD ARMOR D8.8) FOR AUS HIT-500439Z.A35 500439Z	-
*51 - CORD (CORD ARMOR D8.8) FOR KUW HIT-500423Z.A27 500423Z	-
*51 - CORD (CORD ARMOR D8.8) FOR HKG HIT-500435Z.A24 500435Z	£14.14	£16.97
*51 - CORD (CORD ARMOR D8.8) FOR CHN HIT-500456Z.A6 500456Z	-
52 - BRAND LABEL HIT-000000.A2894 000000	-
53 - BRUSH CAP HIT-935829.A7 935829	£1.67	£2.00
54 - CARBON BRUSH (1 PAIR) HIT-999043.A13 999043	£5.54	£6.65
55 - BRUSH HOLDER HIT-957774.A1 957774	£8.66	£10.39
56 - HOUSING ASS'Y INCLUD.55 HIT-324019.A0 324019	£130.08	£156.09
57 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A46 938477	£1.67	£2.00
501 - SIDE HANDLE ASS'Y INCLUD.502-505 HIT-324015.A0 324015	£26.98	£32.37
502 - SIDE HANDLE HIT-980901.A6 980901	£10.37	£12.44
503 - HANDLE HOLDER HIT-323775.A2 323775	£8.42	£10.11
504 - HANDLE RING HIT-324016.A0 324016	£8.66	£10.39
505 - SQUARE BOLT M8 HIT-980903.A3 980903	-
506 - CASE (B) HIT-324014.A0 324014	-
601 - EXTENSION BAR ASS'Y (SQUARE) 19.0MMX150L INCLUD.602 HIT-874535.A0 874535	-
602 - SOCKET RING HIT-874524.A1 874524	£1.67	£2.00
603 - SOCKET PIN HIT-874525.A0 874525	£1.67	£2.00
604 - UNIVERSAL JOINT ASS'Y INCLUD.602 HIT-955088.A1 955088	-
605 - UNIVERSAL JOINT PIN HIT-955091.A0 955091	-
606 - ADAPTER ASS'Y 12.7MM INCLUD.602 HIT-986004.A0 986004	-
607 - HEX. SOCKET ASS'Y 23MMX55L INCLUD.602 HIT-874527.A1 874527	-
608 - HEX. SOCKET ASS'Y 24MMX55L INCLUD.602 HIT-874528.A0 874528	-
609 - HEX. SOCKET ASS'Y 26MMX55L INCLUD.602 HIT-874529.A1 874529	-
610 - HEX. SOCKET ASS'Y 27MMX55L INCLUD.602 HIT-874530.A0 874530	-
611 - HEX. SOCKET ASS'Y 30MMX55L INCLUD.602 HIT-874532.A1 874532	-
612 - HEX. SOCKET ASS'Y 32MMX55L INCLUD.602 HIT-874523.A0 874523	-
613 - HEX. SOCKET ASS'Y 35MMX55L INCLUD.602 HIT-874533.A0 874533	-
614 - HEX. SOCKET ASS'Y 36MMX55L INCLUD.602 HIT-874534.A1 874534	-
615 - HEX. SOCKET ASS'Y (LONG) 17MMX60L INCLUD.602 HIT-955028.A0 955028	£30.61	£36.73
616 - HEX. SOCKET ASS'Y (LONG) 19MMX60L INCLUD.602 HIT-955029.A1 955029	£30.61	£36.73
617 - HEX. SOCKET ASS'Y (LONG) 21MMX60L INCLUD.602 HIT-955030.A0 955030	-
618 - HEX. SOCKET ASS'Y (LONG) 22MMX60L INCLUD.602 HIT-955031.A1 955031	-
619 - HEX. SOCKET ASS'Y (LONG) 24MMX60L INCLUD.602 HIT-955033.A0 955033	£35.43	£42.52
620 - HEX. SOCKET ASS'Y (LONG) 26MMX85L INCLUD.602 HIT-955034.A1 955034	-
621 - HEX. SOCKET ASS'Y (LONG) 27MMX85L INCLUD.602 HIT-955035.A0 955035	-
622 - HEX. SOCKET ASS'Y (LONG) 30MMX85L INCLUD.602 HIT-955037.A1 955037	-
623 - HEX. SOCKET ASS'Y (LONG) 32MMX100L INCLUD.602 HIT-955038.A0 955038	-
624 - HEX. SOCKET ASS'Y (LONG) 36MMX100L INCLUD.602 HIT-955092.A1 955092	-

Attribute Name	Value
Brand	Hikoki
