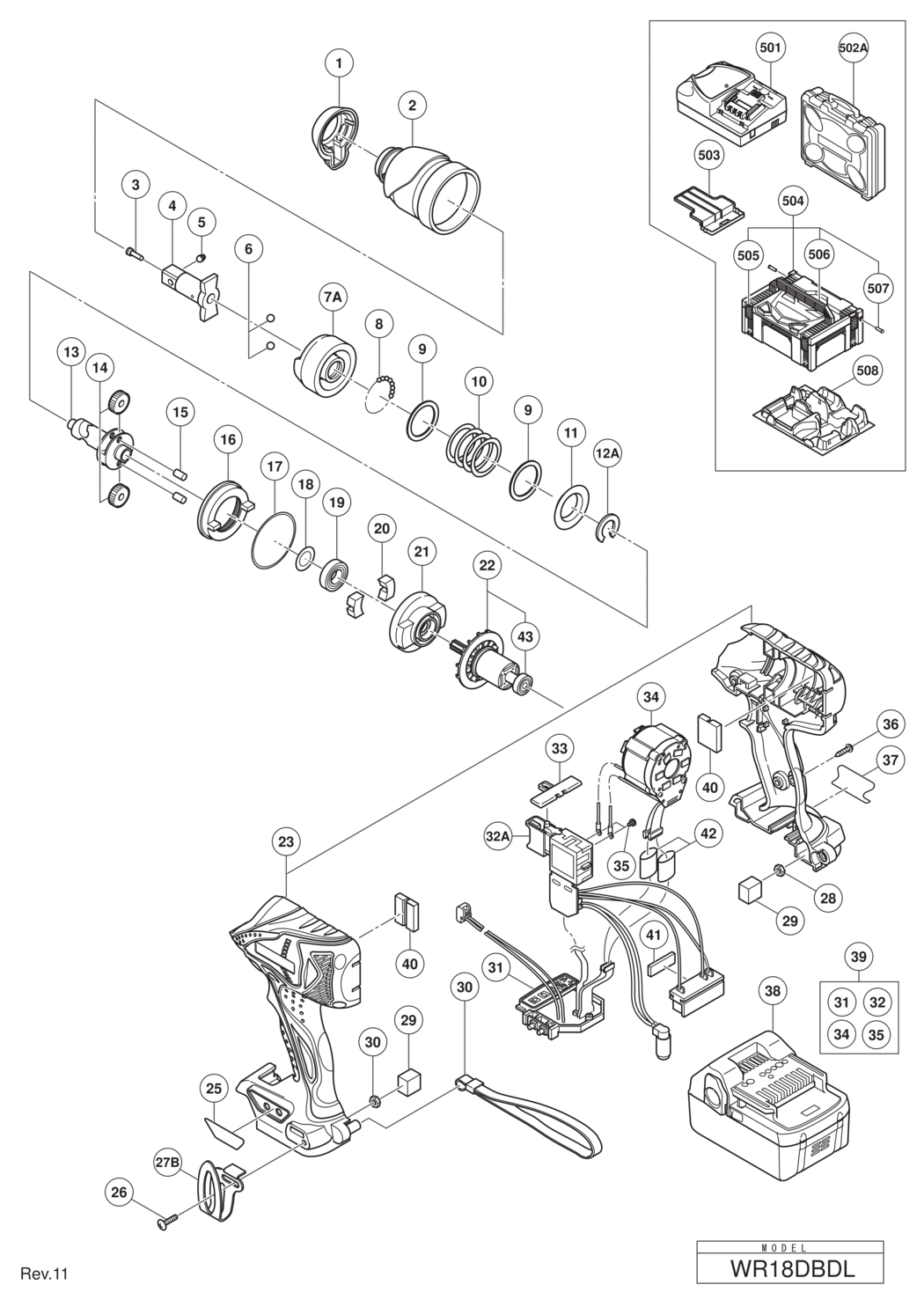

1 - FRONT CAP
HIT-332198.A3
332198
|
£5.17
|
£6.20
|
|
|
2 - HAMMER CASE
HIT-332200.A1
332200
|
£24.74
|
£29.69
|
|
|
3 - PIN RETAINER (B)
HIT-324257.A3
324257
|
£1.67
|
£2.00
|
|
|
4 - ANVIL (D) ASS'Y INCLUD.3
HIT-332196.A2
332196
|
£23.32
|
£27.99
|
|
|
5 - PLUNGER (B)
HIT-324256.A2
324256
|
£1.67
|
£2.00
|
|
|
6 - STEEL BALL D5.556 (10 PCS.)
HIT-959154.A25
959154
|
£1.67
|
£2.00
|
|
|
7A - HAMMER
HIT-333749.A2
333749
|
£30.82
|
£36.98
|
|
|
8 - STEEL BALL D3.175 (10 PCS.)
HIT-959148.A59
959148
|
£1.67
|
£2.00
|
|
|
9 - WASHER (J)
HIT-315978.A11
315978
|
£1.67
|
£2.00
|
|
|
10 - HAMMER SPRING (F)
HIT-324224.A0
324224
|
£4.33
|
£5.20
|
|
|
11 - WASHER (S)
HIT-316172.A19
316172
|
£1.67
|
£2.00
|
|
|
12A - STOPPER (B)
HIT-324222.A7
324222
|
£1.67
|
£2.00
|
|
|
13 - SPINDLE
HIT-332186.A4
332186
|
£27.12
|
£32.55
|
|
|
14 - IDLE GEAR SET (2 PCS.)
HIT-326295.A1
326295
|
£25.42
|
£30.51
|
|
|
15 - NEEDLE ROLLER
HIT-319914.A21
319914
|
£1.67
|
£2.00
|
|
|
16 - RING GEAR(E)
HIT-326787.A4
326787
|
£18.73
|
£22.48
|
|
|
17 - O-RING (S-42)
HIT-983852.A14
983852
|
£1.67
|
£2.00
|
|
|
18 - WASHER (E)
HIT-319911.A8
319911
|
£1.67
|
£2.00
|
|
|
19 - BALL BEARING 6901VV
HIT-6901VV.A15
6901VV
|
£11.83
|
£14.20
|
|
|
20 - DAMPER (A)
HIT-324230.A6
324230
|
£1.67
|
£2.00
|
|
|
21 - INNER COVER
HIT-332185.A4
332185
|
£3.28
|
£3.93
|
|
|
22 - ROTOR PINION ASS'Y INCLUD.43
HIT-332188.A2
332188
|
£61.75
|
£74.10
|
|
|
23 - HOUSING (A).(B) SET
HIT-332189.A1
332189
|
£29.22
|
£35.06
|
|
|
25 - PANEL SHEET (B)
HIT-332207.A2
332207
|
£1.67
|
£2.00
|
|
|
26 - TRUSS HD. SCREW M4 (BLACK)
HIT-327001.A2
327001
|
£2.71
|
£3.25
|
|
|
27B - HOOK
HIT-332824.A21
332824
|
£7.12
|
£8.54
|
|
|
28 - LOCK NUT M4 (BLACK)
HIT-327002.A69
327002
|
£2.71
|
£3.25
|
|
|
29 - PACKING
HIT-330854.A4
330854
|
-
|
|
|
|
30 - STRAP (BLACK)
HIT-306952.A36
306952
|
£7.97
|
£9.57
|
|
|
31 - CONTROLLER
HIT-333360.A0
333360
|
£51.81
|
£62.17
|
|
|
32A - DC-SPEED CONTROL SWITCH
HIT-334903.A5
334903
|
£36.81
|
£44.17
|
|
|
33 - PUSHING BUTTON (B)
HIT-324225.A18
324225
|
£2.49
|
£2.99
|
|
|
34 - STATOR FET PCB
HIT-332203.A0
332203
|
£106.97
|
£128.36
|
|
|
35 - MACHINE SCREW (W/SP. WASHER) M3X5
HIT-994532.A1
994532
|
£1.67
|
£2.00
|
|
|
36 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A68
301653
|
£1.67
|
£2.00
|
|
|
37 - NAME PLATE
HIT-000000.A3756
000000
|
-
|
|
|
|
*38 - BATTERY BSL 1830 (EUROPE AUS NZL) INCLUD.503
HIT-330068.A1
330068
|
£134.10
|
£160.92
|
|
|
39 - WIRING ASS'Y INCLUD.31
HIT-333361.A0
333361
|
£128.18
|
£153.81
|
|
|
40 - DAMPER (A)
HIT-333750.A0
333750
|
£9.60
|
£11.52
|
|
|
41 - CUSHION
HIT-331101.A8
331101
|
£3.12
|
£3.74
|
|
|
42 - SUMI TUBE
HIT-336090.A4
336090
|
£1.67
|
£2.00
|
|
|
43 - BALL BEARING 625DD
HIT-333826.A6
333826
|
£8.72
|
£10.47
|
|
|
*501 - CHARGER (MODEL UC 18YRSL)
HIT-000000.A3758
000000
|
-
|
|
|
|
*502A - CASE
HIT-337852.A0
337852
|
£23.85
|
£28.62
|
|
|
503 - BATTERY COVER
HIT-329897.A65
329897
|
£1.67
|
£2.00
|
|
|
601 - SOCKET PIN
HIT-873537.A8
873537
|
-
|
|
|
|
602 - O-RING (J1SW1516)
HIT-873187.A7
873187
|
£1.67
|
£2.00
|
|
|
603 - FORM TIE SOCKET ASS'Y 11.3MMX95L INCLUD.601
HIT-991481.A3
991481
|
-
|
|
|
|
604 - UNIVERSAL JOINT ASS'Y INCLUD.601
HIT-992610.A2
992610
|
-
|
|
|
|
606 - BIT ADAPTER ASS'Y INCLUD.601
HIT-991476.A2
991476
|
-
|
|
|
|
607 - HEX. SOCKET ASS'Y 10MMX40L INCLUD.601
HIT-944291.A0
944291
|
-
|
|
|
|
608 - HEX. SOCKET ASS'Y 12MMX40L INCLUD.601
HIT-873632.A2
873632
|
-
|
|
|
|
609 - HEX. SOCKET ASS'Y 13MMX40L INCLUD.601
HIT-873539.A6
873539
|
-
|
|
|
|
610 - HEX. SOCKET ASS'Y 14MMX40L INCLUD.601
HIT-873540.A3
873540
|
-
|
|
|
|
611 - HEX. SOCKET ASS'Y 17MMX32L INCLUD.601
HIT-873536.A5
873536
|
-
|
|
|
|
612 - HEX. SOCKET ASS'Y 19MMX34L INCLUD.601
HIT-873624.A12
873624
|
-
|
|
|
|
613 - HEX. SOCKET ASS'Y 21MMX36L INCLUD.601
HIT-873626.A0
873626
|
-
|
|
|
|
614 - HEX. SOCKET ASS'Y 22MMX40L INCLUD.601
HIT-873627.A13
873627
|
-
|
|
|
|
615 - HEX. SOCKET FOR PLASTIC CONE 12MMX70L INCLUD.601
HIT-986058.A8
986058
|
-
|
|
|
|
616 - EXTENSION BAR ASS'Y (SQUARE) 12.7MMX100L INCLUD.601
HIT-873633.A5
873633
|
£25.14
|
£30.17
|
|
|
617 - HEX. SOCKET ASS'Y (LONG) 12MMX52L INCLUD.601
HIT-955138.A5
955138
|
-
|
|
|
|
618 - HEX. SOCKET ASS'Y (LONG) 13MMX52L INCLUD.601
HIT-955139.A9
955139
|
-
|
|
|
|
619 - HEX. SOCKET ASS'Y (LONG) 14MMX52L INCLUD.601
HIT-955140.A5
955140
|
-
|
|
|
|
620 - HEX. SOCKET ASS'Y (LONG) 17MMX52L INCLUD.601
HIT-955141.A8
955141
|
-
|
|
|
|
621 - HEX. SOCKET ASS'Y (LONG) 17MMX75L INCLUD.601
HIT-955149.A9
955149
|
-
|
|
|
|
622 - HEX. SOCKET ASS'Y (LONG) 19MMX52L INCLUD.601
HIT-955142.A5
955142
|
-
|
|
|
|
623 - HEX. SOCKET ASS'Y (LONG) 19MMX75L INCLUD.601
HIT-955150.A4
955150
|
-
|
|
|
|
624 - HEX. SOCKET ASS'Y (LONG) 21MMX52L INCLUD.601
HIT-955143.A8
955143
|
-
|
|
|
|
625 - HEX. SOCKET ASS'Y (LONG) 21MMX75L INCLUD.601
HIT-955151.A9
955151
|
-
|
|
|
|
626 - HEX. SOCKET ASS'Y (LONG) 21MMX125L INCLUD.601
HIT-991480.A6
991480
|
-
|
|
|
|
627 - HEX. SOCKET ASS'Y (LONG) 22MMX52L INCLUD.601
HIT-955144.A5
955144
|
-
|
|
|
|
628 - SOCKET ASS'Y FOR DUCT 12MMX95L INCLUD.601
HIT-993658.A4
993658
|
-
|
|
|
|
629 - SOCKET FOR DUCT 12MMX52L
HIT-993659.A5
993659
|
-
|
|
|
|
630 - SOCKET ASS'Y FOR DUCT 13MMX95L INCLUD.601
HIT-992613.A6
992613
|
-
|
|
|
|
631 - SOCKET FOR DUCT 13MMX52L
HIT-992614.A3
992614
|
-
|
|
|
|
632 - SOCKET ASS'Y FOR DUCT 14MMX95L INCLUD.601
HIT-992615.A6
992615
|
-
|
|
|
|
633 - SOCKET FOR DUCT 14MMX52L
HIT-992616.A3
992616
|
-
|
|
|
|
634 - GREASE (ATTOLUB MS NO.2) 500G
HIT-309922.A30
309922
|
£56.92
|
£68.31
|
|
|
635 - SILICONE RUBBER
HIT-306927.A39
306927
|
-
|
|
|
