Hitachi / Hikoki WR14VE Impact Wrench/driver Spare Parts

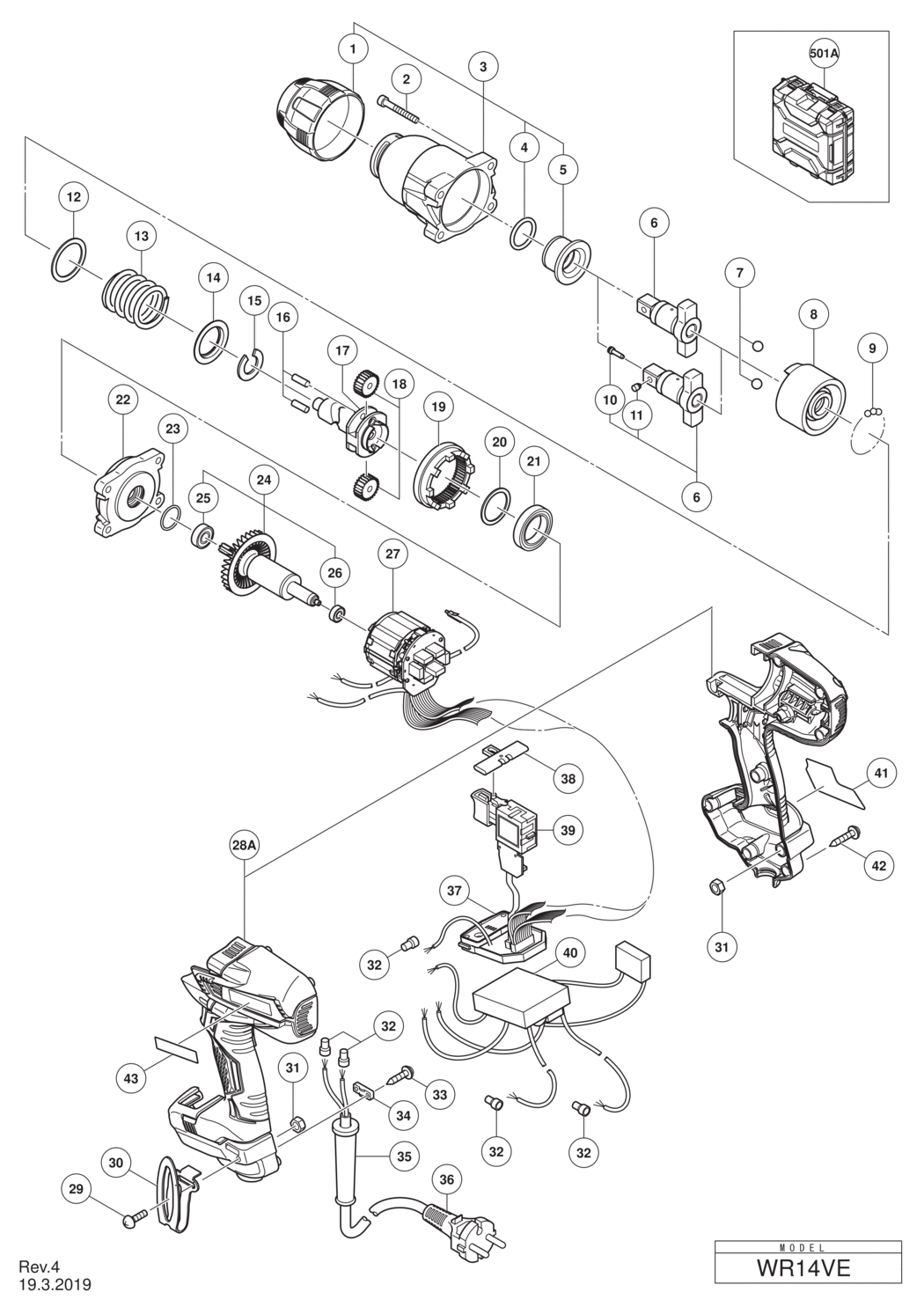

An exploded diagram and spare parts listing for the Hitachi / Hikoki WR14VE Impact Wrench/driver

	Ex VAT	Inc VAT
1 - BUMPER (B) HIT-337716.A0 337716	-
2 - SEAL LOCK HEX. SOCKET HD. BOLT M5X40 HIT-324060.A0 324060	£2.67	£3.20
3 - HAMMER CASE ASS'Y INCLUD.1 HIT-337208.A0 337208	-
4 - O-RING (M) HIT-318704.A0 318704	£4.78	£5.73
5 - METAL HIT-323766.A3 323766	£10.45	£12.54
*6 - ANVIL (M) TYPE FOR W/O PLUNGER (A) HIT-337714.A1 337714	-
7 - STEEL BALL D5.556 (10 PCS.) HIT-959154.A35 959154	£1.67	£2.00
8 - HAMMER (B) HIT-337210.A0 337210	-
9 - STEEL BALL D3.175 (10 PCS.) HIT-959148.A39 959148	£1.67	£2.00
12 - WASHER (B) HIT-337213.A1 337213	-
13 - HAMMER SPRING (B) HIT-337211.A1 337211	-
14 - WASHER (A) HIT-337212.A0 337212	-
15 - STOPPER (B) HIT-337215.A1 337215	-
16 - NEEDLE ROLLER HIT-318378.A0 318378	-
17 - SPINDLE (B) HIT-337209.A1 337209	-
18 - IDLE GEAR SET (2 PCS.) HIT-320506.A1 320506	-
19 - RING GEAR (B) HIT-337717.A1 337717	-
20 - WASHER (C) HIT-337214.A0 337214	-
21 - BALL BEARING 6805ZZ HIT-6805ZZ.A0 6805ZZ	-
22 - INNER COVER (B) HIT-337718.A0 337718	-
23 - O-RING HIT-337719.A1 337719	-
24 - ROTOR ASS'Y INCLUD.25 HIT-337216.A0 337216	-
25 - BALL BEARING 698DD HIT-337720.A0 337720	-
26 - BALL BEARING 624DD HIT-333784.A9 333784	-
*27 - STATOR IGBT PCB 110V HIT-340882C.A0 340882C	-
*27 - STATOR IGBT PCB 220V-240V HIT-340882.A2 340882	£68.49	£82.19
28A - HOUSING (A).(B) SET HIT-337735.A1 337735	-
29 - TRUSS HD. SCREW M4 (BLACK) HIT-327001.A18 327001	£2.71	£3.25
30 - HOOK HIT-335724.A2 335724	-
31 - LOCK NUT M4 (BLACK) HIT-327002.A50 327002	£2.71	£3.25
32 - CONNECTOR 50091 (10 PCS.) HIT-959140.A121 959140	£4.98	£5.97
33 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A92 984750	£1.67	£2.00
34 - CORD CLIP HIT-937631.A159 937631	£1.67	£2.00
35 - CORD ARMOR D8.8 HIT-953327.A54 953327	£1.67	£2.00
*36 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500450Z.A6 500450Z	£35.67	£42.80
*36 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A65 500461Z	£15.56	£18.67
*37 - CONTROLLER (A) 100V-110V HIT-337204.A1 337204	-
*37 - CONTROLLER (A) 220V-230V HIT-337696.A0 337696	-
38 - PUSHING BUTTON (A) HIT-321661.A8 321661	£1.67	£2.00
39 - DC-SPEED CONTROL SWITCH HIT-335323.A2 335323	£21.41	£25.69
*40 - CONTROLLER (B) 100V-120V HIT-337205.A0 337205	-
*40 - CONTROLLER (B) 220V-240V HIT-337206.A2 337206	£46.46	£55.75
41 - NAME PLATE HIT-000000.A4110 000000	-
42 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A111 301653	£1.67	£2.00
43 - BRAND LABEL HIT-000000.A4107 000000	-
619 - HOLSTER HIT-307824.A0 307824	-
620 - GREASE FOR IMPACT WRENCH (100G) HIT-971042.A0 971042	£16.77	£20.12
621 - EXTENSION BAR ASS'Y (SQUARE) 12.7MMX100L INCLUD.623 HIT-873633.A6 873633	£25.14	£30.17
622 - UNIVERSAL JOINT ASS'Y INCLUD.623 HIT-986062.A0 986062	-
623 - SOCKET PIN HIT-873537.A7 873537	-
624 - O-RING (J1SW1516) HIT-873187.A3 873187	£1.67	£2.00
625 - HEX. SOCKET ASS'Y 14MMX40L INCLUD.623 HIT-873540.A10 873540	-
626 - HEX. SOCKET ASS'Y 17MMX32L INCLUD.623 HIT-873536.A6 873536	-
628 - HEX. SOCKET ASS'Y 22MMX40L INCLUD.623 HIT-873627.A14 873627	-
629 - HEX. SOCKET ASS'Y 23MMX40L INCLUD.623 HIT-873628.A0 873628	-
630 - HEX. SOCKET ASS'Y 24MMX40L INCLUD.623 HIT-873629.A5 873629	-
631 - HEX. SOCKET ASS'Y 26MMX40L INCLUD.623 HIT-873630.A0 873630	-
632 - HEX. SOCKET ASS'Y 27MMX40L INCLUD.623 HIT-985195.A5 985195	£24.47	£29.36
633 - HEX. SOCKET ASS'Y 30MMX50L INCLUD.623 HIT-985196.A0 985196	-
634 - HEX. SOCKET ASS'Y (LONG) 12MMX52L INCLUD.623 HIT-955138.A4 955138	-
635 - HEX. SOCKET ASS'Y (LONG) 13MMX52L INCLUD.623 HIT-955139.A10 955139	-
636 - HEX. SOCKET ASS'Y (LONG) 14MMX52L INCLUD.623 HIT-955140.A4 955140	-
637 - HEX. SOCKET ASS'Y (LONG) 17MMX52L INCLUD.623 HIT-955141.A9 955141	-
638 - HEX. SOCKET ASS'Y (LONG) 17MMX75L INCLUD.623 HIT-955149.A3 955149	-
639 - HEX. SOCKET ASS'Y (LONG) 19MMX52L INCLUD.623 HIT-955142.A4 955142	-
640 - HEX. SOCKET ASS'Y (LONG) 19MMX75L INCLUD.623 HIT-955150.A10 955150	-
641 - HEX. SOCKET ASS'Y (LONG) 21MMX52L INCLUD.623 HIT-955143.A9 955143	-
642 - HEX. SOCKET ASS'Y (LONG) 21MMX75L INCLUD.623 HIT-955151.A3 955151	-
643 - HEX. SOCKET ASS'Y (LONG) 21MMX125L INCLUD.623 HIT-991480.A9 991480	-
644 - HEX. SOCKET ASS'Y (LONG) 22MMX52L INCLUD.623 HIT-955144.A4 955144	-
645 - HEX. SOCKET ASS'Y (LONG) 24MMX52L INCLUD.623 HIT-955146.A2 955146	-
646 - HEX. SOCKET ASS'Y (LONG) 26MMX75L INCLUD.623 HIT-955147.A3 955147	-
647 - HEX. SOCKET ASS'Y (LONG) 30MMX75L INCLUD.623 HIT-985197.A5 985197	-
648 - HEX. SOCKET FOR PLASTIC CONE 12MMX70L INCLUD.623 HIT-986058.A4 986058	-
649 - FORM TIE SOCKET ASS'Y 11.3MMX95L INCLUD.623 HIT-991481.A0 991481	-
650 - SOCKET ASS'Y FOR DUCT 12MMX95L INCLUD.623 HIT-993658.A8 993658	-
651 - SOCKET FOR DUCT 12MMX52L HIT-993659.A1 993659	-
652 - SOCKET ASS'Y FOR DUCT 13MMX95L INCLUD.623 HIT-992613.A7 992613	-
653 - SOCKET FOR DUCT 13MMX52L HIT-992614.A2 992614	-
654 - SOCKET ASS'Y FOR DUCT 14MMX95L INCLUD.623 HIT-992615.A7 992615	-
655 - SOCKET FOR DUCT 14MMX52L HIT-992616.A2 992616	-
656 - UNIVERSAL JOINT PIN HIT-955153.A7 955153	-
1 - BUMPER (B) HIT-337716.A1 337716	-
2 - SEAL LOCK HEX. SOCKET HD. BOLT M5X40 HIT-324060.A1 324060	£2.67	£3.20
3 - HAMMER CASE ASS'Y INCLUD.1 HIT-337208.A1 337208	-
4 - O-RING (M) HIT-318704.A3 318704	£4.78	£5.73
5 - METAL HIT-323766.A1 323766	£10.45	£12.54
*6 - ANVIL (M) TYPE FOR W/O PLUNGER (A) HIT-337714.A0 337714	-
7 - STEEL BALL D5.556 (10 PCS.) HIT-959154.A0 959154	£1.67	£2.00
8 - HAMMER (B) HIT-337210.A1 337210	-
9 - STEEL BALL D3.175 (10 PCS.) HIT-959148.A24 959148	£1.67	£2.00
12 - WASHER (B) HIT-337213.A0 337213	-
13 - HAMMER SPRING (B) HIT-337211.A0 337211	-
14 - WASHER (A) HIT-337212.A1 337212	-
15 - STOPPER (B) HIT-337215.A0 337215	-
16 - NEEDLE ROLLER HIT-318378.A1 318378	-
17 - SPINDLE (B) HIT-337209.A0 337209	-
18 - IDLE GEAR SET (2 PCS.) HIT-320506.A0 320506	-
19 - RING GEAR (B) HIT-337717.A0 337717	-
20 - WASHER (C) HIT-337214.A1 337214	-
21 - BALL BEARING 6805ZZ HIT-6805ZZ.A1 6805ZZ	-
22 - INNER COVER (B) HIT-337718.A1 337718	-
23 - O-RING HIT-337719.A0 337719	-
24 - ROTOR ASS'Y INCLUD.25 HIT-337216.A1 337216	-
25 - BALL BEARING 698DD HIT-337720.A1 337720	-
26 - BALL BEARING 624DD HIT-333784.A2 333784	-
*27 - STATOR IGBT PCB 110V HIT-340882C.A1 340882C	-
*27 - STATOR IGBT PCB 220V-240V HIT-340882.A1 340882	£68.49	£82.19
28A - HOUSING (A).(B) SET HIT-337735.A0 337735	-
29 - TRUSS HD. SCREW M4 (BLACK) HIT-327001.A66 327001	£2.71	£3.25
30 - HOOK HIT-335724.A10 335724	-
31 - LOCK NUT M4 (BLACK) HIT-327002.A1 327002	£2.71	£3.25
32 - CONNECTOR 50091 (10 PCS.) HIT-959140.A42 959140	£4.98	£5.97
33 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A260 984750	£1.67	£2.00
34 - CORD CLIP HIT-937631.A16 937631	£1.67	£2.00
35 - CORD ARMOR D8.8 HIT-953327.A123 953327	£1.67	£2.00
*36 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500450Z.A24 500450Z	£35.67	£42.80
*36 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A19 500461Z	£15.56	£18.67
*37 - CONTROLLER (A) 100V-110V HIT-337204.A0 337204	-
*37 - CONTROLLER (A) 220V-230V HIT-337696.A1 337696	-
38 - PUSHING BUTTON (A) HIT-321661.A13 321661	£1.67	£2.00
39 - DC-SPEED CONTROL SWITCH HIT-335323.A1 335323	£21.41	£25.69
*40 - CONTROLLER (B) 100V-120V HIT-337205.A1 337205	-
*40 - CONTROLLER (B) 220V-240V HIT-337206.A1 337206	£46.46	£55.75
41 - NAME PLATE HIT-000000.A2900 000000	-
42 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A212 301653	£1.67	£2.00
43 - BRAND LABEL HIT-000000.A2897 000000	-
619 - HOLSTER HIT-307824.A1 307824	-
620 - GREASE FOR IMPACT WRENCH (100G) HIT-971042.A9 971042	£16.77	£20.12
621 - EXTENSION BAR ASS'Y (SQUARE) 12.7MMX100L INCLUD.623 HIT-873633.A14 873633	£25.14	£30.17
622 - UNIVERSAL JOINT ASS'Y INCLUD.623 HIT-986062.A3 986062	-
623 - SOCKET PIN HIT-873537.A2 873537	-
624 - O-RING (J1SW1516) HIT-873187.A13 873187	£1.67	£2.00
625 - HEX. SOCKET ASS'Y 14MMX40L INCLUD.623 HIT-873540.A1 873540	-
626 - HEX. SOCKET ASS'Y 17MMX32L INCLUD.623 HIT-873536.A12 873536	-
628 - HEX. SOCKET ASS'Y 22MMX40L INCLUD.623 HIT-873627.A3 873627	-
629 - HEX. SOCKET ASS'Y 23MMX40L INCLUD.623 HIT-873628.A3 873628	-
630 - HEX. SOCKET ASS'Y 24MMX40L INCLUD.623 HIT-873629.A2 873629	-
631 - HEX. SOCKET ASS'Y 26MMX40L INCLUD.623 HIT-873630.A3 873630	-
632 - HEX. SOCKET ASS'Y 27MMX40L INCLUD.623 HIT-985195.A2 985195	£24.47	£29.36
633 - HEX. SOCKET ASS'Y 30MMX50L INCLUD.623 HIT-985196.A3 985196	-
634 - HEX. SOCKET ASS'Y (LONG) 12MMX52L INCLUD.623 HIT-955138.A2 955138	-
635 - HEX. SOCKET ASS'Y (LONG) 13MMX52L INCLUD.623 HIT-955139.A12 955139	-
636 - HEX. SOCKET ASS'Y (LONG) 14MMX52L INCLUD.623 HIT-955140.A2 955140	-
637 - HEX. SOCKET ASS'Y (LONG) 17MMX52L INCLUD.623 HIT-955141.A11 955141	-
638 - HEX. SOCKET ASS'Y (LONG) 17MMX75L INCLUD.623 HIT-955149.A10 955149	-
639 - HEX. SOCKET ASS'Y (LONG) 19MMX52L INCLUD.623 HIT-955142.A2 955142	-
640 - HEX. SOCKET ASS'Y (LONG) 19MMX75L INCLUD.623 HIT-955150.A3 955150	-
641 - HEX. SOCKET ASS'Y (LONG) 21MMX52L INCLUD.623 HIT-955143.A11 955143	-
642 - HEX. SOCKET ASS'Y (LONG) 21MMX75L INCLUD.623 HIT-955151.A10 955151	-
643 - HEX. SOCKET ASS'Y (LONG) 21MMX125L INCLUD.623 HIT-991480.A1 991480	-
644 - HEX. SOCKET ASS'Y (LONG) 22MMX52L INCLUD.623 HIT-955144.A2 955144	-
645 - HEX. SOCKET ASS'Y (LONG) 24MMX52L INCLUD.623 HIT-955146.A3 955146	-
646 - HEX. SOCKET ASS'Y (LONG) 26MMX75L INCLUD.623 HIT-955147.A2 955147	-
647 - HEX. SOCKET ASS'Y (LONG) 30MMX75L INCLUD.623 HIT-985197.A2 985197	-
648 - HEX. SOCKET FOR PLASTIC CONE 12MMX70L INCLUD.623 HIT-986058.A0 986058	-
649 - FORM TIE SOCKET ASS'Y 11.3MMX95L INCLUD.623 HIT-991481.A9 991481	-
650 - SOCKET ASS'Y FOR DUCT 12MMX95L INCLUD.623 HIT-993658.A0 993658	-
651 - SOCKET FOR DUCT 12MMX52L HIT-993659.A9 993659	-
652 - SOCKET ASS'Y FOR DUCT 13MMX95L INCLUD.623 HIT-992613.A9 992613	-
653 - SOCKET FOR DUCT 13MMX52L HIT-992614.A0 992614	-
654 - SOCKET ASS'Y FOR DUCT 14MMX95L INCLUD.623 HIT-992615.A9 992615	-
655 - SOCKET FOR DUCT 14MMX52L HIT-992616.A0 992616	-
656 - UNIVERSAL JOINT PIN HIT-955153.A3 955153	-
