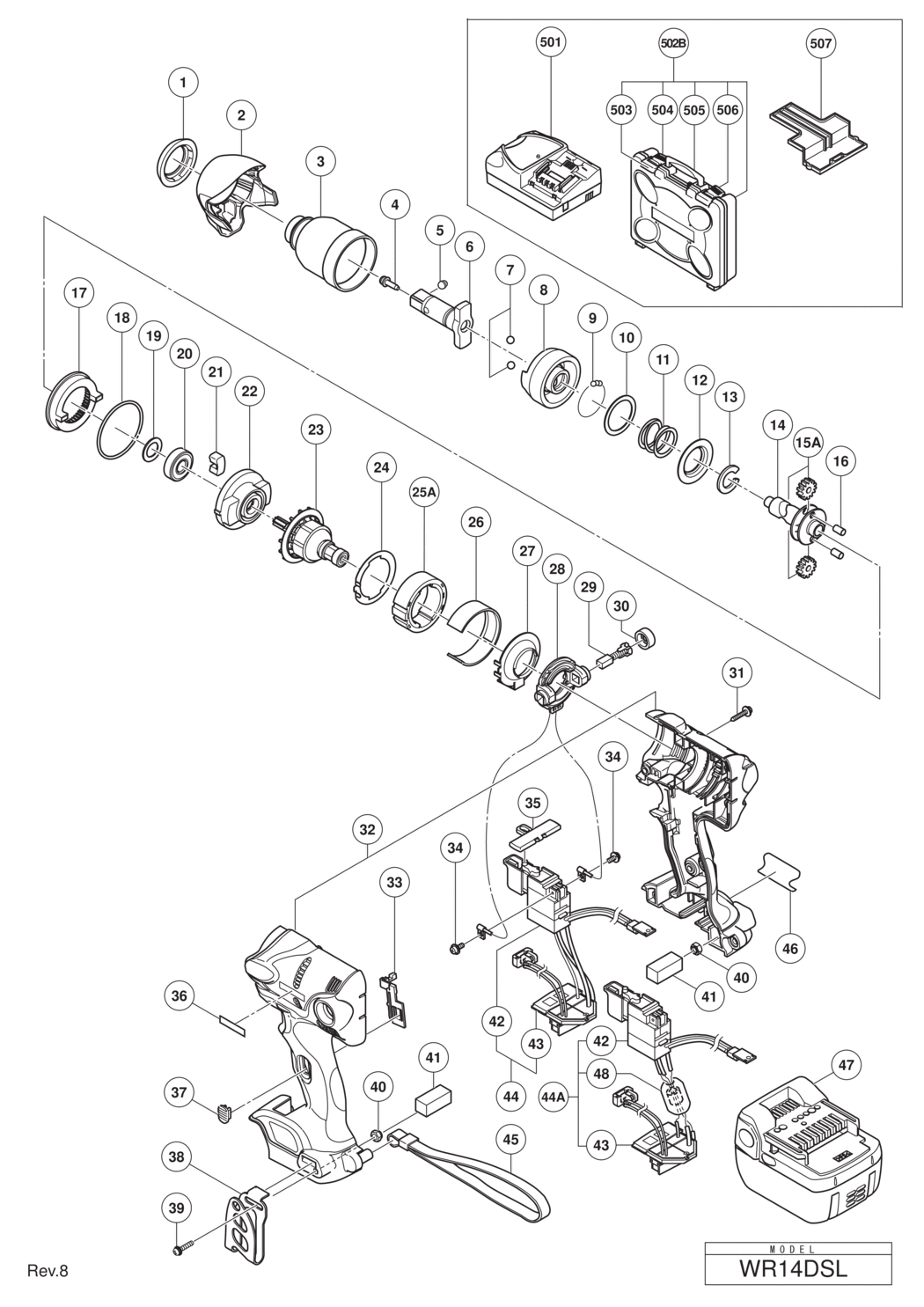

An exploded diagram and spare parts listing for the Hitachi / Hikoki WR14DSL Cordless Impact Wrench
Ex VAT Inc VAT
1 - FRONT CAP (F) HIT-327766.A2 327766 £1.67 £2.00
2 - PROTECTOR (J) HIT-327765.A0 327765 £4.96 £5.95
3 - HAMMER CASE HIT-328041.A0 328041 -
4 - PIN RETAINER (A) HIT-323542.A5 323542 £1.67 £2.00
5 - PLUNGER (A) HIT-323541.A0 323541 £7.57 £9.08
6 - ANVIL (B) INCLUD.4 HIT-329718.A0 329718 -
7 - STEEL BALL D5.556 (10 PCS.) HIT-959154.A34 959154 £1.67 £2.00
8 - HAMMER(F) HIT-326789.A5 326789 £28.14 £33.77
9 - STEEL BALL D3.175 (10 PCS.) HIT-959148.A50 959148 £1.67 £2.00
10 - WASHER (J) HIT-315978.A2 315978 £1.67 £2.00
11 - HAMMER SPRING (D) HIT-321660.A5 321660 £4.99 £5.99
12 - WASHER (S) HIT-316172.A8 316172 £1.67 £2.00
13 - STOPPER HIT-316171.A14 316171 £6.09 £7.31
14 - SPINDLE (D) HIT-321666.A0 321666 -
15A - IDLE GEAR SET (2 PCS.) HIT-326295.A4 326295 £25.42 £30.51
16 - NEEDLE ROLLER HIT-319914.A29 319914 £1.67 £2.00
17 - RING GEAR(E) HIT-326787.A2 326787 £18.73 £22.48
18 - O-RING (S-42) HIT-983852.A18 983852 £1.67 £2.00
19 - WASHER (E) HIT-319911.A0 319911 £1.67 £2.00
20 - BALL BEARING 6901VV-N HIT-323118.A4 323118 £9.18 £11.02
21 - DAMPER HIT-319909.A4 319909 -
22 - INNER COVER(D) HIT-326786.A3 326786 £1.67 £2.00
23 - ARMATURE DC 14.4V HIT-360752.A0 360752 £57.42 £68.91
24 - SIDE YOKE HIT-323327.A5 323327 -
25A - MAGNET (M) HIT-334899.A0 334899 £101.86 £122.23
26 - YOKE (A) HIT-324828.A0 324828 -
27 - DUST GUARD FIN (C) HIT-324830.A0 324830 £2.71 £3.25
28 - BRUSH BLOCK HIT-321662.A4 321662 £15.82 £18.98
29 - CARBON BRUSH 5X6X11.5 (1 PAIR) HIT-999054.A12 999054 £9.48 £11.38
30 - BRUSH CAP HIT-319918.A23 319918 £4.26 £5.11
31 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A80 301653 £1.67 £2.00
*32 - HOUSING (A).(B)SET (GREEN) INCLUD.33 HIT-329710.A1 329710 £44.08 £52.90
*32 - HOUSING (A).(B)SET (WHITE) INCLUD.33 HIT-329827.A0 329827 -
33 - LEVER(C) HIT-326782.A2 326782 £2.71 £3.25
34 - MACHINE SCREW (W/SP. WASHER) M3X5 HIT-994532.A4 994532 £1.67 £2.00
35 - PUSHING BUTTON (A) HIT-321661.A3 321661 £1.67 £2.00
36 - BRAND LABEL HIT-000000.A3747 000000 -
37 - LEVER(B) HIT-326783.A0 326783 £2.71 £3.25
38 - HOOK (A) HIT-326790.A1 326790 £9.21 £11.05
39 - TRUSS HD. SCREW M4 (BLACK) HIT-327001.A0 327001 £2.71 £3.25
43 - CONTROLLER HIT-329708.A1 329708 £38.72 £46.46
*44 - SWITCH ASS'Y INCLUD.42 HIT-329707.A0 329707 £68.84 £82.61
*44A - SWITCH ASS'Y INCLUD.42 HIT-334874.A1 334874 £93.98 £112.77
45 - STRAP (BLACK) HIT-306952.A38 306952 £7.97 £9.57
46 - NAME PLATE HIT-000000.A3749 000000 -
*47 - BATTERY BSL 1430 (EUROPE AUS NZL) HIT-329083.A2 329083 £109.82 £131.78
*48 - FERRITE SUPPORT SET SINCE 3.2012 FOR EUROPE HIT-334873.A0 334873 -
*501 - CHARGER (MODEL UC 18YRSL) HIT-000000.A3751 000000 -
502B - CASE ASS'Y INCLUDE.503-506 HIT-329440.A2 329440 £63.48 £76.18
*503 - LATCH (DARK GRAY) HIT-324093.A0 324093 -
*504 - KNOB (L) DARK GRAY HIT-324096.A2 324096 -
*505 - HANDLE (DARK GRAY) HIT-324090.A2 324090 -
*506 - KNOB (R) DARK GRAY HIT-324099.A0 324099 -
507 - BATTERY COVER HIT-329897.A66 329897 £1.67 £2.00
617 - SOCKET PIN HIT-873537.A11 873537 -
618 - O-RING (J1SW1516) HIT-873187.A10 873187 £1.67 £2.00
619 - FORM TIE SOCKET ASS'Y 11.3MMX95L INCLUD.617 HIT-991481.A2 991481 -
620 - UNIVERSAL JOINT ASS'Y INCLUD.617 HIT-992610.A3 992610 -
622 - BIT ADAPTER ASS'Y INCLUD.617 HIT-991476.A1 991476 -
623 - HEX. SOCKET ASS'Y (LONG) 21MMX125L INCLUD.617 HIT-991480.A7 991480 -
624 - HEX. SOCKET ASS'Y 10MMX40L INCLUD.617 HIT-944291.A3 944291 -
625 - HEX. SOCKET ASS'Y 12MMX40L INCLUD.617 HIT-873632.A5 873632 -
626 - HEX. SOCKET ASS'Y 13MMX40L INCLUD.617 HIT-873539.A3 873539 -
627 - HEX. SOCKET ASS'Y 14MMX40L INCLUD.617 HIT-873540.A6 873540 -
628 - HEX. SOCKET ASS'Y 17MMX32L INCLUD.617 HIT-873536.A3 873536 -
629 - HEX. SOCKET ASS'Y 19MMX34L INCLUD.617 HIT-873624.A10 873624 -
630 - HEX. SOCKET ASS'Y 21MMX36L INCLUD.617 HIT-873626.A2 873626 -
631 - HEX. SOCKET ASS'Y 22MMX40L INCLUD.617 HIT-873627.A11 873627 -
632 - HEX. SOCKET FOR PLASTIC CONE 12MMX70L INCLUD.617 HIT-986058.A9 986058 -
633 - EXTENSION BAR ASS'Y (SQUARE) 12.7MMX100L INCLUD.617 HIT-873633.A3 873633 £25.14 £30.17
634 - HEX. SOCKET ASS'Y (LONG) 21MMX75L INCLUD.617 HIT-955151.A8 955151 -
635 - HEX. SOCKET ASS'Y (LONG) 12MMX52L INCLUD.617 HIT-955138.A6 955138 -
636 - HEX. SOCKET ASS'Y (LONG) 13MMX52L INCLUD.617 HIT-955139.A8 955139 -
637 - HEX. SOCKET ASS'Y (LONG) 14MMX52L INCLUD.617 HIT-955140.A6 955140 -
638 - HEX. SOCKET ASS'Y (LONG) 17MMX52L INCLUD.617 HIT-955141.A7 955141 -
639 - HEX. SOCKET ASS'Y (LONG) 19MMX52L INCLUD.617 HIT-955142.A6 955142 -
640 - HEX. SOCKET ASS'Y (LONG) 17MMX75L INCLUD.617 HIT-955149.A8 955149 -
641 - HEX. SOCKET ASS'Y (LONG) 19MMX75L INCLUD.617 HIT-955150.A5 955150 -
642 - HEX. SOCKET ASS'Y (LONG) 21MMX52L INCLUD.617 HIT-955143.A7 955143 -
643 - HEX. SOCKET ASS'Y (LONG) 22MMX52L INCLUD.617 HIT-955144.A6 955144 -
644 - SOCKET ASS'Y FOR DUCT 13MMX95L INCLUD.617 HIT-992613.A5 992613 -
645 - SOCKET FOR DUCT 13MMX52L HIT-992614.A4 992614 -
646 - SOCKET ASS'Y FOR DUCT 14MMX95L INCLUD.617 HIT-992615.A5 992615 -
647 - SOCKET FOR DUCT 14MMX52L HIT-992616.A4 992616 -
648 - SOCKET ASS'Y FOR DUCT 12MMX95L INCLUD.617 HIT-993658.A3 993658 -
649 - SOCKET FOR DUCT 12MMX52L HIT-993659.A6 993659 -
650 - GREASE (ATTOLUB MS NO.2) 500G HIT-309922.A32 309922 £56.92 £68.31
651 - SILICONE RUBBER HIT-306927.A38 306927 -
