Hitachi / Hikoki WR14DSDL Cordless Impact Wrench Spare Parts

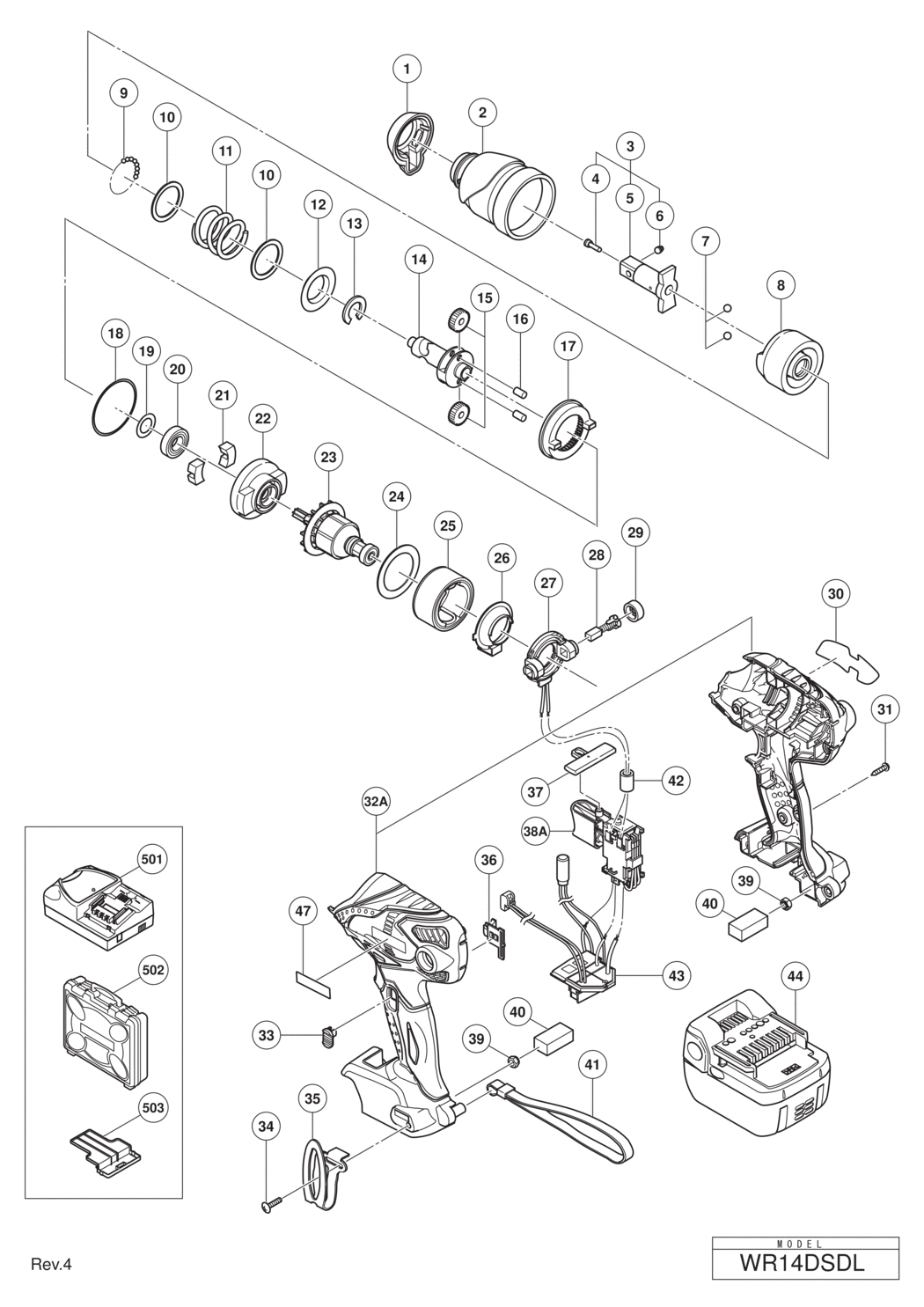

An exploded diagram and spare parts listing for the Hitachi / Hikoki WR14DSDL Cordless Impact Wrench

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-332198.A0 332198	£5.17	£6.20
2 - HAMMER CASE HIT-332200.A3 332200	£24.74	£29.69
3 - ANVIL (D) ASS'Y INCLUD.4-6 HIT-332196.A1 332196	£23.32	£27.99
4 - PIN RETAINER (B) HIT-324257.A4 324257	£1.67	£2.00
5 - ANVIL (D) HIT-332197.A1 332197	-
6 - PLUNGER (B) HIT-324256.A1 324256	£1.67	£2.00
7 - STEEL BALL D5.556 (10 PCS.) HIT-959154.A33 959154	£1.67	£2.00
8 - HAMMER HIT-333749.A1 333749	£30.82	£36.98
9 - STEEL BALL D3.175 (10 PCS.) HIT-959148.A51 959148	£1.67	£2.00
10 - WASHER (J) HIT-315978.A3 315978	£1.67	£2.00
11 - HAMMER SPRING (F) HIT-324224.A2 324224	£4.33	£5.20
12 - WASHER (S) HIT-316172.A9 316172	£1.67	£2.00
13 - STOPPER (B) HIT-324222.A4 324222	£1.67	£2.00
14 - SPINDLE HIT-332186.A5 332186	£27.12	£32.55
15 - IDLE GEAR SET (2 PCS.) HIT-326295.A5 326295	£25.42	£30.51
16 - NEEDLE ROLLER HIT-319914.A28 319914	£1.67	£2.00
17 - RING GEAR(E) HIT-326787.A3 326787	£18.73	£22.48
18 - O-RING (S-42) HIT-983852.A19 983852	£1.67	£2.00
19 - WASHER (E) HIT-319911.A1 319911	£1.67	£2.00
20 - BALL BEARING 6901VV HIT-6901VV.A10 6901VV	£11.83	£14.20
21 - DAMPER (A) HIT-324230.A3 324230	£1.67	£2.00
22 - INNER COVER HIT-332185.A2 332185	£3.28	£3.93
23 - ARMATURE AND PINION SET HIT-360949.A1 360949	£49.41	£59.29
24 - SIDE YOKE (A) HIT-324607.A1 324607	£1.67	£2.00
25 - MAGNET (J) ASS'Y INCLUD.24 HIT-334901.A3 334901	£108.59	£130.31
26 - DUST GUARD FIN (B) HIT-324228.A0 324228	£1.67	£2.00
27 - BRUSH BLOCK HIT-334955.A0 334955	£10.35	£12.42
28 - CARBON BRUSH 5X6X11.5 (1 PAIR) HIT-999054.A13 999054	£9.48	£11.38
29 - BRUSH CAP HIT-319918.A18 319918	£4.26	£5.11
30 - NAME PLATE HIT-000000.A3741 000000	-
31 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A81 301653	£1.67	£2.00
32A - HOUSING (A).(B) SET HIT-334954.A1 334954	£28.11	£33.73
33 - LEVER (A) HIT-329519.A2 329519	£3.02	£3.63
34 - TRUSS HD. SCREW M4 (BLACK) HIT-327001.A11 327001	£2.71	£3.25
35 - HOOK HIT-332824.A19 332824	£7.12	£8.54
36 - LEVER (B) HIT-329520.A1 329520	£3.02	£3.63
37 - PUSHING BUTTON (A) HIT-329454.A8 329454	£1.67	£2.00
38A - DC-SPEED CONTROL SWITCH HIT-337392.A0 337392	£18.73	£22.48
39 - LOCK NUT M4 (BLACK) HIT-327002.A60 327002	£2.71	£3.25
40 - PACKING HIT-328644.A13 328644	£1.67	£2.00
41 - STRAP (BLACK) HIT-306952.A51 306952	£7.97	£9.57
*42 - FERRITE CORE FOR EUROPE HIT-318247.A6 318247	£1.67	£2.00
43 - CONTROLLER TERMINAL SET HIT-334957.A1 334957	£50.76	£60.91
*44 - BATTERY BSL 1440 (EUROPE AUS NZL) HIT-334419.A5 334419	£146.92	£176.30
47 - BRAND LABEL HIT-000000.A3743 000000	-
501 - CHARGER (UC 18YRSL) HIT-000000.A3745 000000	-
502 - CASE HIT-337140.A5 337140	-
503 - BATTERY COVER HIT-329897.A45 329897	£1.67	£2.00
601 - SOCKET PIN HIT-873537.A14 873537	-
602 - O-RING (J1SW1516) HIT-873187.A6 873187	£1.67	£2.00
603 - FORM TIE SOCKET ASS'Y 11.3MMX95L INCLUD.601 HIT-991481.A7 991481	-
604 - UNIVERSAL JOINT ASS'Y INCLUD.601 HIT-992610.A5 992610	-
605 - UNIVERSAL JOINT PIN HIT-955153.A6 955153	-
606 - BIT ADAPTER ASS'Y INCLUD.601 HIT-991476.A5 991476	-
607 - HEX. SOCKET ASS'Y 10MMX40L INCLUD.601 HIT-944291.A6 944291	-
608 - HEX. SOCKET ASS'Y 12MMX40L INCLUD.601 HIT-873632.A8 873632	-
609 - HEX. SOCKET ASS'Y 13MMX40L INCLUD.601 HIT-873539.A0 873539	-
610 - HEX. SOCKET ASS'Y 14MMX40L INCLUD.601 HIT-873540.A9 873540	-
611 - HEX. SOCKET ASS'Y 17MMX32L INCLUD.601 HIT-873536.A0 873536	-
612 - HEX. SOCKET ASS'Y 19MMX34L INCLUD.601 HIT-873624.A7 873624	-
613 - HEX. SOCKET ASS'Y 21MMX36L INCLUD.601 HIT-873626.A5 873626	-
614 - HEX. SOCKET ASS'Y 22MMX40L INCLUD.601 HIT-873627.A8 873627	-
615 - HEX. SOCKET FOR PLASTIC CONE 12MMX70L INCLUD.601 HIT-986058.A7 986058	-
616 - EXTENSION BAR ASS'Y (SQUARE) 12.7MMX100L INCLUD.601 HIT-873633.A0 873633	£25.14	£30.17
617 - HEX. SOCKET ASS'Y (LONG) 12MMX52L INCLUD.601 HIT-955138.A8 955138	-
618 - HEX. SOCKET ASS'Y (LONG) 13MMX52L INCLUD.601 HIT-955139.A6 955139	-
619 - HEX. SOCKET ASS'Y (LONG) 14MMX52L INCLUD.601 HIT-955140.A8 955140	-
620 - HEX. SOCKET ASS'Y (LONG) 17MMX52L INCLUD.601 HIT-955141.A5 955141	-
621 - HEX. SOCKET ASS'Y (LONG) 17MMX75L INCLUD.601 HIT-955149.A6 955149	-
622 - HEX. SOCKET ASS'Y (LONG) 19MMX52L INCLUD.601 HIT-955142.A8 955142	-
623 - HEX. SOCKET ASS'Y (LONG) 19MMX75L INCLUD.601 HIT-955150.A7 955150	-
624 - HEX. SOCKET ASS'Y (LONG) 21MMX52L INCLUD.601 HIT-955143.A5 955143	-
625 - HEX. SOCKET ASS'Y (LONG) 21MMX75L INCLUD.601 HIT-955151.A6 955151	-
626 - HEX. SOCKET ASS'Y (LONG) 21MMX125L INCLUD.601 HIT-991480.A4 991480	-
627 - HEX. SOCKET ASS'Y (LONG) 22MMX52L INCLUD.601 HIT-955144.A8 955144	-
628 - SOCKET ASS'Y FOR DUCT 12MMX95L INCLUD.601 HIT-993658.A6 993658	-
629 - SOCKET FOR DUCT 12MMX52L HIT-993659.A3 993659	-
630 - SOCKET ASS'Y FOR DUCT 13MMX95L INCLUD.601 HIT-992613.A2 992613	-
631 - SOCKET FOR DUCT 13MMX52L HIT-992614.A7 992614	-
632 - SOCKET ASS'Y FOR DUCT 14MMX95L INCLUD.601 HIT-992615.A2 992615	-
633 - SOCKET FOR DUCT 14MMX52L HIT-992616.A7 992616	-
634 - GREASE (ATTOLUB MS NO.2) 500G HIT-309922.A38 309922	£56.92	£68.31
635 - SILICONE RUBBER HIT-306927.A49 306927	-
