Hitachi / Hikoki WF4H2 High Pressure Automatic Screw Driver Spare Parts

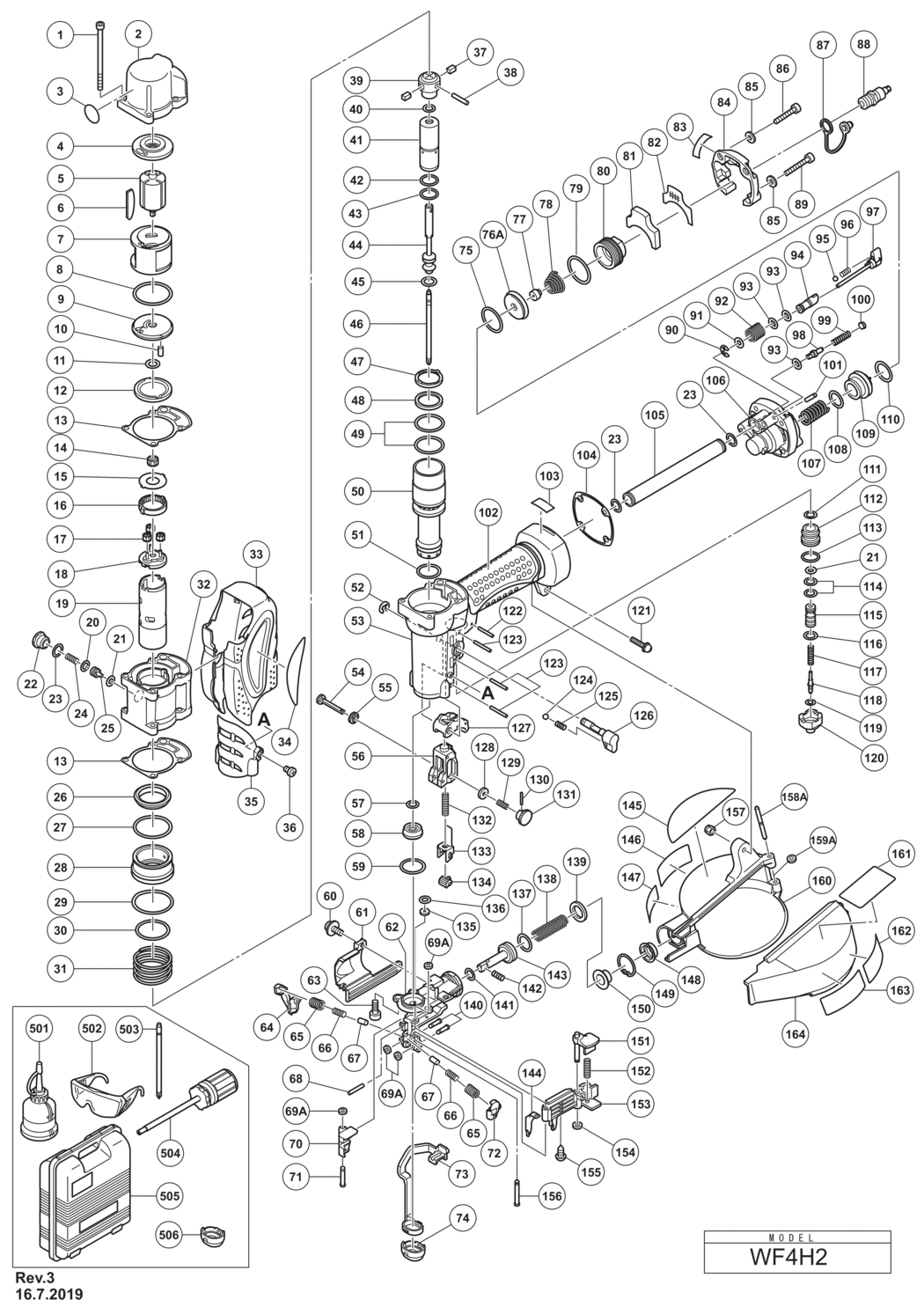

An exploded diagram and spare parts listing for the Hitachi / Hikoki WF4H2 High Pressure Automatic Screw Driver

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT M5X80 HIT-305481.A0 305481	-
2 - CASING (A) GOLD HIT-886560.A0 886560	-
3 - WARNING LABEL (A) HIT-883513.A22 883513	-
4 - SIDE COVER (A) HIT-886097.A0 886097	-
5 - ROTOR HIT-886095.A0 886095	-
6 - VANE HIT-886096.A0 886096	-
7 - MOTOR CYLINDER HIT-886094.A0 886094	-
8 - O-RING (S-40) HIT-996363.A13 996363	£1.67	£2.00
9 - SIDE COVER (B) HIT-886098.A0 886098	-
10 - PIN (B) HIT-886092.A0 886092	-
11 - O-RING (P-8) HIT-315382.A1 315382	£3.02	£3.63
12 - PACKING (C) HIT-316390.A0 316390	-
13 - PACKING (A) HIT-884504.A0 884504	-
14 - PINION HIT-886091.A0 886091	-
15 - WASHER (A) HIT-884515.A0 884515	-
16 - RING GEAR HIT-886089.A0 886089	-
17 - IDLE GEAR HIT-886090.A0 886090	-
18 - SPINDLE HEAD HIT-886088.A0 886088	-
19 - SPINDLE HIT-886087.A0 886087	-
20 - O-RING (S-8) HIT-992912.A5 992912	£1.67	£2.00
21 - O-RING (S-4) HIT-981317.A28 981317	£1.67	£2.00
22 - BUSHING HIT-884521.A0 884521	-
23 - O-RING (S-12) HIT-875638.A13 875638	£1.67	£2.00
24 - SPRING D4.2 HIT-884520.A0 884520	-
25 - LOCK PIN HIT-884519.A0 884519	-
26 - VALVE RUBBER HIT-884503.A0 884503	-
27 - O-RING (S-40) HIT-996363.A12 996363	£1.67	£2.00
28 - SLEEVE VALVE HIT-884502.A0 884502	-
29 - O-RING (S-42) HIT-983852.A22 983852	£1.67	£2.00
30 - O-RING (S-36) HIT-984483.A6 984483	£1.67	£2.00
31 - VALVE SPRING HIT-882221.A0 882221	-
32 - CASING (B) GOLD HIT-886561.A0 886561	-
33 - PROTECTOR HIT-886117.A0 886117	-
34 - BRAND LABEL HIT-000000.A4306 000000	-
35 - PROTECTOR (A) HIT-886235.A0 886235	-
36 - FLAT FILLISTER HD. SCREW M4 HIT-886234.A0 886234	-
37 - FEATHER KEY HIT-884512.A0 884512	-
38 - PIN HIT-884511.A0 884511	-
39 - SLIDER HIT-884510.A0 884510	-
40 - O-RING (P-8) HIT-315382.A2 315382	£3.02	£3.63
41 - PISTON (B) HIT-886086.A0 886086	-
42 - O-RING (I.D. 16.8) HIT-884509.A0 884509	-
43 - PISTON O-RING HIT-886227.A0 886227	-
44 - PISTON (A) HIT-886085.A0 886085	-
45 - O-RING (I.D. 10.8) HIT-884507.A0 884507	-
46 - + DRIVER BIT NO.2 HIT-884480.A0 884480	-
47 - METAL HIT-884501.A0 884501	-
48 - WASHER HIT-884500.A0 884500	-
49 - O-RING (I.D. 31.2) HIT-884498.A0 884498	-
50 - CYLINDER HIT-886083.A0 886083	-
51 - O-RING (I.D. 24.7) HIT-884499.A0 884499	-
52 - RETAINING RING (E-TYPE) FOR D6 SHAFT HIT-955479.A11 955479	£1.67	£2.00
53 - BODY ASS'Y (GOLD) INCLUD.102 HIT-886562.A0 886562	-
54 - ADJUSTER SHAFT HIT-881846.A3 881846	£8.66	£10.39
55 - LATCH HIT-886101.A0 886101	£7.42	£8.91
56 - PUSHING LEVER GUIDE HIT-316389.A2 316389	£4.10	£4.92
57 - O-RING HIT-886229.A0 886229	-
58 - PISTON BUMPER HIT-886230.A0 886230	£22.11	£26.53
59 - O-RING (S-22) HIT-306353.A1 306353	£1.67	£2.00
60 - MACHINE SCREW (W/WASHER) M4X8 (BLACK) HIT-315500.A8 315500	£1.67	£2.00
61 - COVER HIT-887975.A0 887975	-
62 - NOSE HIT-886104.A0 886104	-
63 - HEX. SOCKET HD. BOLT M6X16 (10 PCS.) HIT-949755.A5 949755	£3.64	£4.37
64 - VERTICAL GUIDE (B) HIT-886111.A0 886111	-
65 - SPRING (A) HIT-884533.A0 884533	-
66 - SPRING (B) HIT-884534.A0 884534	-
67 - URETHANE SHAFT HIT-886233.A0 886233	-
68 - ROLL PIN D3X18 (10 PCS.) HIT-949518.A3 949518	£1.67	£2.00
69A - FEEDER SHAFT RING HIT-890042.A0 890042	-
70 - FEEDER HIT-884527.A0 884527	-
71 - FEEDER SHAFT HIT-882236.A0 882236	-
72 - VERTICAL GUIDE (A) HIT-886110.A0 886110	-
73 - PUSHING LEVER (A) HIT-886109.A0 886109	-
74 - NOSE CAP HIT-886103.A0 886103	-
75 - O-RING (S-26) HIT-872470.A6 872470	£1.67	£2.00
76A - SEPARATER HIT-889035.A0 889035	-
77 - VALVE (H) HIT-884847.A0 884847	-
78 - SPRING (I.D. D13) HIT-884848.A0 884848	-
79 - O-RING (S-32) HIT-872767.A0 872767	£1.67	£2.00
80 - CAP (R) GOLD HIT-887983.A0 887983	-
81 - MUFFLER HIT-886079.A0 886079	-
82 - MESH HIT-886080.A0 886080	-
83 - LABEL (B) HIT-000000.A4307 000000	-
84 - EXHAUST COVER HIT-886081.A0 886081	-
85 - WASHER M5.5 HIT-940178.A2 940178	-
86 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) HIT-949664.A44 949664	£4.33	£5.20
87 - DUST CAP HIT-877914.A2 877914	-
88 - AIR PLUG L-PT 1/4 HIT-883135.A5 883135	-
89 - HEX. SOCKET HD. BOLT M5X40 HIT-886082.A0 886082	-
90 - RETAINING RING (E-TYPE) FOR D2.5 SHAFT HIT-874759.A0 874759	£1.67	£2.00
91 - O-RING (I.D. 1.8) HIT-886078.A0 886078	-
92 - SPRING D8.4 HIT-886077.A0 886077	-
93 - O-RING (I.D 4.8) HIT-884861.A0 884861	-
94 - PLUNGER (R) HIT-886076.A0 886076	-
95 - STEEL BALL D3.175 (10 PCS.) HIT-959148.A40 959148	£1.67	£2.00
96 - LOCK SPRING HIT-882923.A6 882923	-
97 - KNOB HIT-886075.A0 886075	-
98 - RELIEF VALVE HIT-886122.A0 886122	-
99 - SPRING D6.6 HIT-884852.A0 884852	-
100 - SPACER HIT-886121.A0 886121	-
101 - ROLL PIN D2X12 (10 PCS.) HIT-949861.A0 949861	£1.67	£2.00
102 - GRIP RUBBER (A) HIT-000000.A4308 000000	-
103 - CAUTION PLATE (C) HIT-000000.A4310 000000	-
104 - PACKING (D) HIT-884484.A0 884484	-
105 - EXHAUST PIPE HIT-886240.A0 886240	-
106 - CAP (A) GOLD HIT-886563.A0 886563	-
107 - SPRING HIT-886071.A0 886071	-
108 - O-RING (P-18) HIT-873570.A2 873570	£1.67	£2.00
109 - PISTON (R) HIT-886072.A0 886072	-
110 - O-RING (1AP-24) HIT-997392.A0 997392	-
111 - HEAD VALVE O-RING (I.D 16.8) HIT-877699.A5 877699	£1.67	£2.00
112 - VALVE BUSHING (B) HIT-882925.A1 882925	-
113 - O-RING (S-18) HIT-878885.A17 878885	£1.67	£2.00
114 - O-RING (I.D 8.8) HIT-878925.A6 878925	£1.67	£2.00
115 - VALVE PISTON (B) HIT-880672.A5 880672	£25.41	£30.49
116 - O-RING (I.D 11) HIT-878887.A6 878887	£1.67	£2.00
117 - PLUNGER SPRING HIT-878884.A6 878884	£1.67	£2.00
118 - PLUNGER (A) HIT-880673.A5 880673	£12.74	£15.29
119 - O-RING (I.D. 1.8) HIT-878888.A11 878888	£1.67	£2.00
120 - VALVE BUSHING (A) HIT-882920.A4 882920	-
121 - MACHINE SCREW (W/WASHERS) M5X25 (BLACK) HIT-880734.A11 880734	£1.67	£2.00
122 - ROLL PIN D3X22 (10 PCS.) HIT-949864.A1 949864	£3.28	£3.93
123 - ROLL PIN D3X25 (10 PCS.) HIT-949539.A4 949539	£3.28	£3.93
124 - STEEL BALL D3.97 (10 PCS.) HIT-959155.A18 959155	£1.67	£2.00
125 - SPRING (C) HIT-982454.A16 982454	£1.67	£2.00
126 - CHANGE KNOB HIT-886102.A0 886102	-
127 - TRIGGER (A) HIT-880674.A3 880674	£9.06	£10.87
128 - BOLT WASHER M4 (10 PCS.) HIT-949429.A50 949429	£1.67	£2.00
129 - ADJUSTER SPRING HIT-887949.A0 887949	-
130 - ROLL PIN D1.6X10 HIT-886228.A0 886228	-
131 - ADJUSTER KNOB HIT-887948.A0 887948	-
132 - SPRING HIT-881882.A2 881882	£1.67	£2.00
133 - PUSHING LEVER (B) HIT-886099.A0 886099	£16.85	£20.22
134 - ADJUSTER HIT-886564.A0 886564	-
135 - WASHER HIT-878279.A1 878279	-
136 - O-RING (P-4) HIT-874436.A3 874436	£1.67	£2.00
137 - O-RING (P-18) HIT-873570.A3 873570	£1.67	£2.00
138 - SPRING D11.8 HIT-880409.A3 880409	£1.67	£2.00
139 - DAMPER HIT-877476.A5 877476	£1.67	£2.00
140 - GUIDE SHAFT HIT-886112.A0 886112	-
141 - Y-PACKING HIT-887196.A0 887196	-
142 - SPRING D4.7 HIT-882235.A0 882235	-
143 - FEED PISTON HIT-886231.A0 886231	-
144 - GUARD HIT-886106.A0 886106	-
145 - LABEL (A) HIT-000000.A4311 000000	-
146 - WARNING LABEL HIT-887174.A1 887174	-
147 - WARNING LABEL HIT-887175.A4 887175	-
148 - MAGAZINE BUSHING HIT-880177.A4 880177	£1.67	£2.00
149 - RETAINING RING FOR D24 HOLE HIT-983748.A7 983748	£1.67	£2.00
150 - FEED PISTON COVER HIT-880170.A4 880170	£1.67	£2.00
151 - GUIDE LOCK HIT-886107.A0 886107	£8.59	£10.31
152 - SPRING D5.6 HIT-883008.A0 883008	-
153 - SCREW GUIDE HIT-886105.A0 886105	-
154 - SHAFT RING HIT-880319.A18 880319	£1.67	£2.00
155 - TAPPING SCREW D3X10 HIT-306945.A3 306945	£1.67	£2.00
156 - SCREW GUIDE SHAFT HIT-886108.A0 886108	-
157 - NYLON NUT M5 HIT-877371.A6 877371	£1.67	£2.00
158A - HINGE PIN HIT-887216.A0 887216	-
159A - FEEDER SHAFT RING HIT-890042.A1 890042	-
160 - MAGAZINE HIT-886114.A0 886114	-
161 - LABEL HIT-000000.A4312 000000	-
162 - NAME PLATE HIT-000000.A4313 000000	-
163 - LABEL (C) HIT-000000.A4314 000000	-
164 - MAGAZINE COVER HIT-886115.A0 886115	-
501 - PNEUMATIC TOOL LUBRICANT (30CC) HIT-883136.A0 883136	-
502 - PROTECTIVE GLASSES HIT-875769.A46 875769	-
503 - + DRIVER BIT NO.2 HIT-884480.A1 884480	-
504 - BIT CHANGE TOOL HIT-884538.A0 884538	-
505 - CASE HIT-884857.A0 884857	-
506 - NOSE CAP HIT-886103.A1 886103	-
601 - GRIP TAPE (A) HIT-881768.A3 881768	-
602A - TAPE (2 PCS.) HIT-888213.A33 888213	-
603 - GUIDE HIT-328428.A0 328428	-

Attribute Name	Value
Brand	Hikoki
