Hitachi / Hikoki W6VB3 Screw Driver Spare Parts

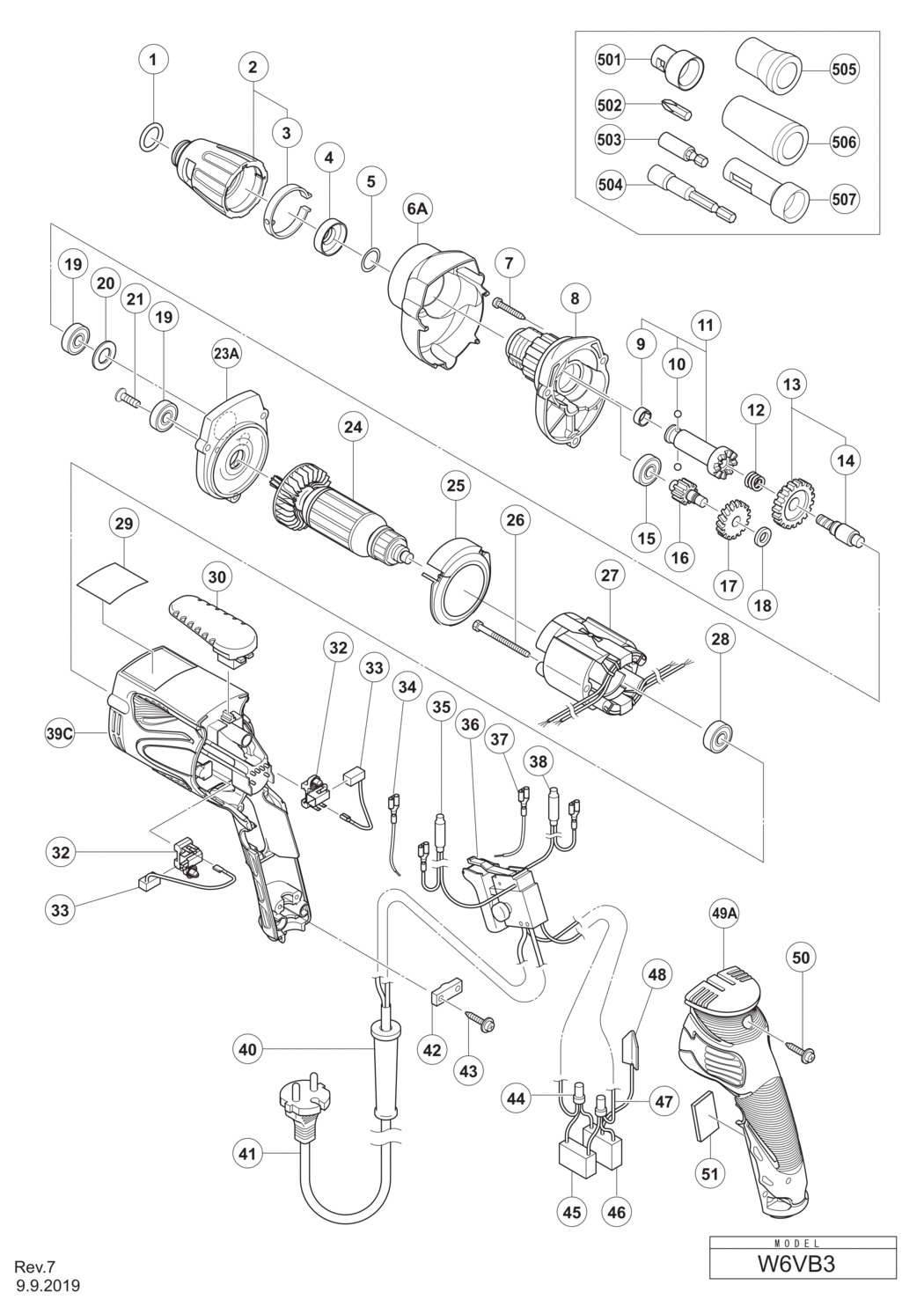

An exploded diagram and spare parts listing for the Hitachi / Hikoki W6VB3 Screw Driver

	Ex VAT	Inc VAT
1 - O-RING (S-16) HIT-876031.A12 876031	£2.98	£3.57
2 - LOCATOR ASS'Y INCLUD.3 HIT-323487.A1 323487	£12.96	£15.55
3 - CLICK SPRING HIT-323488.A4 323488	£3.02	£3.63
4 - FRINGER (A) HIT-971468.A1 971468	£1.67	£2.00
5 - O-RING (F) HIT-317662.A4 317662	£1.67	£2.00
6A - PROTECT COVER (B) HIT-323494.A0 323494	£6.82	£8.18
7 - TAPPING SCREW D4X25 (BLACK) HIT-321057.A0 321057	-
8 - GEAR COVER ASS'Y (B) INCLUD.5 HIT-323498.A0 323498	£20.95	£25.14
9 - SET RING HIT-872573.A5 872573	£1.67	£2.00
10 - STEEL BALL D3.175 (10 PCS.) HIT-959148.A38 959148	£1.67	£2.00
11 - SOCKET (B) ASS'Y INCLUD.9 HIT-317664.A0 317664	£53.99	£64.79
12 - SPRING HIT-306024.A8 306024	£1.67	£2.00
13 - GEAR ASS'Y INCLUD.14 HIT-317771.A1 317771	£53.99	£64.79
14 - GEAR SHAFT HIT-307340.A2 307340	£19.26	£23.11
15 - BALL BEARING 608VVC2PS2L HIT-608VVM.A15 608VVM	£5.70	£6.84
16 - SECOND PINION ASS'Y INCLUD.17 HIT-317770.A0 317770	£18.63	£22.36
17 - FIRST GEAR HIT-307337.A2 307337	£15.40	£18.48
18 - WASHER HIT-323497.A2 323497	£1.67	£2.00
19 - BALL BEARING 608VVC2PS2L HIT-608VVM.A14 608VVM	£5.70	£6.84
20 - WASHER (A) HIT-933545.A0 933545	-
21 - SLOTTED HD. SCREW (SEAL LOCK) M4X8 HIT-323556.A8 323556	-
23A - INNER COVER ASS'Y (A) INCLUD.19-21 HIT-323493.A3 323493	£15.48	£18.57
*24 - ARMATURE (D) 110V HIT-360674.A2 360674	£37.21	£44.65
*24 - ARMATURE (D) 220V-230V HIT-360675E.A0 360675E	£37.21	£44.65
25 - FAN GUIDE HIT-323472.A4 323472	-
26 - HEX. HD. TAPPING SCREW D4X50 HIT-961672.A15 961672	-
*27 - STATOR 110V-120V HIT-340599C.A4 340599C	£21.37	£25.64
*27 - STATOR 220V-240V HIT-340599E.A1 340599E	£21.37	£25.64
28 - BALL BEARING 608VVC2PS2L HIT-608VVM.A13 608VVM	£5.70	£6.84
29 - NAME PLATE HIT-000000.A4300 000000	-
30 - HOOK HIT-323471.A1 323471	£3.02	£3.63
32 - BRUSH HOLDER (A) HIT-323512.A1 323512	£6.18	£7.41
33 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999091.A4 999091	£17.78	£21.34
*35 - CHOKE COIL (W/INTERNAL WIRE) BROWN EXCEPT FOR SAU HIT-323566.A0 323566	£3.02	£3.63
36 - SWITCH (1P PILLAR TYPE) W/LOCK HIT-323479.A2 323479	£16.52	£19.83
*38 - CHOKE COIL (W/INTERNAL WIRE) BLUE EXCEPT FOR SAU HIT-323568.A2 323568	£3.02	£3.63
*39C - HOUSING HIT-326671.A3 326671	£19.35	£23.22
40 - CORD ARMOR D8.8 HIT-953327.A69 953327	£1.67	£2.00
*41 - CORD (LENGTH 7.5M) (CORD ARMOR D8.8) FOR GBR (110V) HIT-323562.A4 323562	£12.19	£14.63
*41 - CORD (LENGTH 7.5M) (CORD ARMOR D8.8) FOR GBR (230V) HIT-323560.A4 323560	-
42 - CORD CLIP HIT-937631.A174 937631	£1.67	£2.00
43 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A64 984750	£1.67	£2.00
*44 - CONNECTOR 50091 (10 PCS.) EXCEPT FOR SAU HIT-959140.A100 959140	£4.98	£5.97
*45 - NOISE SUPPRESSOR EXCEPT FOR SAU HIT-930039.A60 930039	£3.85	£4.62
*46 - NOISE SUPPRESSOR EXCEPT FOR SAU HIT-994273.A32 994273	£7.30	£8.76
*47 - INTERNAL WIRE EXCEPT FOR SAU HIT-317667.A3 317667	-
*48 - EARTH TERMINAL EXCEPT FOR SAU HIT-992635.A9 992635	£1.67	£2.00
49A - HANDLE COVER HIT-326672.A5 326672	£16.52	£19.83
50 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A134 301653	£1.67	£2.00
51 - SPONGE HIT-329770.A1 329770	-
*504 - MAGNETIC HEX. SOCKET 5/16X65L FOR FIN HIT-985322.A5 985322	£21.78	£26.13
*505 - SUB STOPPER (B) FOR H5/16 HEX. SOCKET FOR FIN HIT-317671.A5 317671	£12.71	£15.25
601 - SUB STOPPER (B) H1/4 HEX. SOCKET HIT-317827.A3 317827	£12.71	£15.25
602 - NON-MAGNETIC HEX. SOCKET 3/8 65L HIT-985326.A0 985326	£13.54	£16.25
603 - NON-MAGNETIC HEX. SOCKET 5/16 65L HIT-985327.A5 985327	£13.54	£16.25
604 - NON-MAGNETIC HEX. SOCKET 1/4 65L HIT-985328.A0 985328	£13.54	£16.25
605 - NON-MAGNETIC HEX. SOCKET 10MM 65L HIT-985329.A26 985329	-
606 - NON-MAGNETIC BIT HOLDER HIT-982563Z.A1 982563Z	-
607 - MAGNETIC BIT HOLDER (75L) HIT-982554Z.A3 982554Z	-
608 - + DRIVER BIT NO.1 25L HIT-985333.A0 985333	-
609 - + DRIVER BIT (A) NO.3 25L HIT-971512Z.A19 971512Z	-
610 - + DRIVER BIT NO.1 25L W/STEPPED ROD HIT-985334.A5 985334	-
611 - + DRIVER BIT NO.2 25L W/STEPPED ROD HIT-985335.A0 985335	-
612 - - DRIVER BIT 4MMX25 HIT-985336.A5 985336	-
613 - - DRIVER BIT 5MMX25 HIT-985337.A0 985337	-
614 - - DRIVER BIT 6MMX25 HIT-985338.A5 985338	-
615 - - DRIVER BIT 8MMX25 HIT-985339.A0 985339	-
616 - - DRIVER BIT 4MMX25 (W/STEPPED ROD) HIT-985340.A5 985340	-
617 - - DRIVER BIT 5MMX25 (W/STEPPED ROD) HIT-985341.A0 985341	-
618 - HEX. BIT 4MMX25L HIT-985342.A5 985342	-
619 - HEX. BIT 5MMX25L HIT-985343.A0 985343	£4.33	£5.20
620 - HEX. BIT 6MMX25L HIT-985344.A4 985344	-
621 - MAGNETIC HEX. SOCKET 3/8X65L HIT-985330.A2 985330	£16.75	£20.10
622 - MAGNETIC HEX. SOCKET 1/4X65L HIT-985332.A3 985332	£16.75	£20.10
623 - CASE HIT-310904.A3 310904	£38.53	£46.24
1 - O-RING (S-16) HIT-876031.A5 876031	£2.98	£3.57
2 - LOCATOR ASS'Y INCLUD.3 HIT-323487.A4 323487	£12.96	£15.55
3 - CLICK SPRING HIT-323488.A1 323488	£3.02	£3.63
4 - FRINGER (A) HIT-971468.A5 971468	£1.67	£2.00
5 - O-RING (F) HIT-317662.A0 317662	£1.67	£2.00
6A - PROTECT COVER (B) HIT-323494.A2 323494	£6.82	£8.18
7 - TAPPING SCREW D4X25 (BLACK) HIT-321057.A4 321057	-
8 - GEAR COVER ASS'Y (B) INCLUD.5 HIT-323498.A2 323498	£20.95	£25.14
9 - SET RING HIT-872573.A3 872573	£1.67	£2.00
10 - STEEL BALL D3.175 (10 PCS.) HIT-959148.A17 959148	£1.67	£2.00
11 - SOCKET (B) ASS'Y INCLUD.9 HIT-317664.A2 317664	£53.99	£64.79
12 - SPRING HIT-306024.A6 306024	£1.67	£2.00
13 - GEAR ASS'Y INCLUD.14 HIT-317771.A0 317771	£53.99	£64.79
14 - GEAR SHAFT HIT-307340.A1 307340	£19.26	£23.11
15 - BALL BEARING 608VVC2PS2L HIT-608VVM.A170 608VVM	£5.70	£6.84
16 - SECOND PINION ASS'Y INCLUD.17 HIT-317770.A1 317770	£18.63	£22.36
17 - FIRST GEAR HIT-307337.A0 307337	£15.40	£18.48
18 - WASHER HIT-323497.A0 323497	£1.67	£2.00
19 - BALL BEARING 608VVC2PS2L HIT-608VVM.A169 608VVM	£5.70	£6.84
20 - WASHER (A) HIT-933545.A4 933545	-
21 - SLOTTED HD. SCREW (SEAL LOCK) M4X8 HIT-323556.A4 323556	-
23A - INNER COVER ASS'Y (A) INCLUD.19-21 HIT-323493.A0 323493	£15.48	£18.57
*24 - ARMATURE (D) 110V HIT-360674.A0 360674	£37.21	£44.65
*24 - ARMATURE (D) 220V-230V HIT-360675E.A1 360675E	£37.21	£44.65
25 - FAN GUIDE HIT-323472.A5 323472	-
26 - HEX. HD. TAPPING SCREW D4X50 HIT-961672.A10 961672	-
*27 - STATOR 110V-120V HIT-340599C.A5 340599C	£21.37	£25.64
*27 - STATOR 220V-240V HIT-340599E.A0 340599E	£21.37	£25.64
28 - BALL BEARING 608VVC2PS2L HIT-608VVM.A33 608VVM	£5.70	£6.84
29 - NAME PLATE HIT-000000.A4303 000000	-
30 - HOOK HIT-323471.A0 323471	£3.02	£3.63
32 - BRUSH HOLDER (A) HIT-323512.A2 323512	£6.18	£7.41
33 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999091.A5 999091	£17.78	£21.34
*35 - CHOKE COIL (W/INTERNAL WIRE) BROWN EXCEPT FOR SAU HIT-323566.A1 323566	£3.02	£3.63
36 - SWITCH (1P PILLAR TYPE) W/LOCK HIT-323479.A1 323479	£16.52	£19.83
*38 - CHOKE COIL (W/INTERNAL WIRE) BLUE EXCEPT FOR SAU HIT-323568.A1 323568	£3.02	£3.63
*39C - HOUSING HIT-326671.A4 326671	£19.35	£23.22
40 - CORD ARMOR D8.8 HIT-953327.A44 953327	£1.67	£2.00
*41 - CORD (LENGTH 7.5M) (CORD ARMOR D8.8) FOR GBR (110V) HIT-323562.A3 323562	£12.19	£14.63
*41 - CORD (LENGTH 7.5M) (CORD ARMOR D8.8) FOR GBR (230V) HIT-323560.A5 323560	-
42 - CORD CLIP HIT-937631.A179 937631	£1.67	£2.00
43 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A107 984750	£1.67	£2.00
*44 - CONNECTOR 50091 (10 PCS.) EXCEPT FOR SAU HIT-959140.A99 959140	£4.98	£5.97
*45 - NOISE SUPPRESSOR EXCEPT FOR SAU HIT-930039.A66 930039	£3.85	£4.62
*46 - NOISE SUPPRESSOR EXCEPT FOR SAU HIT-994273.A44 994273	£7.30	£8.76
*47 - INTERNAL WIRE EXCEPT FOR SAU HIT-317667.A4 317667	-
*48 - EARTH TERMINAL EXCEPT FOR SAU HIT-992635.A15 992635	£1.67	£2.00
49A - HANDLE COVER HIT-326672.A4 326672	£16.52	£19.83
50 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A133 301653	£1.67	£2.00
51 - SPONGE HIT-329770.A2 329770	-
*504 - MAGNETIC HEX. SOCKET 5/16X65L FOR FIN HIT-985322.A4 985322	£21.78	£26.13
*505 - SUB STOPPER (B) FOR H5/16 HEX. SOCKET FOR FIN HIT-317671.A4 317671	£12.71	£15.25
601 - SUB STOPPER (B) H1/4 HEX. SOCKET HIT-317827.A4 317827	£12.71	£15.25
602 - NON-MAGNETIC HEX. SOCKET 3/8 65L HIT-985326.A1 985326	£13.54	£16.25
603 - NON-MAGNETIC HEX. SOCKET 5/16 65L HIT-985327.A4 985327	£13.54	£16.25
604 - NON-MAGNETIC HEX. SOCKET 1/4 65L HIT-985328.A1 985328	£13.54	£16.25
605 - NON-MAGNETIC HEX. SOCKET 10MM 65L HIT-985329.A25 985329	-
606 - NON-MAGNETIC BIT HOLDER HIT-982563Z.A2 982563Z	-
607 - MAGNETIC BIT HOLDER (75L) HIT-982554Z.A2 982554Z	-
608 - + DRIVER BIT NO.1 25L HIT-985333.A1 985333	-
609 - + DRIVER BIT (A) NO.3 25L HIT-971512Z.A20 971512Z	-
610 - + DRIVER BIT NO.1 25L W/STEPPED ROD HIT-985334.A4 985334	-
611 - + DRIVER BIT NO.2 25L W/STEPPED ROD HIT-985335.A1 985335	-
612 - - DRIVER BIT 4MMX25 HIT-985336.A4 985336	-
613 - - DRIVER BIT 5MMX25 HIT-985337.A1 985337	-
614 - - DRIVER BIT 6MMX25 HIT-985338.A4 985338	-
615 - - DRIVER BIT 8MMX25 HIT-985339.A1 985339	-
616 - - DRIVER BIT 4MMX25 (W/STEPPED ROD) HIT-985340.A4 985340	-
617 - - DRIVER BIT 5MMX25 (W/STEPPED ROD) HIT-985341.A1 985341	-
618 - HEX. BIT 4MMX25L HIT-985342.A4 985342	-
619 - HEX. BIT 5MMX25L HIT-985343.A1 985343	£4.33	£5.20
620 - HEX. BIT 6MMX25L HIT-985344.A5 985344	-
621 - MAGNETIC HEX. SOCKET 3/8X65L HIT-985330.A0 985330	£16.75	£20.10
622 - MAGNETIC HEX. SOCKET 1/4X65L HIT-985332.A5 985332	£16.75	£20.10
623 - CASE HIT-310904.A0 310904	£38.53	£46.24

Attribute Name	Value
Brand	Hikoki
