Hitachi / Hikoki VTV16 Impact Drill Spare Parts

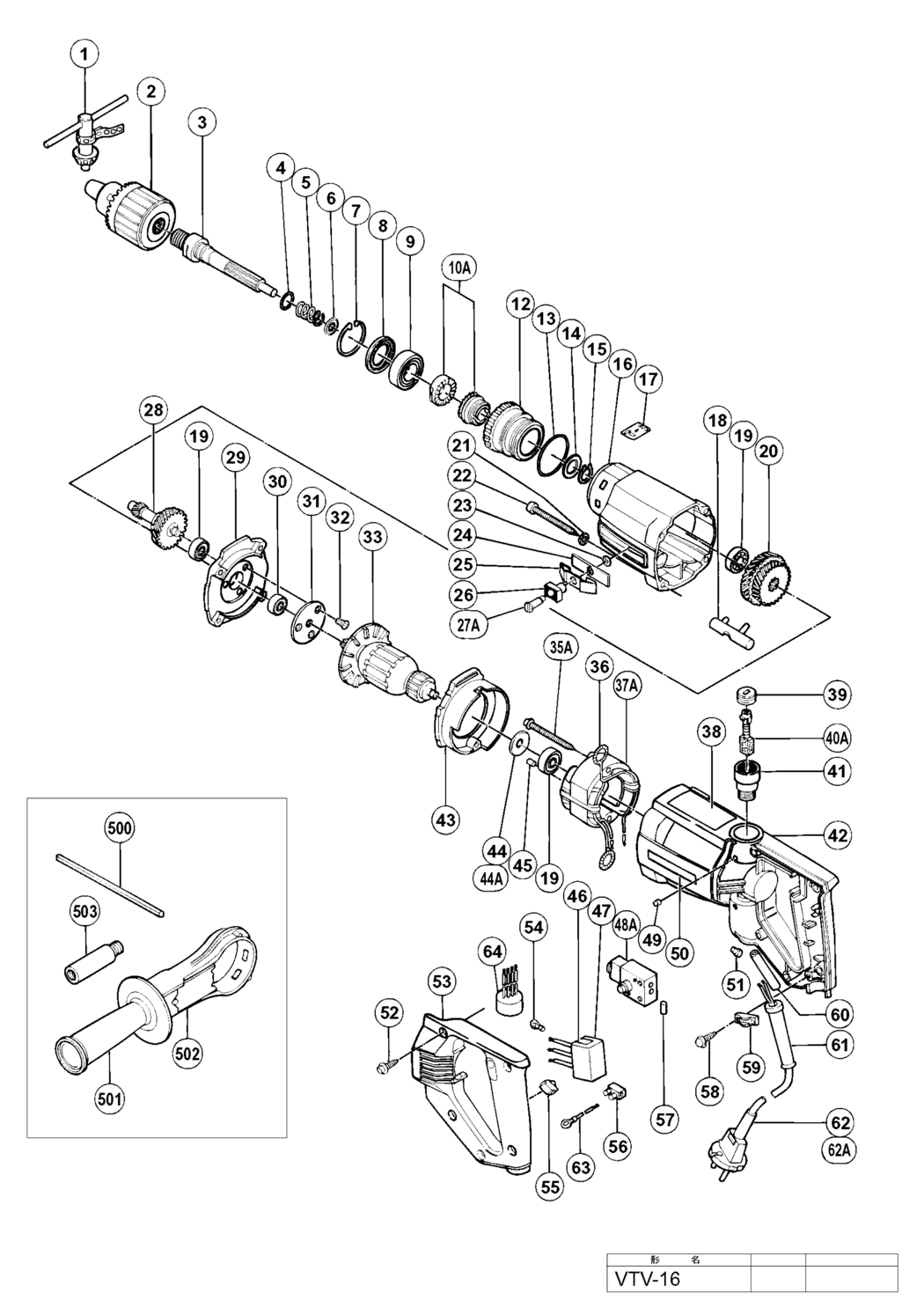

An exploded diagram and spare parts listing for the Hitachi / Hikoki VTV16 Impact Drill

	Ex VAT	Inc VAT
1 - CHUCK WRENCH 13G HIT-930733.A1 930733	£8.66	£10.39
2 - DRILL CHUCK 16WL INCLUD.1 HIT-950284.A0 950284	£95.95	£115.14
3 - SPINDLE HIT-981566.A0 981566	£24.90	£29.88
4 - O-RING (S-14) HIT-876319.A0 876319	£1.67	£2.00
5 - SPRING HIT-981568.A0 981568	£1.67	£2.00
6 - WASHER HIT-971657.A0 971657	£1.67	£2.00
7 - RETAINING RING FOR D35 HOLE (10 PCS.) HIT-939556.A3 939556	£11.82	£14.18
8 - DUST SEAL HIT-981572.A0 981572	£3.97	£4.76
9 - BALL BEARING 6003VVCMPS2L HIT-6003VV.A5 6003VV	£9.03	£10.84
10A - RATCHET (A).(B) SET HIT-981592.A0 981592	-
12 - CHANGE RING HIT-981571.A0 981571	£29.13	£34.96
13 - O-RING (S-38) HIT-980717.A0 980717	£1.67	£2.00
14 - WASHER (B) HIT-971736.A0 971736	£1.67	£2.00
15 - RETAINING RING FOR D14 SHAFT (10 PCS.) HIT-939543.A3 939543	£3.12	£3.74
16 - GEAR COVER HIT-981564.A0 981564	£31.50	£37.80
17 - LABEL HIT-971661.A1 971661	-
18 - SHIFT ROD HIT-981573.A0 981573	-
19 - BALL BEARING 608VVC2PS2L HIT-608VVM.A83 608VVM	£5.70	£6.84
20 - GEAR HIT-981570.A0 981570	£40.32	£48.38
21 - WASHER M5 (10 PCS.) HIT-949424.A8 949424	£1.67	£2.00
22 - TAPPING SCREW (W/SP. WASHER) D5X45 HIT-983981.A0 983981	-
23 - SUPER LOCK WASHER M5 HIT-942864.A0 942864	£1.67	£2.00
24 - SEAL PLATE HIT-981574.A0 981574	£1.67	£2.00
25 - SHIFT SPRING HIT-981575.A0 981575	£1.67	£2.00
26 - SHIFT LEVER HIT-981576.A0 981576	£1.67	£2.00
27A - SPECIAL FLAT HD. SCREW M5 (SEAL LOCK) HIT-981577.A0 981577	£5.98	£7.18
28 - SECOND PINION HIT-981569.A0 981569	£34.64	£41.57
29 - INNER COVER ASS'Y INCLUD.19 HIT-981581.A1 981581	-
30 - BALL BEARING 609VVC2PS2L HIT-609VVM.A2 609VVM	£6.35	£7.62
31 - BEARING HOLDER HIT-981585.A1 981585	£4.33	£5.20
32 - SEAL LOCK HEX.SOCKET FLAT HD. BOLT M5X16 HIT-981588.A1 981588	£1.67	£2.00
*33 - ARMATURE 220V-230V HIT-981611E.A0 981611E	£120.04	£144.05
35A - TAPPING SCREW D5X60 HIT-991007.A0 991007	£1.67	£2.00
36 - BRUSH TERMINAL HIT-930703.A42 930703	£3.28	£3.93
*37A - STATOR ASS'Y 220V INCLUD.36 FOR SAF HIT-971720G.A0 971720G	£54.66	£65.59
38 - NAME PLATE HIT-000000.A4495 000000	-
39 - BRUSH CAP HIT-961781.A2 961781	£3.15	£3.78
40A - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999073.A15 999073	£18.73	£22.48
41 - BRUSH HOLDER HIT-981586.A0 981586	£7.62	£9.15
42 - HOUSING ASS'Y INCLUD.41 HIT-982320Z.A0 982320Z	-
43 - FAN GUIDE HIT-981562.A2 981562	£3.97	£4.76
44 - DUST SEAL (A) TILL 2.1995 HIT-956387.A4 956387	£3.97	£4.76
44A - WASHER (C) HIT-984367.A2 984367	£1.67	£2.00
45 - BEARING LOCK HIT-946362.A7 946362	£1.67	£2.00
*46 - NOISE SUPPRESSOR HIT-994273.A67 994273	£7.30	£8.76
*47 - SUPPORT (B) FOR NOISE SUPPRESSOR HIT-930153.A24 930153	£1.67	£2.00
48B - SWITCH (2P PILLAR TYPE) W/LOCK HIT-336470.A0 336470	£15.04	£18.05
49 - SLOTTED HD. SET SCREW M4X5 (10 PCS.) HIT-949365.A0 949365	-
50 - BRAND LABEL HIT-957561.A8 957561	-
*51 - CONNECTOR 50092 (10 PCS.) HIT-959141.A15 959141	£7.12	£8.54
52 - TAPPING SCREW (W/WASHER) D4X20 HIT-982095.A6 982095	£1.67	£2.00
*53A - HANDLE COVER FOR EUROPE (EXCEPT SUI) HIT-324722.A0 324722	-
*54 - TERMINAL FOR NOISE SUPPRESSOR HIT-938108.A8 938108	£1.67	£2.00
*56 - PILLAR TERMINAL (B) TILL 10.1999 HIT-982805Z.A3 982805Z	£3.28	£3.93
57 - TUBE (D) HIT-981373.A112 981373	£1.67	£2.00
58 - TAPPING SCREW (W/WASHER) D4X16 HIT-930446.A2 930446	£1.67	£2.00
59 - CORD CLIP HIT-960266.A83 960266	£1.67	£2.00
*61 - CORD ARMOR D8.8 HIT-953327.A55 953327	£1.67	£2.00
*62A - CORD (CORD ARMOR D8.8) FOR GBR HIT-500435Z.A94 500435Z	£14.14	£16.97
*63 - INTERNAL WIRE FOR SUI HIT-986277.A2 986277	-
65 - SWITCH HOUSING SET INCLUD.42 HIT-336476.A0 336476	£60.99	£73.19
500 - STOPPER HIT-931844.A9 931844	-
501 - SIDE HANDLE ASS'Y INCLUD.502 HIT-981579.A0 981579	£25.14	£30.17
502 - HANDLE PLATE HIT-981580.A0 981580	£3.64	£4.37
503 - HANDLE JOINT HIT-983987.A0 983987	£9.03	£10.84
608 - DRILL BIT (B) D16.0X160 HIT-971670.A1 971670	-
