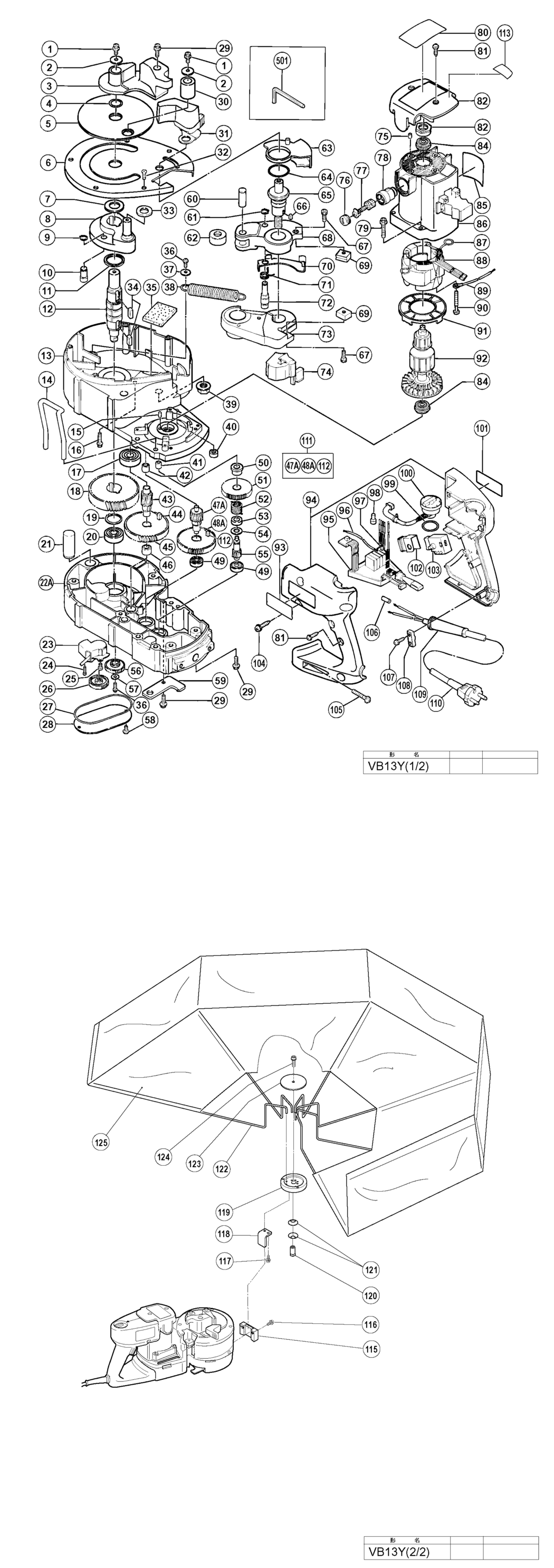

An exploded diagram and spare parts listing for the Hitachi / Hikoki VB13Y Portable Rebar Cutter/bender
Ex VAT Inc VAT
1 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-998471.A3 998471 £1.67 £2.00
2 - WASHER HIT-316224.A0 316224 -
3 - CENTER PLATE (A) HIT-318288.A0 318288 -
*3 - CENTER PLATE SET (D38) FOR USA HIT-317677.A0 317677 -
4 - O-RING (P-18) HIT-873570.A9 873570 £1.67 £2.00
5 - TURN TABLE HIT-316220.A0 316220 -
6 - CAM COVER HIT-316219.A0 316219 -
7 - FELT PACKING HIT-316216.A0 316216 -
8 - CAM HIT-316199.A0 316199 -
9 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A18 939540 £1.67 £2.00
10 - LOCK PIN (B) HIT-316201.A0 316201 -
11 - V-RING HIT-316198.A0 316198 -
12 - CAM SHAFT HIT-316200.A0 316200 -
13 - INNER COVER ASS'Y INCLUD.17 HIT-316184.A0 316184 -
*13 - INNER COVER ASS'Y INCLUD.17 HIT-321154.A0 321154 -
14 - STAND HIT-316225.A0 316225 £10.81 £12.97
15 - BEARING LOCK HIT-931701.A33 931701 £1.67 £2.00
16 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X20 HIT-316195.A0 316195 -
17 - BALL BEARING 6301VVCMPS2L HIT-6301VV.A26 6301VV £9.32 £11.19
18 - FINAL GEAR HIT-316202.A0 316202 -
19 - RETAINING RING FOR D25 SHAFT HIT-965469.A5 965469 £1.67 £2.00
20 - BALL BEARING 6201VV HIT-6201VV.A27 6201VV £8.30 £9.96
21 - PIN D18 HIT-316451.A0 316451 £9.18 £11.02
22 - GEAR COVER (B) ASS'Y INCLUD.20 HIT-319355.A0 319355 -
23 - SENSOR HOLDER ASS'Y INCLUD.24 HIT-318284.A0 318284 -
*23 - SENSOR HOLDER ASS'Y INCLUD.24 HIT-316213.A1 316213 £52.74 £63.29
24 - TAPPING SCREW D3X12 HIT-316214.A0 316214 £1.67 £2.00
25 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A8 949215 £1.67 £2.00
26 - SENSOR GEAR HIT-316212.A1 316212 £4.33 £5.20
27 - O-RING (S-85) HIT-985227.A0 985227 -
28 - SENSOR COVER HIT-316215.A0 316215 -
29 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A52 994192 £1.67 £2.00
30 - ROLLER (B) HIT-316223.A0 316223 -
31 - LEVER (A) HIT-318287.A0 318287 -
*31 - LEVER FOR USA HIT-316221.A0 316221 -
32 - FLAT HD. SCREW M4X10 (10 PCS.) HIT-949322.A3 949322 £1.67 £2.00
33 - FELT PACKING HIT-316217.A0 316217 -
34 - FEATHER KEY 7X7X15 HIT-306506.A0 306506 -
35 - SUPPORT (B) HIT-316186.A2 316186 £1.67 £2.00
36 - SEAL LOCK SCREW (W/SP. WASHER) M4X12 HIT-987203.A1 987203 £1.67 £2.00
37 - THRUST WASHER HIT-875249.A4 875249 £1.67 £2.00
38 - RETURN SPRING HIT-316197.A0 316197 -
39 - FLANGE NUT M12 HIT-316196.A0 316196 -
40 - WRENCH HOLDER HIT-307607.A2 307607 £1.67 £2.00
41 - METAL HIT-316185.A0 316185 £1.67 £2.00
42 - METAL D8X10 HIT-954940.A0 954940 -
43 - THIRD PINION HIT-316203.A0 316203 -
44 - FEATHER KEY 5X5X10 HIT-948015.A0 948015 £1.67 £2.00
45 - THIRD GEAR HIT-316204.A0 316204 -
46 - METAL (B) HIT-954789.A5 954789 £1.67 £2.00
47A - SECOND PINION SINCE 9.2000 HIT-319538.A0 319538 -
48A - SECOND GEAR SINCE 9.2000 HIT-319539.A0 319539 -
49 - BALL BEARING 608VVC2PS2L HIT-608VVM.A69 608VVM £5.70 £6.84
50 - SLEEVE (B) HIT-318360.A0 318360 -
51 - FIRST GEAR (B) HIT-318358.A0 318358 -
52 - CLUTCH SPRING HIT-316209.A0 316209 -
53 - COLLAR (A) HIT-316208.A0 316208 -
54 - WASHER HIT-981077.A0 981077 £1.67 £2.00
55 - FIRST PINION (B) HIT-318359.A0 318359 -
56 - SENSOR GEAR HIT-316212.A0 316212 £4.33 £5.20
57 - WASHER (B) HIT-962569.A7 962569 £1.67 £2.00
58 - HEX. SOCKET HD. BOLT (W/FLANGE) M4X10 HIT-316228.A1 316228 £1.67 £2.00
59 - STEEL BAR GUIDE HIT-316226.A0 316226 -
60 - NEEDLE HIT-316190.A0 316190 -
61 - RETAINING RING FOR D9 SHAFT HIT-992805.A0 992805 -
62 - ROLLER (C) HIT-316189.A0 316189 -
63 - COVER HIT-318285.A0 318285 -
64 - O-RING (S-34) HIT-980879.A1 980879 £1.67 £2.00
65 - BOLT (A) HIT-316194.A0 316194 -
66 - FEATHER KEY 4X4X8 HIT-980809.A1 980809 £1.67 £2.00
67 - HEX. SOCKET HD. BOLT M5X16 (10 PCS.) HIT-949821.A3 949821 £3.28 £3.93
68 - BRACKET (A) HIT-316188.A0 316188 -
69 - CUTTER (1 PAIR) HIT-316235.A0 316235 -
70 - CUTTER GUARD HIT-316191.A0 316191 -
71 - SPRING (C) HIT-316192.A0 316192 -
72 - PIN FOR SPRING HIT-316193.A0 316193 -
73 - BRACKET (B) HIT-316187.A0 316187 -
74 - DUST GUARD HIT-316222.A0 316222 -
*74 - GRIP RUBBER FOR USA HIT-321156.A0 321156 -
75 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A125 938477 £1.67 £2.00
76 - BRUSH CAP HIT-935829.A17 935829 £1.67 £2.00
77 - CARBON BRUSH (1 PAIR) HIT-999043.A43 999043 £5.54 £6.65
78 - BRUSH HOLDER HIT-971001.A3 971001 £8.64 £10.37
79 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X30 HIT-313585.A4 313585 -
80 - CAUTION PLATE (E) HIT-318286.A0 318286 -
80 - WARNING LABEL (D) HIT-000000.A4667 000000 -
81 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A62 301653 £1.67 £2.00
82 - TAIL COVER HIT-316227.A0 316227 £11.35 £13.62
83 - BEARING BUSHING (B) HIT-310111.A2 310111 £12.04 £14.45
84 - BALL BEARING (A) HIT-318362.A0 318362 £13.39 £16.07
*84 - BALL BEARING 608VVC2PS2L FOR USA HIT-608VVM.A68 608VVM £5.70 £6.84
85 - BRAND LABEL HIT-000000.A4669 000000 -
85 - BRAND LABEL (B) HIT-000000.A4670 000000 -
86 - HOUSING ASS'Y (GREEN) INCLUD.75 HIT-310146.A2 310146 -
87 - BRUSH TERMINAL HIT-930703.A53 930703 £3.28 £3.93
88 - STATOR ASS'Y 120V INCLUD.87 HIT-340487C.A0 340487C -
*88 - STATOR ASS'Y 230V INCLUD.87 HIT-340419E.A0 340419E -
89 - INTERNAL WIRE EXCEPT FOR USA HIT-990861.A3 990861 £1.67 £2.00
90 - HEX. HD. TAPPING SCREW D5X40 HIT-980864.A4 980864 -
91 - FAN GUIDE HIT-980931.A0 980931 £5.27 £6.32
92 - ARMATURE ASS'Y 120V INCLUD.84 HIT-360470U.A0 360470U -
*92 - ARMATURE 230V HIT-360470E.A0 360470E -
93 - NAME PLATE HIT-000000.A4672 000000 -
95 - CONTROLLER CIRCUIT HIT-318282.A0 318282 -
*95 - CONTROLLER CIRCUIT (A) FOR USA HIT-319352.A0 319352 -
96 - INTERNAL WIRE EXCEPT FOR USA HIT-318283.A0 318283 -
97 - TUBE (D) HIT-981373.A80 981373 £1.67 £2.00
98 - CONNECTOR 50091 (10 PCS.) HIT-959140.A70 959140 £4.98 £5.97
*98 - CONNECTOR 50091 (10 PCS.) FOR USA HIT-959140.A71 959140 £4.98 £5.97
99 - O-RING (S-24) HIT-878609.A3 878609 £1.67 £2.00
100 - VOLUME HOLDER ASS'Y INCLUD.99 HIT-318281.A0 318281 -
101 - CAUTION PLATE (D) HIT-318289.A0 318289 -
103 - SWITCH (2P PLUG IN TYPE) W/O LOCK HIT-318280.A0 318280 -
*103 - SWITCH (2P PLUG IN TYPE) W/O LOCK FOR USA HIT-319353.A0 319353 -
104 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A67 302089 £1.67 £2.00
105 - MACHINE SCREW (W/WASHERS) M5X20 (BLACK) HIT-316229.A1 316229 £1.67 £2.00
106 - TUBE (D) FOR CORD HIT-981373.A81 981373 £1.67 £2.00
107 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A33 984750 £1.67 £2.00
108 - CORD CLIP HIT-937631.A126 937631 £1.67 £2.00
109 - CORD ARMOR D8.8 HIT-953327.A21 953327 £1.67 £2.00
*110 - CORD (CORD ARMOR D8.8) HIT-500247Z.A6 500247Z -
*110 - CORD (CORD ARMOR D8.8) FOR GBR HIT-500450Z.A12 500450Z £35.67 £42.80
*110 - CORD (CORD ARMOR D8.8) FOR SUI HIT-500248Z.A11 500248Z -
*110 - CORD (CORD ARMOR D8.8) FOR USA HIT-500240Z.A8 500240Z -
111 - SECOND PINION ASS'Y INCLUD.47A HIT-319537.A0 319537 -
112 - FEATHER KEY 4X4X8 SINCE 9.2000 HIT-980809.A2 980809 £1.67 £2.00
113 - WARNING LABEL HIT-000000.A4673 000000 -
115 - BASE (B) FOR USA HIT-321155.A0 321155 -
116 - NYLOCK BOLT (W/FLANGE) M5X20 FOR USA HIT-320908.A0 320908 -
117 - NYLOCK BOLT (W/FLANGE) M5X16 FOR USA HIT-313082.A0 313082 £1.67 £2.00
118 - BASE (C) FOR USA HIT-320909.A0 320909 -
119 - BASE (A) FOR USA HIT-320910.A0 320910 -
120 - SHAFT (C) FOR USA HIT-320911.A0 320911 -
121 - BELLEVILLE SPRING FOR USA HIT-980877.A4 980877 £1.67 £2.00
122 - ARM FOR USA HIT-320912.A0 320912 -
123 - WASHER (D) FOR USA HIT-320913.A0 320913 -
124 - NYLOCK BOLT (W/FLANGE) M6X16 FOR USA HIT-880474.A3 880474 £1.67 £2.00
125 - GUARD (CLOTH TYPE) FOR USA HIT-320914.A0 320914 -
501 - HEX. BAR WRENCH 4MM HIT-944458.A5 944458 £1.67 £2.00
601 - GREASE FOR IMPACT WRENCH (100G) FOR USA HIT-971042.A7 971042 £16.77 £20.12
602 - CASE FOR USA HIT-314837.A1 314837 -
603 - CENTER PLATE FOR USA HIT-316233.A0 316233 -
