Hitachi / Hikoki UV3628DA Cordless Others Spare Parts

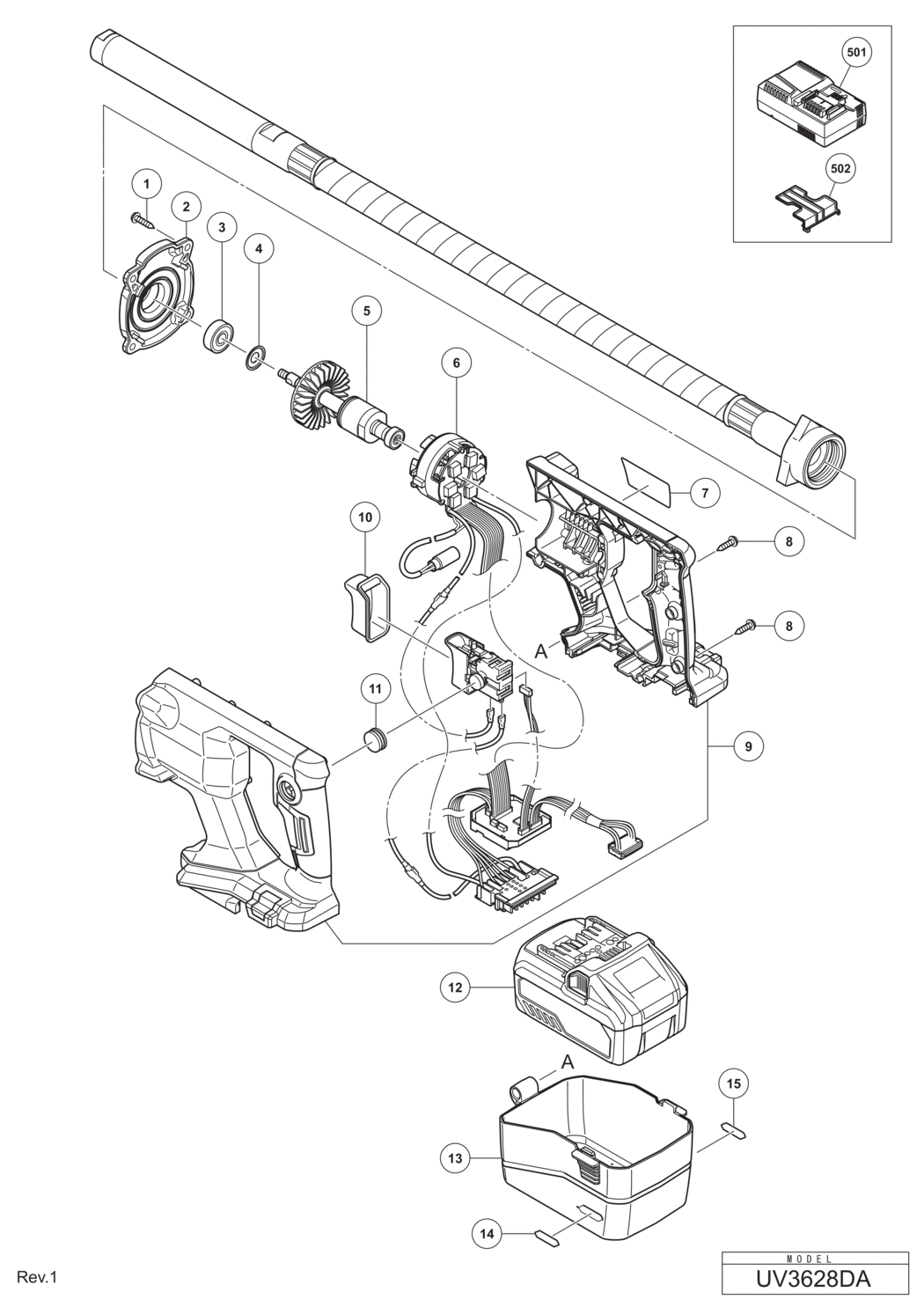

An exploded diagram and spare parts listing for the Hitachi / Hikoki UV3628DA Cordless Others

	Ex VAT	Inc VAT
1 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A45 302089	£1.67	£2.00
2 - FRONT COVER HIT-376121.A0 376121	-
3 - BALL BEARING 629VV HIT-629VVM.A29 629VVM	£6.00	£7.20
4 - WASHER (A) HIT-958915.A3 958915	£1.67	£2.00
5 - ROTOR ASS'Y HIT-361129.A0 361129	-
6 - STATOR FET PCB ASS'Y HIT-341067.A0 341067	-
7 - NAME PLATE HIT-000000.A1509 000000	-
8 - TAPPING SCREW (W/FLANGE) D3X16 (BLACK) HIT-313687.A67 313687	£1.67	£2.00
9 - HOUSING (A).(B) SET HIT-376120.A0 376120	-
10 - SWITCH COVER HIT-376123.A0 376123	-
11 - ON LOCK COVER HIT-376124.A0 376124	-
12 - BATTERY BSL 36B18 (EUROPE AUS NZL) INCLUD.502 HIT-372120.A4 372120	£239.38	£287.25
13 - BATTERY COVER HIT-376122.A0 376122	-
14 - MV LABEL (A) HIT-373913.A5 373913	-
15 - MV LABEL (B) HIT-373914.A2 373914	-
501 - CHARGER (MODEL UC 18YSL3) HIT-000000.A1511 000000	-
502 - BATTERY COVER HIT-329897.A91 329897	£1.67	£2.00

Attribute Name	Value
Brand	Hikoki
