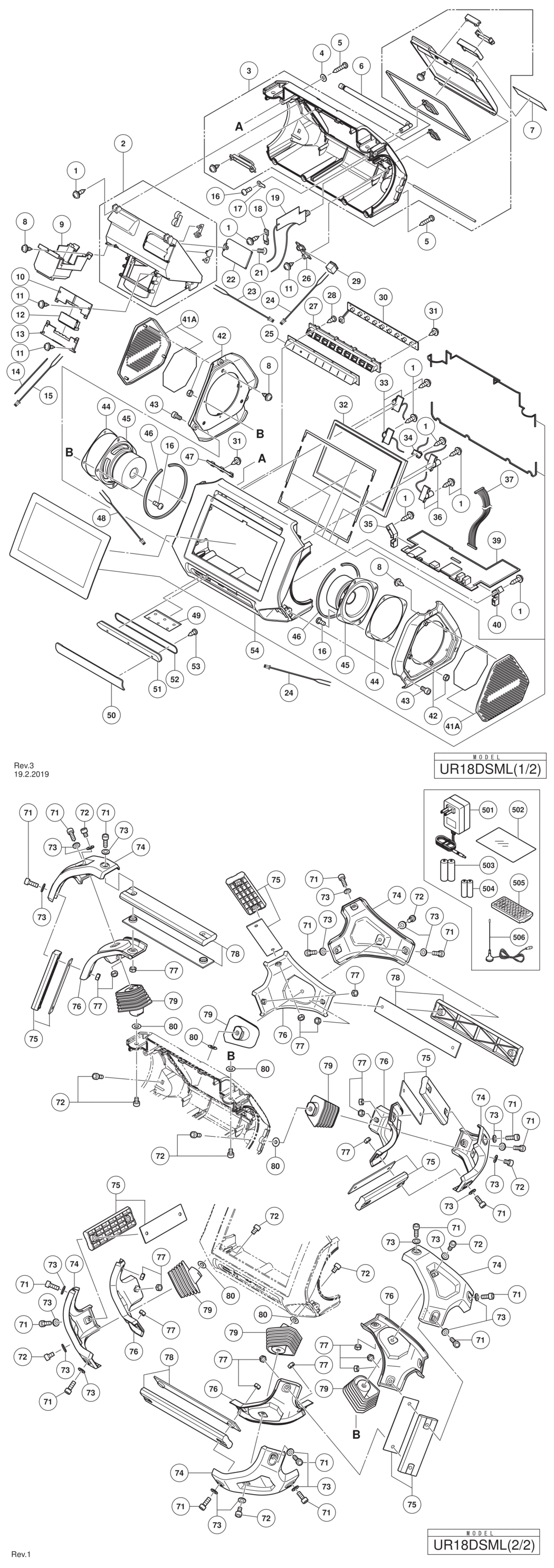

1 - TAPPING SCREW (W/FLANGE) D3X10
HIT-370845.A0
370845
|
-
|
|
|
|
2 - BATTERY COMPARTMENT SET
HIT-370868.A0
370868
|
-
|
|
|
|
3 - BACK HOUSING SET
HIT-370867.A0
370867
|
-
|
|
|
|
4 - RUBBER WASHER
HIT-371878.A0
371878
|
-
|
|
|
|
5 - TAPPING SCREW (W/FLANGE) D4X18
HIT-372723.A0
372723
|
-
|
|
|
|
6 - ROD ANTENNA
HIT-371876.A0
371876
|
-
|
|
|
|
7 - NAME PLATE
HIT-000000.A5046
000000
|
-
|
|
|
|
8 - TAPPING SCREW (W/FLANGE) D2X8
HIT-338364.A1
338364
|
-
|
|
|
|
9 - ADAPTER STORAGE CASE
HIT-370863.A0
370863
|
-
|
|
|
|
10 - UPPER CONTACT BRACKET
HIT-338388.A1
338388
|
-
|
|
|
|
11 - TAPPING SCREW (W/FLANGE) D2.3X8
HIT-338399.A1
338399
|
-
|
|
|
|
12 - BATTERY TERMINAL
HIT-339154.A2
339154
|
-
|
|
|
|
13 - LOWER CONTACT BRACKET
HIT-338389.A1
338389
|
-
|
|
|
|
14 - INTERNAL WIRE (B)
HIT-338407.A1
338407
|
-
|
|
|
|
15 - CONNECTOR D
HIT-338406.A1
338406
|
-
|
|
|
|
16 - MACHINE SCREW (W/FLANGE) M3X8
HIT-338398.A1
338398
|
-
|
|
|
|
17 - WASHER D7XD4.2X0.3
HIT-372786.A0
372786
|
-
|
|
|
|
18 - PRESSING PLATE G
HIT-370843.A0
370843
|
-
|
|
|
|
19 - PAL TERMINAL PCBA
HIT-370844.A0
370844
|
-
|
|
|
|
21 - SCREW M3
HIT-338410.A1
338410
|
-
|
|
|
|
22 - BATTERY COVER
HIT-338387.A1
338387
|
-
|
|
|
|
23 - CONNECTOR B
HIT-338404.A1
338404
|
-
|
|
|
|
24 - CONNECTOR E
HIT-371881.A0
371881
|
-
|
|
|
|
25 - SILICON KEYPAD
HIT-370859.A0
370859
|
-
|
|
|
|
26 - DC JACK BRACKET
HIT-338394.A1
338394
|
-
|
|
|
|
27 - KEY PLATE
HIT-370860.A0
370860
|
-
|
|
|
|
28 - TAPPING SCREW (W/FLANGE) D1.4X8
HIT-372722.A0
372722
|
-
|
|
|
|
29 - DC JACK
HIT-338396.A1
338396
|
£1.67
|
£2.00
|
|
|
30 - KEYPAD PCB
HIT-370865.A0
370865
|
-
|
|
|
|
31 - TAPPING SCREW (W/FLANGE) D2X7
HIT-371879.A0
371879
|
-
|
|
|
|
32 - LCD
HIT-370851.A0
370851
|
-
|
|
|
|
33 - PRESSING PLATE A
HIT-373455.A0
373455
|
-
|
|
|
|
34 - PRESSING PLATE C
HIT-373457.A0
373457
|
-
|
|
|
|
35 - PRESSING PLATE E
HIT-370864.A0
370864
|
-
|
|
|
|
36 - PRESSING PLATE B
HIT-373456.A0
373456
|
-
|
|
|
|
37 - CONNECTOR CABLE
HIT-371882.A0
371882
|
-
|
|
|
|
39 - PCB
HIT-373469.A0
373469
|
-
|
|
|
|
40 - PRESSING PLATE D
HIT-370847.A0
370847
|
-
|
|
|
|
41 - SPEAKER GRILL SET
HIT-338370.A1
338370
|
-
|
|
|
|
42 - SIDE PLATE
HIT-338377.A1
338377
|
-
|
|
|
|
43 - HEX. SOCKET HD. BOLT M4X8 (10 PCS.)
HIT-949811.A6
949811
|
£2.86
|
£3.43
|
|
|
44 - SPEAKER RESISTANCE STRIP
HIT-338402.A1
338402
|
-
|
|
|
|
45 - SPEAKER (DSDL)
HIT-338395.A0
338395
|
-
|
|
|
|
46 - WATER RESISTANCE STRIP F
HIT-371880.A0
371880
|
-
|
|
|
|
47 - RUBBER HINGE HOLDER
HIT-371883.A0
371883
|
-
|
|
|
|
48 - CONNECTOR C
HIT-338405.A1
338405
|
£3.21
|
£3.85
|
|
|
49 - RUBBER HINGE
HIT-371877.A0
371877
|
-
|
|
|
|
50 - FRONT TERMINAL COVER
HIT-370857.A0
370857
|
-
|
|
|
|
51 - PRESSING PLATE F
HIT-370855.A0
370855
|
-
|
|
|
|
52 - WATER RESISTANCE RING
HIT-370854.A0
370854
|
-
|
|
|
|
53 - TAPPING SCREW D1.7X7
HIT-370861.A0
370861
|
-
|
|
|
|
54 - FRONT HOUSING SET
HIT-371884.A0
371884
|
-
|
|
|
|
71 - HEX. SOCKET HD. BOLT M5X18
HIT-372724.A0
372724
|
-
|
|
|
|
72 - HEX. SOCKET HD. BOLT M5X10
HIT-372725.A0
372725
|
-
|
|
|
|
73 - BOLT WASHER M5 (10 PCS.)
HIT-949431.A4
949431
|
£1.67
|
£2.00
|
|
|
74 - UPPER PROTECTOR
HIT-338380.A1
338380
|
-
|
|
|
|
75 - SHORT LEVER SET
HIT-371885.A0
371885
|
-
|
|
|
|
76 - LOWER PROTECTOR
HIT-338381.A1
338381
|
-
|
|
|
|
77 - NUT M5 (BLACK)
HIT-302012.A3
302012
|
£1.67
|
£2.00
|
|
|
78 - LONG LEVER SET
HIT-338368.A1
338368
|
-
|
|
|
|
79 - ABSORBER SET
HIT-338373.A1
338373
|
-
|
|
|
|
80 - RUBBER WASHER
HIT-339114.A1
339114
|
-
|
|
|
|
*501 - AC-ADAPTER (UK) FOR GBR
HIT-371888.A0
371888
|
-
|
|
|
|
502 - PROTECTION SHEET
HIT-373458.A0
373458
|
-
|
|
|
|
503 - AA BATTERY
HIT-000000.A5048
000000
|
-
|
|
|
|
504 - AAA BATTERY
HIT-000000.A5049
000000
|
-
|
|
|
|
505 - REMOTE CONTROLLER
HIT-371891.A0
371891
|
-
|
|
|
|
506 - EXTERNAL ANTENNA
HIT-371893.A0
371893
|
-
|
|
|
