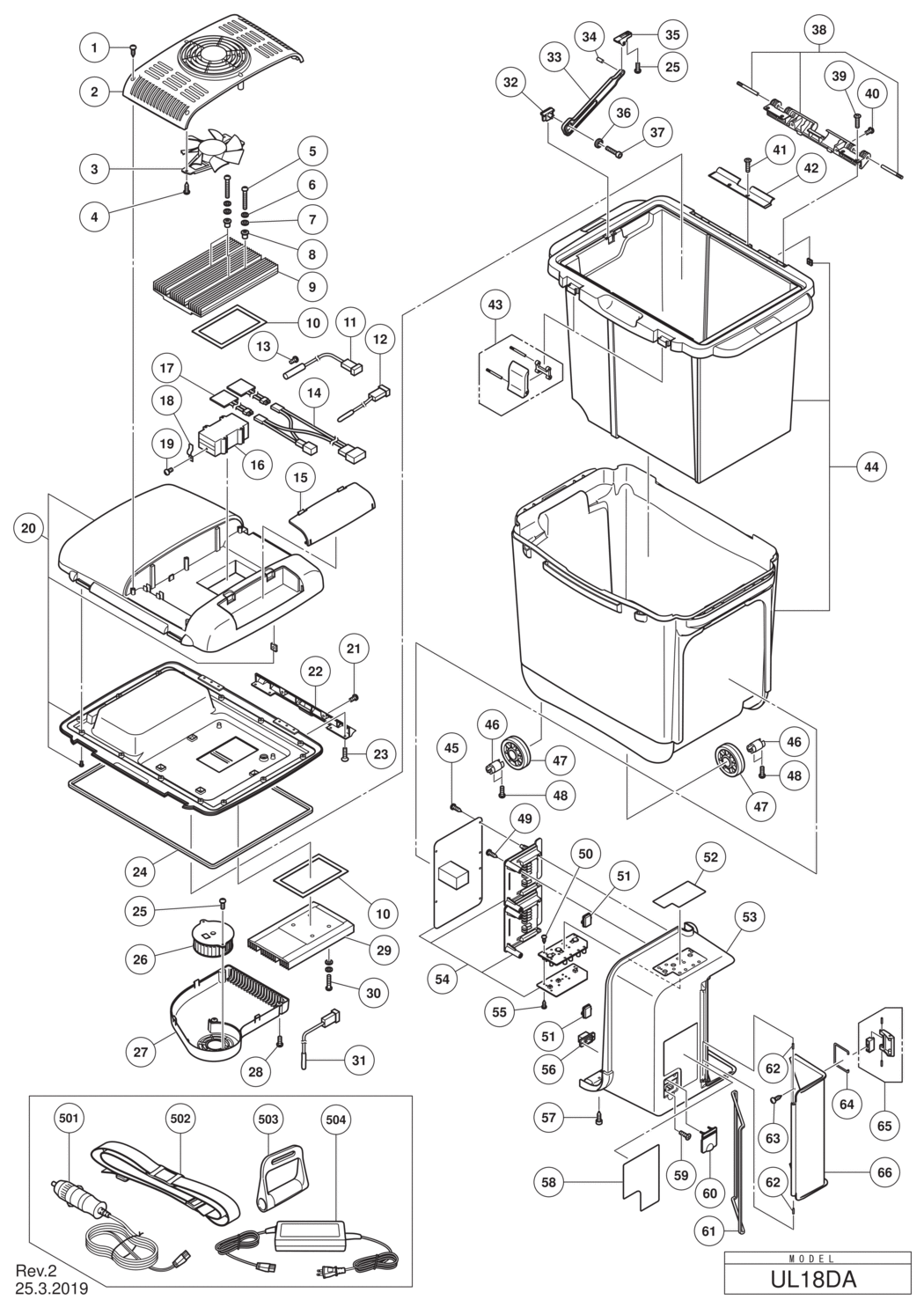

1 - SCREW ST3X12 PAS
HIT-370972.A0
370972
|
-
|
|
|
|
2 - OUTER FAN COVER
HIT-374208.A0
374208
|
-
|
|
|
|
3 - FAN (OUTER)
HIT-373452.A0
373452
|
-
|
|
|
|
4 - FLANGE SCREW ST3X12 PAS-8
HIT-374209.A0
374209
|
-
|
|
|
|
5 - MACHINE SCREW M4X25
HIT-370961.A0
370961
|
-
|
|
|
|
6 - SPRING WASHER
HIT-370962.A0
370962
|
-
|
|
|
|
7 - PLAIN WASHER
HIT-370963.A0
370963
|
-
|
|
|
|
8 - SCREW SPACER
HIT-370964.A0
370964
|
-
|
|
|
|
9 - HEAT SHINK (OUTER)
HIT-373444.A0
373444
|
-
|
|
|
|
10 - FOAM
HIT-373447.A0
373447
|
-
|
|
|
|
11 - TEMP SENSOR 85
HIT-370966.A0
370966
|
-
|
|
|
|
12 - THERMISTER (OUTSIDE)
HIT-373374.A0
373374
|
-
|
|
|
|
13 - FLANGE SCREW MS3X8 PHS-8
HIT-374340.A0
374340
|
-
|
|
|
|
14 - THERMAL FUSE
HIT-375174.A0
375174
|
-
|
|
|
|
15 - POWER CORD DOOR
HIT-374211.A0
374211
|
-
|
|
|
|
16 - ALUMINUUM BLOCK
HIT-373446.A0
373446
|
-
|
|
|
|
17 - PELTIER
HIT-375175.A0
375175
|
-
|
|
|
|
18 - SENSOR MOUNTING PLATE
HIT-374212.A0
374212
|
-
|
|
|
|
19 - MACHINE SCREW M3X8
HIT-370967.A0
370967
|
-
|
|
|
|
20 - DOOR CABINET SET
HIT-374210.A0
374210
|
-
|
|
|
|
21 - MACHINE SCREW M4X12
HIT-370982.A1
370982
|
-
|
|
|
|
22 - HINGE TOP
HIT-374227.A0
374227
|
-
|
|
|
|
23 - SCREW 3X15 KAS
HIT-370984.A0
370984
|
-
|
|
|
|
24 - FOAM
HIT-373370.A0
373370
|
-
|
|
|
|
25 - SCREW 3X10 KTS
HIT-374213.A0
374213
|
-
|
|
|
|
26 - INNER FAN
HIT-373453.A0
373453
|
-
|
|
|
|
27 - INNER FAN COVER
HIT-373443.A0
373443
|
-
|
|
|
|
28 - SCREW ST3X10 PTS
HIT-374219.A0
374219
|
-
|
|
|
|
29 - HEAT SHINK (INNER)
HIT-373445.A0
373445
|
-
|
|
|
|
30 - MACHINE SCREW M4X20
HIT-370970.A0
370970
|
-
|
|
|
|
31 - THERMISTER (INSIDE)
HIT-373373.A0
373373
|
-
|
|
|
|
32 - SUPPORT PILLAR
HIT-374217.A0
374217
|
-
|
|
|
|
33 - HOOK
HIT-374216.A0
374216
|
-
|
|
|
|
34 - SUPPORT BRACKET AXIS
HIT-374215.A0
374215
|
-
|
|
|
|
35 - SUPPORT BRACKET
HIT-374214.A0
374214
|
-
|
|
|
|
36 - SUPPORT PILLAR COVER
HIT-374218.A0
374218
|
-
|
|
|
|
37 - SCREW ST3X20BA
HIT-370974.A0
370974
|
-
|
|
|
|
38 - UNDER HINGE SET
HIT-374228.A0
374228
|
-
|
|
|
|
39 - SCREW 3X15 KAS
HIT-370984.A2
370984
|
-
|
|
|
|
40 - MACHINE SCREW M4X12
HIT-370982.A0
370982
|
-
|
|
|
|
41 - SCREW 3X15 KAS
HIT-370984.A1
370984
|
-
|
|
|
|
42 - HINGE COVER
HIT-374229.A0
374229
|
-
|
|
|
|
43 - HASP SET
HIT-374220.A0
374220
|
-
|
|
|
|
44 - BOTTOM CABINET SET
HIT-374222.A0
374222
|
-
|
|
|
|
45 - SCREW ST3X10 PT
HIT-374223.A0
374223
|
-
|
|
|
|
46 - AXIE
HIT-373450.A0
373450
|
-
|
|
|
|
47 - TIRE
HIT-373449.A0
373449
|
-
|
|
|
|
48 - SCREW 3X15 BA
HIT-373451.A0
373451
|
-
|
|
|
|
49 - SCREW ST3X10 PT
HIT-374223.A1
374223
|
-
|
|
|
|
50 - SCREW ST2.6X8
HIT-370990.A0
370990
|
-
|
|
|
|
51 - RUBBER CAP
HIT-370978.A0
370978
|
-
|
|
|
|
52 - PANEL SHEET
HIT-374221.A0
374221
|
-
|
|
|
|
53 - POWER BOX
HIT-373441.A0
373441
|
-
|
|
|
|
54 - PCB SET
HIT-374224.A0
374224
|
-
|
|
|
|
55 - SCREW ST2.6X8 PT
HIT-374233.A0
374233
|
-
|
|
|
|
56 - DC JACK
HIT-370977.A0
370977
|
-
|
|
|
|
57 - SCREW ST3X12 BAS
HIT-374226.A0
374226
|
-
|
|
|
|
58 - NAME PLATE
HIT-000000.A3595
000000
|
-
|
|
|
|
59 - SCREW 3X15 KAS
HIT-370984.A3
370984
|
-
|
|
|
|
60 - DC JACK WATER-PROOF COVER
HIT-370992.A0
370992
|
-
|
|
|
|
61 - BATTERY DOOR RUBBER RING
HIT-373448.A0
373448
|
-
|
|
|
|
62 - BATTERY DOOR SPRING
HIT-374234.A0
374234
|
-
|
|
|
|
63 - SCREW ST3X12 PT
HIT-370958.A0
370958
|
-
|
|
|
|
64 - DOOR LOCK SPRING
HIT-370989.A0
370989
|
-
|
|
|
|
65 - DOOR BRACKET SET
HIT-374230.A0
374230
|
-
|
|
|
|
66 - BATTERY DOOR
HIT-373442.A0
373442
|
-
|
|
|
|
501 - CAR CORD
HIT-374231.A0
374231
|
-
|
|
|
|
502 - STRAP
HIT-370994.A0
370994
|
-
|
|
|
|
503 - HANDLE
HIT-374232.A0
374232
|
-
|
|
|
|
*504 - AC-ADAPTER
HIT-374339.A0
374339
|
-
|
|
|
|
*504 - AC-ADAPTER FOR CHN
HIT-374338.A0
374338
|
-
|
|
|
|
*504 - AC-ADAPTER FOR TPE
HIT-374337.A0
374337
|
-
|
|
|
