Hitachi / Hikoki UC36YSL Charger Spare Parts

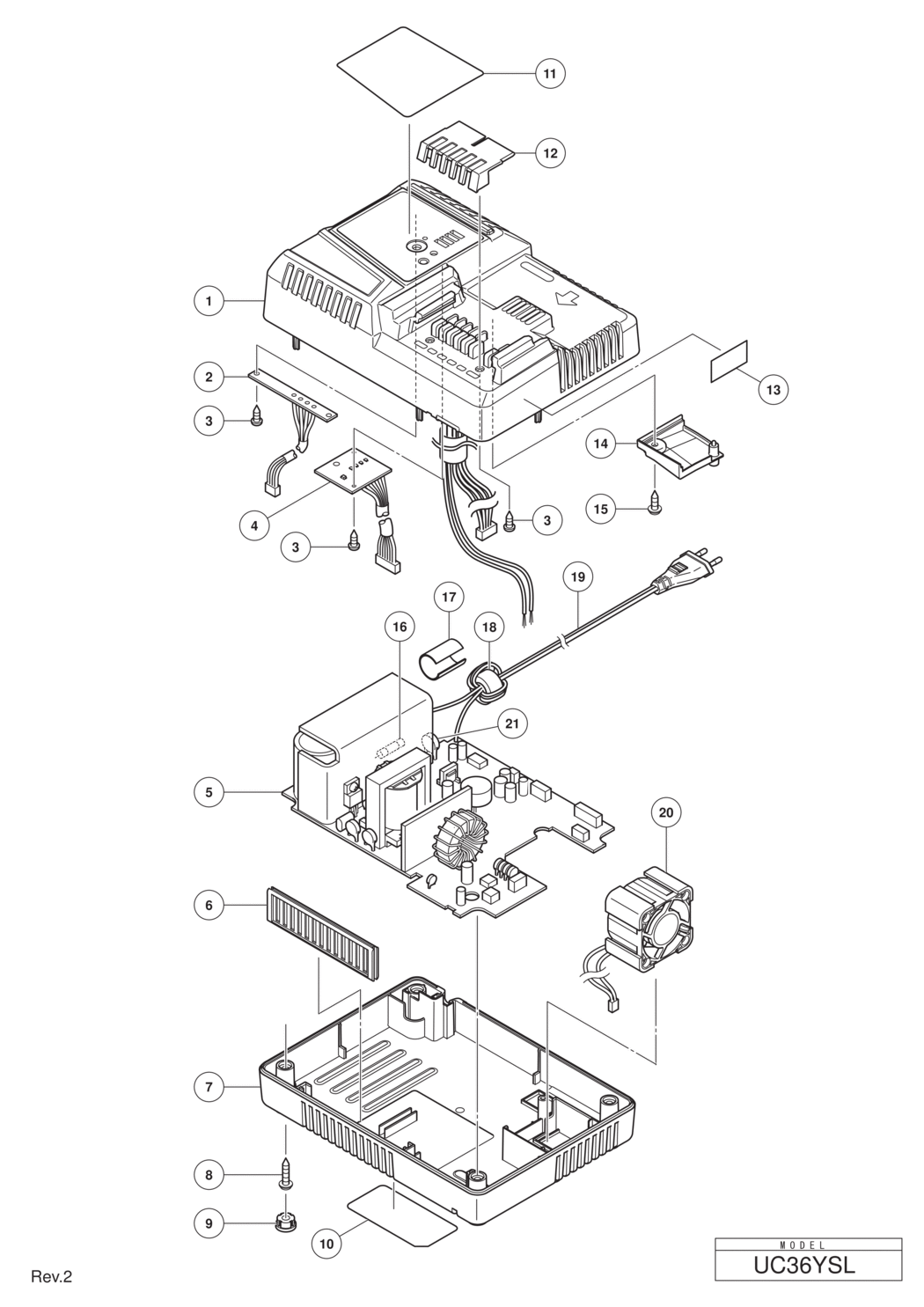

An exploded diagram and spare parts listing for the Hitachi / Hikoki UC36YSL Charger

	Ex VAT	Inc VAT
1 - CASE (A) HIT-370108.A0 370108	-
2 - LED PCB HIT-339271.A0 339271	-
3 - TAPPING SCREW (W/FLANGE) D2X8 (BLACK) HIT-339341.A4 339341	-
4 - SWITCH PCB HIT-370113.A0 370113	-
*5 - PRINTED CIRCUIT BOARD ASS'Y 100V-110V INCLUD.16 HIT-370110.A0 370110	-
*5 - PRINTED CIRCUIT BOARD ASS'Y 120V-127V INCLUD.16 HIT-370111.A0 370111	-
*5 - PRINTED CIRCUIT BOARD ASS'Y 220V-240V INCLUD.16 HIT-370112.A0 370112	-
6 - FILTER HIT-339273.A0 339273	-
7 - CASE (B) HIT-370109.A0 370109	-
8 - TAPPING SCREW (W/FLANGE) D3X18 HIT-326358.A0 326358	-
9 - RUBBER (A) HIT-338717.A1 338717	-
10 - NAME PLATE HIT-000000.A1097 000000	-
11 - BRAND LABEL HIT-370118.A0 370118	-
12 - COVER HIT-338715.A1 338715	-
13 - NAME PLATE HIT-000000.A1098 000000	-
14 - AIR DUCT HIT-370114.A0 370114	-
15 - TP TAPPING SCREW D3X8 HIT-327174.A6 327174	-
16 - FUSE (10A/250V) HIT-370116.A1 370116	-
17 - CUSHION EXCEPT FOR USA HIT-370117.A0 370117	-
18 - FERRITE CORE EXCEPT FOR USA HIT-334379.A9 334379	-
*19 - CORD (EURO) HIT-500511Z.A0 500511Z	-
*19 - CORD (KOREA) FOR KOR HIT-500514Z.A0 500514Z	-
*19 - CORD (U.K) FOR GBR HIT-336596.A2 336596	-
*19 - CORD (CHINA) FOR THAMPHI HIT-336601.A0 336601	-
*19 - CORD (NZ) FOR AUS HIT-500512Z.A0 500512Z	-
*19 - CORD FOR USA HIT-500499Z.A0 500499Z	-
*19 - CORD (BRAZIL) FOR BRA HIT-336600.A1 336600	-
*19 - CORD (TAIWAN) FOR TPE HIT-500515Z.A0 500515Z	-
20 - FAN HIT-370115.A0 370115	-
21 - VARISTOR FOR TPE HIT-370164.A0 370164	-

Attribute Name	Value
Brand	Hikoki
