Hitachi / Hikoki UC18YTSL Charger Spare Parts

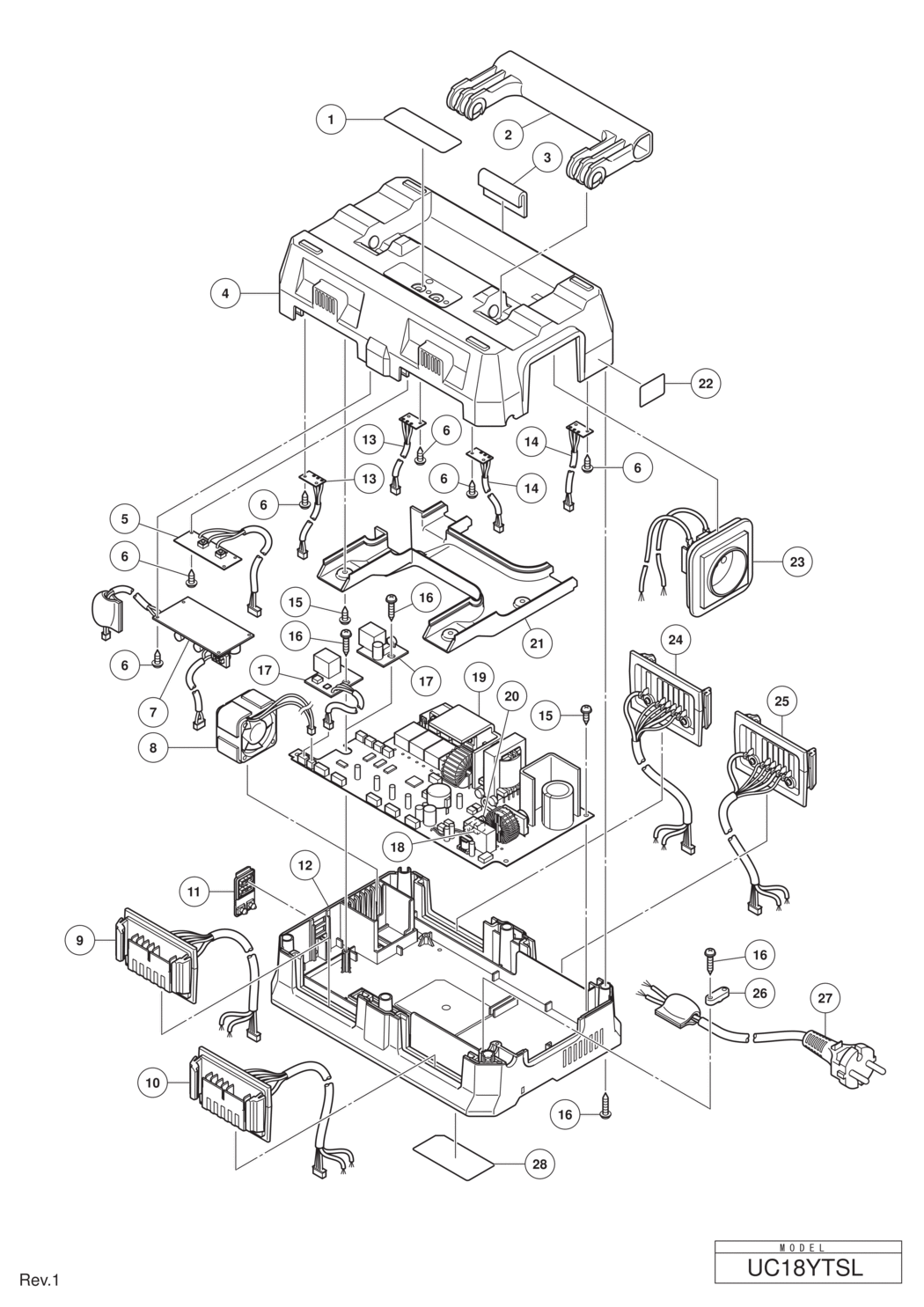

An exploded diagram and spare parts listing for the Hitachi / Hikoki UC18YTSL Charger

	Ex VAT	Inc VAT
*1 - LABEL (B) HIT-375365.A0 375365	-
*1 - LABEL (C) FOR USA HIT-374998.A0 374998	-
2 - HANDLE HIT-374993.A0 374993	-
3 - CUSHION HIT-375576.A0 375576	-
4 - CASE (A) HIT-374970.A0 374970	-
*5 - SWITCH PCB HIT-374979.A0 374979	-
*5 - SWITCH PCB FOR USA HIT-374978.A0 374978	-
*6 - TAPPING SCREW (W/FLANGE) D2X8 (BLACK) HIT-339341.A2 339341	-
*6 - TAPPING SCREW (W/FLANGE) D2X8 (BLACK) FOR USA HIT-339341.A3 339341	-
7 - USB PCB (A) EXCEPT FOR USA HIT-374976.A0 374976	-
8 - FAN HIT-370115.A1 370115	-
9 - TERMINAL HOLDER HIT-374985.A0 374985	-
10 - TERMINAL HOLDER HIT-374984.A0 374984	-
11 - USB CAP HIT-374991.A0 374991	-
12 - CASE (B) HIT-374971.A0 374971	-
13 - LED PCB HIT-374980.A0 374980	-
14 - LED PCB HIT-374981.A0 374981	-
15 - TP TAPPING SCREW D3X8 HIT-327174.A2 327174	-
16 - TAPPING SCREW (W/FLANGE) D3X18 HIT-326358.A16 326358	-
*17 - USB PCB (B) HIT-374977.A0 374977	-
*17 - USB PCB FOR USA HIT-374975.A0 374975	-
*17 - USB PCB (B) FOR AUS HIT-375912.A0 375912	-
18 - FUSE HIT-338726.A1 338726	-
*19 - MAIN PCB ASS'Y (EUROPE AUS ASIA) INCLUD.18 HIT-374974.A0 374974	-
*19 - MAIN PCB ASS'Y (USA) INCLUD.18 HIT-374973.A0 374973	-
*20 - FUSE HIT-374995.A0 374995	-
*20 - FUSE (10A/250V) FOR USA HIT-370116.A0 370116	-
21 - AIR DUCT HIT-374992.A0 374992	-
22 - OUTLET LABEL HIT-000000.A3427 000000	-
*23 - OUTLET (EUROPE IND) HIT-374988.A0 374988	-
*23 - OUTLET (GBR SIN HKG) HIT-374990.A0 374990	-
*23 - OUTLET (AUS) HIT-374989.A0 374989	-
*23 - OUTLET (USA) HIT-374987.A0 374987	-
24 - TERMINAL HOLDER HIT-374982.A0 374982	-
25 - TERMINAL HOLDER HIT-374983.A0 374983	-
26 - CORD CLIP HIT-373311.A1 373311	-
*27 - CORD (EUROPE IND) HIT-500534Z.A0 500534Z	-
*27 - CORD (GBR SIN HKG) HIT-500536Z.A0 500536Z	-
*27 - CORD (AUS) HIT-500535Z.A0 500535Z	-
*27 - CORD (USA) HIT-500533Z.A0 500533Z	-
28 - NAME PLATE HIT-000000.A3428 000000	-

Attribute Name	Value
Brand	Hikoki
