Hitachi / Hikoki UC18YRSL Charger Spare Parts

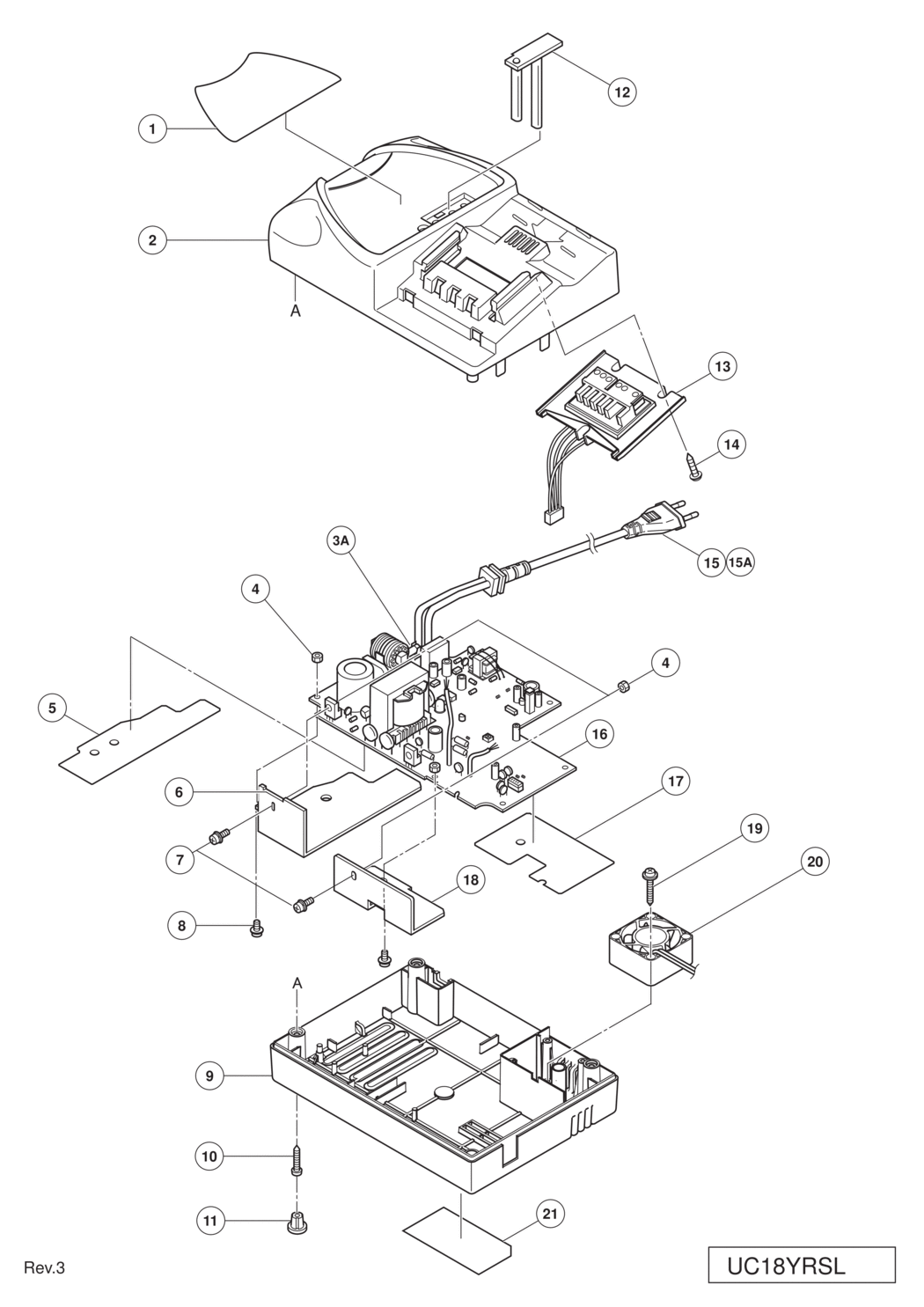

An exploded diagram and spare parts listing for the Hitachi / Hikoki UC18YRSL Charger

	Ex VAT	Inc VAT
1 - BRAND LABEL HIT-329047.A0 329047	-
2 - CASE (A) HIT-329040.A0 329040	-
3A - FUSE (T3.15A/250V) HIT-335779.A2 335779	£1.67	£2.00
4 - NUT M3 (10 PCS.) HIT-949553.A3 949553	£1.67	£2.00
5 - INSULATOR (A) HIT-329045.A1 329045	-
6 - FIN (A) HIT-329043.A0 329043	-
7 - MACHINE SCREW (W/WASHERS) M3X10 HIT-306622.A0 306622	-
8 - MACHINE SCREW (W/WASHERS) M3X12 HIT-993963.A1 993963	£1.67	£2.00
9 - CASE (B) HIT-329041.A1 329041	-
10 - TAPPING SCREW (W/FLANGE) D3X18 HIT-326358.A15 326358	-
11 - CASE RUBBER HIT-327173.A2 327173	-
12 - PRISM HIT-328528.A2 328528	-
13 - TERMINAL HOLDER HIT-328530.A0 328530	-
14 - TP TAPPING SCREW D3X8 HIT-327174.A0 327174	-
*15 - CORD FOR GBR HIT-328636.A2 328636	£13.94	£16.73
15A - CORD FOR EUROPE HIT-337908.A4 337908	-
16 - PRINTED CIRCUIT BOARD ASS'Y HIT-000000.A3421 000000	-
17 - INSULATOR (B) HIT-329046.A0 329046	-
18 - FIN (B) HIT-329044.A0 329044	-
19 - TAPPING SCREW (W/FLANGE) D3X25 HIT-327175.A2 327175	-
20 - FAN HIT-326809.A2 326809	£16.26	£19.51
21 - NAME PLATE HIT-000000.A3423 000000	-

Attribute Name	Value
Brand	Hikoki
