Hitachi / Hikoki UC18YFSL Charger Spare Parts

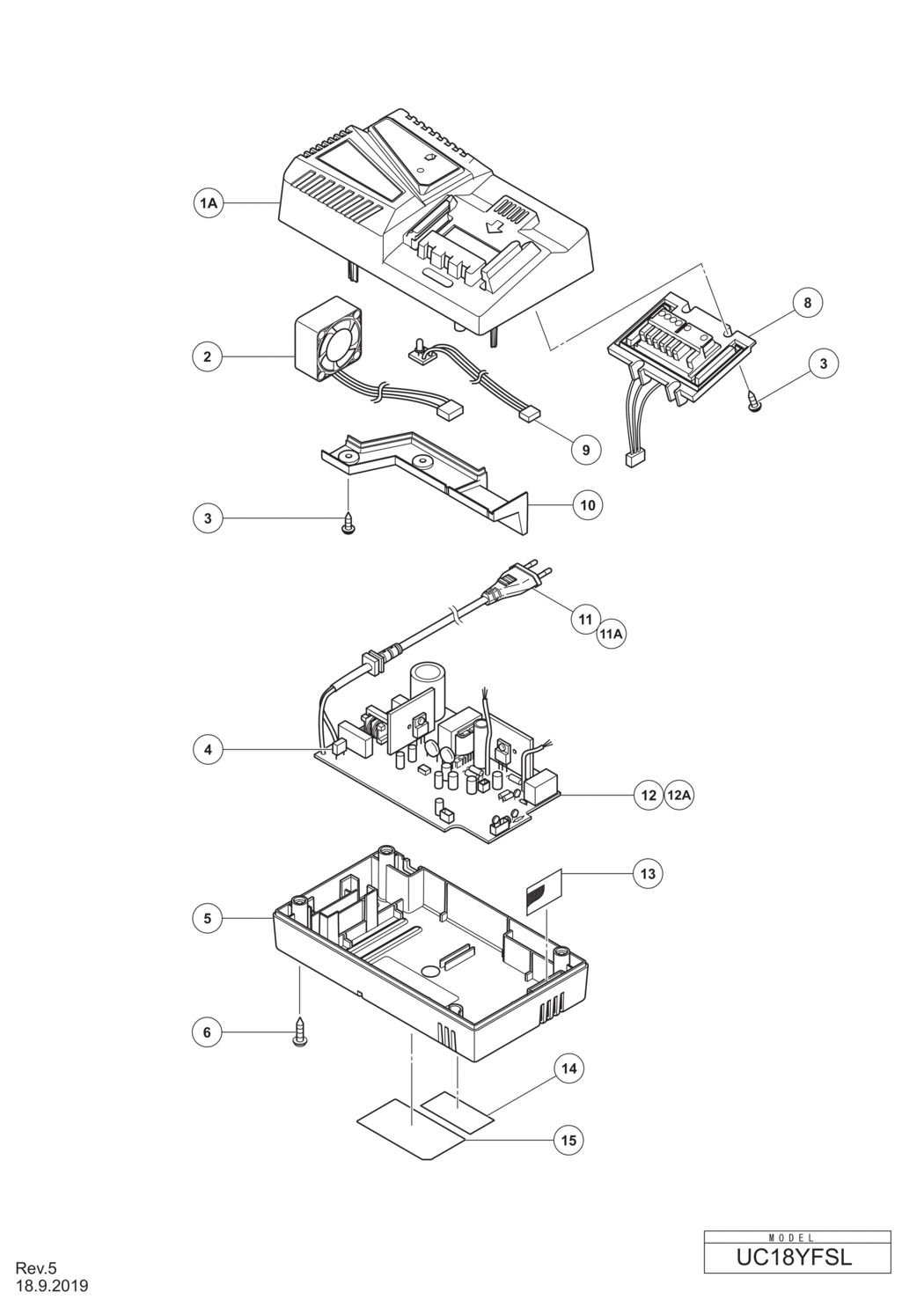

An exploded diagram and spare parts listing for the Hitachi / Hikoki UC18YFSL Charger

	Ex VAT	Inc VAT
*1A - CASE (A) HIT-336269.A0 336269	-
*1A - CASE (A) FOR USA HIT-336269M.A0 336269M	-
2 - FAN HIT-336272.A0 336272	-
3 - TP TAPPING SCREW D3X8 HIT-327174.A8 327174	-
4A - FUSE (3.15A) HIT-329857.A0 329857	-
5 - CASE (B) HIT-336270.A0 336270	-
6 - TAPPING SCREW (W/FLANGE) D3X18 HIT-326358.A5 326358	-
8 - TERMINAL HOLDER HIT-336277.A0 336277	-
9 - LED-PRINTED CIRCUIT BOARD HIT-336276.A0 336276	-
10 - AIR DUCT HIT-336271.A0 336271	-
*11 - CORD FOR GBR HIT-336281.A0 336281	-
*11 - CORD FOR SIN HIT-336283.A0 336283	-
*11 - CORD FOR USA HIT-336280.A0 336280	-
*11 - CORD FOR BRA HIT-336285.A0 336285	-
*11 - CORD FOR CHN HIT-336278.A0 336278	-
11A - CORD FOR AUS HIT-337907.A0 337907	-
11A - CORD (TAIWAN) FOR TPE HIT-500521Z.A0 500521Z	-
*11A - CORD HIT-500524Z.A0 500524Z	-
*12 - PRINTED CIRCUIT BOARD ASS'Y 110V-127V INCLUD.4 FOR USA HIT-336287.A0 336287	-
*12 - PRINTED CIRCUIT BOARD ASS'Y 220V-240V INCLUD.4 HIT-336288.A0 336288	-
12A - PRINTED CIRCUIT BOARD ASS'Y 110V INCLUD.4 FOR TPE HIT-371332.A0 371332	-
13 - FILTER HIT-336275.A0 336275	-
14 - NAME PLATE HIT-000000.A1106 000000	-
14 - FOR USA 1 HIT-000000.A1107 000000	-
15 - NAME PLATE HIT-000000.A1108 000000	-
15 - EXCEPT FOR USA 1 HIT-000000.A1109 000000	-
