Hitachi / Hikoki TRB65EF Engine Blower Spare Parts

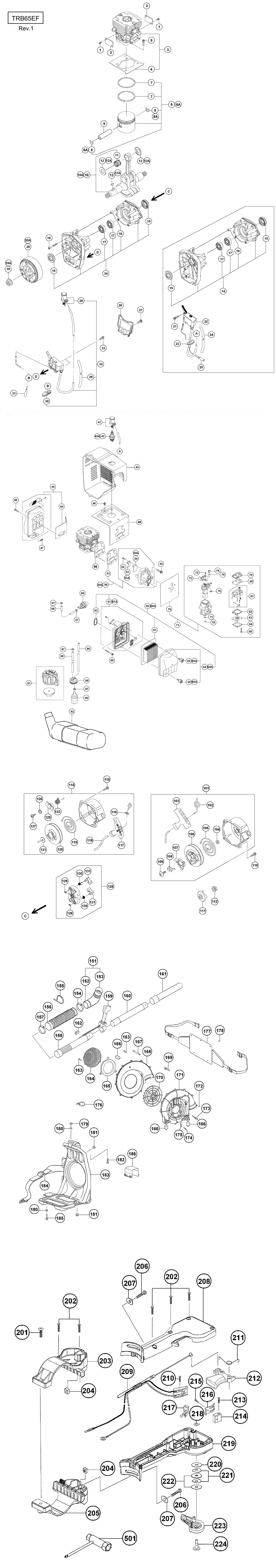

An exploded diagram and spare parts listing for the Hitachi / Hikoki TRB65EF Engine Blower

	Ex VAT	Inc VAT
1 - SCREW 4X8 HIT-6697581.A0 6697581	-
2 - PLATE HIT-6697475.A1 6697475	-
3 - CYLINDER SET INCLUD.4 HIT-6697457.A1 6697457	£285.14	£342.17
4 - CYLINDER GASKET HIT-6697461.A1 6697461	£12.36	£14.83
5 - HEX. HOLE BOLT 5X20 HIT-6695048.A0 6695048	-
6 - PISTON SET INCLUD.7 HIT-6697466.A0 6697466	£126.59	£151.91
6A - PISTON SET INCLUD.7 HIT-6601278.A1 6601278	-
7 - PISTON RING HIT-6697472.A0 6697472	£31.02	£37.23
8 - SNAP RING TILL TL041790 HIT-6697471.A1 6697471	-
8A - SNAP RING SINCE TL041791 HIT-6601230.A1 6601230	-
9 - PISTON PIN HIT-6697470.A0 6697470	-
10 - CRANK SHAFT ASS'Y INCLUD.11 TILL TL041790 HIT-6697474.A0 6697474	-
10A - CRANK SHAFT ASS'Y INCLUD.11 SINCE TL041791 HIT-6601279.A0 6601279	-
11 - NEEDLE BEARING HIT-6697559.A0 6697559	£19.02	£22.83
12 - SPACER TILL TL041790 HIT-6697468.A0 6697468	£4.72	£5.66
12A - SPACER SINCE TL041791 HIT-6601229.A0 6601229	-
13 - WOODRUFF KEY TILL TL041790 HIT-6697479.A1 6697479	-
13A - WOODRUFF KEY SINCE TL041791 HIT-6601237.A0 6601237	-
14 - CRANK CASE ASS'Y INCLUD.15-17 TILL TL041790 HIT-6697480.A0 6697480	-
15 - OIL SEAL (TC17306) HIT-6697587.A0 6697587	£19.02	£22.83
16 - PIN D8X10 HIT-6697586.A1 6697586	-
17 - BALL BEARING 6303-9 HIT-6695573.A0 6695573	-
18 - HEX. HOLE BOLT 5X40 HIT-6695054.A31 6695054	£1.67	£2.00
19 - FLANGE NUT M10 TILL TL041790 HIT-6697569.A0 6697569	-
19A - FLANGE NUT M10 SINCE TL041791 HIT-6601243.A0 6601243	-
20 - FLYWHEEL ROTOR TILL TL041790 HIT-6697488.A0 6697488	-
20A - FLYWHEEL ROTOR SINCE TL041791 HIT-6601232.A1 6601232	-
21 - BOLT (W/W)M4X20 TILL TL041790 HIT-6697580.A1 6697580	-
22 - IGNITION COIL TILL TL041790 HIT-6697491.A1 6697491	£200.67	£240.80
23 - GROMMET TILL TL041790 HIT-6697494.A0 6697494	-
24 - TUBE (6X7.4X300) TILL TL041790 HIT-6697549.A0 6697549	-
25 - LEAD WIRE TILL TL041790 HIT-6697492.A0 6697492	-
26 - COVER SINCE TL041791 HIT-6601231.A0 6601231	-
27 - MACHINE SCREW (W/WASHERS) M5X14 SINCE TL041791 HIT-6601241.A0 6601241	-
28 - PLUG CAP SINCE TL041791 HIT-6601280.A1 6601280	-
29 - TUBE SINCE TL041791 HIT-6601242.A1 6601242	-
30 - GROMMET SINCE TL044421 HIT-6601239.A0 6601239	-
31 - LEAD WIRE SINCE TL041791 HIT-6601236.A1 6601236	-
32 - IGNITION COIL INCLUD.28-30 SINCE TL041791 HIT-6601235.A0 6601235	-
33 - BOLT (W/BOLT WASHER) M4X14 SINCE TL041791 HIT-6601240.A1 6601240	-
34 - CRANK CASE ASS'Y INCLUD.15-17 SINCE TL041791 HIT-6601284.A1 6601284	-
41 - PLUG CAP TILL TL041790 HIT-6697489.A1 6697489	-
42 - SPARK PLUG ASS'Y BPMR7A TILL TL041790 HIT-6699320.A9 6699320	-
42A - SPARK PLUG BPMR7A-9 SINCE TL041791 HIT-6601238.A1 6601238	-
43 - ENGINE COVER(A) HIT-6697552.A1 6697552	-
44 - MUFFLER GASKET HIT-6697551.A0 6697551	-
45 - MUFFLER SET INCLUD.44 HIT-6697550.A1 6697550	-
46 - HEX. HOLE BOLT 6X20 HIT-6695060.A0 6695060	-
47 - PAN HEAD SCREW(W/W)M5X14 HIT-6697582.A1 6697582	-
48 - SCREW 5X10/W HIT-6695433.A1 6695433	-
49 - ENGINE COVER(B) HIT-6697458.A0 6697458	-
50 - INSULATOR SET INCLUD.51-54 TILL TL041790 HIT-6697513.A1 6697513	£49.53	£59.44
50A - INSULATOR SET INCLUD.51 HIT-6601281.A0 6601281	-
51 - INSULATOR GASKET HIT-6697512.A0 6697512	-
52 - TAPPING SCREW D3X12 HIT-6697572.A3 6697572	-
53 - STOPPER TILL TL041790 HIT-6697510.A0 6697510	-
53A - STOPPER SINCE TL041791 HIT-6601246.A0 6601246	-
54 - REED VALVE TILL TL041790 HIT-6697509.A1 6697509	£17.72	£21.27
54A - REED VALVE SINCE TL041791 HIT-6601245.A1 6601245	-
55 - SCREW 5X25 PS HIT-6695394.A4 6695394	-
56 - INSULATOR GASKET HIT-6697512.A1 6697512	-
60 - AIR CLEANER ASS'Y INCLUD.61-65 TL041790 HIT-6697514.A0 6697514	£124.88	£149.85
60A - AIR CLEANER ASS'Y INCLUD.61A HIT-6601282.A1 6601282	-
61 - AIR FILTER TILL TL041790 HIT-6697518.A0 6697518	£50.30	£60.36
61A - AIR FILTER CASE ASS'Y SINCE TL041791 HIT-6601247.A1 6601247	-
62 - O RING(ID31.2) HIT-6697588.A1 6697588	-
63 - AIR FILTER ELEMENT HIT-6697520.A0 6697520	£34.64	£41.57
64 - CLEANER CAP SET INCLUD.65 TILL TL041790 HIT-6697517.A1 6697517	-
64A - CLEANER CAP SET INCLUD.65A SINCE TL041791 HIT-6601283.A0 6601283	-
65 - SPECIAL BOLT M5X18 TILL TL041790 HIT-6697522.A0 6697522	£8.82	£10.58
65A - SPECIAL BOLT M5X18 SINCE TL041791 HIT-6601251.A0 6601251	-
66 - PAN HEAD SCREW(W/W)M5X55 HIT-6697579.A0 6697579	£1.67	£2.00
67 - CLAMP(2) HIT-6697545.A0 6697545	-
68 - TUBE (2.5X5X93) HIT-6697546.A1 6697546	-
69 - PRIMING PUMP HIT-6697521.A1 6697521	-
70 - CARBURETOR GASKET HIT-6697511.A1 6697511	£14.44	£17.33
71 - CARBURETOR SET INCLUD.70 HIT-6697523.A1 6697523	-
72 - THROTTLE SET SCREW HIT-6684870.A44 6684870	-
73 - BRACKET HIT-6697532.A0 6697532	-
74 - SWIVEL HIT-6684697.A129 6684697	-
75 - THRUST WASHER HIT-6684874.A48 6684874	-
76 - STOP RING HIT-6684696.A35 6684696	-
77 - O-RING HIT-6684695.A162 6684695	£1.67	£2.00
78 - MAIN JET #55.5 HIT-6697543.A0 6697543	-
79 - PUMP GASKET HIT-6684692.A98 6684692	£17.28	£20.73
80 - PUMP DIAPHRAGM HIT-6684693.A31 6684693	£5.70	£6.84
81 - PUMP BODY HIT-6697536.A1 6697536	-
82 - DIAPHRAGM PACKING-METERING HIT-6685220.A72 6685220	£2.81	£3.37
83 - METERING DIAPHRAGM HIT-6684690.A107 6684690	£24.05	£28.86
84 - DIAPHRAGM COVER-METERING HIT-6685222.A106 6685222	£5.70	£6.84
85 - SET SCREW HIT-6691312.A58 6691312	-
86 - FUEL PIPE 1 HIT-6697547.A0 6697547	-
87 - CLAMP(1) HIT-6697519.A1 6697519	-
88 - TUBE (3X6X160) HIT-6697548.A1 6697548	-
89 - FUEL TANK GROMMET HIT-6697530.A1 6697530	-
90 - FUEL TANK FILTER HIT-6697544.A1 6697544	-
91 - TANK CAP HIT-6697541.A0 6697541	-
*92 - FUEL TANK FOR GBR HIT-6697539.A0 6697539	-
*92 - FUEL TANK(EVAPO) FOR USA HIT-6697540.A0 6697540	-
101 - RECOIL STARTER ASS'Y INCLUD.102-109 TILL TL041790 HIT-6697553.A0 6697553	£181.68	£218.02
102 - ROPE (3.5X1000) TILL TL041790 HIT-6697556.A1 6697556	-
103 - STARTER GRIP TILL TL041790 HIT-6697557.A0 6697557	-
104 - FRICTING SPRING TILL TL041790 HIT-6697561.A0 6697561	-
105 - RECOIL SPRING TILL TL041790 HIT-6697555.A0 6697555	£40.69	£48.83
106 - REEL TILL TL041790 HIT-6697554.A1 6697554	-
107 - PAWL TILL TL041790 HIT-6697562.A1 6697562	£8.72	£10.47
108 - RETAINER TILL TL041790 HIT-6697560.A1 6697560	-
109 - SET SCREW TILL TL041790 HIT-6697563.A0 6697563	-
110 - MACHINE SCREW M4X16 HIT-6697578.A1 6697578	-
111 - STARTING PULLEY TILL TL041790 HIT-6697558.A1 6697558	-
112 - NUT(W/W) M8 TILL TL041790 HIT-6697584.A1 6697584	-
115 - RECOIL STARTER ASS'Y INCLUD.116-122 HIT-6601258.A0 6601258	-
116 - PLATE SINCE TL041791 HIT-6601253.A0 6601253	-
117 - STARTER GRIP SINCE TL041791 HIT-6601256.A0 6601256	-
118 - ROPE SINCE TL041791 HIT-6601260.A0 6601260	-
119 - RECOIL SPRING SINCE TL041791 HIT-6601263.A1 6601263	-
120 - REEL SINCE TL041791 HIT-6601259.A1 6601259	-
121 - WASHER (A) SINCE TL041791 HIT-6601267.A1 6601267	-
122 - COIL SPRING SINCE TL041791 HIT-6601264.A0 6601264	-
125 - RETAINER SINCE TL041791 HIT-6601254.A1 6601254	-
126 - WASHER (B) SINCE TL041791 HIT-6601261.A1 6601261	-
127 - SET SCREW SINCE TL041791 HIT-6601266.A0 6601266	-
128 - STARTING PULLEY ASS'Y INCLUD.129-131 SINCE TL041791 HIT-6601257.A1 6601257	-
129 - SNAP RING SINCE TL041791 HIT-6601262.A0 6601262	-
130 - SPRING SINCE TL041791 HIT-6601265.A1 6601265	-
131 - PAWL SINCE TL041791 HIT-6601252.A1 6601252	-
151 - ELBOW PIPE ASS'Y INCLUD.152 HIT-6697505.A1 6697505	-
152 - ELBOW PIPE HIT-6697504.A0 6697504	-
153 - O-RING G-95 HIT-6695687.A4 6695687	-
154 - PIPE BAND (A)NO.56 HIT-6697503.A1 6697503	-
155 - WIRE BAND(A) HIT-6697485.A1 6697485	-
156 - FLEXIBLE PIPE HIT-6697482.A0 6697482	£131.18	£157.42
157 - PIPE BAND (B)NO.52 HIT-6697481.A1 6697481	-
158 - SWIVEL PIPE HIT-6697483.A1 6697483	£113.32	£135.98
159 - THROTTLE LEVER HIT-6697566.A1 6697566	-
160 - MIDDLE PIPE HIT-6697484.A0 6697484	-
161 - STRAIGHT PIPE HIT-6697507.A1 6697507	-
162 - FERRITE CORE FOR GBR HIT-6697495.A1 6697495	-
163 - TAPPING SCREW 5X20 HIT-6695255.A11 6695255	-
164 - FAN COVER HIT-6697476.A0 6697476	-
165 - COVER HIT-6697477.A1 6697477	-
166 - VIBRO-ISOLATING RUBBER HIT-6697467.A1 6697467	-
167 - HEX. HOLE BOLT M6X65 HIT-6695067.A0 6695067	£1.67	£2.00
168 - FAN CASE(S) HIT-6697459.A1 6697459	-
169 - HEX SOCKET BOLT(W/W)(SUS) HIT-6697585.A0 6697585	-
170 - FAN HIT-6697487.A1 6697487	-
171 - FAN CASE(E) HIT-6697460.A0 6697460	-
172 - NYLON LOCK NUT 6 HIT-6695164.A5 6695164	-
173 - HEX. HOLE BOLT 6X30 HIT-6695063.A1 6695063	-
174 - TAPPING SCREW D5X8 HIT-6697575.A0 6697575	-
175 - CLIP HIT-6697493.A1 6697493	-
176 - WIRE BAND(B) HIT-6697486.A0 6697486	-
177 - KNAPSACK PAD HIT-6697463.A1 6697463	-
178 - CLIP HIT-6697469.A1 6697469	-
179 - NYLON LOCK NUT 6 HIT-6695164.A6 6695164	-
180 - WASHER D6 HIT-6697465.A1 6697465	-
181 - NUT(W/W)M6 HIT-6697583.A0 6697583	-
182 - TRUSS SCREW 6X16 HIT-6694961.A2 6694961	-
183 - KNAPSACK FRAME HIT-6697462.A0 6697462	-
184 - SHOULDER BAND HIT-6697464.A0 6697464	£113.62	£136.35
185 - MACHINE SCREW(W/SW)M6X25 HIT-6697577.A0 6697577	-
186 - TANK BAND HIT-6697542.A1 6697542	-
201 - TAPPING SCREW D5X25 HIT-6697576.A1 6697576	-
202 - TAPPING SCREW 4X20 HIT-6697574.A1 6697574	-
203 - BAND (R) HIT-6697516.A0 6697516	£26.62	£31.95
204 - SQUARE NUT M6 HIT-6697570.A1 6697570	£1.67	£2.00
205 - BAND (L) HIT-6697515.A1 6697515	£30.19	£36.23
206 - MACHINE SCREW M6X20 HIT-6697568.A1 6697568	£2.77	£3.32
207 - PLAIN WASHER HIT-6697499.A1 6697499	£5.61	£6.73
208 - LEVER HOLDER(R) HIT-6697497.A1 6697497	-
209 - THROTTLE WIRE HIT-6697567.A0 6697567	£102.22	£122.67
210 - TAPPING SCREW D3X12 HIT-6697572.A2 6697572	-
211 - SPRING HIT-6697478.A0 6697478	-
212 - LEVER HIT-6697502.A0 6697502	£10.10	£12.12
213 - TAPPING SCREW D3X14 HIT-6697573.A0 6697573	-
214 - SWITCH STAY HIT-6697490.A0 6697490	-
215 - TAPPING SCREW D3X8 HIT-6697571.A0 6697571	-
216 - LEAF SPRING HIT-6697500.A0 6697500	-
217 - STOPPER HIT-6697506.A0 6697506	-
218 - SNAP RING HIT-6697473.A1 6697473	£2.94	£3.53
219 - LEVER HOLDER(L) HIT-6697501.A1 6697501	£27.97	£33.56
220 - PLAIN WASHER(2) HIT-6697528.A0 6697528	£2.77	£3.32
221 - ADJUST WASHER HIT-6697564.A1 6697564	£6.32	£7.59
222 - PLAIN WASHER(1) HIT-6697496.A0 6697496	£2.77	£3.32
223 - LOCK LEVER HIT-6697498.A0 6697498	£9.27	£11.12
224 - SHAFT HIT-6697508.A0 6697508	£7.75	£9.30
501 - COMBINED BOX WRENCH(17X19) HIT-6697565.A0 6697565	-
